Description

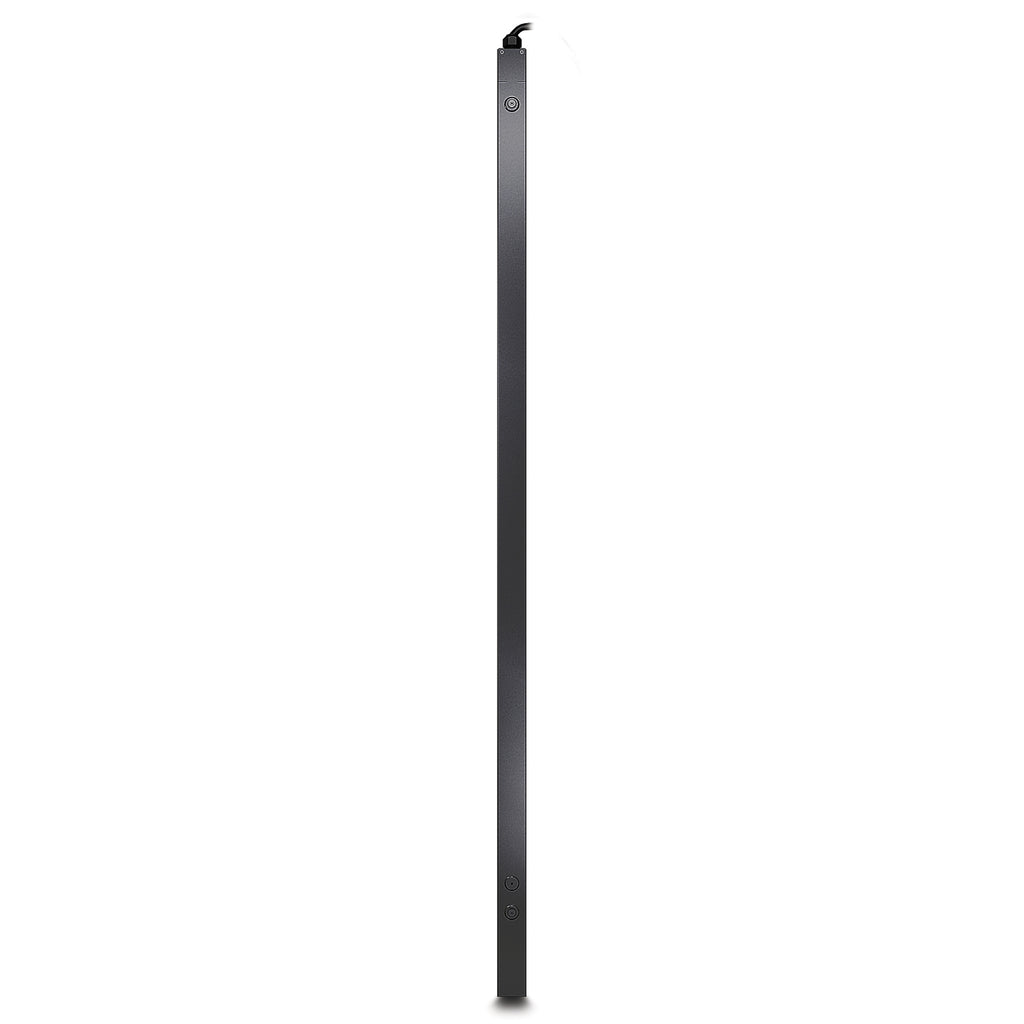

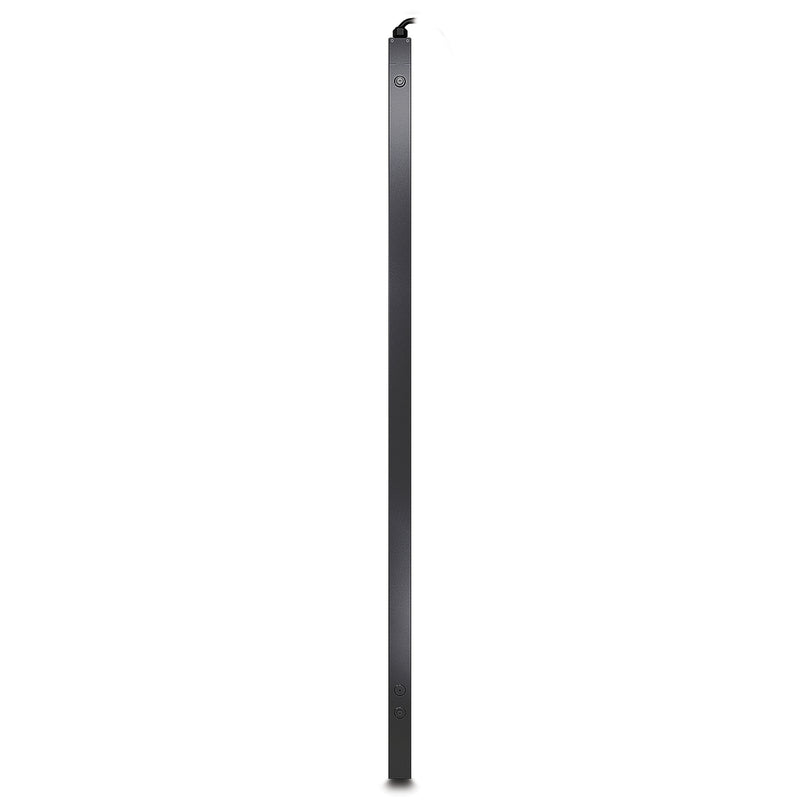

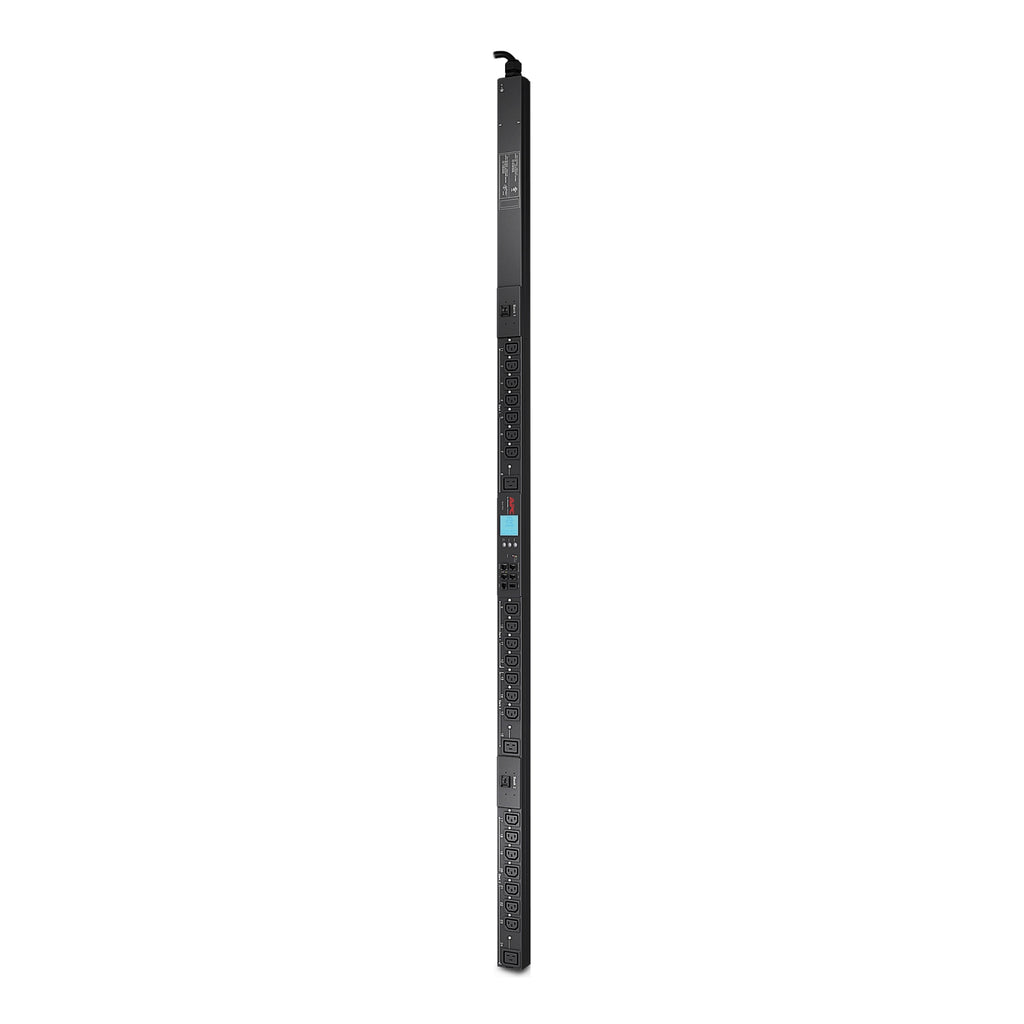

Ensure reliable power distribution and intelligent outlet control with the APC Rack PDU 2G Switched AP8941. Designed for high-performance data centers, this 30A, 200/208V vertical PDU provides (21) C13 and (3) C19 outlets with real-time remote monitoring, user-defined alarms, and advanced load management. Occupying 0U rack space, it easily integrates into APC NetShelter enclosures without additional tools. Features include outlet-level switching, sequencing, energy metering (kWh), environmental monitoring support (sensor sold separately), and an intuitive LCD interface. Note: This model is being discontinued – recommended replacement is APDU9941.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8941 |
| PDU Type | Switched |

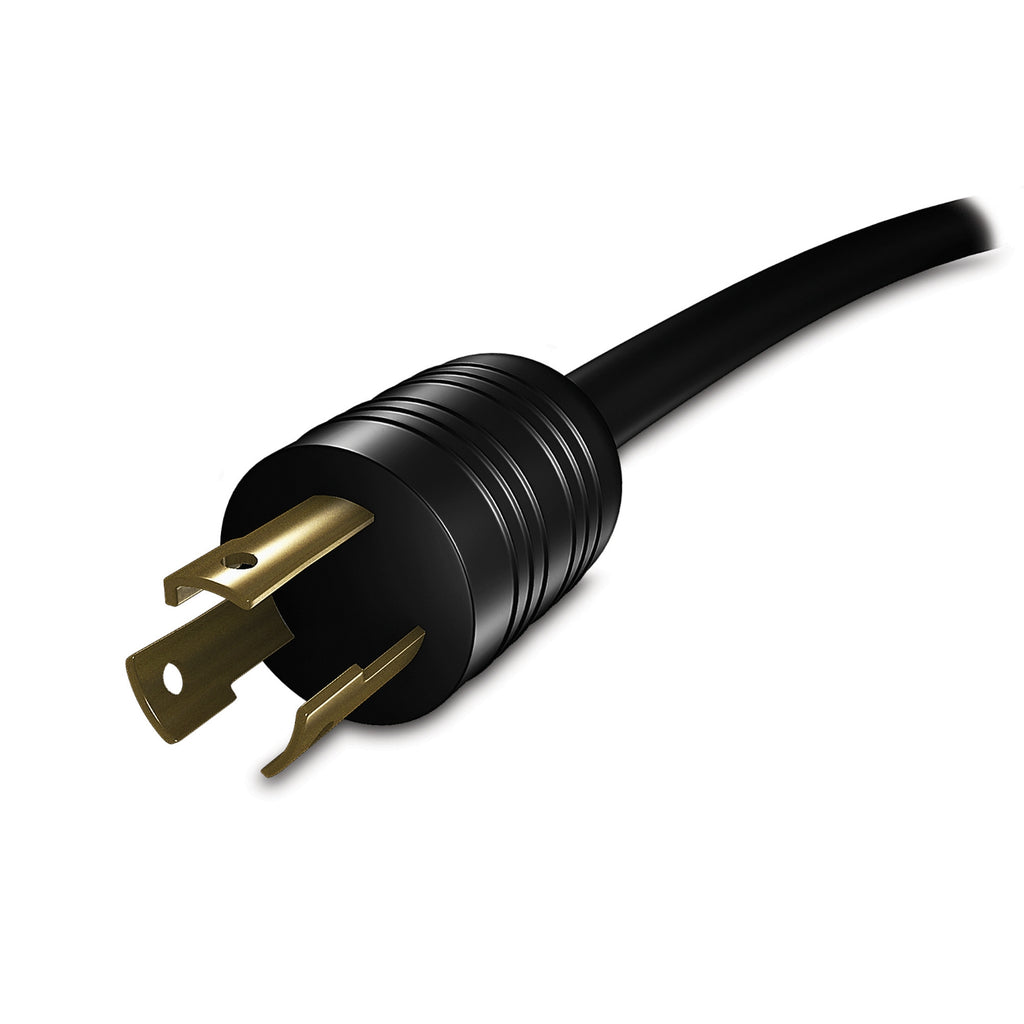

| Input Plug Type | NEMA L6-30P |
| Input Voltage | 200V / 208V / 230V |
| Input Frequency | 50/60 Hz |
| Maximum Current | 30A |
| Load Capacity | 4992 VA |
| Outlet Configuration | (21) IEC C13, (3) IEC C19 |
| Mounting Style | Vertical, 0U, Side-mountable |
| Cord Length | 10 ft (3.05 m) |
| Display Interface | Local LCD for current, voltage, and power readings |
| Network Management | Web, SNMP, CLI via Ethernet |
| Environmental Ports | Supports AP9335T / AP9335TH sensors (sold separately) |
| Certifications | UL Listed, cUL, PSE, VCCI Class A |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Warranty | 2-Year Repair or Replace |
| Product Dimensions | 72.01 x 2.20 x 1.81 in (H x W x D) |
| Net Weight | 16.84 lb (7.64 kg) |
| Package Dimensions | 80.31 x 4.88 x 6.50 in |
| Package Weight | 22.05 lb (10 kg) |
| GTIN | 731304277088 |
| Included Accessories | Rack Mount Brackets, Serial Config Cable, Guides |
