Description

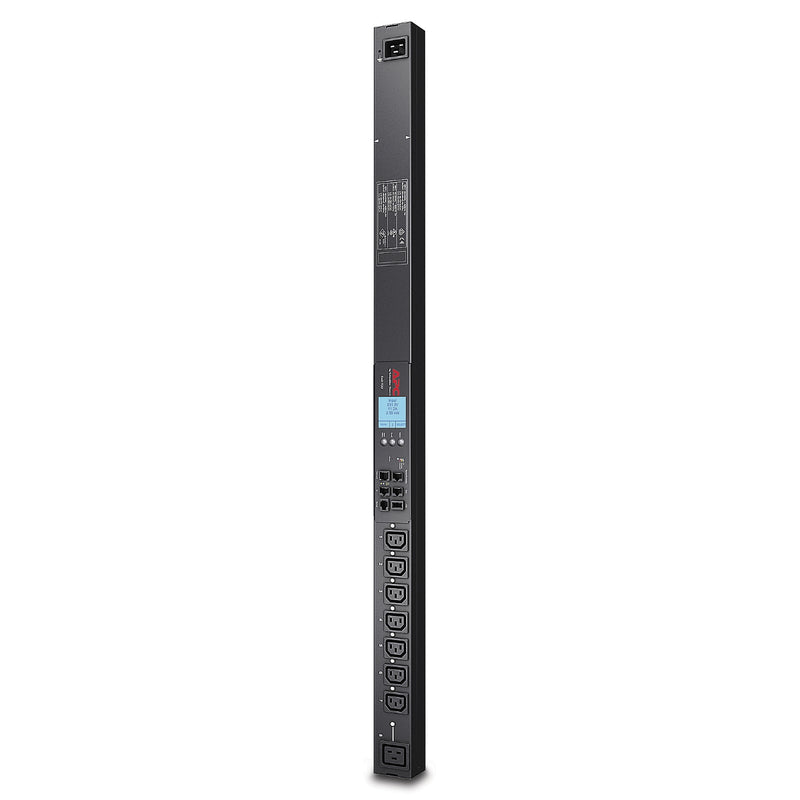

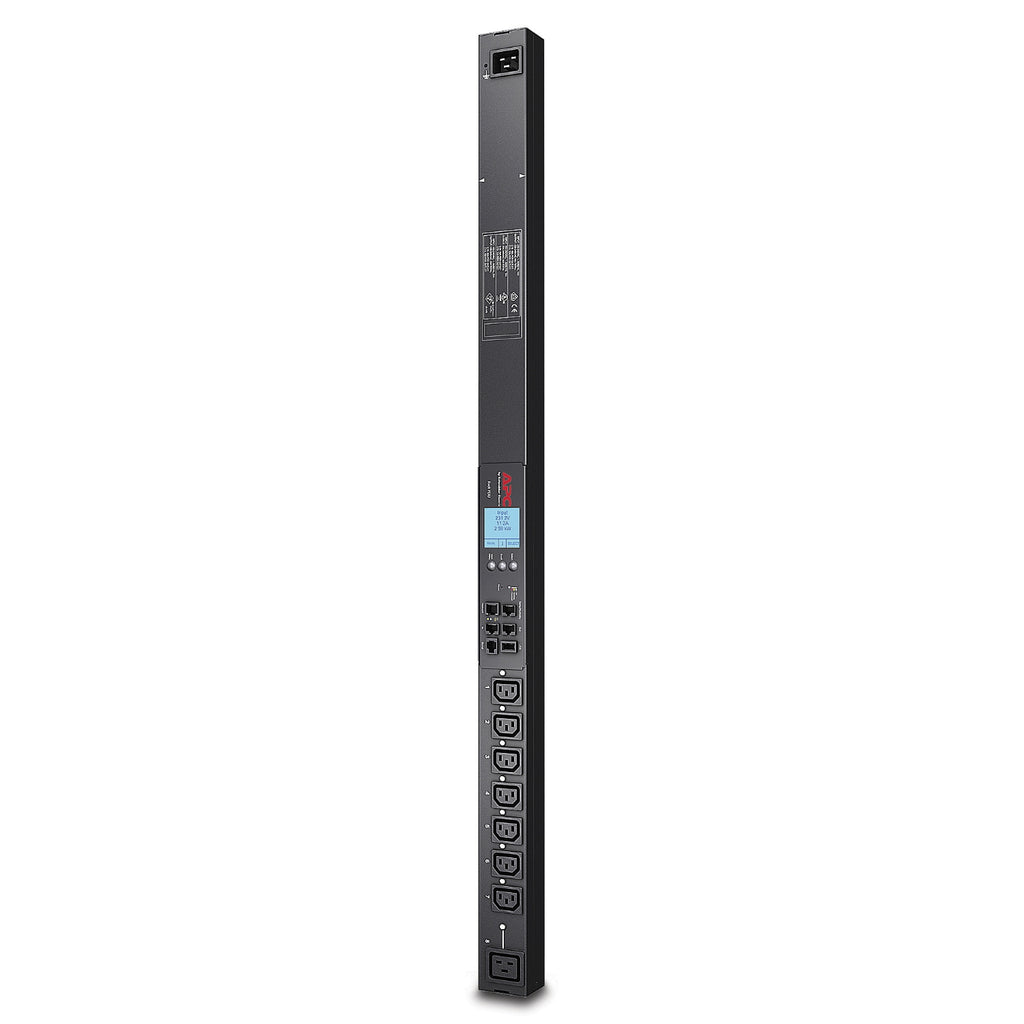

The APC AP8958EU3 is a 2nd Generation Switched Rack PDU designed for intelligent power distribution in high-density IT environments. Featuring (7) IEC C13 and (1) IEC C19 outlets, it offers advanced load monitoring, remote outlet control, and energy-efficient operation. The 16A, 230V ZeroU vertical design with a 3-meter IEC 60309 power cord maximizes rack space and provides secure, user-configurable access via Web, SNMP, or Telnet. Built for reliability and sustainability, this PDU supports remote reboot, sequencing, and threshold-based alarms to prevent overloads and maintain uptime.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8958EU3 |
| PDU Type | Switched |
| Rack Units | 0U (Vertical Mount) |
| Mounting Mode | Rack-mounted |

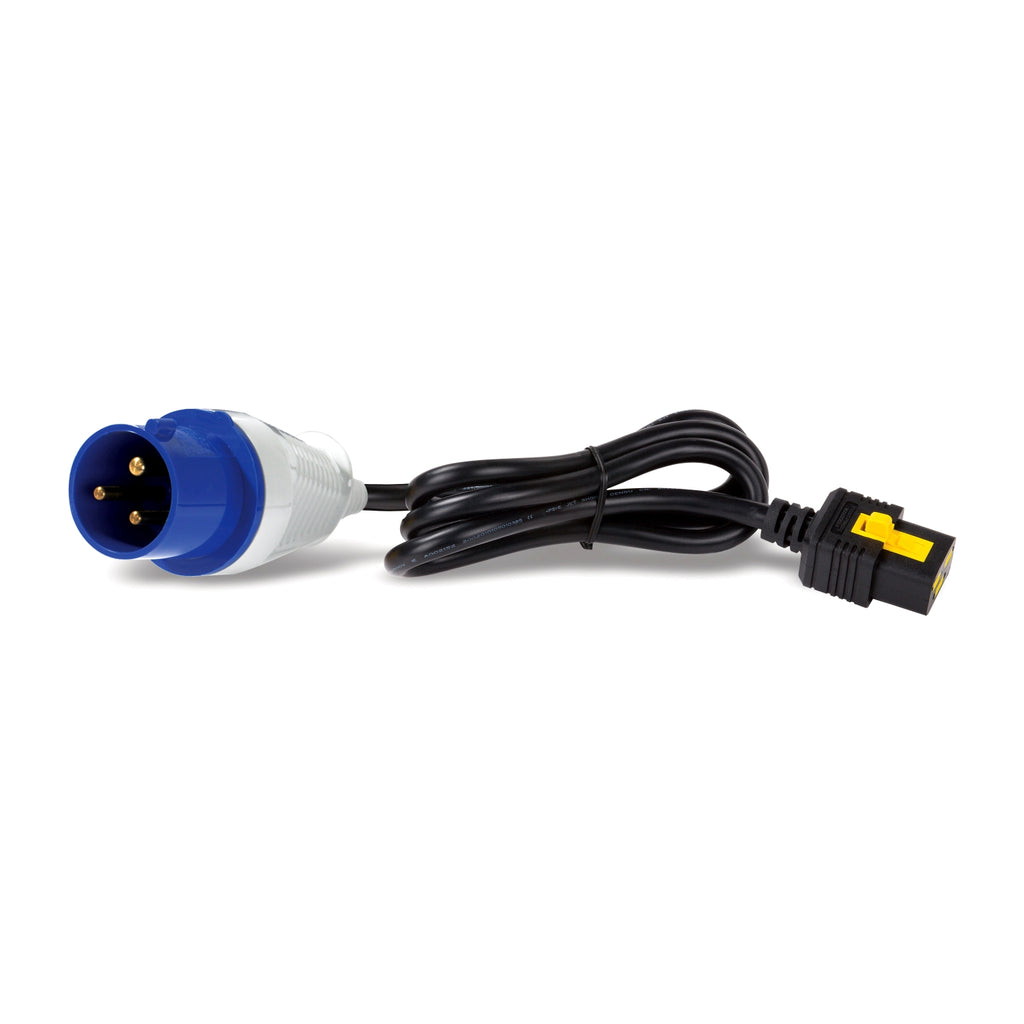

| Input Plug Type | IEC 60309 16A 2P+E |
| Cord Length | 3.0 meters |
| Max Input Current | 16A |
| Input Voltage Range | 200V / 208V / 230V |
| Output Voltage | 200V / 208V / 230V |
| Load Capacity | 3700 VA |
| Outlet Quantity & Type | (7) IEC C13, (1) IEC C19 |
| Dimensions (HxWxD) | 98.8 x 5.6 x 4.6 cm |
| Weight | 3.23 kg |
| Mounting Preference | No preference |
| Network Interfaces | Web, SNMP, Telnet |
| Certifications | UL, cUL, VDE, PSE, VCCI Class A |
| Operating Temp. Range | -5 to 60 Ā°C |
| Humidity Range | 5% to 95% (operating and storage) |
| Altitude (max operating) | 10,000 ft |
| Included Accessories | Installation guide, power cord, brackets, serial config cable, safety guide |
| Warranty | 2 years (repair or replace) |
