Description

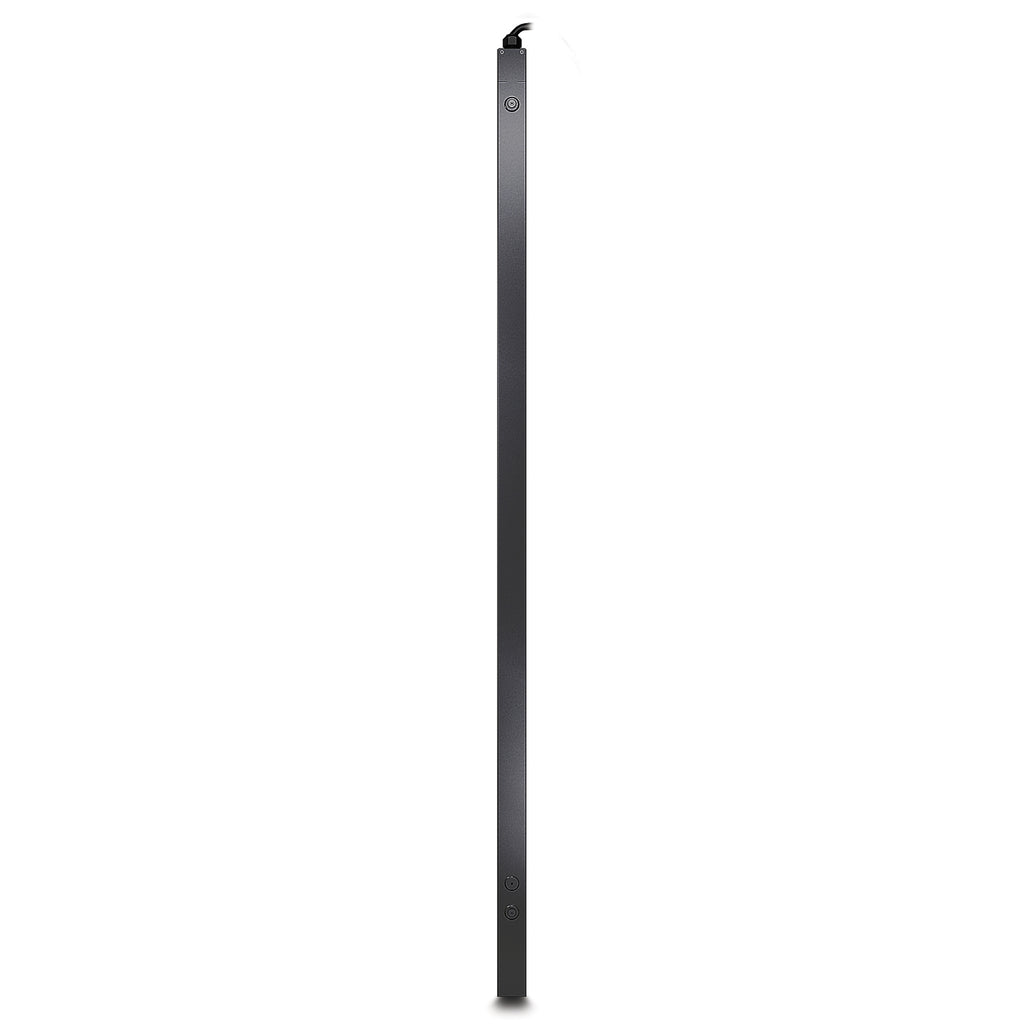

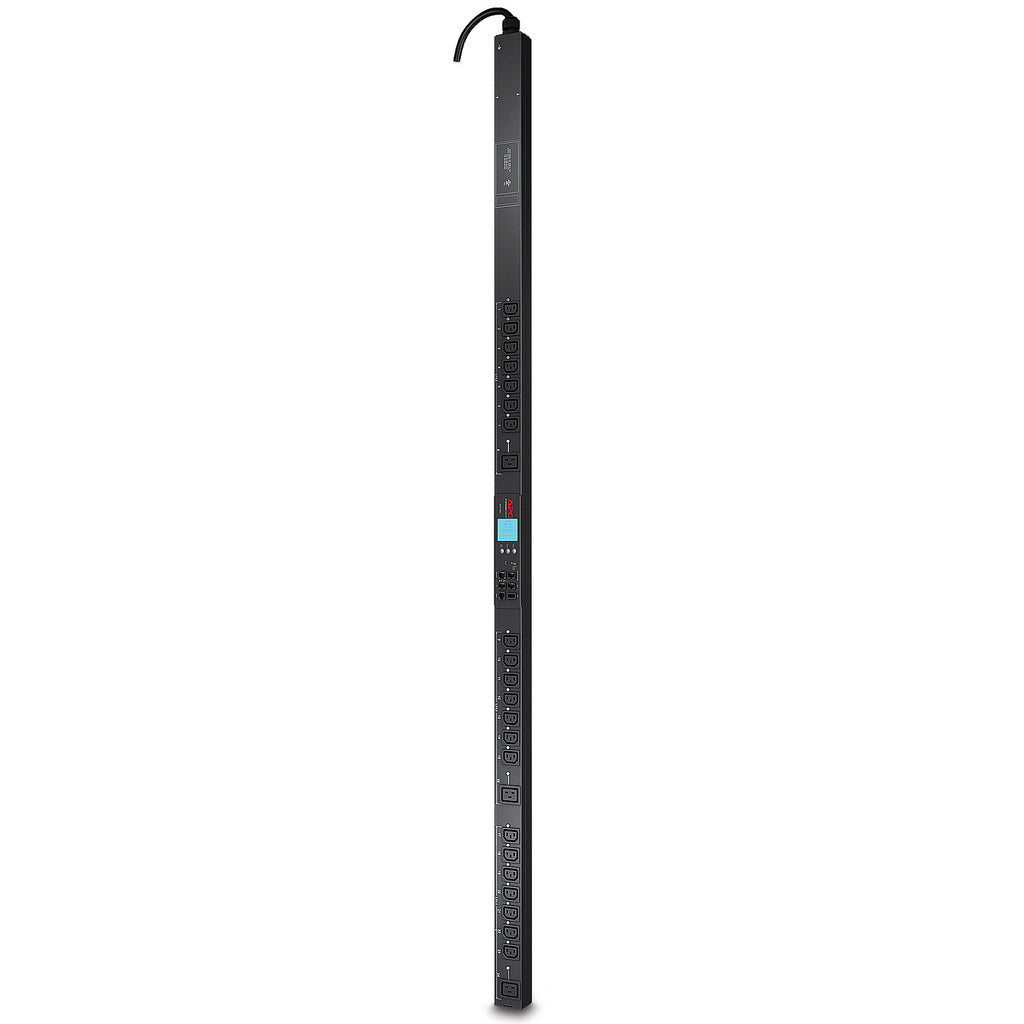

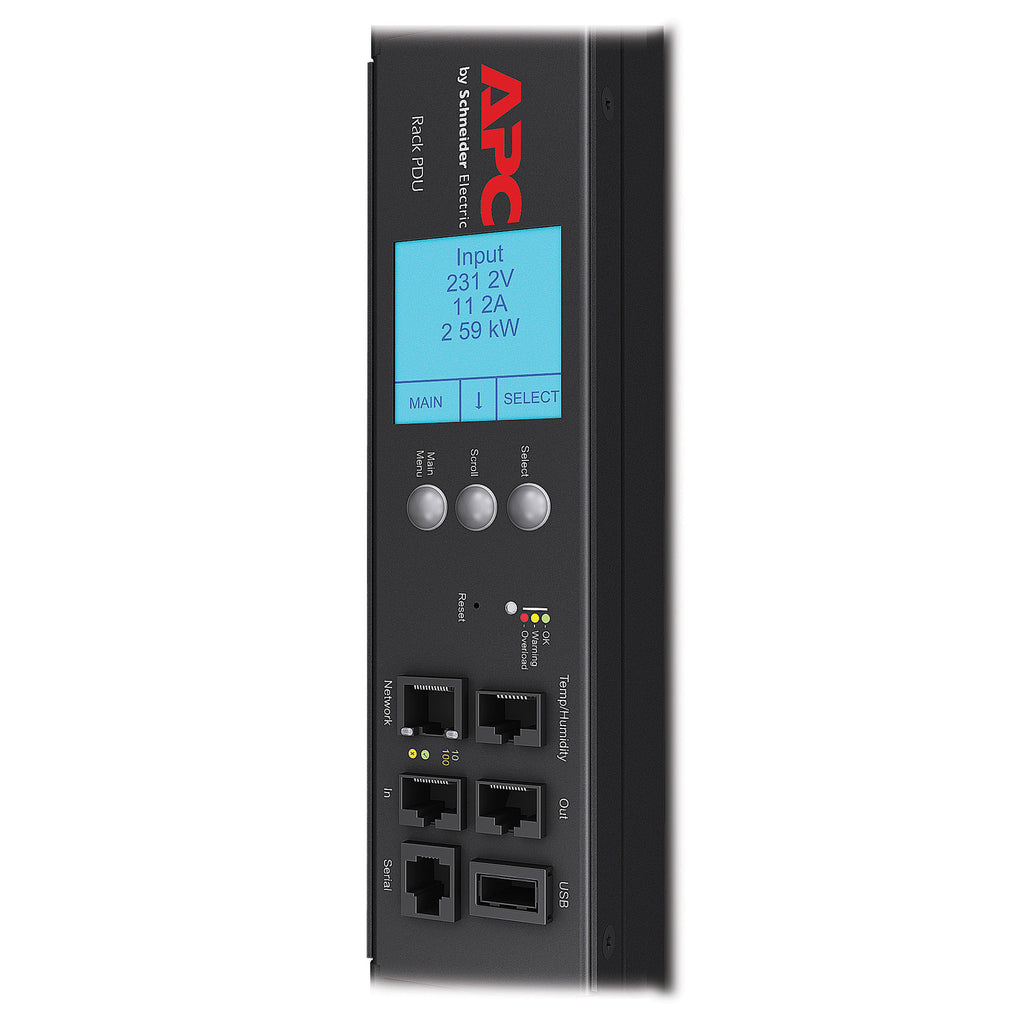

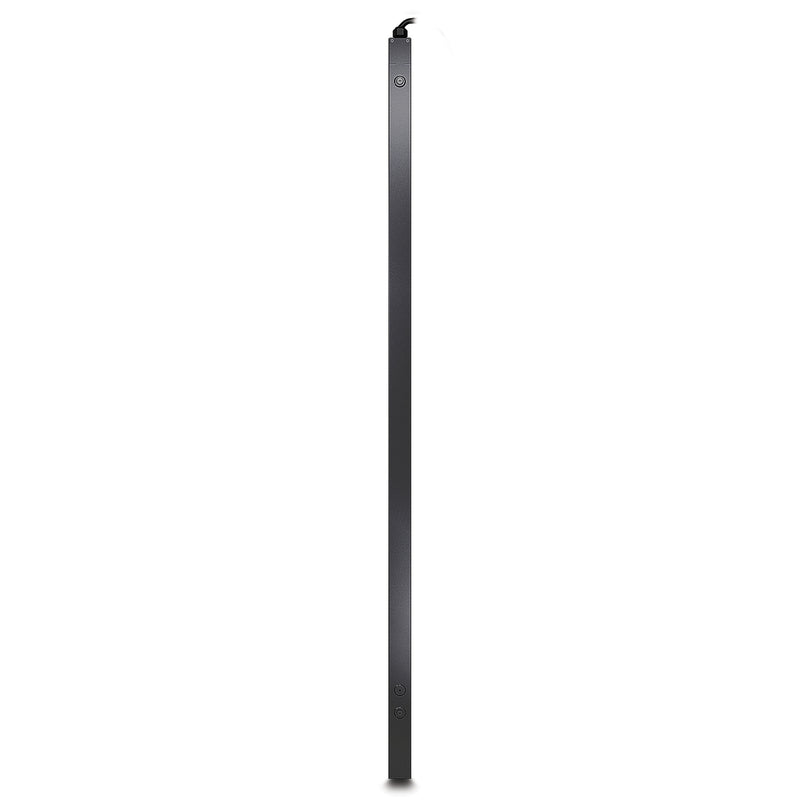

Deliver intelligent power distribution and control to your rack with the APC Switched Rack PDU AP8981. Featuring 24 outlets and an 11kW load capacity, this 0U vertical unit provides remote, per-outlet switching and real-time load monitoring. Designed for enterprise data centers, it offers secure remote access through Web, SNMP, Telnet, or CLI interfaces. Integrated features include sequential outlet startup/shutdown, current metering with user-defined alarms, and a temperature/humidity sensor port. Locking IEC receptacles and a digital display help prevent accidental disconnects and overloads.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8981 |
| PDU Type | Switched Rack PDU |
| Rack Units | 0U (Vertical Mount) |
| Outlet Configuration | 21 × IEC C13, 3 × IEC C19 |

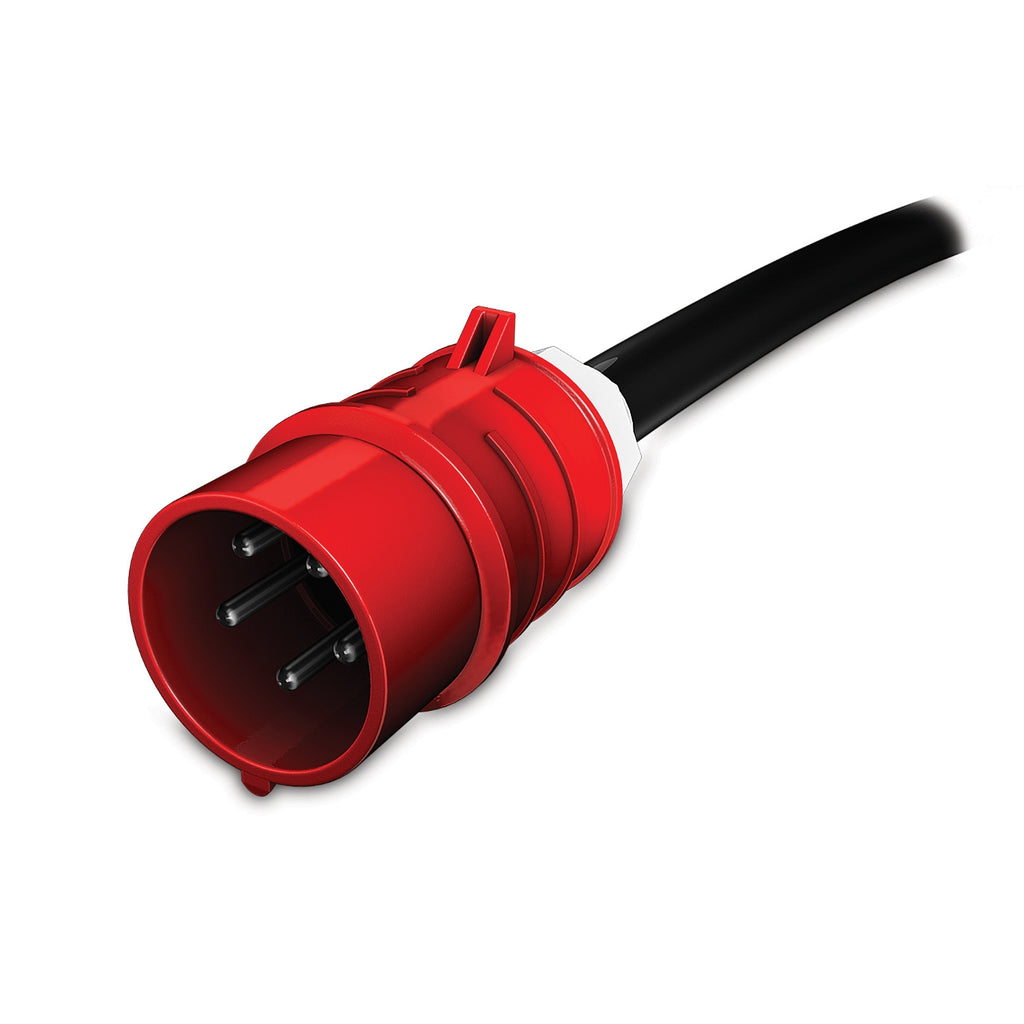

| Input Plug Type | IEC 60309 16A/20A 3P+N+PE |
| Input Voltage | 400V 3-phase |
| Output Voltage | 208V / 230V |
| Maximum Load | 11,000 VA (11kW) |
| Cord Length | 6 ft (1.8 m) |
| Current Capacity | 16A |
| Monitoring | Current metering, user-defined alarms |
| Remote Management | Web, SNMP, Telnet, CLI |
| Additional Features | Temperature/humidity sensor port, locking IEC outlets, sequencing, digital display |
| Operating Temp | -5°C to 60°C (23°F to 140°F) |
| Humidity Tolerance | 5%–95% non-condensing |
| Certifications | UL Listed, cUL, VDE, EN/FCC compliance |
| Dimensions (HxWxD) | 70.51 × 2.20 × 1.81 in (179.1 × 5.6 × 4.6 cm) |
| Weight | 15.4 lb (7 kg) |
| Warranty | 2-Year Repair or Replace |
