Description

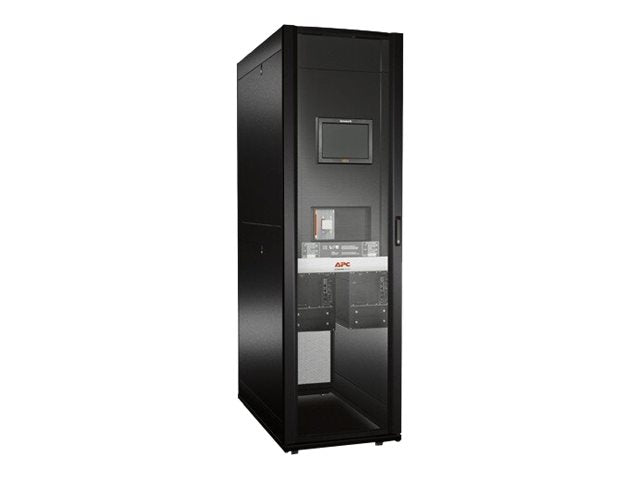

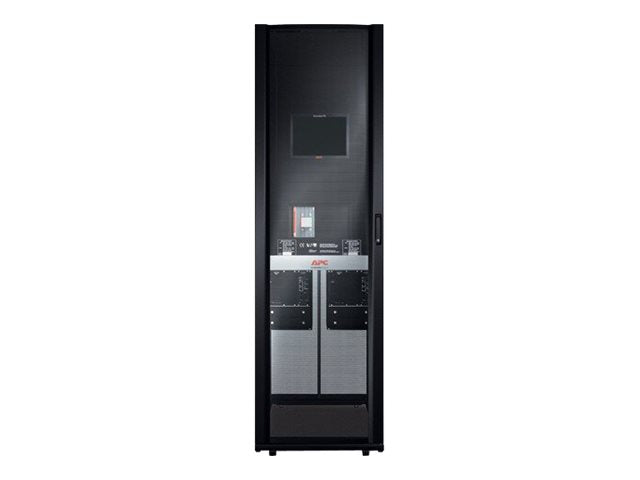

The APC Symmetra PX 250/500kW IO Frame is a high-capacity power distribution cabinet designed to support 3-phase, 480V AC environments in large-scale data centers and mission-critical facilities. With a power capacity of up to 500 kW / 500,000 VA, this IO frame provides robust, scalable, and efficient power distribution with two hardwire output connectors and integrated remote management capabilities. Featuring SmartSlot expansion, a touch-screen LCD, and industry-standard certifications, it ensures safe, reliable, and centralized power delivery for the Symmetra PX UPS ecosystem.
| Specification | Details |
|---|---|
| Model | SYIOF500KD |
| Brand | APC by Schneider Electric |
| Product Type | Power Distribution Cabinet |
| Form Factor | External |
| Power Capacity | 500 kW / 500,000 VA |
| Input Voltage | AC 480 V (Range: 408 – 552 V) |
| Input Wiring | 3-Phase |
| Input Connectors | 1 x Hardwire 4-wire (3PH + G) |
| 1 x Hardwire 5-wire (3PH + N + G) | |
| Output Connectors | 1 x Hardwire 4-wire (3PH + G) |
| 1 x Hardwire 5-wire (3PH + N + G) | |
| Expansion Slots | 3 x SmartSlot (all free) |
| Remote Management | SNMP, HTTP |
| Display | Touch-screen LCD |
| Color | Black |
| Certifications | UL, cUL, UL 1778, FCC Class A/Part 15/68, |
| IEC 62040-1-1, EN 50091-2, CSA C22.2, IP20 | |
| Warranty | 1-Year Limited Warranty |
