Description

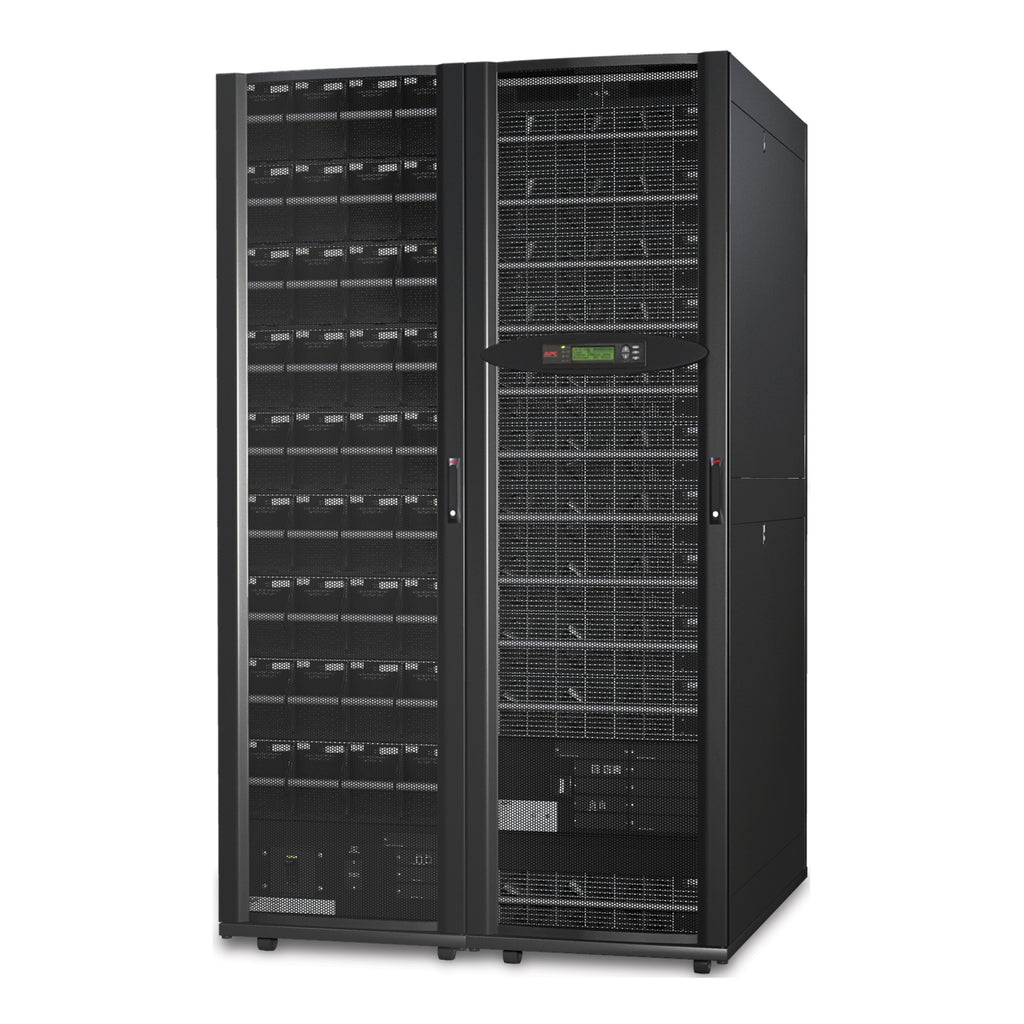

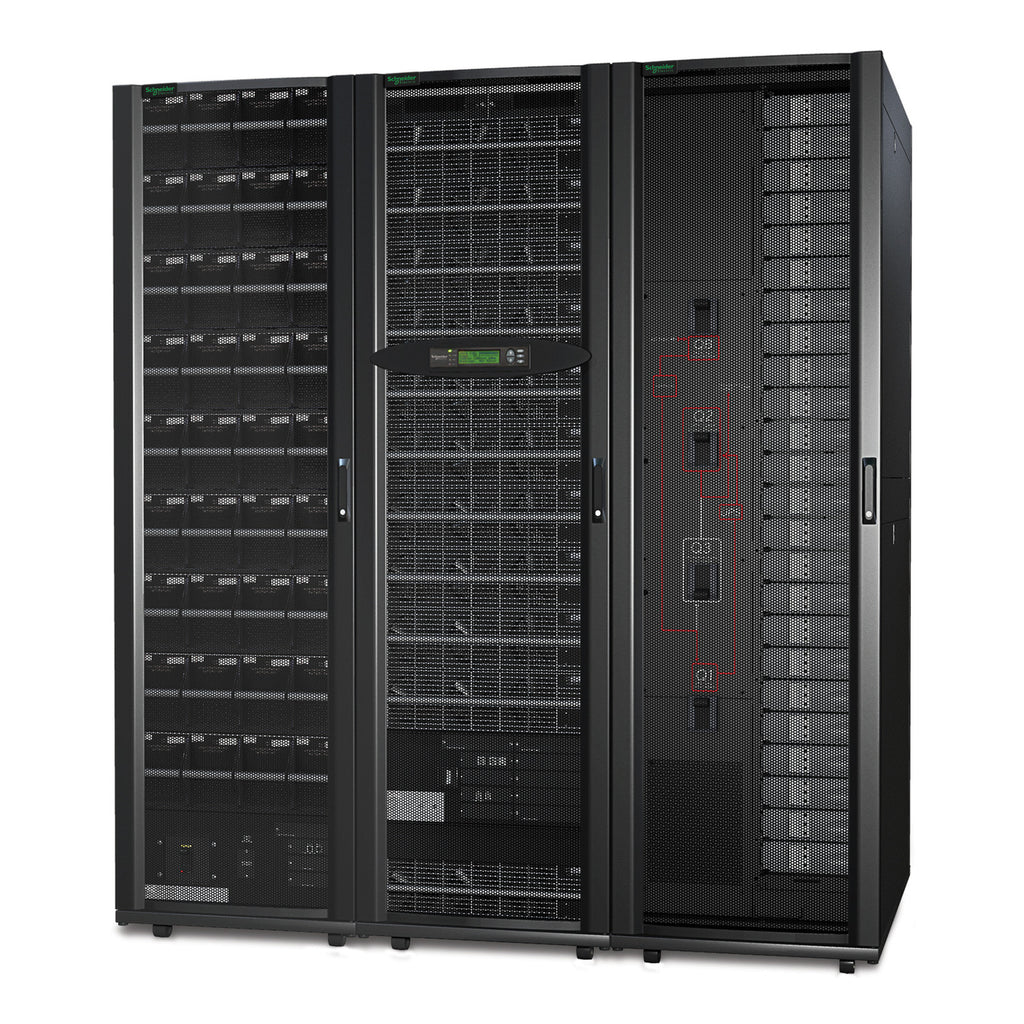

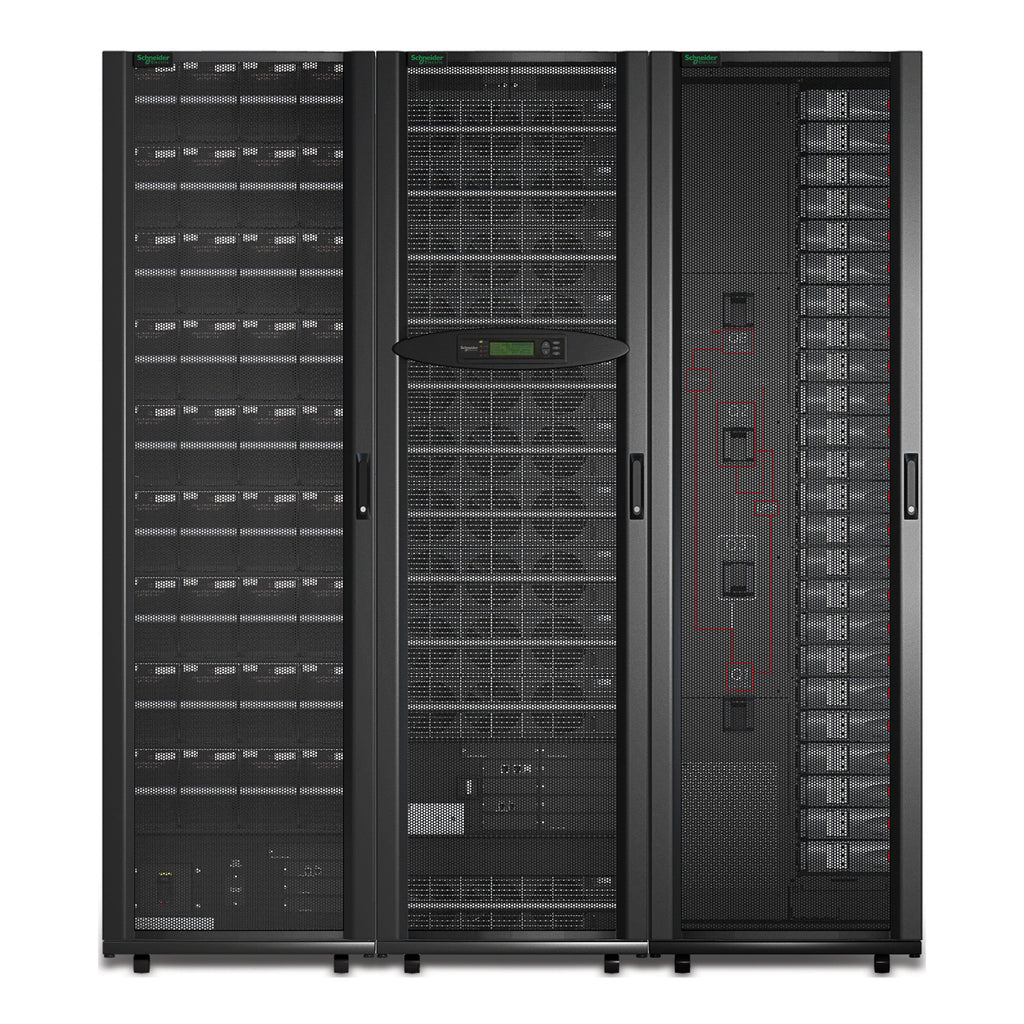

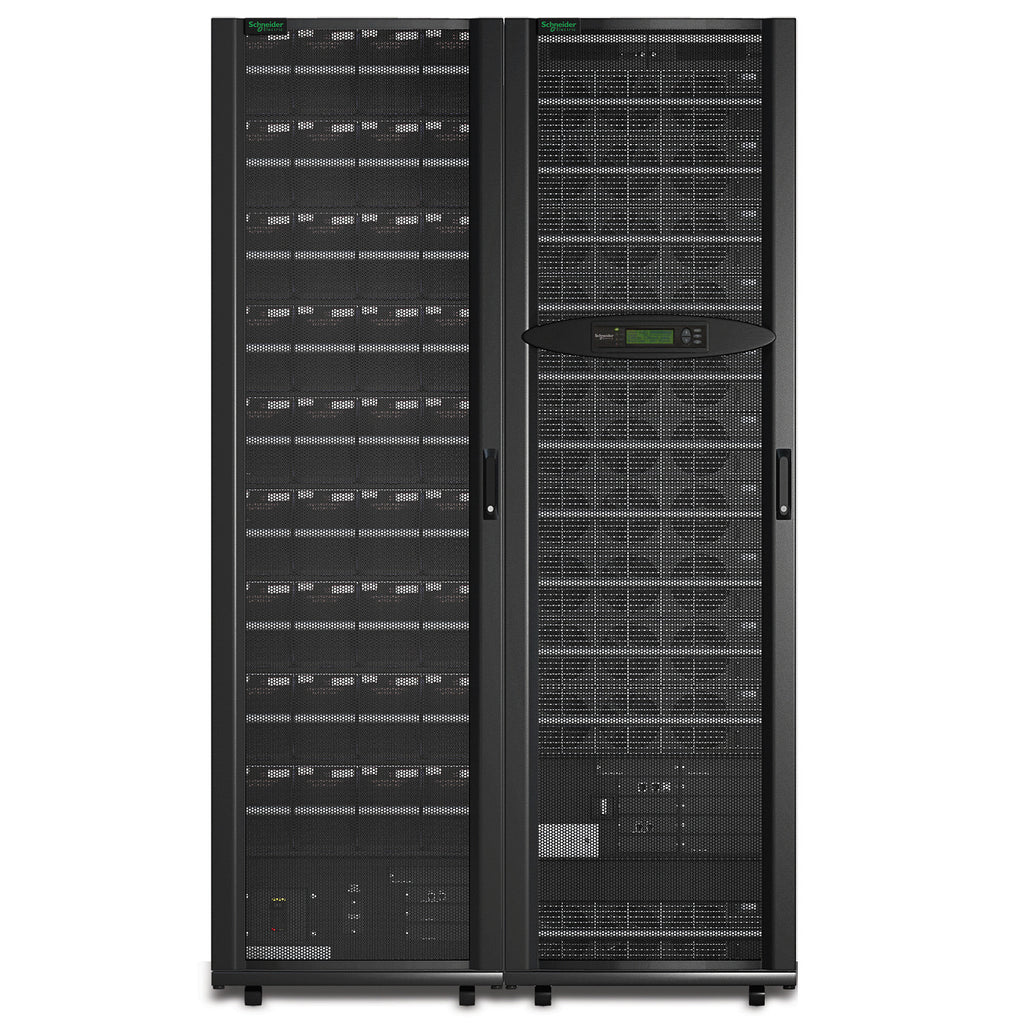

The APC Symmetra PX SY100K100F is a high-performance, scalable 3-phase UPS system delivering up to 100kW of reliable power protection for high-density and medium data centers. Built with fully redundant and modular architecture—including power, intelligence, battery, and bypass modules—this system supports simplified servicing, future scalability, and high availability. Featuring hot-swappable components, intelligent self-diagnostics, and robust battery backup with a 5–8 year design life, the Symmetra PX 100kW is ideal for mission-critical infrastructure where uptime is non-negotiable.
| Category | Details |
|---|---|
| SKU / Model | SY100K100F |
| Power Capacity | 100 kW / 100 kVA |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V / 120V 3-phase |
| Topology | Double Conversion Online |
| Efficiency (Battery) | 94.7% |
| Battery Type | VRLA, 9 Modules Included |
| Battery Recharge Time | 2 hours |
| Battery Design Life | 5–8 years |
| Max Input Current | 332 A per phase |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Output Waveform | Pure Sine Wave |
| Bypass | Built-in Static Bypass |
| Communication | Network Management Card, LCD Console |
| Redundancy | Yes (10 filled power modules) |
| Free SmartSlot™ | 2 |
| Dimensions (HxWxD) | 201.1 × 120 × 107 cm (79.17 × 47.24 × 42.13 in) |
| Weight | 1920 kg (4232.9 lbs) |
| Certifications | UL 1778, CSA, ISO 9001, ISO 14001, FCC Class A |
| Environment | 0–40 °C, 0–95% RH, 67 dBA noise level |
| Warranty | 1-year on-site repair or replace with startup |
| GTIN | 731304282570 |
