Description

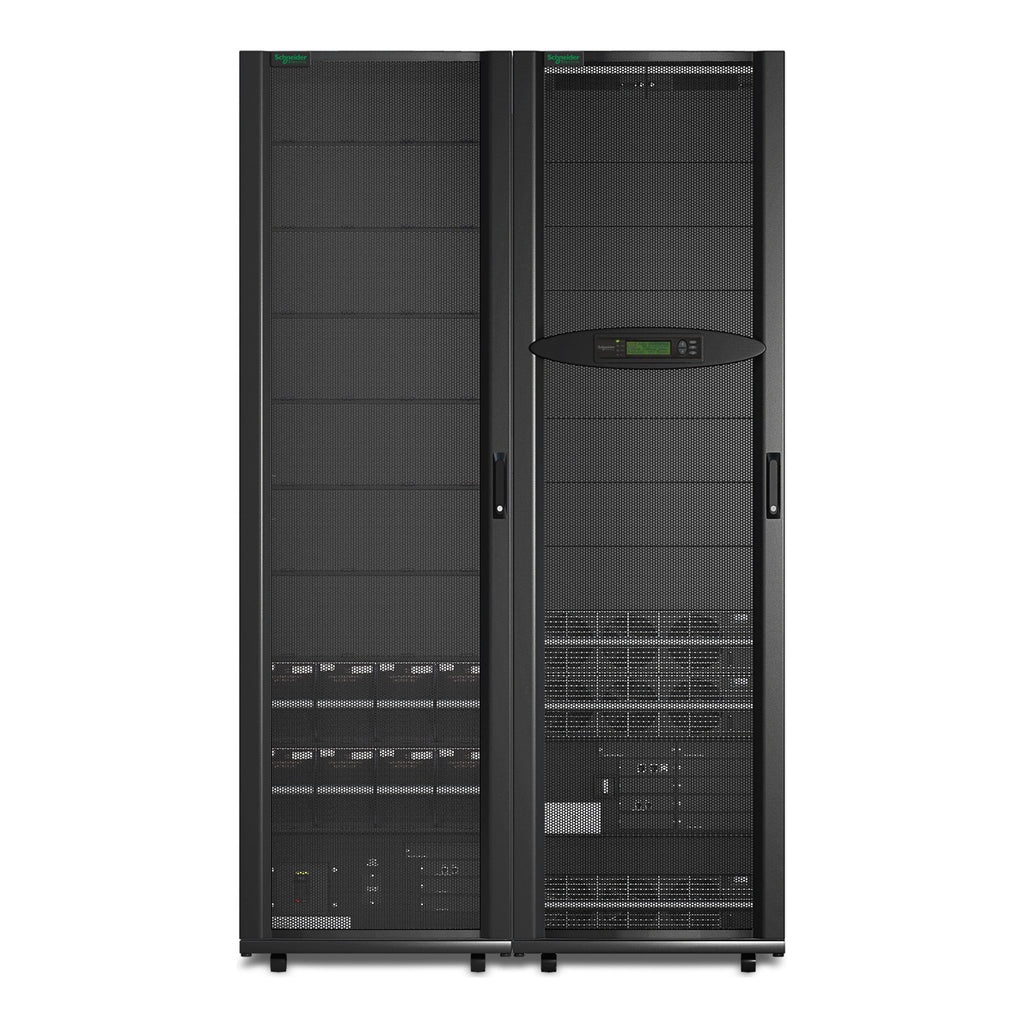

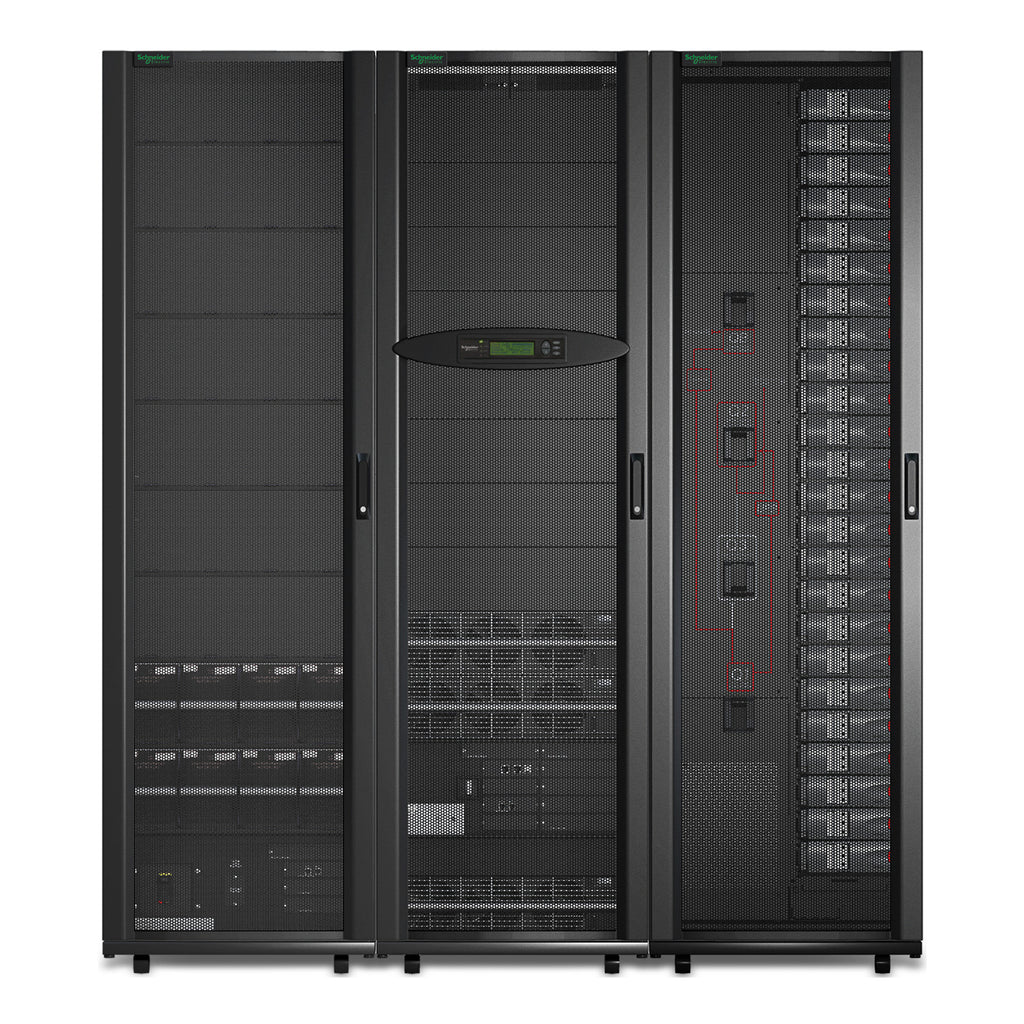

The APC Symmetra PX SY20K100F is a high-efficiency, modular, and scalable 3-phase UPS system designed for small to medium data centers and high-density IT zones. Starting at 20kW and scalable up to 100kW, this double-conversion online UPS offers exceptional availability, redundancy, and easy serviceability through hot-swappable power, battery, and intelligence modules.
With advanced monitoring, a built-in static bypass, and pre-installed network management capabilities, the Symmetra PX ensures seamless integration into your infrastructure. Engineered for long-term performance and optimal efficiency, it is ideal as the power backbone of APC InfraStruXure environments.
| Specification | Details |
|---|---|
| Model | SY20K100F |
| Power Capacity | Scalable from 20kW to 100kW |
| Input Voltage | 208V, 3-Phase |
| Output Voltage | 120/208V, 3-Phase |
| UPS Topology | Double Conversion Online |
| Battery Type | VRLA, Hot-Swappable Modules |
| Included Battery Modules | 2 (out of 9 slots) |
| Recharge Time | 2 hours |
| Efficiency (Battery Operation) | 94.7% |
| Input Power Factor | 0.99 |
| Output Power Factor | 1.0 (100kW / 100kVA max configurable) |
| Output Waveform | Pure Sine Wave |
| Redundancy | Yes |
| Bypass Type | Built-in Static Bypass |
| Harmonic Distortion (THD) | <2% (linear load), <6% (non-linear load) |
| Communications | LCD Display, Network Management Card |
| Height | 201.1 cm (79.17 in) |
| Width | 120 cm (47.24 in) |
| Depth | 107 cm (42.13 in) |
| Weight | 904.73 kg (1994.59 lbs) |
| Operating Temp | 0 to 40 °C (32 to 104 °F) |
| Certifications | UL 1778, CSA C22.2, FCC Part 15 Class A |
| Warranty | 1-Year On-Site Repair with Factory Start-Up |
