Description

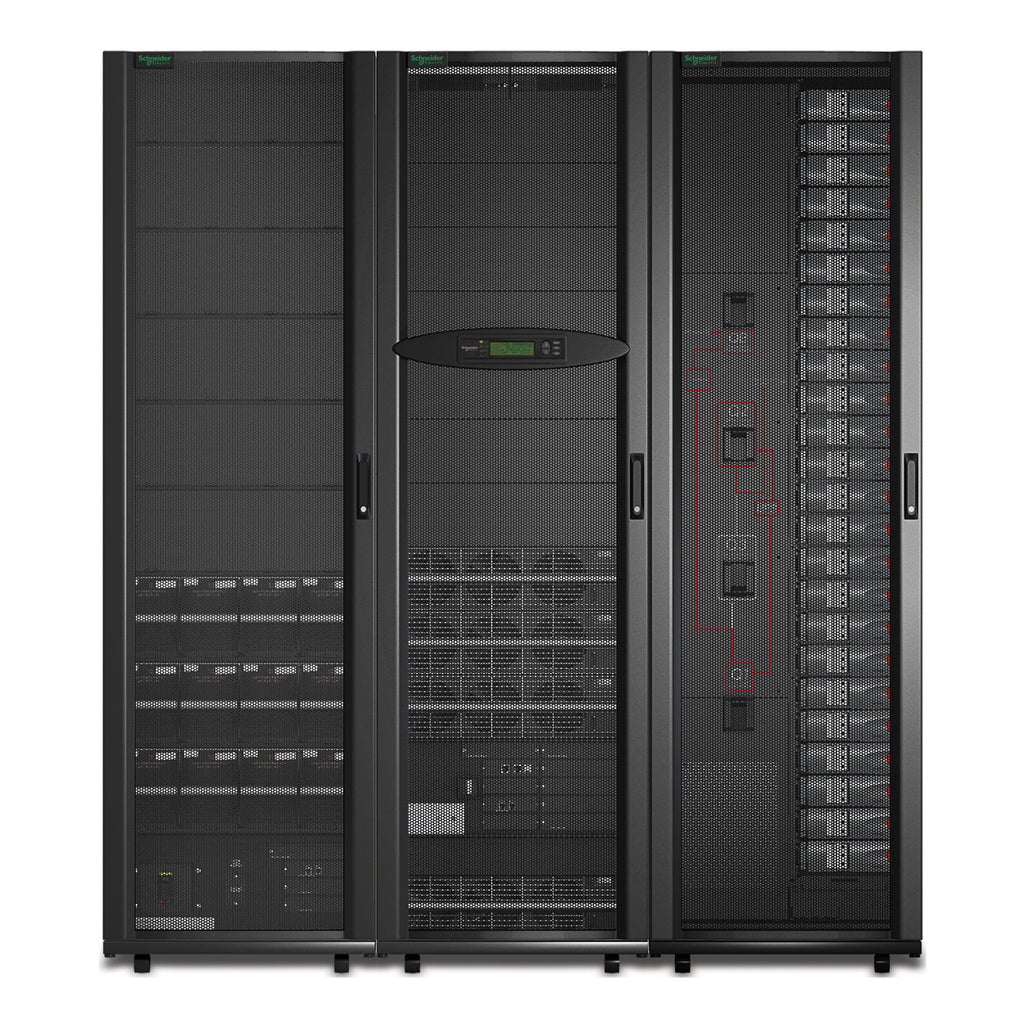

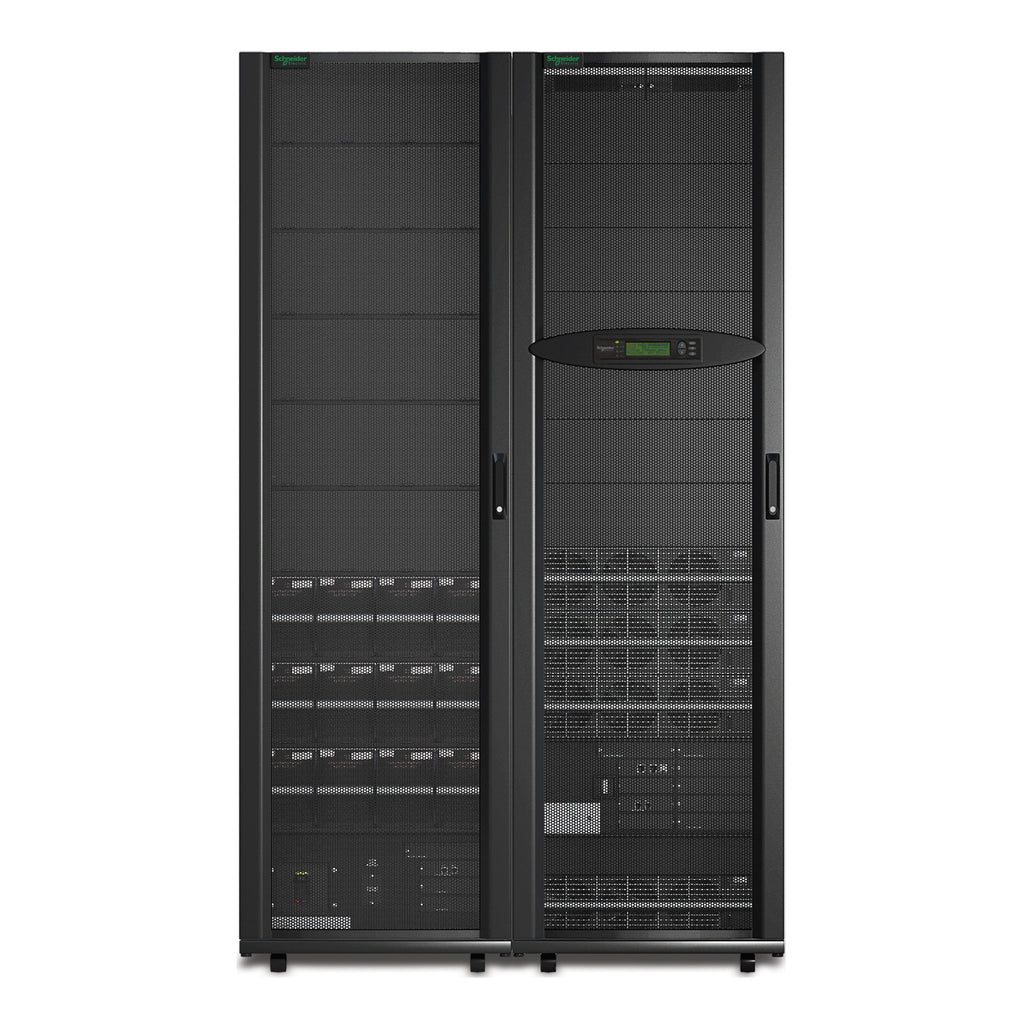

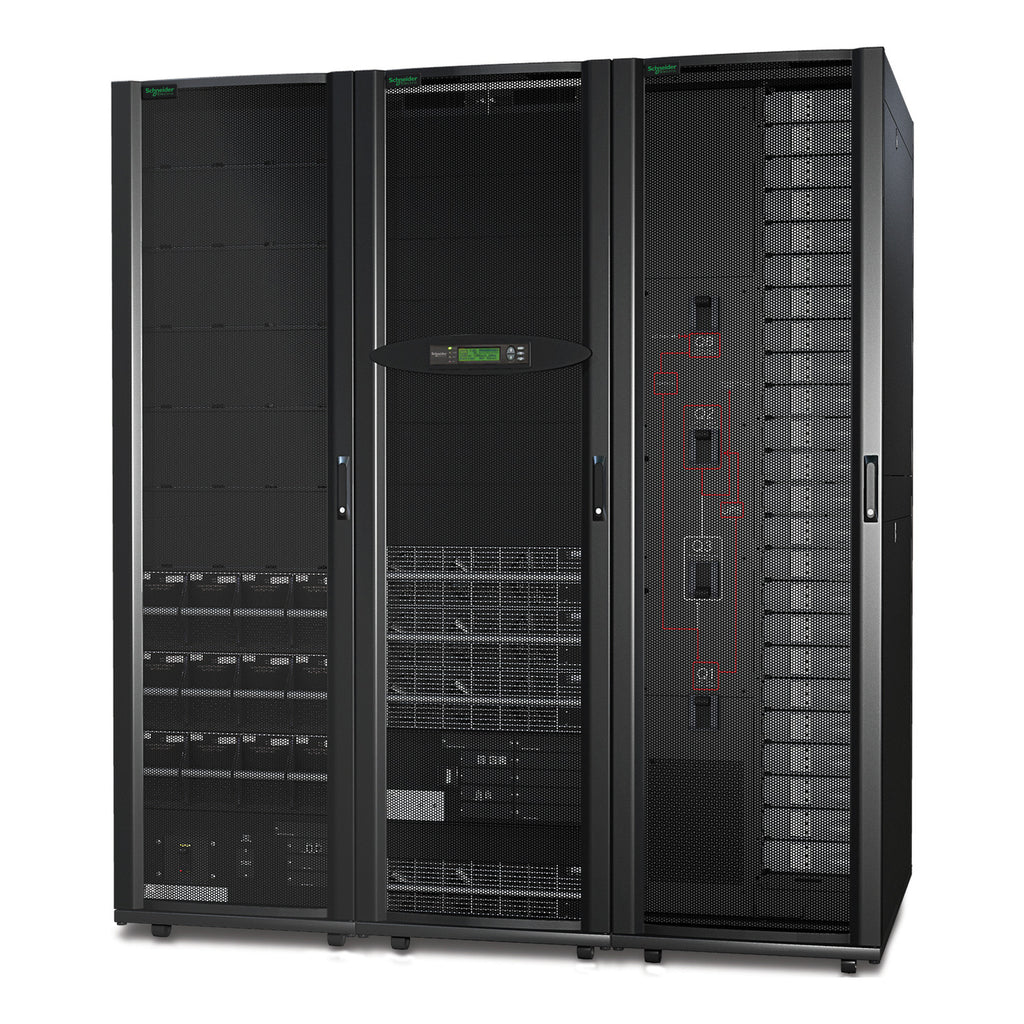

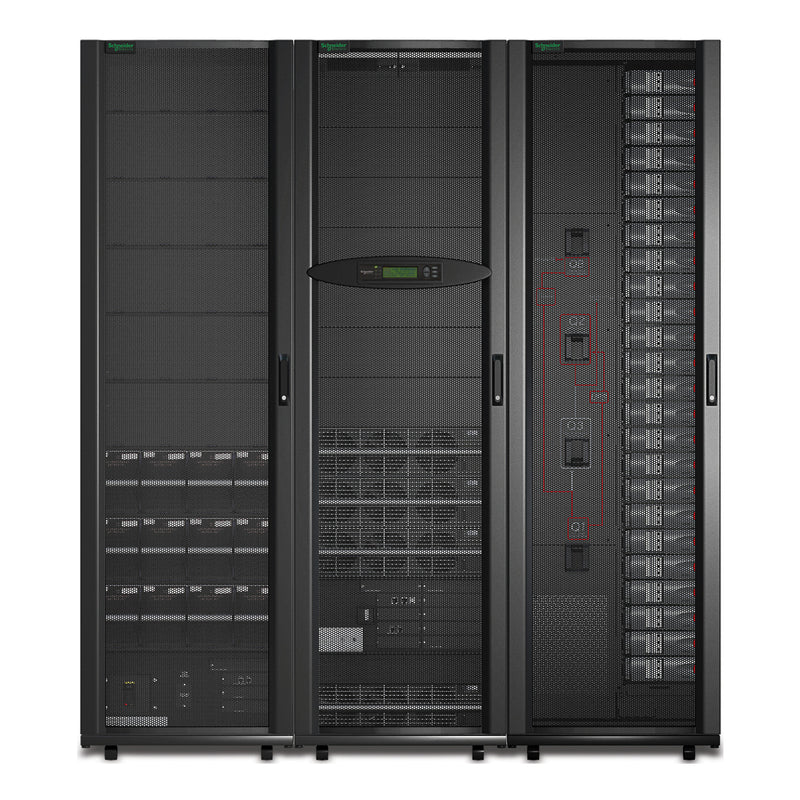

The APC Symmetra PX SY30K100F delivers industry-leading modular, scalable, and redundant 3-phase power protection for small to medium data centers. Designed for maximum availability and efficiency, this 30kW UPS system can scale to 100kW as power demands increase. Its fully integrated architecture includes power, intelligence, battery, and bypass modules, all hot-swappable for fast serviceability. With a built-in network management card and start-up service included, this solution provides a highly manageable infrastructure core for APC InfraStruXure™ systems and high-density IT zones.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SY30K100F |
| Product Type | 3-Phase Modular UPS System |
| Power Capacity | 30kW / 30kVA, scalable up to 100kW / 100kVA |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V / 120V |
| Battery Type | VRLA (Valve Regulated Lead Acid) |
| Included Battery Modules | 3 installed, 6 slots empty |
| Runtime at Full Load | Approx. 6 minutes at 30kW |
| Max Configurable Power | 100kW / 100kVA |
| UPS Topology | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Efficiency | Up to 94.7% in battery operation |
| Redundancy | Yes, N+1 capable |
| Bypass | Built-in Static Bypass |
| Control Panel | Multi-function LCD status/control console |
| Management | Network Management Card (pre-installed), 2 SmartSlot™ expansion ports |
| Standards Compliance | UL 1778, CSA, ISO 9001, ISO 14001, FCC Class A |
| Color | Black |
| Dimensions (H x W x D) | 79.17 x 47.24 x 42.13 in (201.1 x 120 x 107 cm) |
| Weight | 2274.38 lb (1031.64 kg) |
| Operating Temp. | 32–104°F (0–40°C) |
| Humidity | 0–95% (non-condensing) |
| Included Services | Start-Up Service, Installation Guide, User Manual |
| Warranty | 1-Year On-Site Repair or Replace with Factory Authorized Startup |
| GTIN | 731304282600 |
