Description

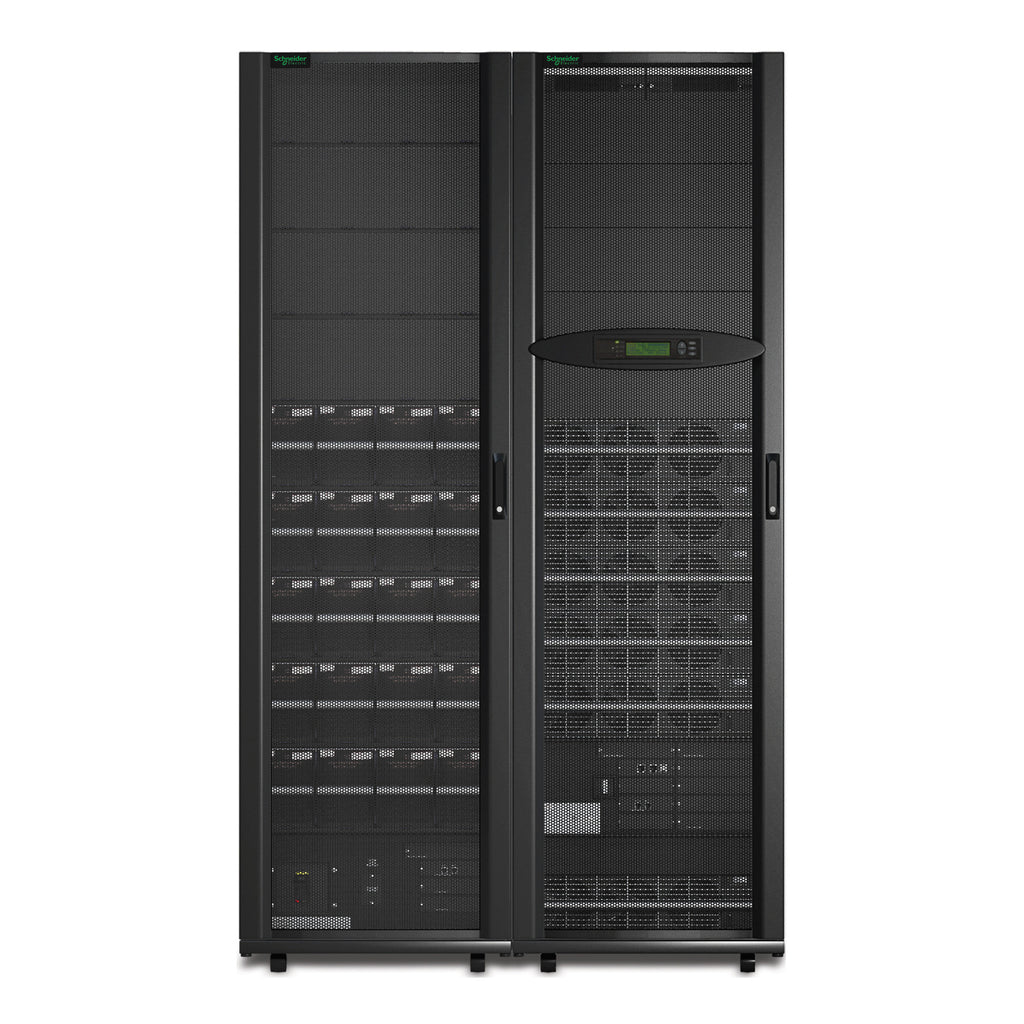

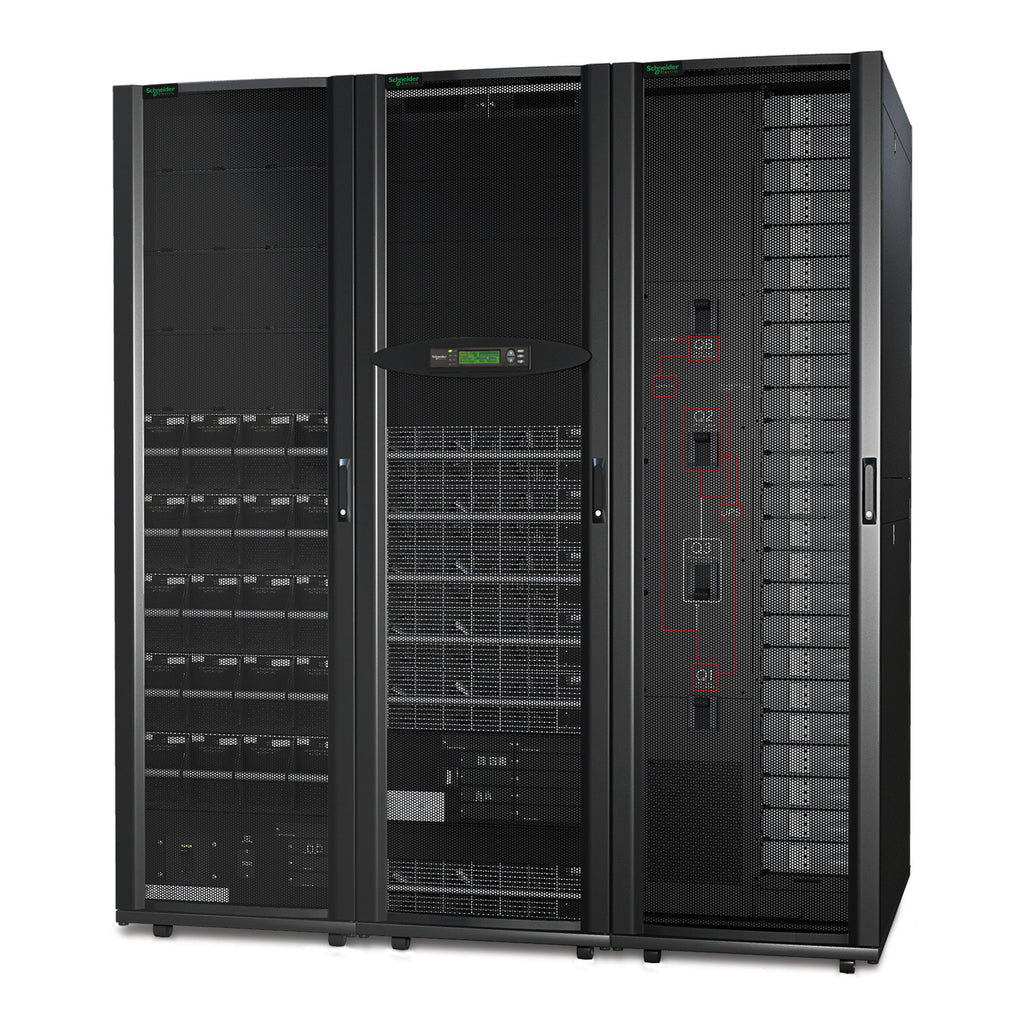

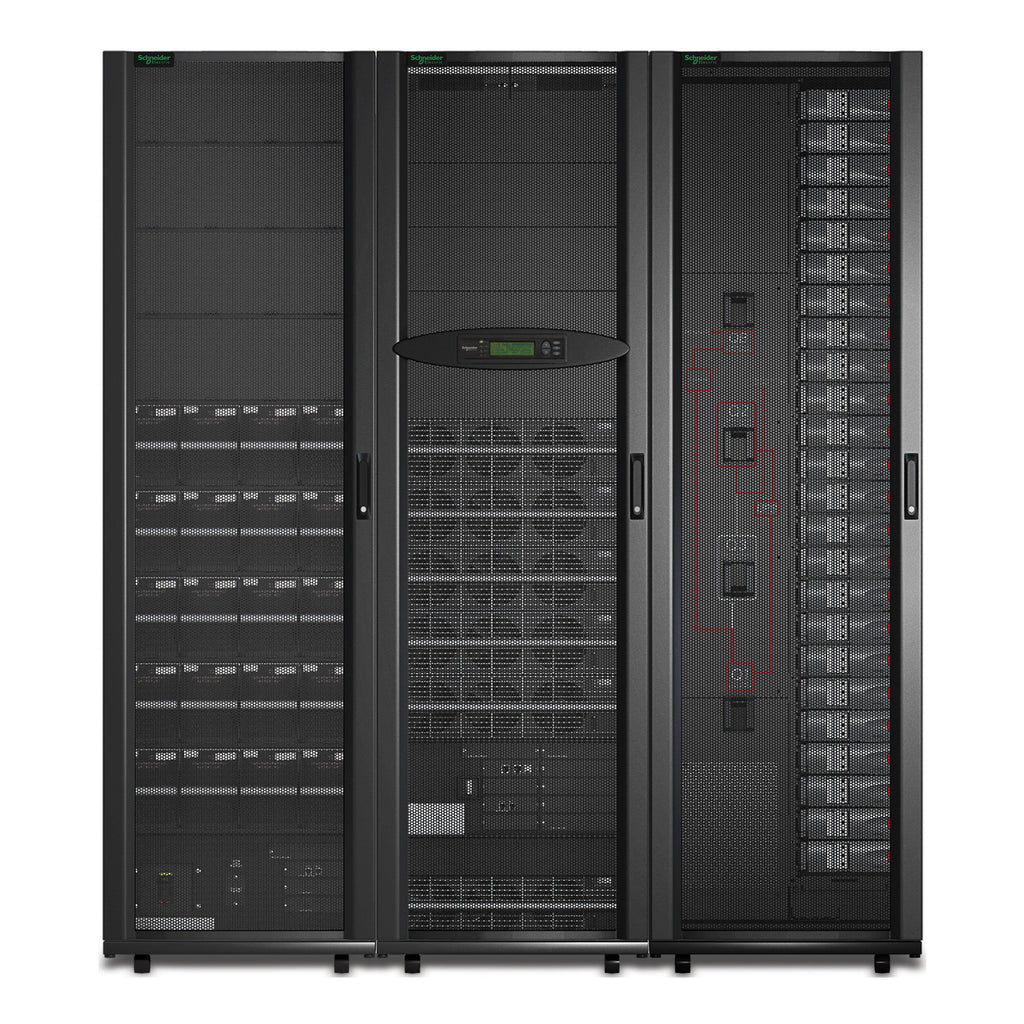

The APC Symmetra PX SY50K100F is a modular, high-efficiency 3-phase UPS system offering scalable power protection from 50kW to 100kW. Designed for small to medium data centers or high-density zones, it features redundant, hot-swappable modules including power, battery, intelligence, and bypass units. With VRLA battery modules, a double conversion online topology, and advanced management through a network card and LCD control console, the SY50K100F ensures high availability, operational flexibility, and superior energy efficiency for mission-critical environments.
| Category | Details |
|---|---|
| Model | SY50K100F |
| Power Capacity | 50kW (scalable to 100kW) |
| Input Voltage | 208V, 3-phase |
| Output Voltage | 120/208V, 3-phase |
| Output Power | 100,000 VA / 100,000 W (max configurable) |
| Efficiency | Up to 94.7% (in battery operation) |
| Battery Type | VRLA (5 modules included, 4 empty slots) |
| Battery Recharge Time | 2 hours |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 at full load |
| Output Frequency | 60Hz or 50Hz (sync or not sync to mains) |
| Output Waveform | Sine wave |
| Topology | Double Conversion Online |
| Redundancy | Yes |
| Bypass Type | Built-in Static Bypass |
| Dimensions (H x W x D) | 79.17 x 47.24 x 42.13 in (201.1 x 120 x 107 cm) |
| Weight | 2833.93 lb (1285.45 kg) |
| Operating Temp | 32–104 °F (0–40 °C) |
| Humidity Range | 0–95% RH (non-condensing) |
| Included Accessories | Start-Up Service, Network Mgmt Card, Install Guide, Manual |
| Certifications | UL 1778, CSA C22.2, FCC Part 15 Class A, ISO 9001/14001 |
| Warranty | 1-year on-site repair or replace with factory start-up |
