Description

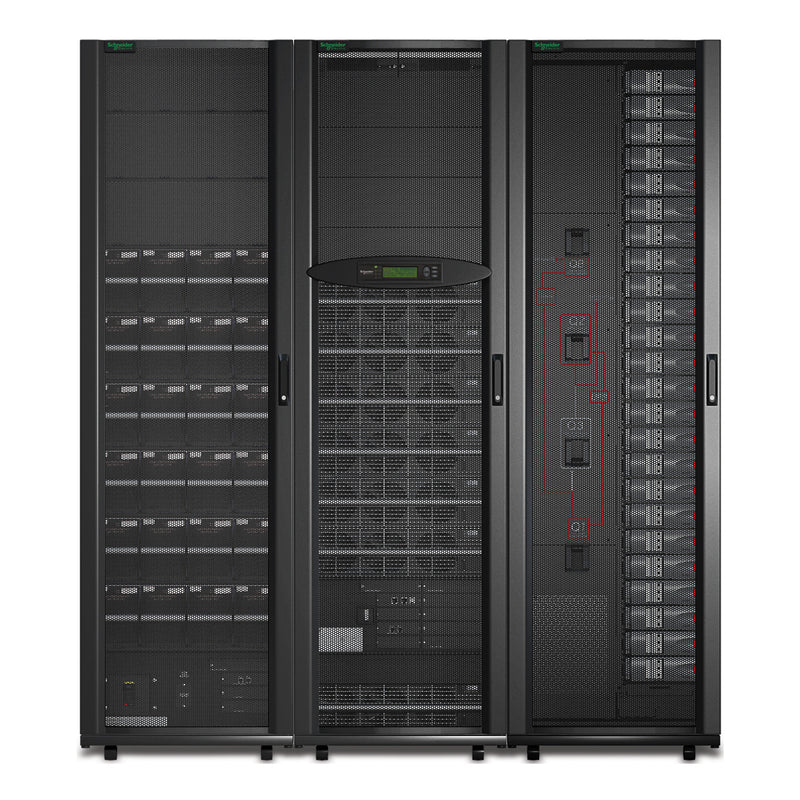

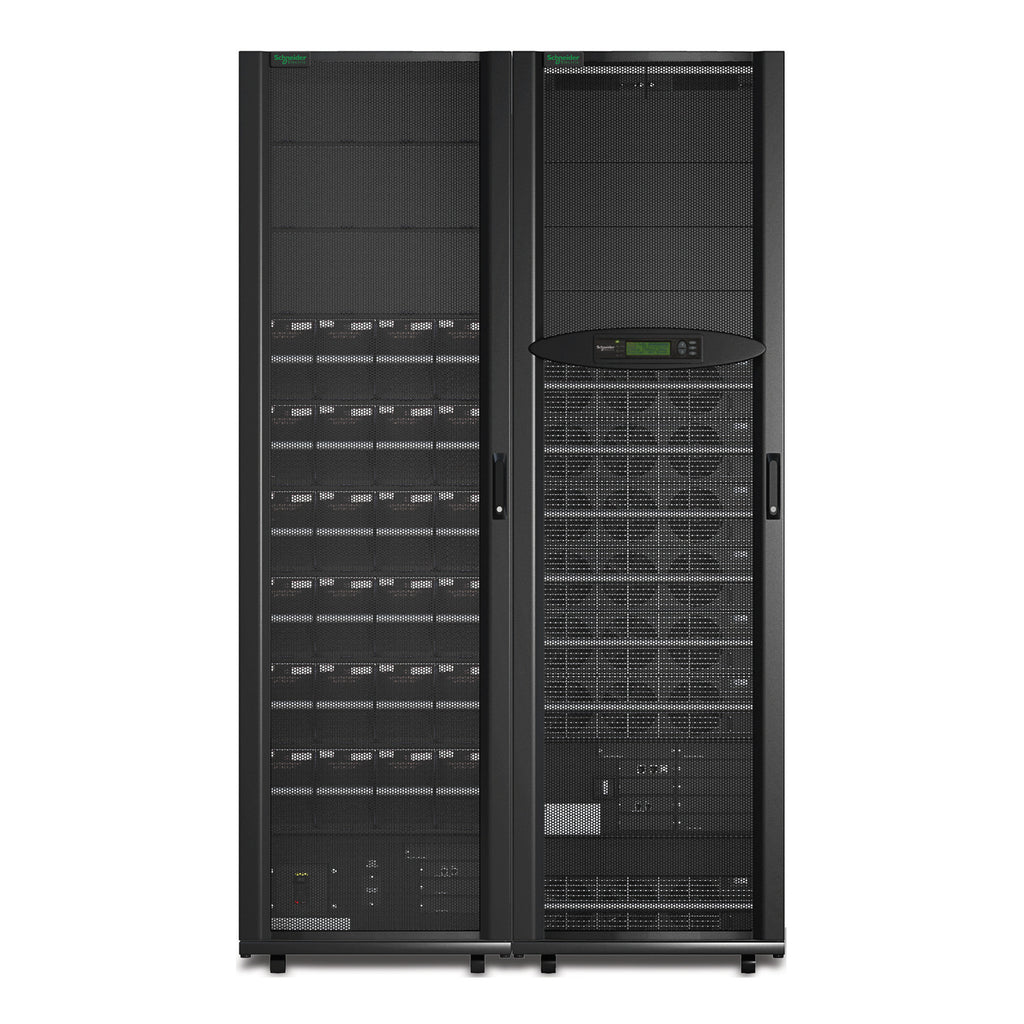

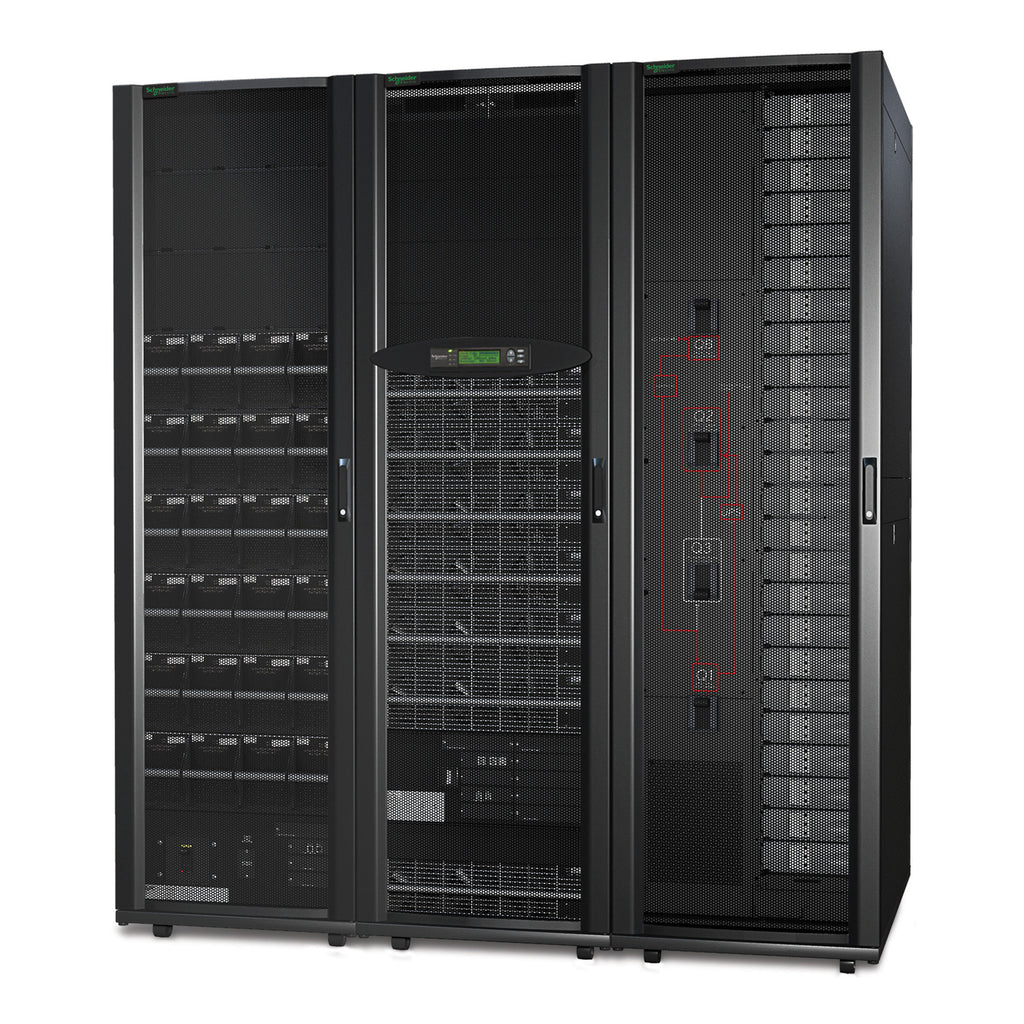

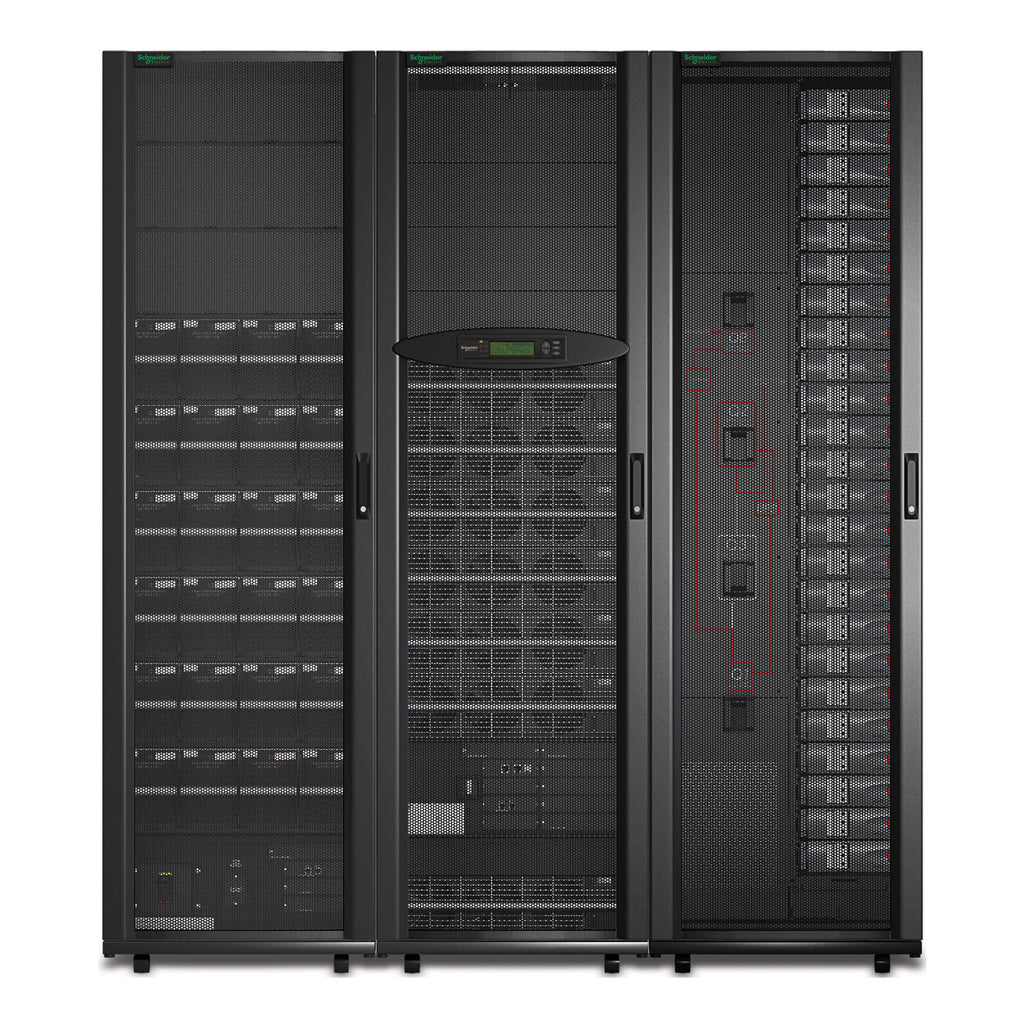

The APC Symmetra PX SY60K100F is a high-performance, modular 3-phase uninterruptible power supply (UPS) system designed for small to medium data centers and high-density IT environments. Starting at 60kW and scalable to 100kW, this solution delivers double-conversion online power protection with integrated redundancy.
Equipped with self-diagnosing modules and advanced monitoring, the Symmetra PX minimizes downtime while maximizing availability. This unit includes factory-authorized Start-Up Service, ensuring seamless deployment and operational readiness. Ideal for APC InfraStruXure® environments and zones within larger data centers.
| Category | Details |
|---|---|
| Model Number | SY60K100F |
| Power Capacity | 60kW scalable to 100kW |
| Input Voltage | 208V 3-phase |
| Output Voltage | 120V / 208V 3-phase |
| Topology | Double Conversion Online |
| Power Modules Installed | 6 (4 free slots) |
| Redundancy | Yes |
| Battery Type | VRLA (Valve Regulated Lead Acid) |
| Battery Modules Installed | 6 (3 slots available) |
| Runtime at Full Load | Approx. 6 minutes |
| Recharge Time | 2 hours |
| Efficiency | 94.7% (on battery), THD < 2% |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (selectable) |
| Output Waveform | Pure Sine Wave |
| Bypass | Built-in Static Bypass |
| User Interface | LCD Control Panel |
| Network Management | Pre-installed NMC with CAN |
| Standards Compliance | UL 1778, CSA, ISO 9001/14001, FCC Class A |
| Operating Temp | 0–40°C (32–104°F) |
| Noise Level | 67 dBA |
| Dimensions (HxWxD) | 201.1 x 120 x 107 cm (79.17 x 47.24 x 42.13 in) |
| Weight | 1412.36 kg (3113.72 lb) |
| Warranty | 1 Year On-Site with Factory Start-Up |
| GTIN | 731304282631 |
