Description

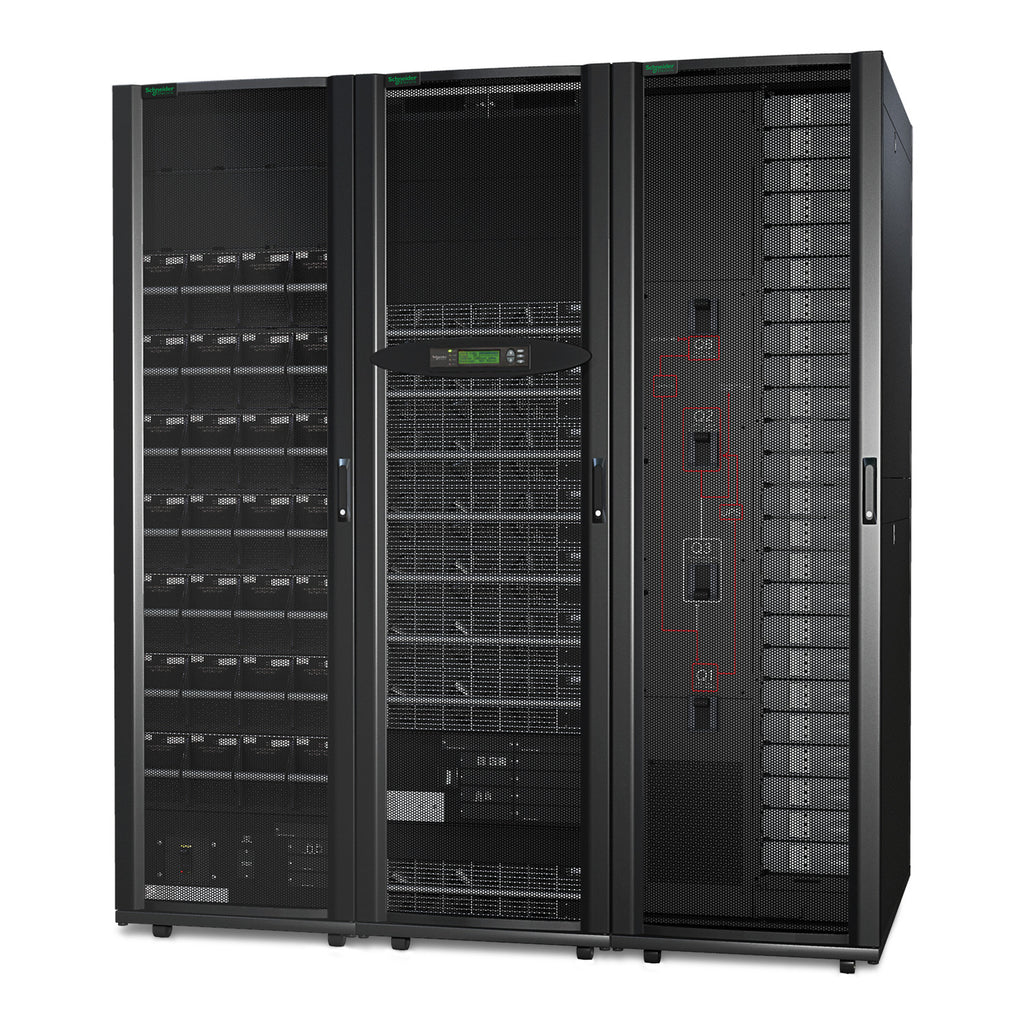

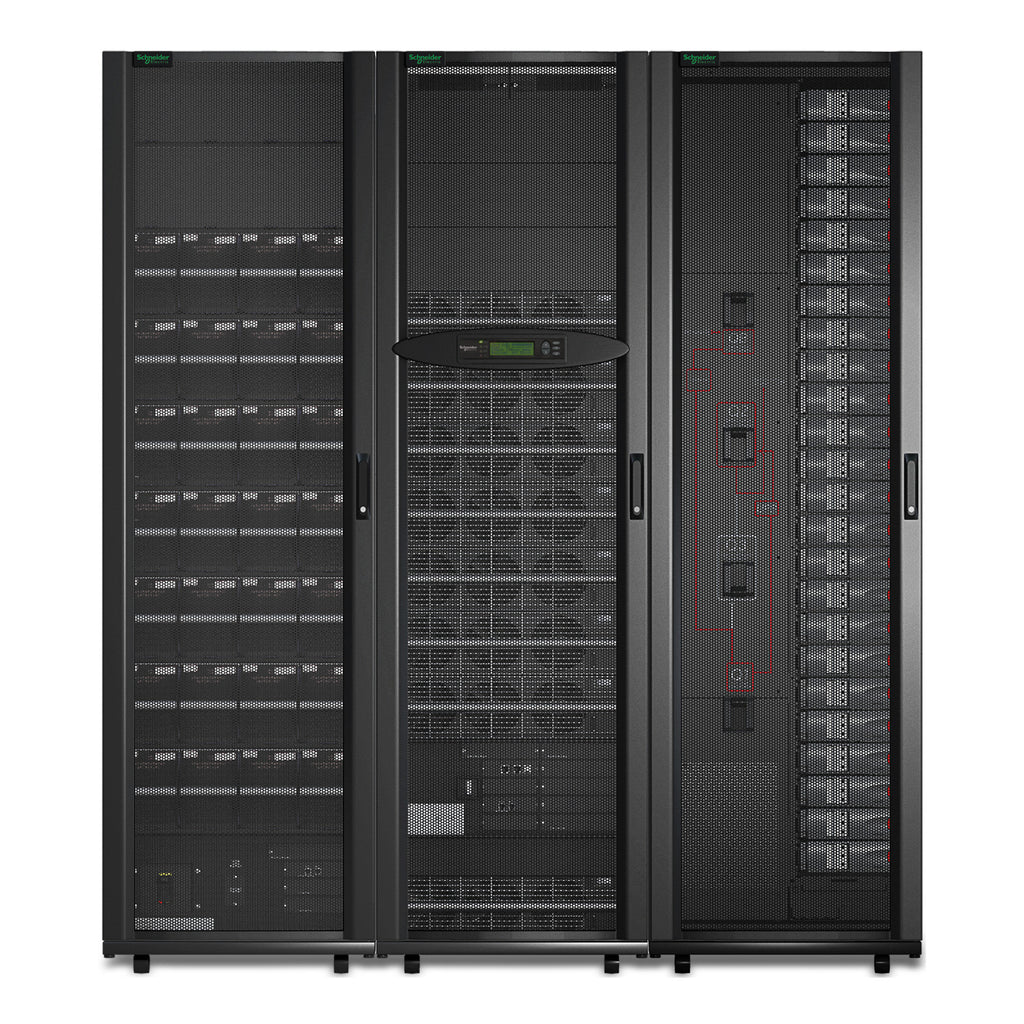

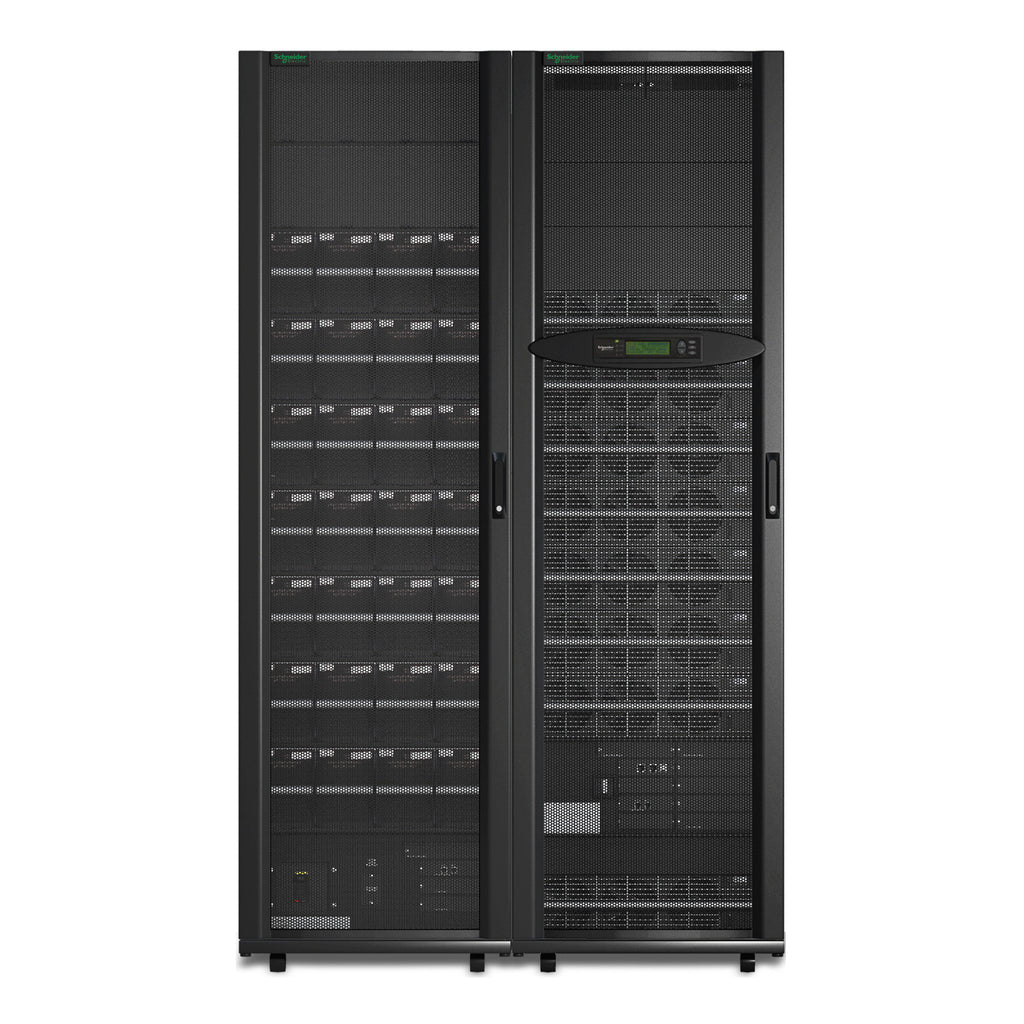

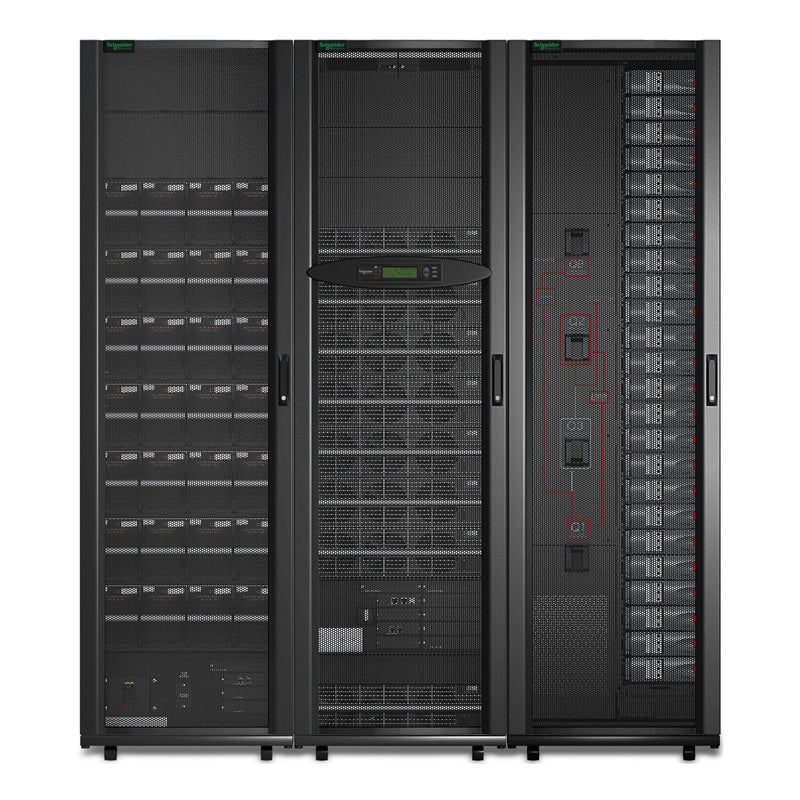

The APC Symmetra PX SY70K100F is a high-efficiency, modular, and scalable 3-phase UPS system designed for small to medium-sized data centers and high-density IT zones. Offering 70kW of installed power scalable up to 100kW, it provides seamless redundancy and maximum uptime through its intelligent modules—power, battery, intelligence, and bypass—all hot-swappable. With a double-conversion online topology, high efficiency (up to 94.7%), and advanced battery management, it ensures business continuity, reduced footprint, and simplified maintenance.
| Specification | Details |
|---|---|
| Model | SY70K100F |
| Power Capacity (kW / kVA) | 70kW installed / 100kW max (100kVA) |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V / 120V, 3-phase |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Topology | Double Conversion Online |
| Waveform Type | Sine Wave |
| Efficiency (Full Load) | Up to 94.7% |
| Battery Type | VRLA (Valve-Regulated Lead Acid) |
| Included Battery Modules | 7 (2 empty slots for expansion) |
| Recharge Time | Approx. 2 hours |
| Battery Voltage | ±192V nominal |
| Battery Design Life | 5–8 years |
| Redundancy | N+1 Redundant |
| Bypass Type | Internal Static Bypass |
| Communication | Network Management Card, LCD Panel |
| Dimensions (HxWxD) | 201.1 x 120 x 107 cm (79.17 x 47.24 x 42.13 in) |
| Weight | 1539.27 kg (3393.51 lb) |
| Included Services | Startup Service, User Manual, Installation Guide |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, ISO 9001/14001 |
| Warranty | 1-Year On-site Repair/Replace with Start-Up |
