Description

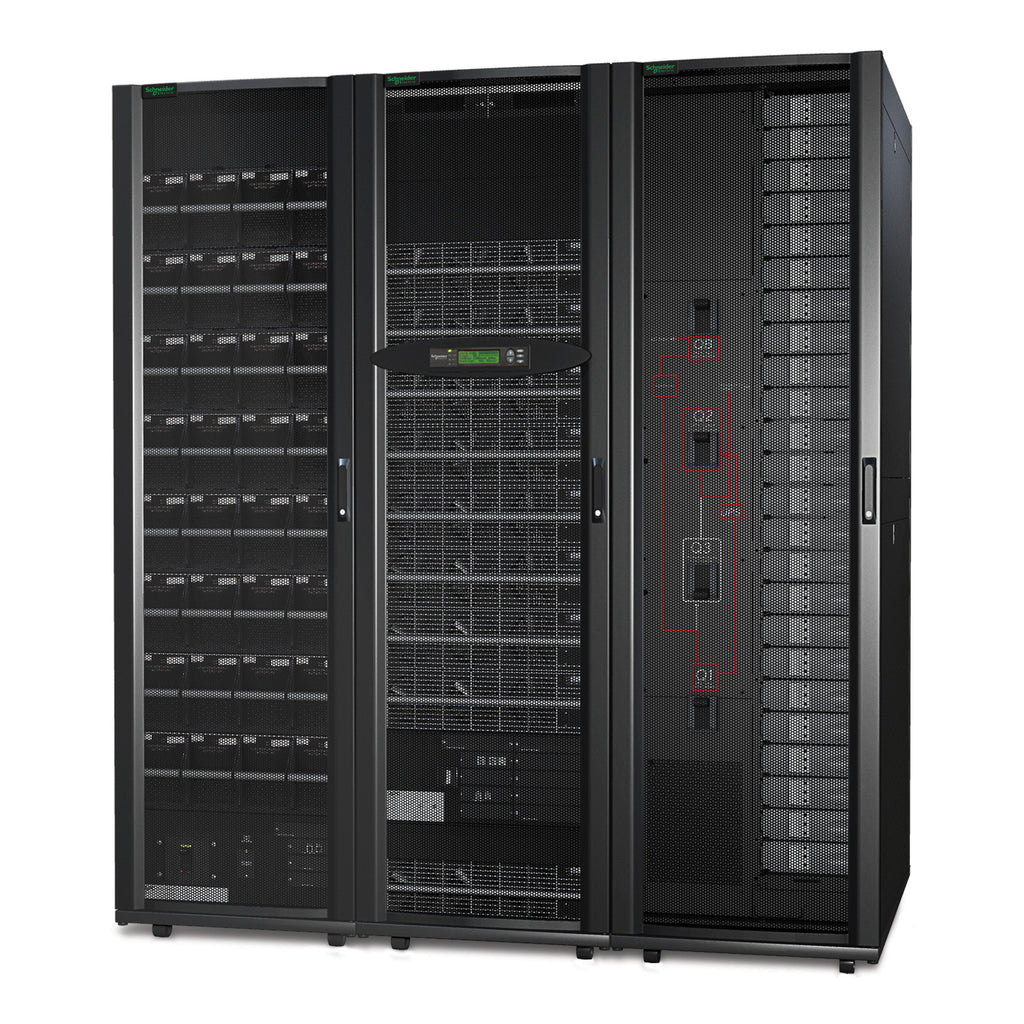

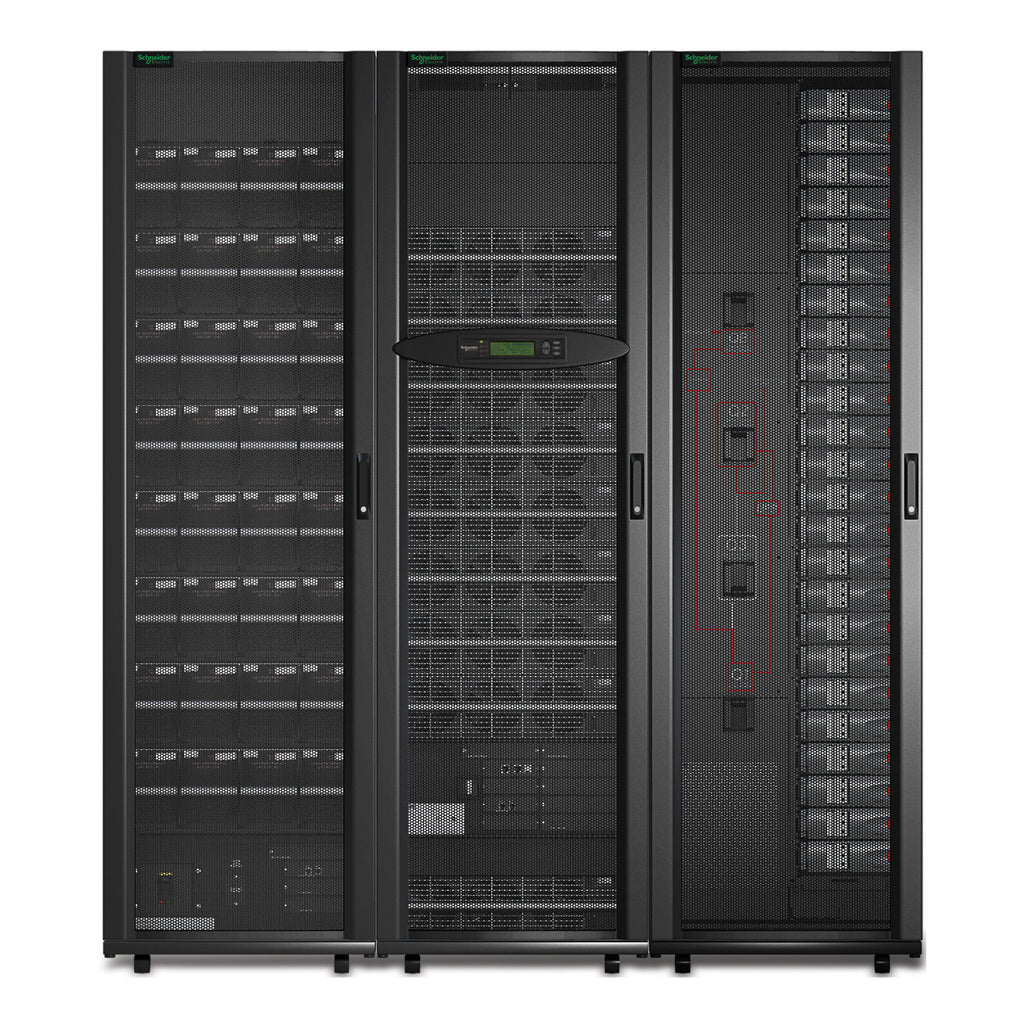

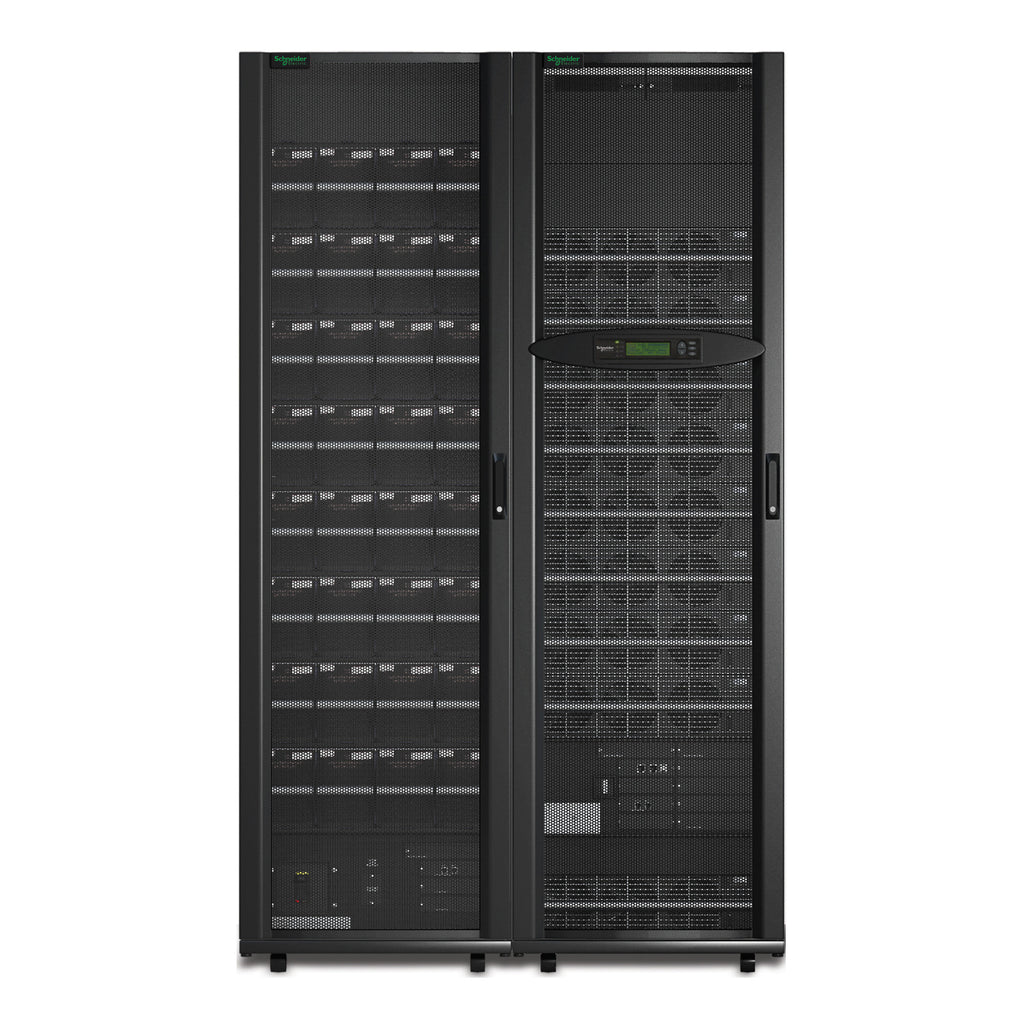

The APC Symmetra PX SY80K100F is a modular, scalable, and high-efficiency 3-phase UPS system delivering up to 100kW of power protection for critical IT infrastructure. Designed for small to medium data centers and high-density zones, it features fully redundant power, intelligence, battery, and static bypass modules. The included factory-authorized Start-Up Service ensures optimal installation and operation.
With 8 battery modules, a robust 80kW capacity (scalable to 100kW), and advanced management features, this double-conversion online UPS delivers clean, reliable power with exceptional efficiency and uptime assurance. Integrated LCD controls and a Network Management Card provide real-time monitoring and control.
| Category | Specification |
|---|---|
| Product Type | 3-Phase Modular UPS |
| Model | SY80K100F |
| Power Capacity | 80kW, scalable to 100kW |
| Input Voltage | 208V 3-phase |
| Output Voltage | 120V / 208V |
| Power Factor | 0.99 (Input), 0.5 lead to 0.5 lag (Load) |
| Battery Type | VRLA, 8 Modules Installed (1 Slot Free) |
| Battery Voltage | +/-192V split to neutral |
| Recharge Time | 2 hours |
| Runtime at Full Load | ~6 minutes at 80kW |
| Efficiency | Up to 94.7% (Online), <2% THD |
| Topology | Double Conversion Online |
| Bypass | Integrated Static Bypass |
| Control Panel | LCD Display with Multifunction Console |
| Communications | Network Management Card Pre-Installed |
| Dimensions (H x W x D) | 79.17 x 47.24 x 42.13 in (201.1 x 120 x 107 cm) |
| Weight | 3673.30 lbs (1666.18 kg) |
| Certifications | UL 1778, ISO 9001, ISO 14001, CSA, FCC Part 15 Class A |
| Environmental Range | 0–40°C, 0–95% RH, up to 3333 ft operating altitude |
| Noise Level | 67 dBA |
| Warranty | 1-Year On-Site Repair or Replace w/ Start-Up Service |
