Description

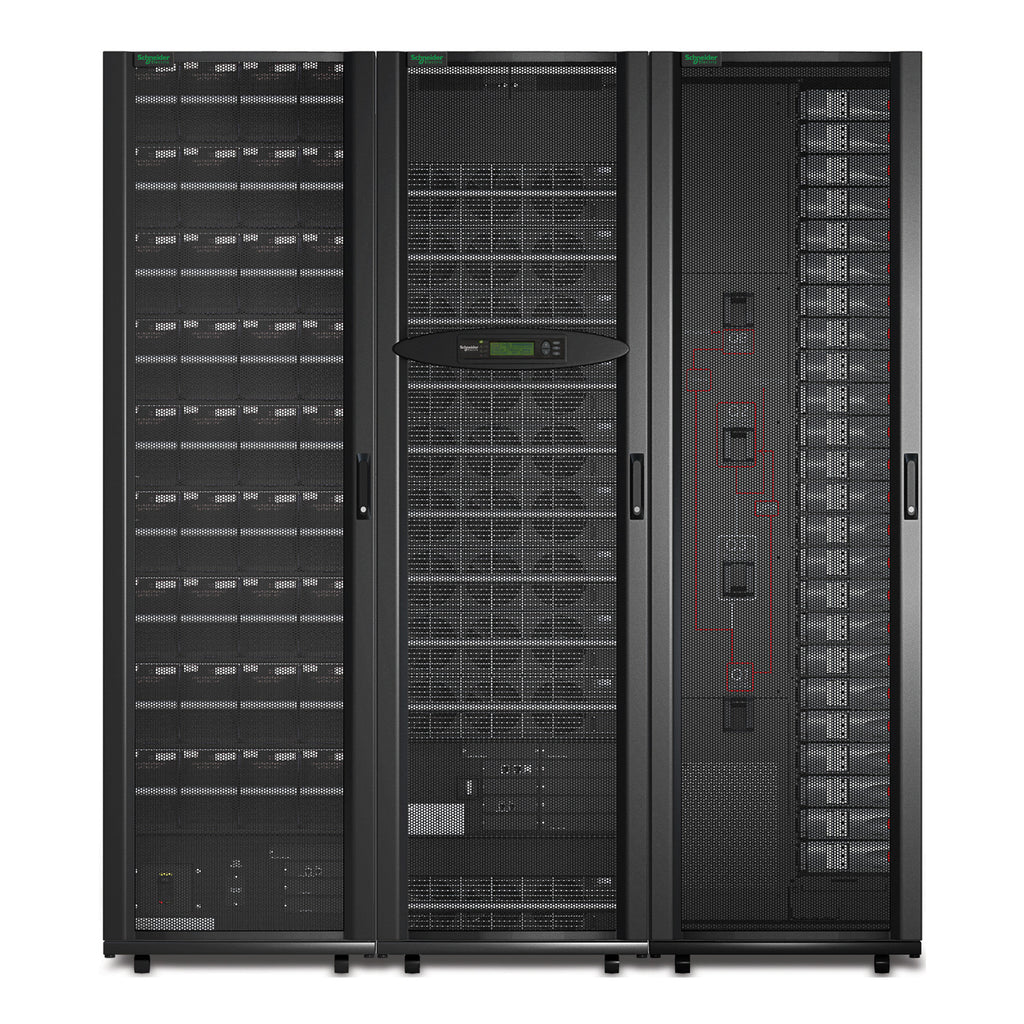

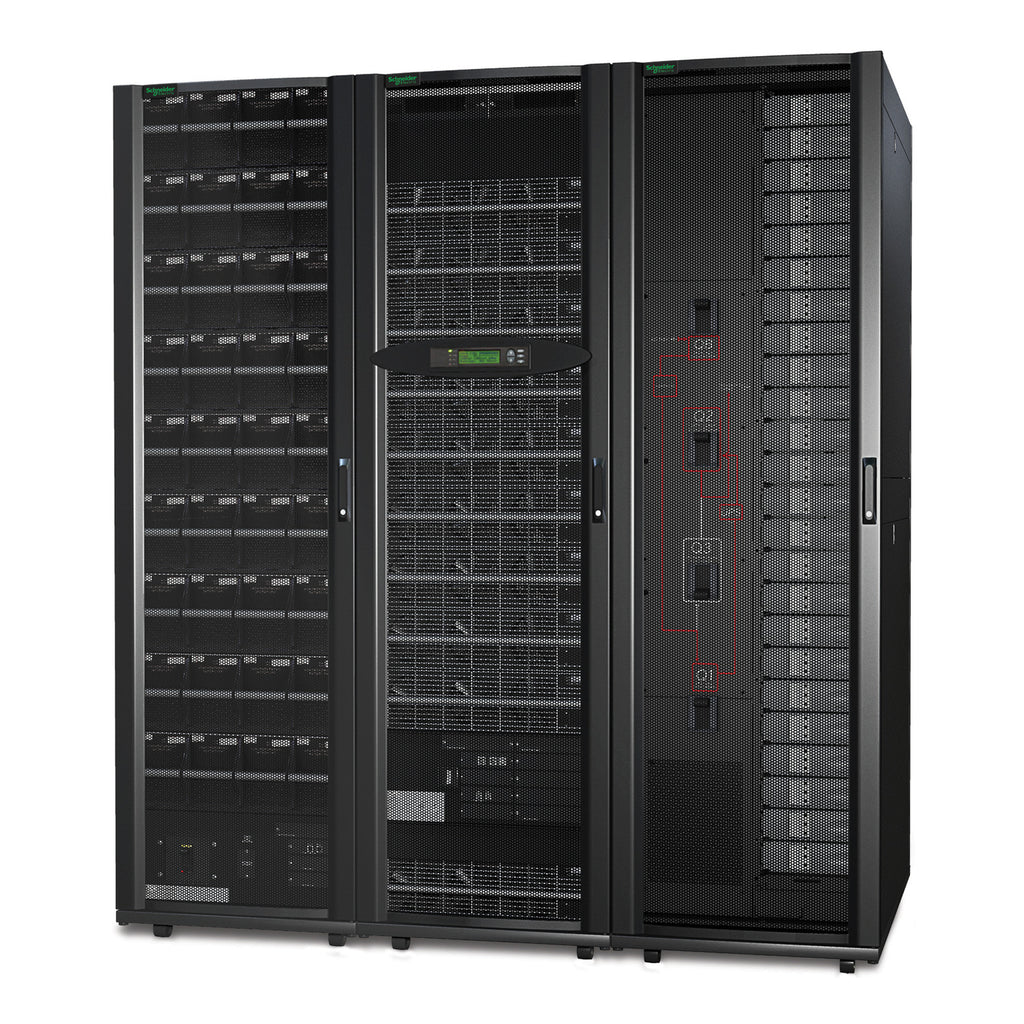

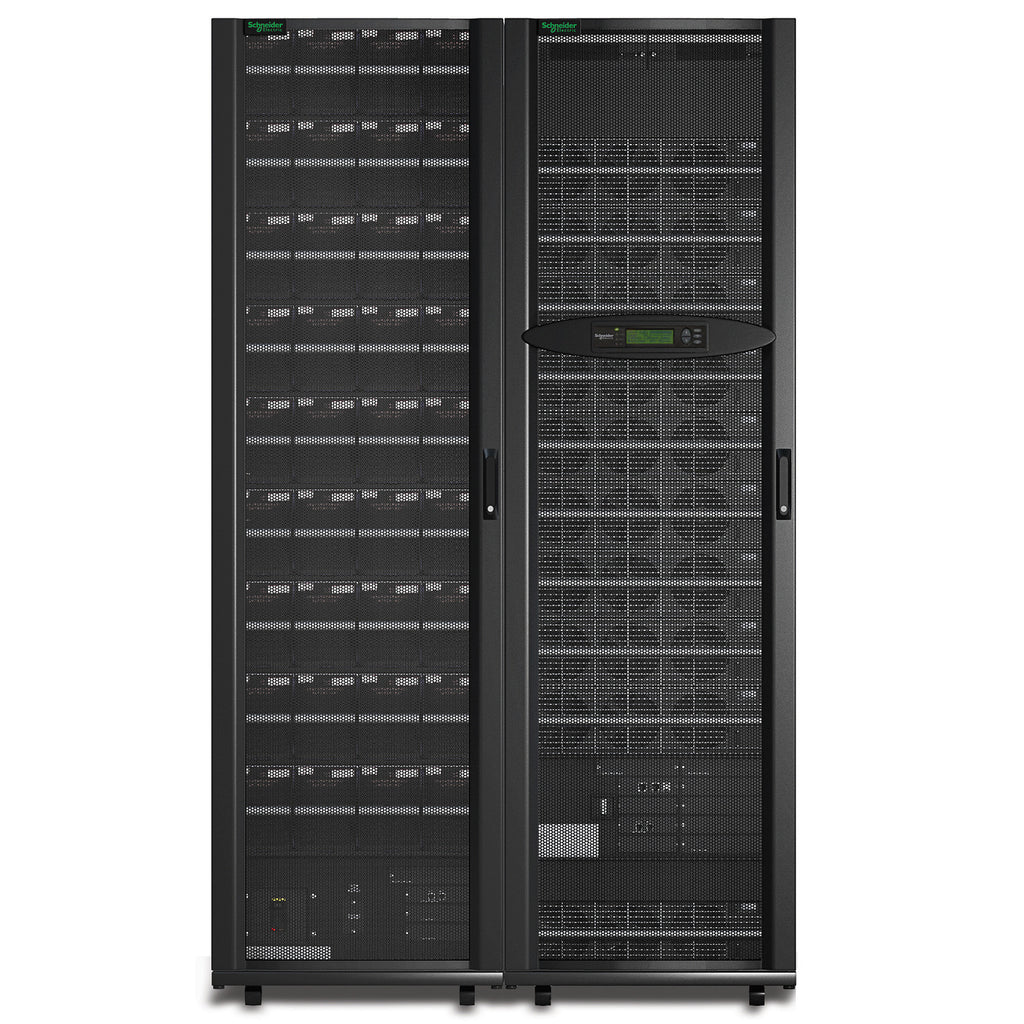

The APC Symmetra PX SY90K100F is a high-performance, scalable, and modular 3-phase UPS designed for critical infrastructure in small to medium data centers and high-density zones. Engineered for efficiency and maximum uptime, it delivers 90kW of power scalable to 100kW with N+1 redundancy. It integrates power, intelligence, battery, and bypass modules into a compact, easily serviceable system.
Its hot-swappable modules, advanced battery management, and built-in network card support efficient operations and remote monitoring. The included start-up service ensures optimal installation from day one. This solution is ideal for data centers requiring reliability, flexibility, and operational transparency.
| Category | Specification |
|---|---|
| Model | SY90K100F |
| Brand | APC by Schneider Electric |
| Product Type | Modular, Scalable Tower UPS |
| Power Capacity | 90kVA / 90kW, scalable to 100kW |
| Voltage (Input/Output) | Input: 208V 3-phaseOutput: 120V / 208V 3-phase |
| Topology | Double Conversion Online |
| Redundancy | N+1 |
| Battery Type | VRLA, 9 included battery modules |
| Run Time (Full Load) | Approx. 6 min 19 sec |
| Recharge Time | 2 hours |
| Efficiency (Full Load) | 94.7% (battery operation) |
| Output Frequency | 50/60 Hz ±0.1% (unsynced), 57–63 Hz (synced) |
| Output Waveform | Sine Wave |
| Bypass Type | Built-in Static Bypass |
| Interface | Multi-function LCD display, Network Management Card |
| Communication Ports | 2 free slots |
| Dimensions (H x W x D) | 79.17 x 47.24 x 42.13 in (201.1 x 120 x 107 cm) |
| Weight (Net) | 3,953.09 lb (1,793.09 kg) |
| Certifications | UL 1778, CSA C22.2 No.107.3-05, ISO 9001, ISO 14001, FCC Part 15 Class A |
| Operating Temp / Humidity | 32–104 °F (0–40 °C), 0–95% RH |
| Noise Level | 67 dBA |
| Warranty | 1-Year On-Site Repair or Replace with Start-Up Service |
