Description

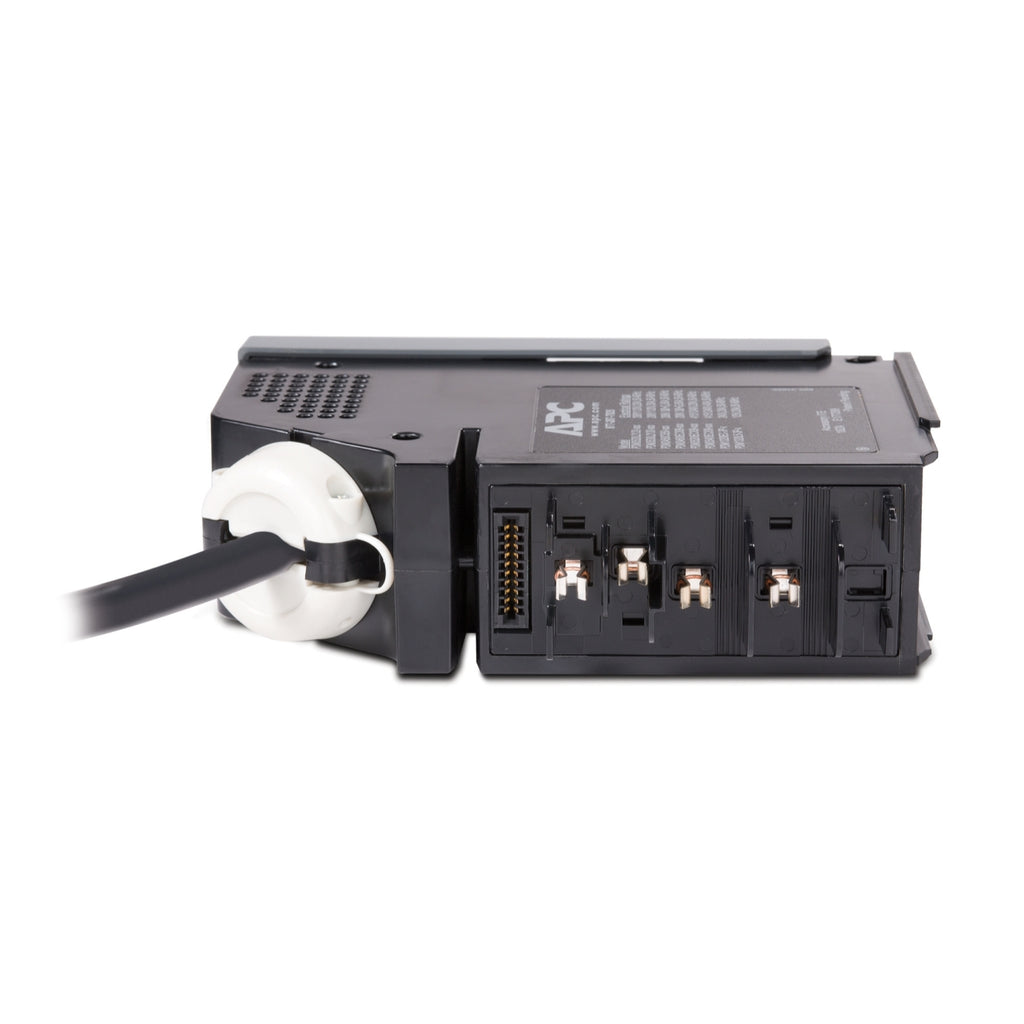

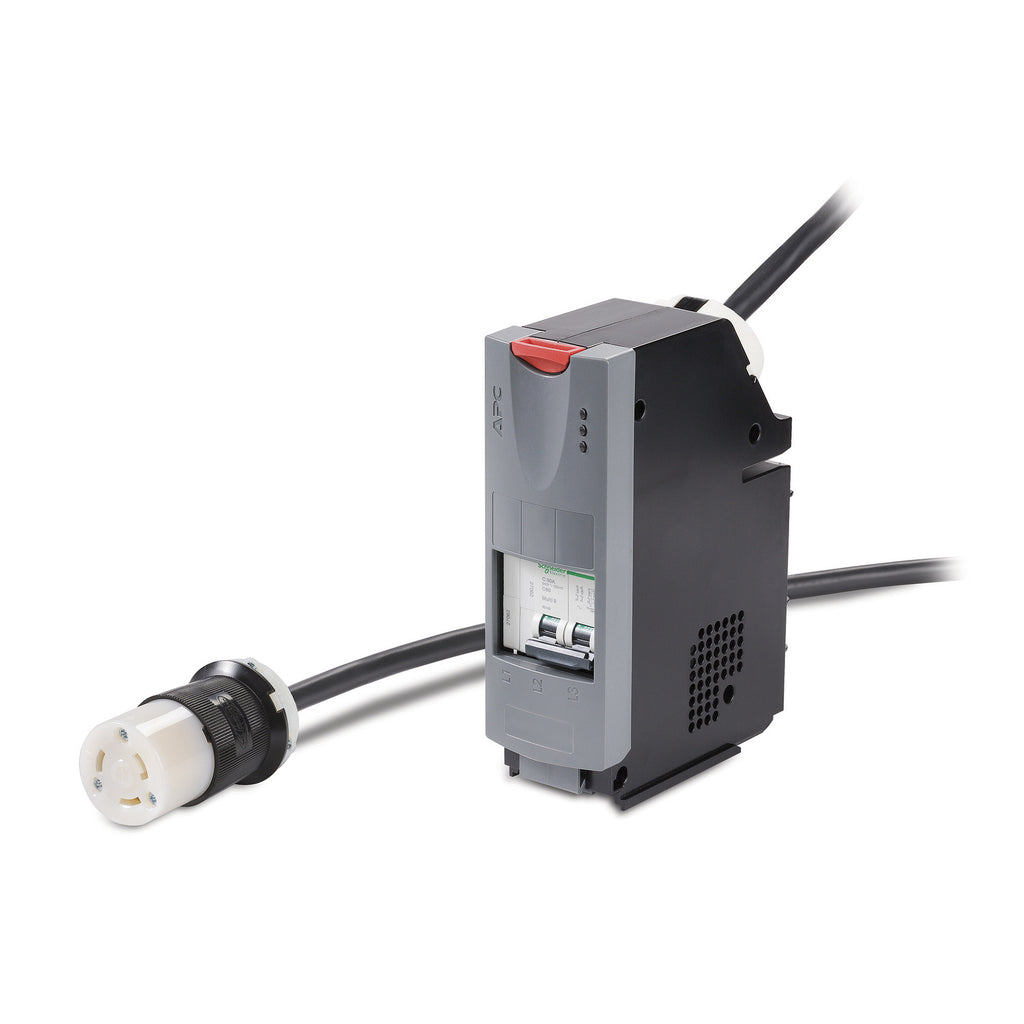

The APC IT Power Distribution Module PDM2330L6-23-740 is a factory-assembled, fully tested power module designed for modular PDU environments requiring reliable 208V power distribution. Featuring a 30A L6-30 input and output configuration, this module supports fast deployment through automatic detection by compatible Modular PDUs, minimizing installation time and configuration effort.
Built for data centers and IT infrastructure environments, this power distribution module integrates a circuit breaker, power cord, secure power connection, and circuit monitoring in a compact, rack-friendly form factor. Its robust construction and UL listing ensure dependable performance for critical equipment while supporting efficient power management and scalability.
| Specification | Details |
|---|---|
| Product Type | IT Power Distribution Module |
| Input Voltage | 208 V |
| Output Voltage | 208 V |
| Input Frequency | 60 Hz |
| Max Line Current | 30 A |
| Poles / Wires | 2-Pole, 3-Wire |
| Outlet Type | 1 × NEMA L6-30R |
| Maximum Current per Phase | 30 A |
| Input / Output Connector | L6-30 |
| Color | Black |
| Height | 5.0 in (12.7 cm) |
| Width | 17.5 in (44.4 cm) |
| Depth | 16.0 in (40.6 cm) |
| Net Weight | 9.46 lb (4.29 kg) |
| Operating Temperature | 32°F to 86°F (0°C to 30°C) |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Altitude | Up to 10,000 ft |
| Certifications | UL Listed |
| Included Items | Installation Guide |
| Warranty | 12 Months |
