Description

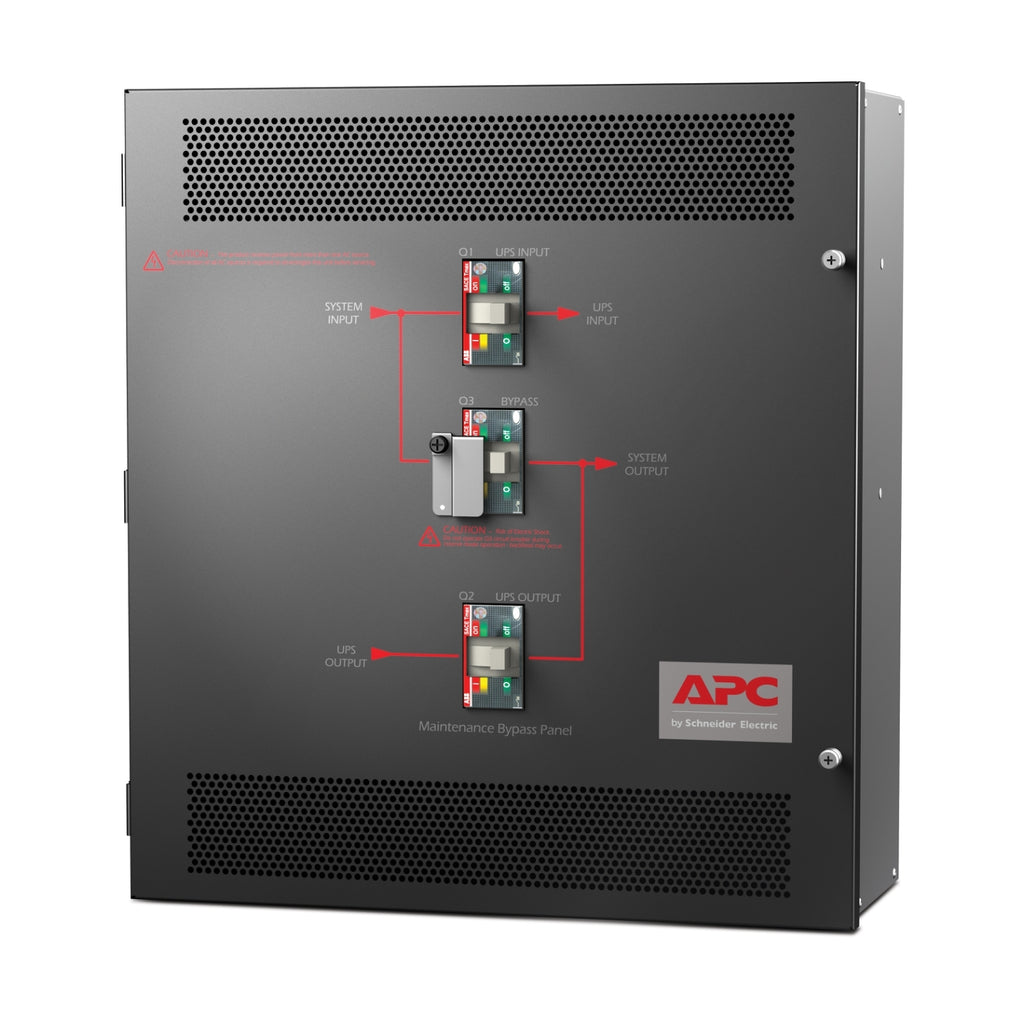

The APC by Schneider Electric Maintenance Bypass Panel (SBPSU10K15F-WP) is designed for seamless maintenance and maximum uptime of your power systems. Engineered for 10–15kVA 3-phase systems at 208V, this wall-mounted unit allows utility power to bypass the UPS during maintenance or replacement without interrupting power to your critical load. Built to UL 1778 standards, it ensures safe, reliable, and convenient operation for mission-critical environments.
| Specification | Details |
|---|---|
| SKU | SBPSU10K15F-WP |
| Product Type | Maintenance Bypass Panel |
| Brand | APC by Schneider Electric |
| Power Rating | 10–15kVA |
| Input Voltage | 208V, 3-phase |
| Output Voltage | 208V, 3-phase |
| Input Frequency | 60 Hz |

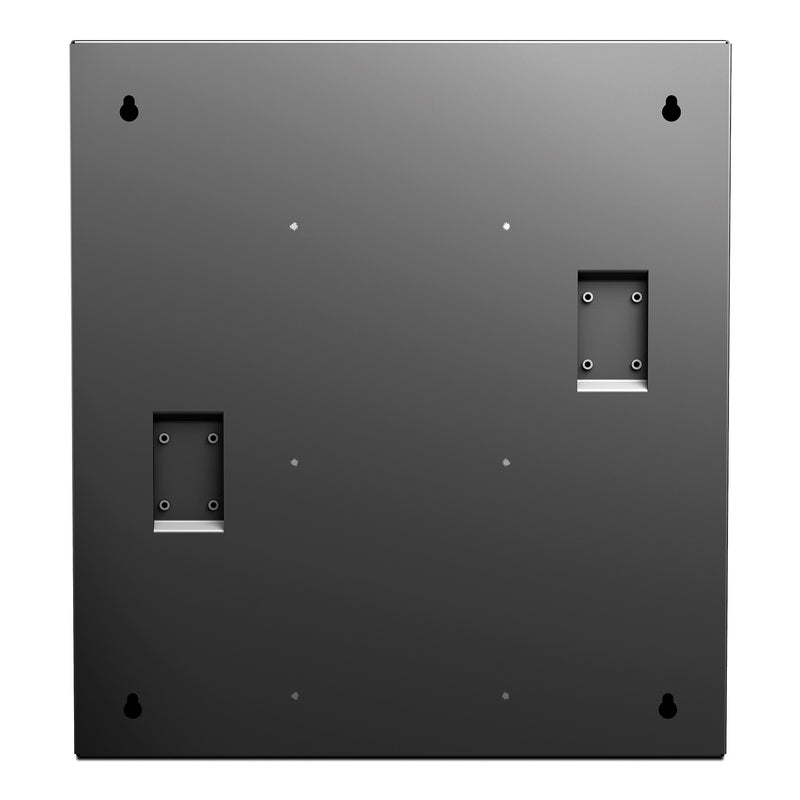

| Mounting Support | Wall |
| Mounting Mode | Not rack-mountable |
| Height | 24.26 in (61.63 cm) |
| Width | 22.11 in (56.15 cm) |
| Depth | 8.41 in (21.35 cm) |
| Weight | 55.1 lb (25 kg) |
| Conformance Standard | UL 1778 |
| Ambient Operating Temperature | 32–104 °F (0–40 °C) |
| Relative Humidity (Operating) | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | 32–113 °F (0–45 °C) |
| Storage Humidity | 0–95% |
| Storage Altitude | 0–30,000 ft (0–9144 m) |
| Included Accessories | Installation Guide, User Manual |
| GTIN | 731304275671 |
| Warranty | 1-year repair or replace |
| Lead Time | Usually ships within 2 weeks |
| Shipping Dimensions (H x W x L) | 13.19 x 28.31 x 26.26 in |
| Shipping Weight | 105.8 lb (48 kg) |
