Description

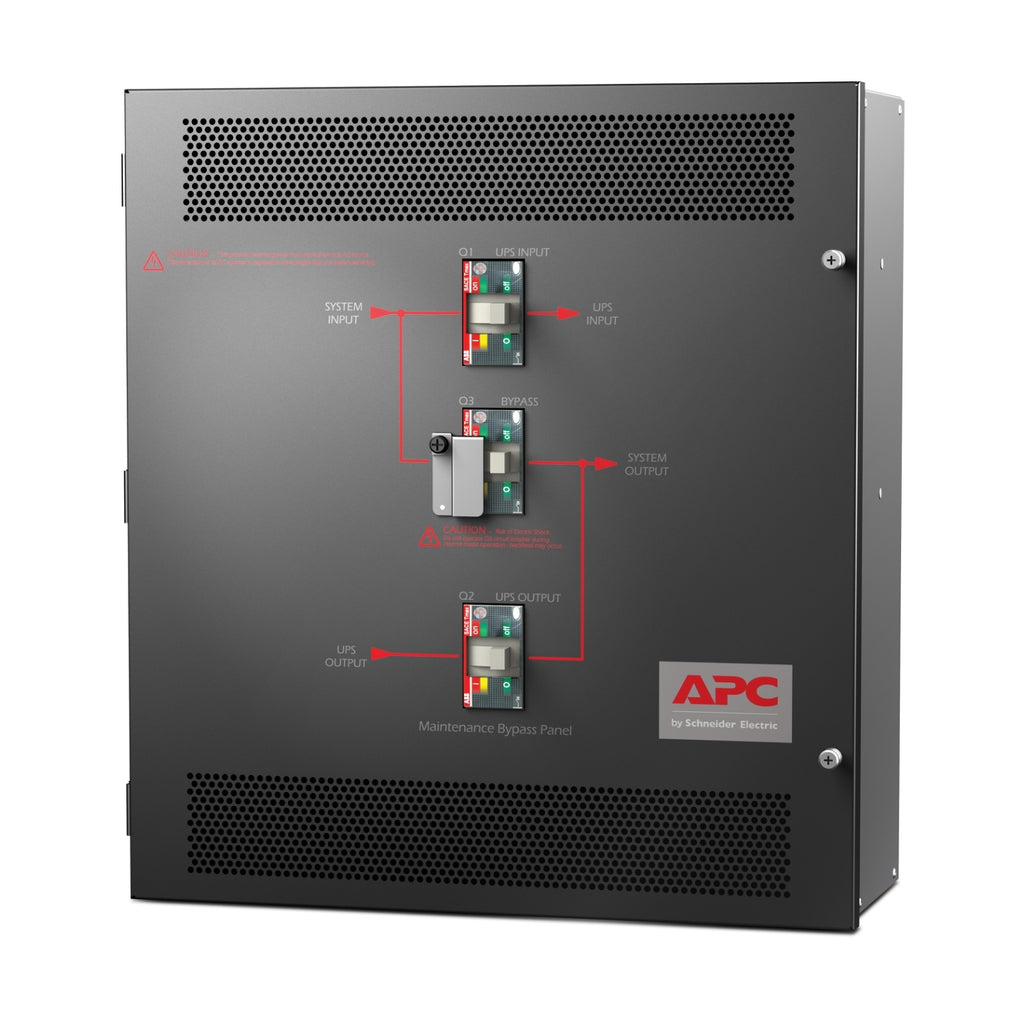

The APC Maintenance Bypass Panel SBPSU20K30F-WP is a high-quality wall-mounted solution designed for seamless UPS maintenance and serviceability without system downtime. Engineered to support 20-30kVA, 208V three-phase applications, this UL 1778 compliant bypass panel enhances operational continuity in mission-critical environments. Its compact, wall-mountable design ensures easy integration into tight IT or electrical spaces, while offering durable construction and a reliable power transfer mechanism.
| Category | Details |
|---|---|
| Product Type | Maintenance Bypass Panel |
| Model Number | SBPSU20K30F-WP |
| Power Rating | 30,000 VA |
| Input Voltage | 208 V 3-phase |
| Output Voltage | 208 V 3-phase |
| Input Frequency | 60 Hz |

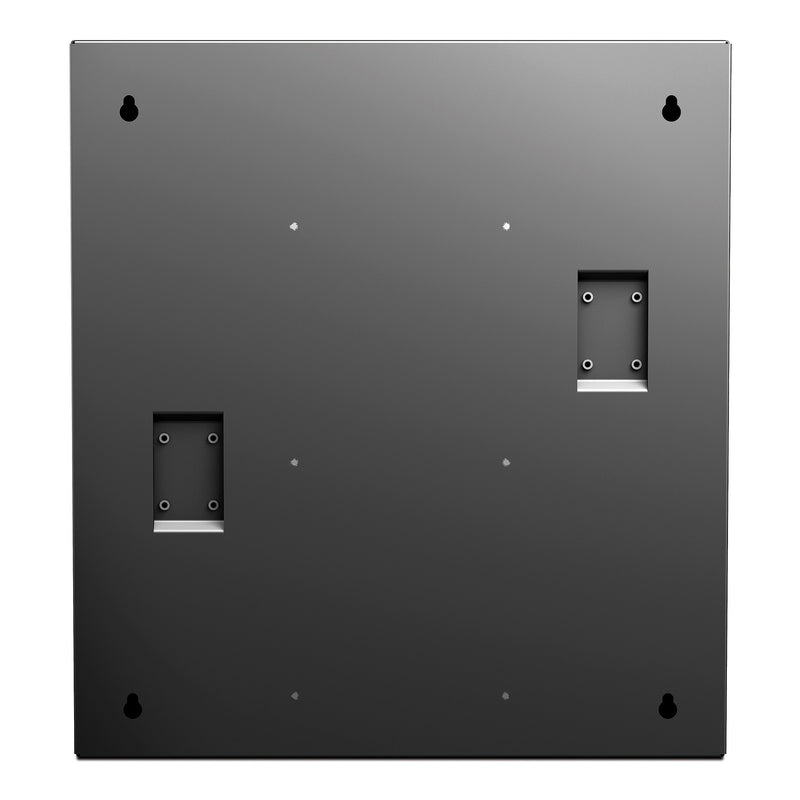

| Mounting Type | Wall-mounted |
| Mounting Mode | Not rack-mountable |
| Dimensions (H x W x D) | 24.26 x 22.11 x 8.41 in |
| Weight | 55.1 lb (25 kg) |
| Compliance Standard | UL 1778 |
| Environmental Operating Temp | 32–104 °F (0–40 °C) |
| Relative Humidity (Operating) | 0–95% |
| Max Operating Altitude | 10,000 ft |
| Storage Temp / Humidity | 32–113 °F / 0–95% |
| Storage Altitude | Up to 30,000 ft |
| Provided Equipment | Installation Guide, User Manual |
| GTIN | 731304275695 |
| Warranty | 1-year repair or replace |
