Description

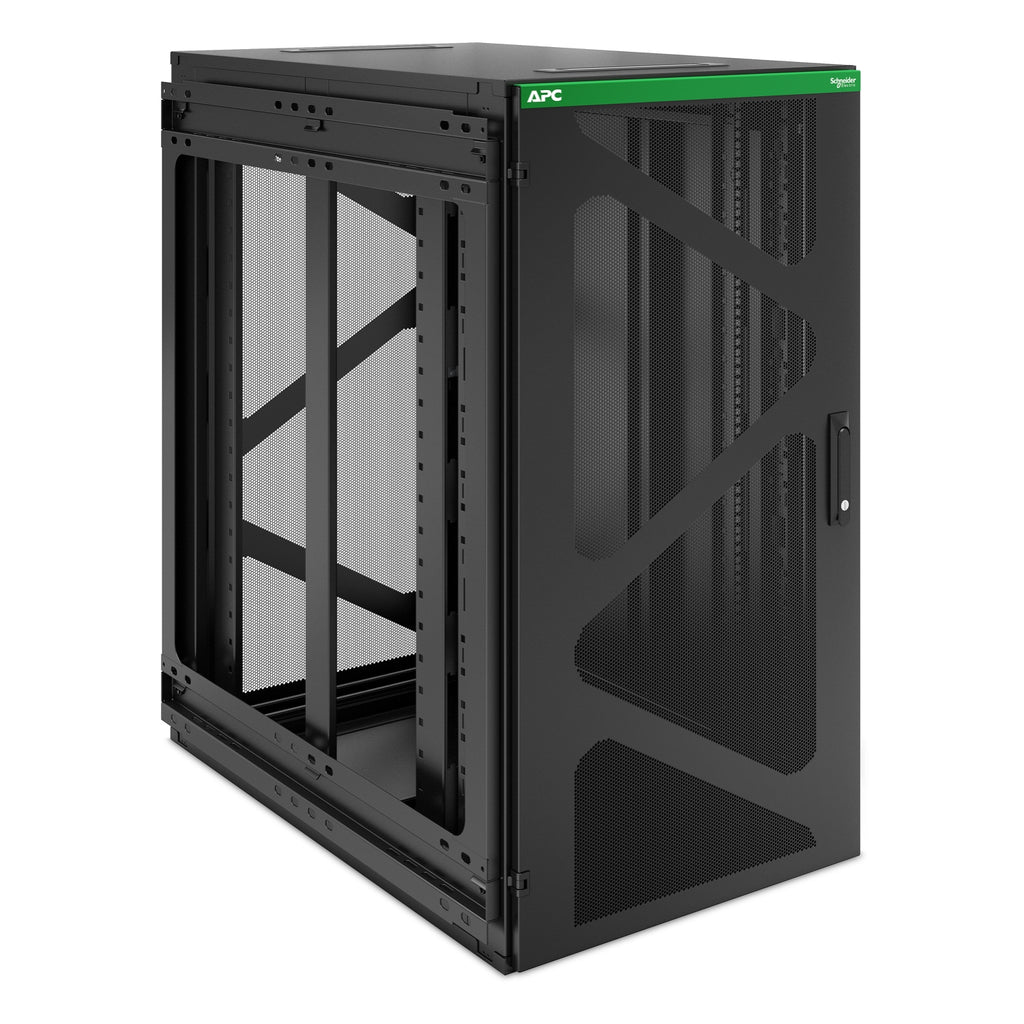

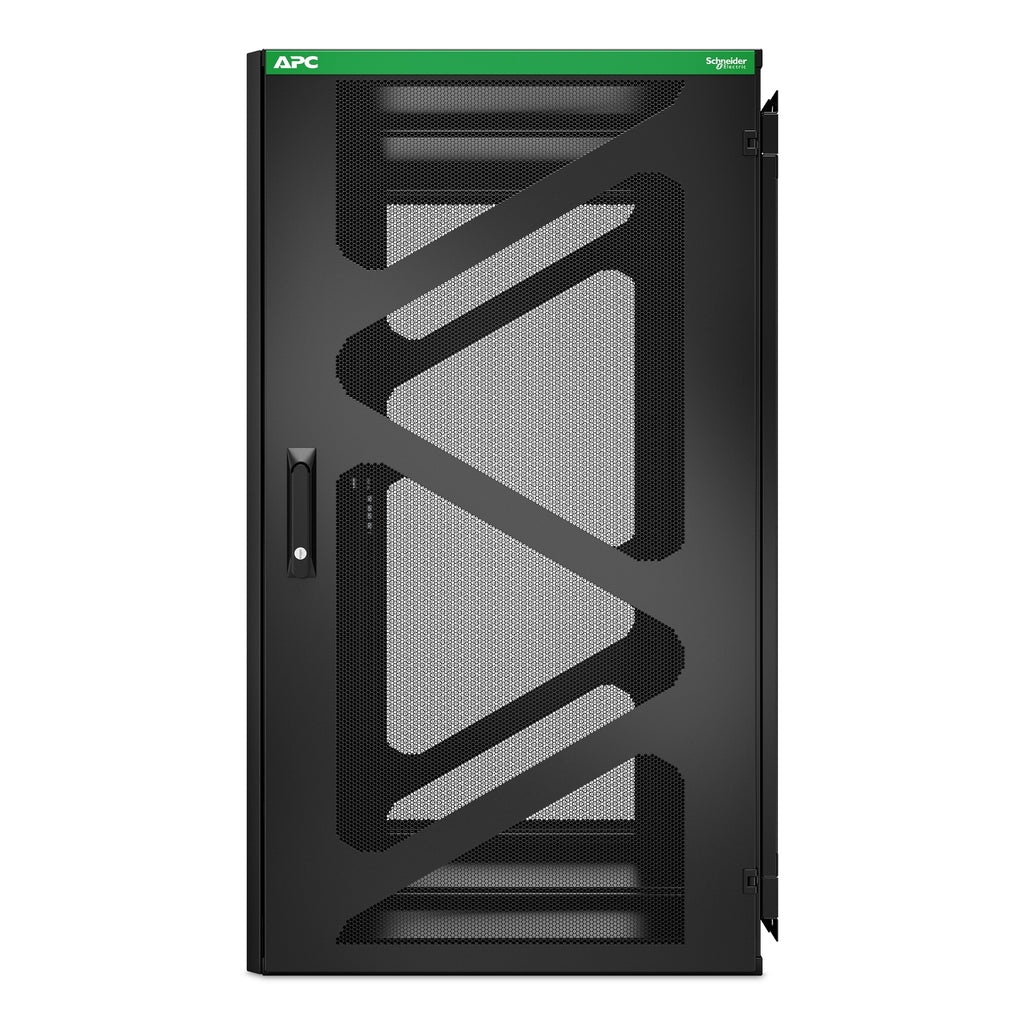

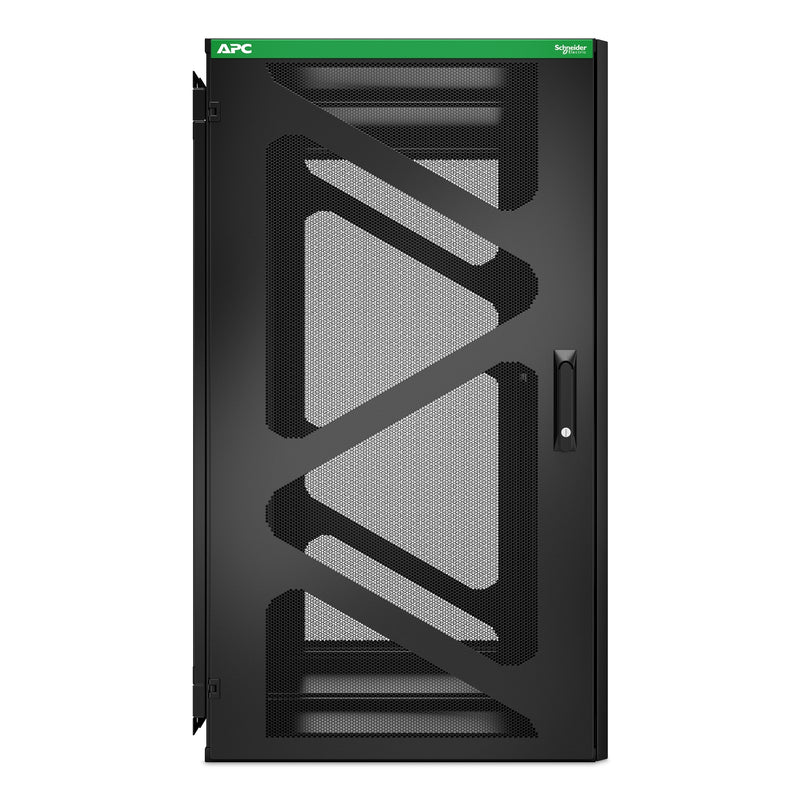

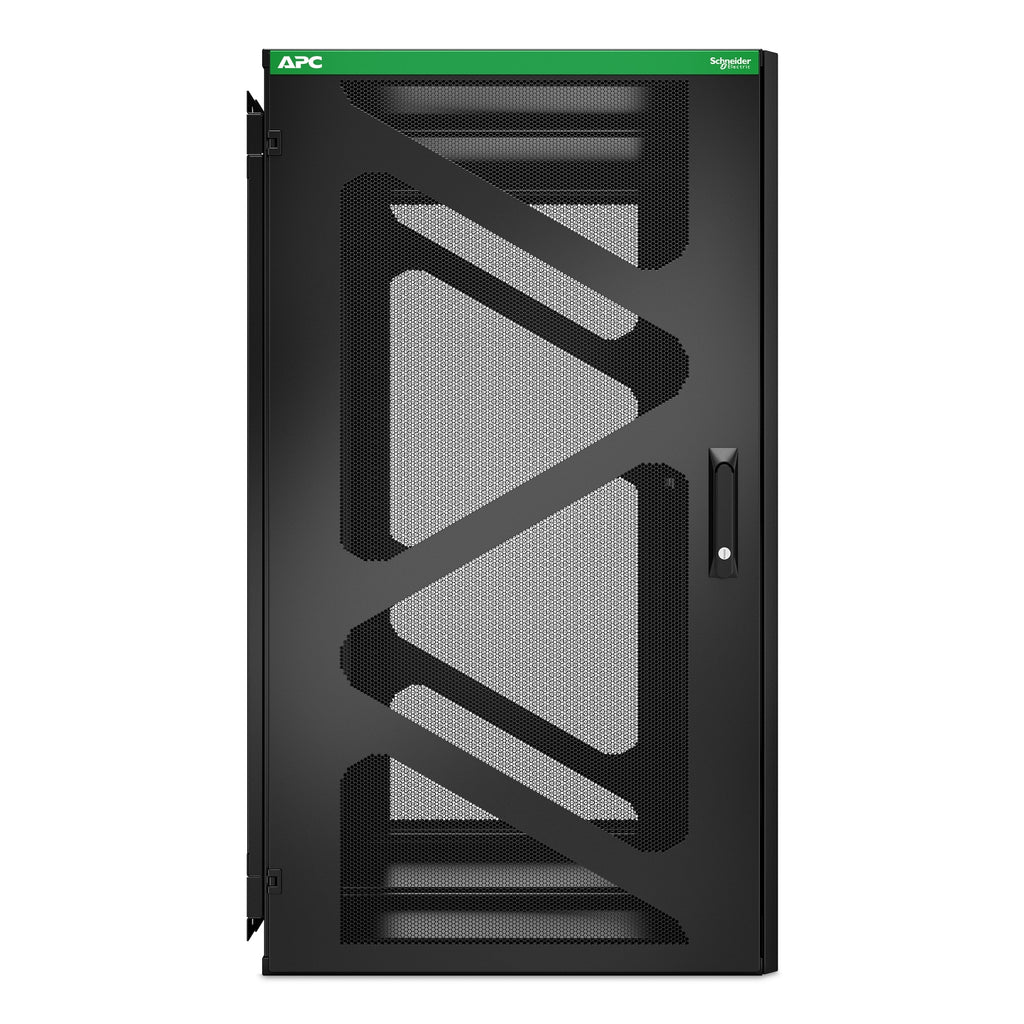

The APC NetShelter AR124SM is a 24U wallmount rack enclosure designed for edge computing environments where floor space is limited. With an 800mm depth and a max load capacity of 350lb, this robust steel enclosure supports a wide range of single-phase equipment. Its low-profile side-mount design extends less than 25 inches from the wall, offering a compact, secure, and efficient solution ideal for retail, healthcare, education, and more. Includes top and bottom cable access, accessory mounting channels, and a locking swing-handle for enhanced security. Ships fully assembled and backed by a 5-year APC warranty.
| Category | Details |
|---|---|
| Product Type | Wallmount Rack Enclosure |
| Model | AR124SM |
| Rack Units | 24U |
| Mount Type | Side-mount, wall-mount |
| Rack Width | 19" |
| Material | Steel |
| Color | Black |
| Depth | 800mm (31.5 in) |
| Maximum Mounting Depth | 32.9 in (835 mm) |
| Minimum Mounting Depth | 7.5 in (190 mm) |
| Height | 45.5 in (1156 mm) |
| Width | 23.6 in (600 mm) |
| Depth (Total) | 40.8 in (1037 mm) |
| Net Weight | 176.4 lb (80 kg) |
| Load Capacity | 350 lb (158 kg) |
| Certifications | UL 2416, cULus Listed |
| Cable Access | Top and bottom |
| Included Features | Locking swing-handle, accessory channels |
| Warranty | 5 years |
| GTIN | 731304632665 |
| Country of Origin | Thailand (TH) |
