Description

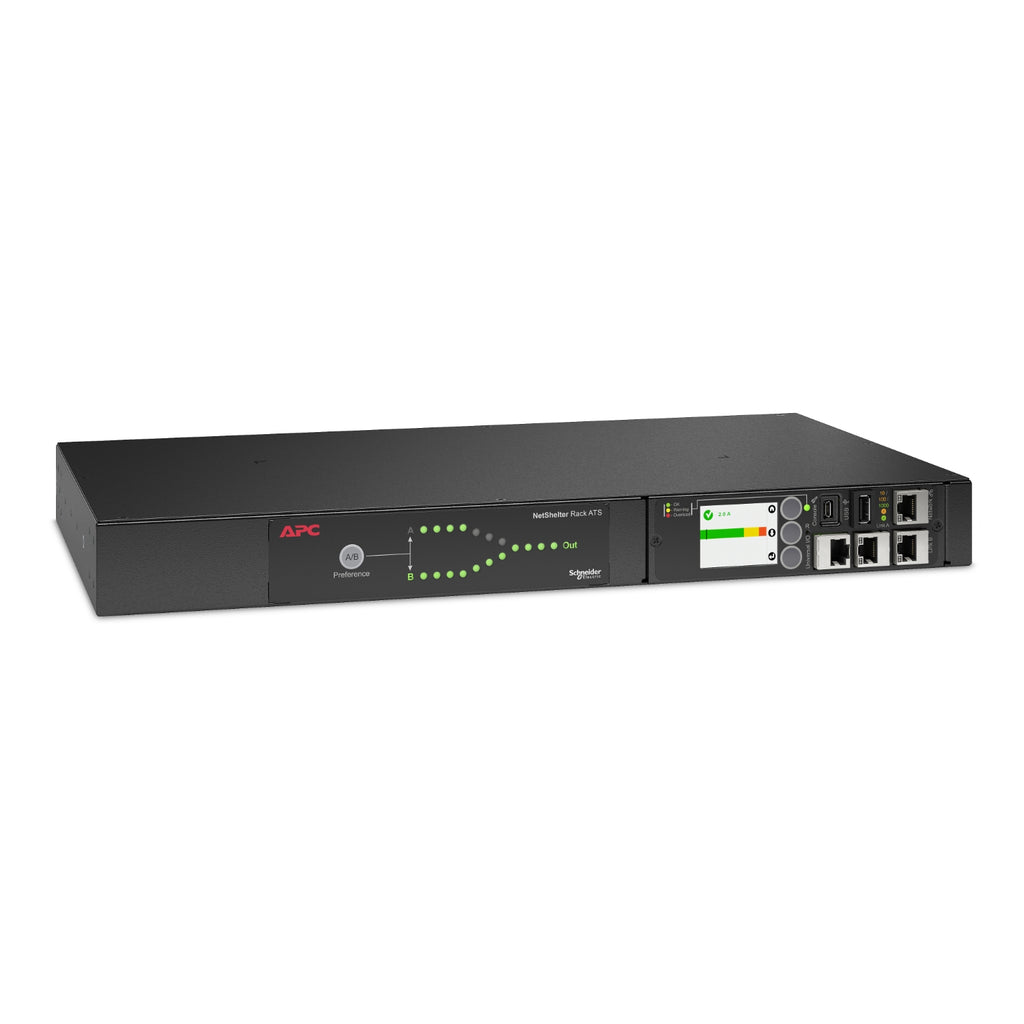

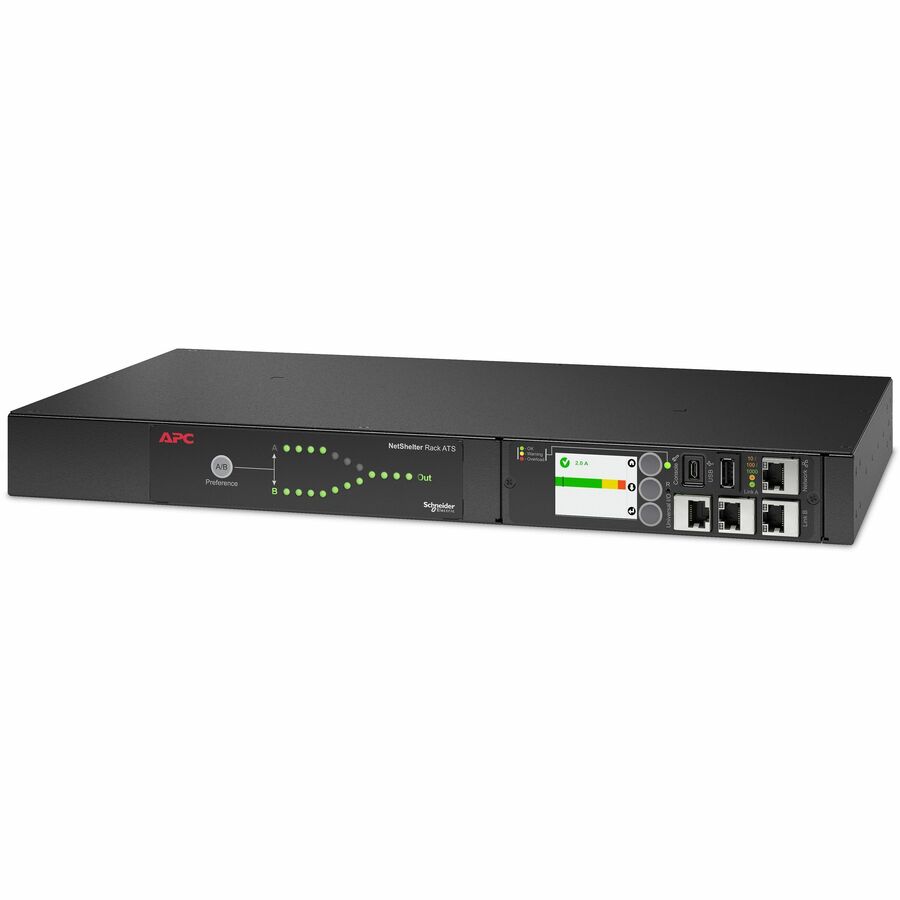

The APC NetShelter Rack Automatic Transfer Switch (AP4450A) delivers high availability and intelligent redundancy for single-corded equipment. Designed for cloud, edge, and enterprise environments, this 1U rackmount ATS ensures seamless power source switching within 10ms, minimizing downtime and enhancing operational continuity.
Equipped with dual NEMA 5-15P inputs and 10 NEMA 5-15R outlets, the AP4450A handles 15A and 1440VA loads at 100–120V. Featuring the upgraded NMC3 network card, it allows for environmental monitoring, IP management for up to 32 Rack ATS units, and full EcoStruxure IT compatibility.
Ideal for critical IT racks, the AP4450A comes with field-replaceable networking components, robust compliance certifications, and a 2-year standard warranty (extendable to 5 years).
| Specification | Details |
|---|---|
| Brand / Model | APC / AP4450A |
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Rack Size | 1U Rackmount |
| Input Voltage | 100V – 120V AC, 1 Phase |
| Input Connections | 2 × NEMA 5-15P (12A each, 2P+E) |
| Output Connections | 10 × NEMA 5-15R |
| Rated Load Capacity | 1440 VA |
| Max Current | 15A |
| Transfer Time | <10 ms |
| Frequency | 50/60 Hz |
| Network Management | NMC3, SNMP, Web UI, CLI, EcoStruxure Ready |
| Monitoring | Temperature & Humidity Sensors (optional) |
| Environmental | 23–113°F operating temp, 5–95% RH |
| Certifications | PSE, TÜV, FCC Class A, VCCI Class A |
| Mounting | Horizontal rack-mounted |
| Dimensions (H x W x D) | 1.73 x 17.01 x 9.29 in (4.4 x 43.2 x 23.6 cm) |
| Weight | 9.7 lbs (4.4 kg) |
| Warranty | 2 Years (extendable to 5 Years) |
