Description

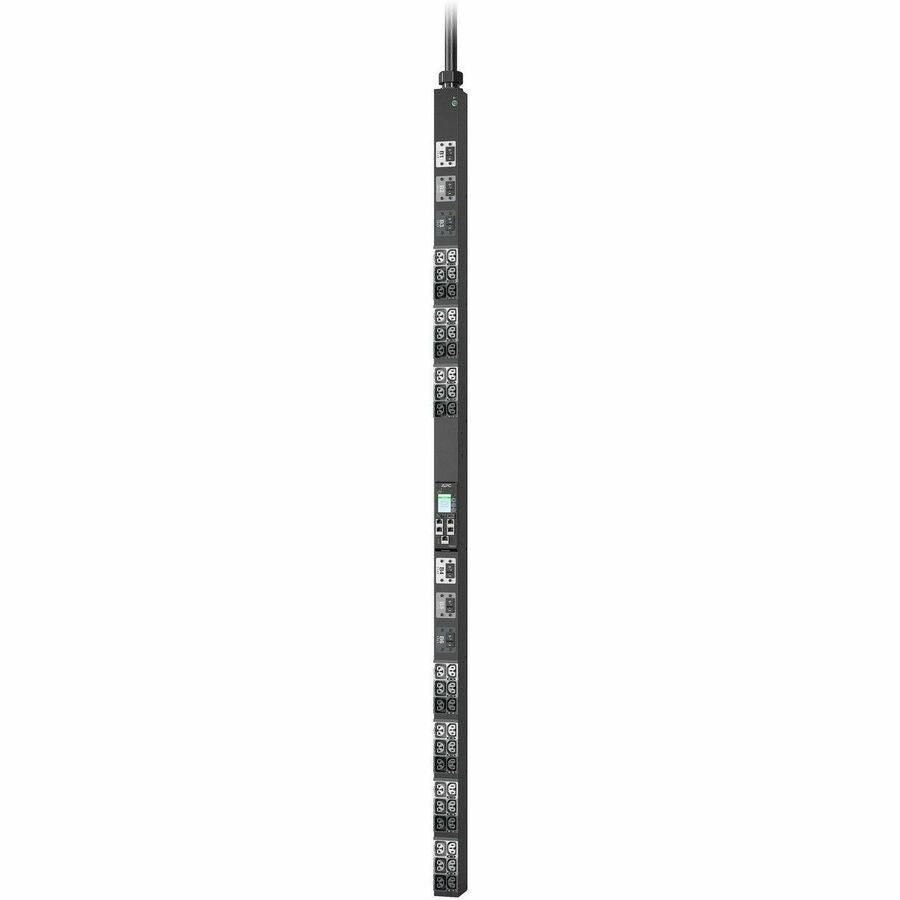

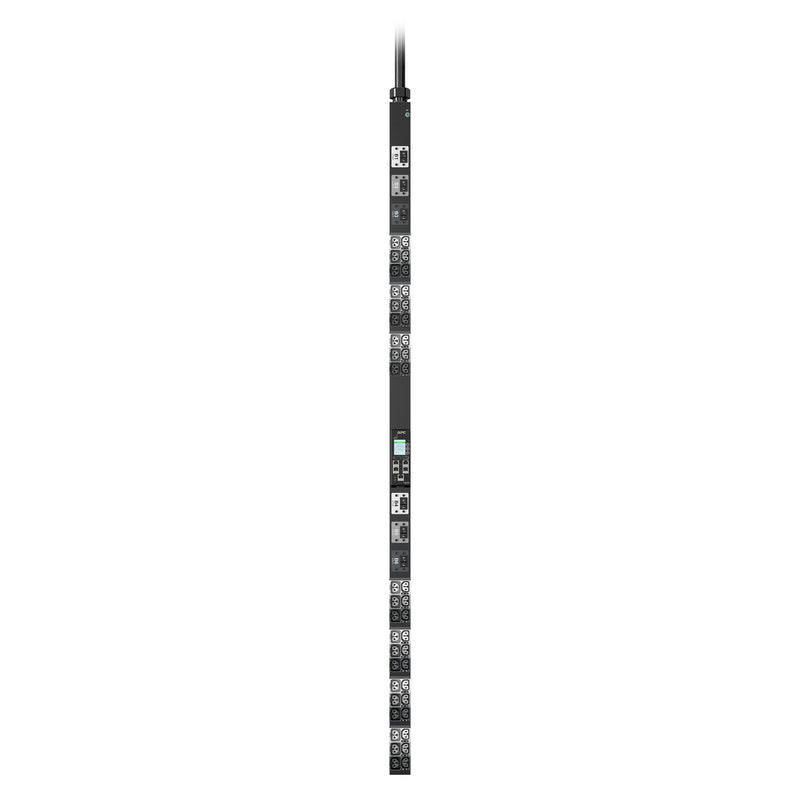

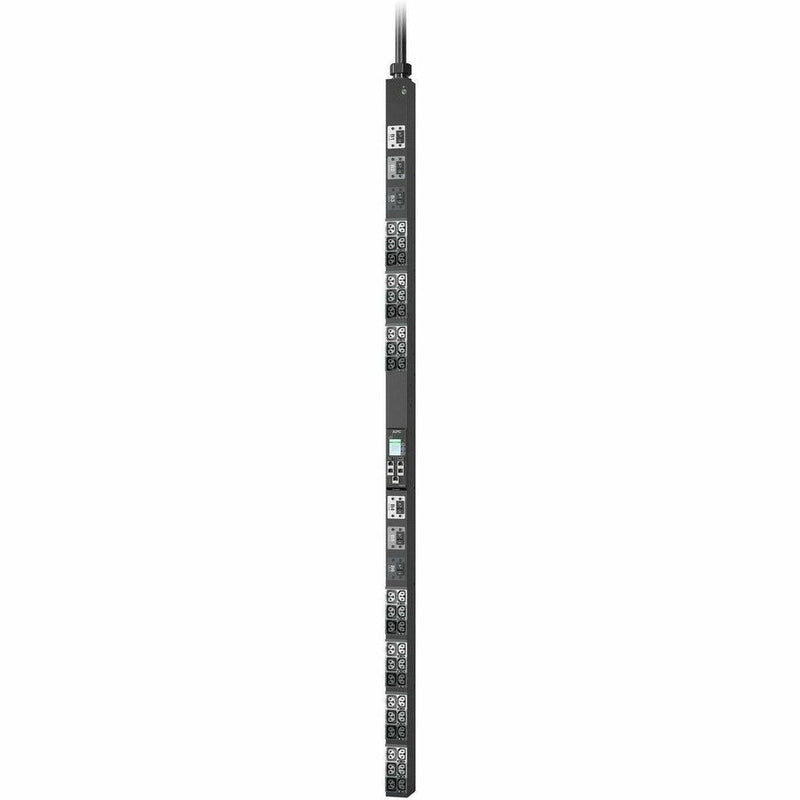

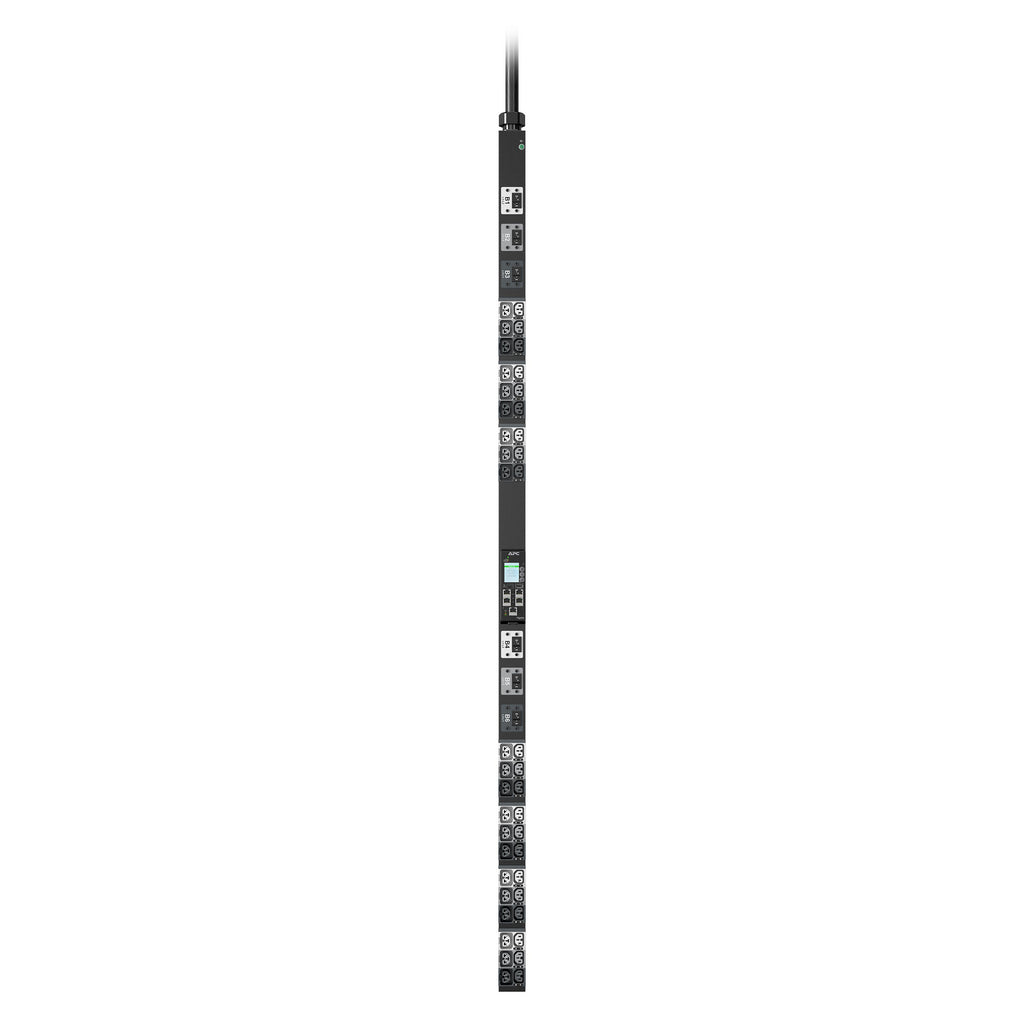

The APC NetShelter Rack PDU Advanced Gen 2 (APDU11451ME) is a high-performance, metered rack PDU designed for mission-critical, high-density IT environments. With a 14.4kW capacity and 3-phase 208V input via CS8365C plug, this unit delivers precise PDU-level power metering and supports modern deployment demands with maximum outlet density and 4-in-1 hybrid outlets. Each of the 42 outlets supports multiple plug types (C13, C15, C19, C21) for broad compatibility.

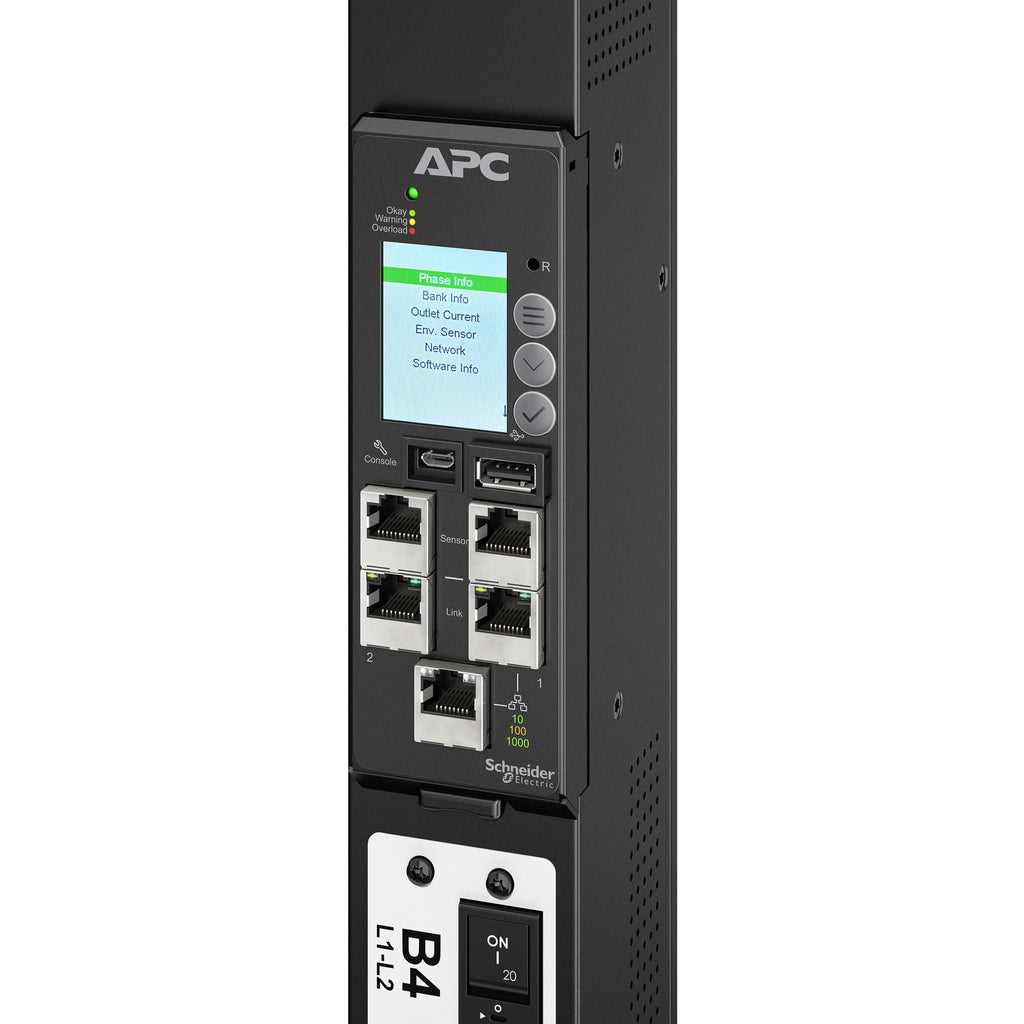

This next-generation PDU also features enhanced cybersecurity, EcoStruxure™ IT integration, and hot-swappable NMC3 for remote access and minimal downtime. With cascading capability, environmental sensor support, and 1% metering accuracy, it’s built for resilient and intelligent power management.
Key Features:
-
Ideal for high-density applications
-
One PDU for every device type – accelerates IT deployments
-
4-in-1 hybrid outlets (C13, C15, C19, C21)
-
EcoStruxure™ IT and enhanced cybersecurity compatible
-
Includes 1-year Secure NMC3 subscription
| Specification | Details |
|---|---|
| Model | APDU11451ME |
| PDU Type | Metered |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V |
| Rated Load Capacity | 14.4 kW (14400 VA) |
| Input Plug Type | CS8365C, 50A |
| Input Current | 50 A max |
| Cord Length | 9.8 ft (3 m) |
| Outlet Configuration | 21 x Combo (C13/C15/C19/C21), 21 x C13/C15 |
| Rack Units (RU) | 0U, Vertical Mount |
| Mounting Type | Rack-mounted (side, no preference) |
| Height x Width x Depth | 70.08 x 2.2 x 3.0 in (1780 x 56 x 75 mm) |
| Weight | 23.4 lb (10.6 kg) |
| Network Interface | 10/100/1000BASE-T (1x GbE, 2x link ports) |
| Operating Temp Range | -5 to 60°C (23 to 140°F) |
| Humidity | 5–95% RH |
| Altitude (Operating) | 0–10,000 ft |
| Compliance | UL, CSA, FCC, CE, UKCA, Nemko, PSE, RCM |
| Ingress Protection | IP44 |
| Warranty | 3 years (repair or replace) |
