Description

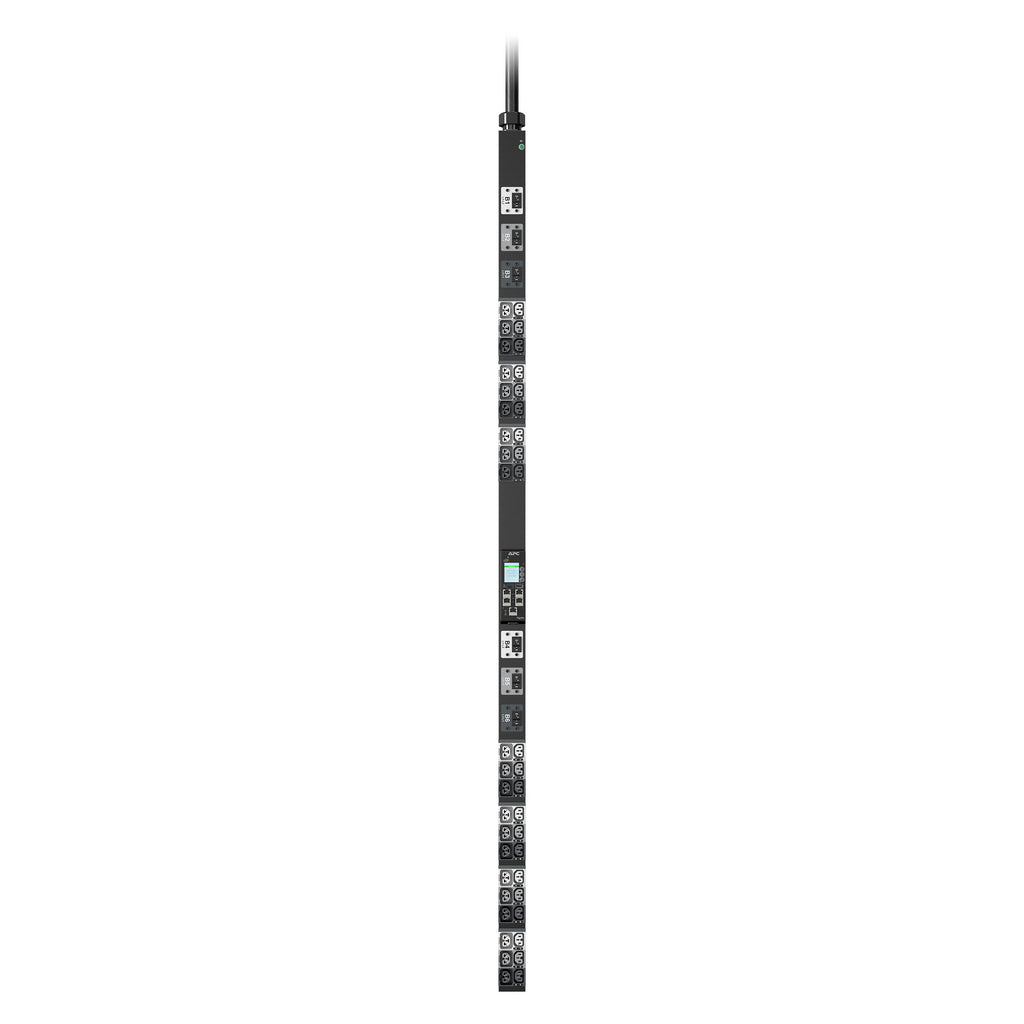

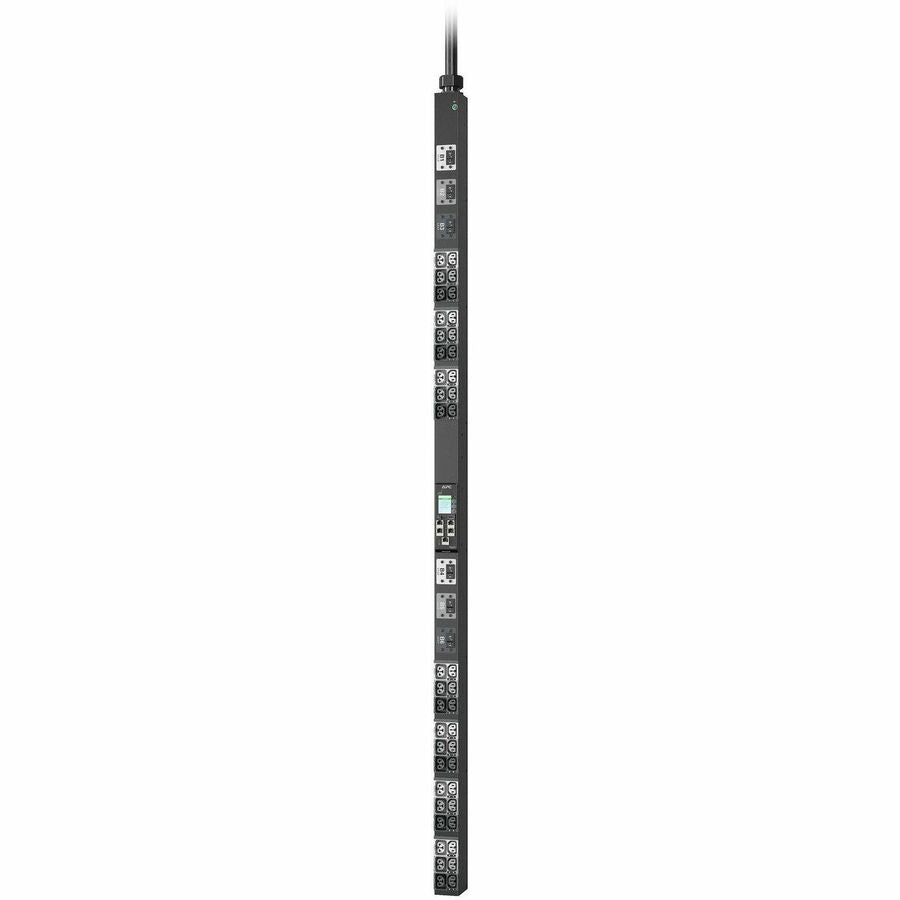

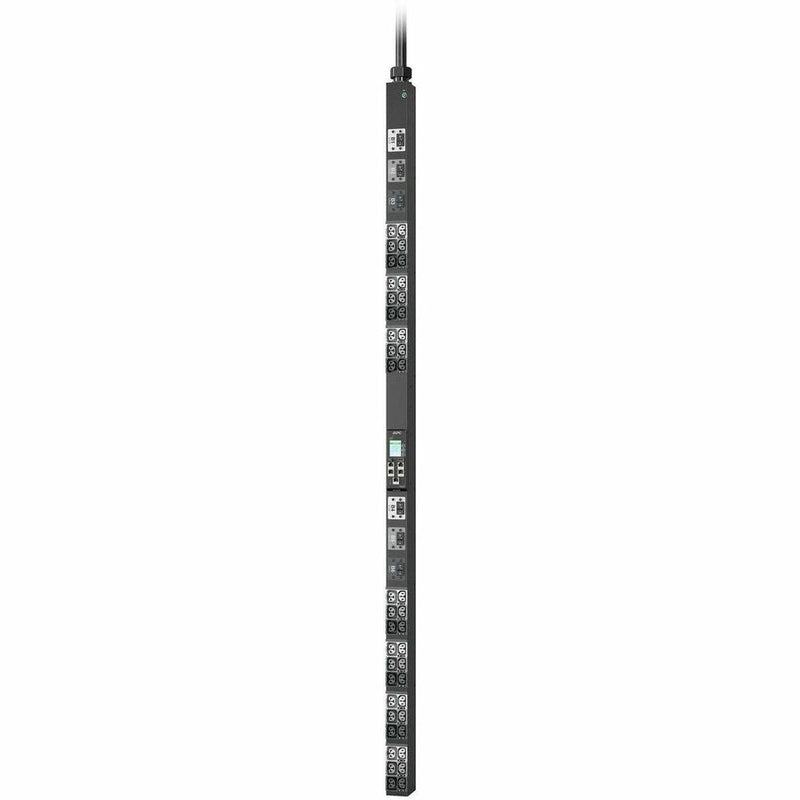

The APC NetShelter Rack PDU Advanced Gen 2 (Model: APDU11452ME) delivers efficient and flexible metered power distribution for modern high-density IT environments. With a total load capacity of 17.3kW, this 3-phase, vertical 0U rack PDU includes 42 total outlets, supporting a versatile 4-in-1 outlet configuration (C13, C15, C19, and C21). It ensures precise energy tracking with ±1% metering accuracy at the PDU level, vital for capacity planning and billing.
Engineered for AI, HPC, and data center workloads, it includes Live Swap NMC3 capability, enhanced cybersecurity, and integration with EcoStruxure™ IT. It features a 10Gb Ethernet port, dual cascading ports (up to 32 PDUs), and 1-year free access to Secure NMC3 System. Designed for high-performance and uptime in demanding environments, this PDU is IP44-rated and certified to UL, CE, CSA, and global standards.
Key Features (Bulleted Summary):
-
Ideal for AI, high-density compute, and data centers
-
4-in-1 combination outlets: C13, C15, C19, and C21
-
±1% accurate metering at the PDU level
-

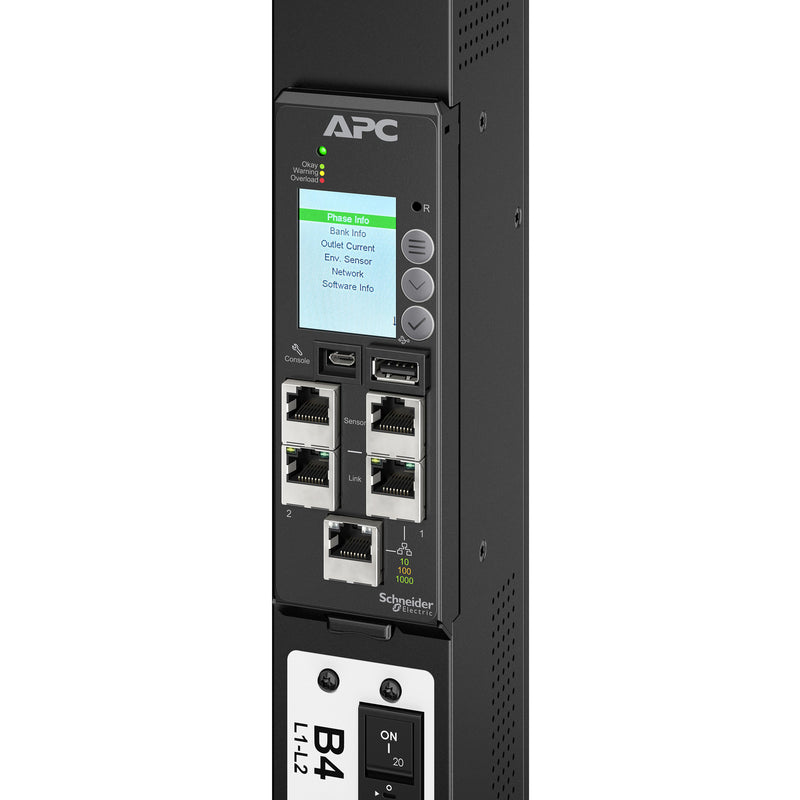

Live Swap Network Management Card 3
-
Enhanced cybersecurity + EcoStruxure™ IT ready
-
1-year Secure NMC3 System subscription included
-
Daisy-chaining support for up to 32 PDUs
| Attribute | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU11452ME |
| Series | NetShelter Rack PDU Advanced Gen 2 (11K) |
| PDU Type | Metered |
| Power Capacity | 17.3kW / 208V / 60A / 3 Phase |
| Input Plug Type | IEC 60309 60A 3P+PE |
| Input Cord Length | 9.8 ft (3 m) |
| Outlet Quantity & Type | 21 × C13/C15, 21 × C13/C15/C19/C21 Combo |
| Form Factor | 0U Vertical (Rack-mounted) |
| Mounting | Side-mounted, no preference |
| Dimensions (HxWxD) | 70.08 × 2.2 × 3.0 in (1780 × 56 × 75 mm) |
| Weight | 23.6 lb (10.7 kg) |
| Networking | 1 × GbE (10/100/1000) + 2 × Cascade Ports |
| Operating Temp Range | -5 to 60 °C (23 to 140 °F) |
| Certifications | UL, CE, CSA, FCC, UKCA, PSE, KC, China RoHS |
| IP Rating | IP44 |
| Warranty | 3-Year Repair or Replace |
| Extras | Live Swap NMC3, 1-Year Secure NMC3 Access |
