Description

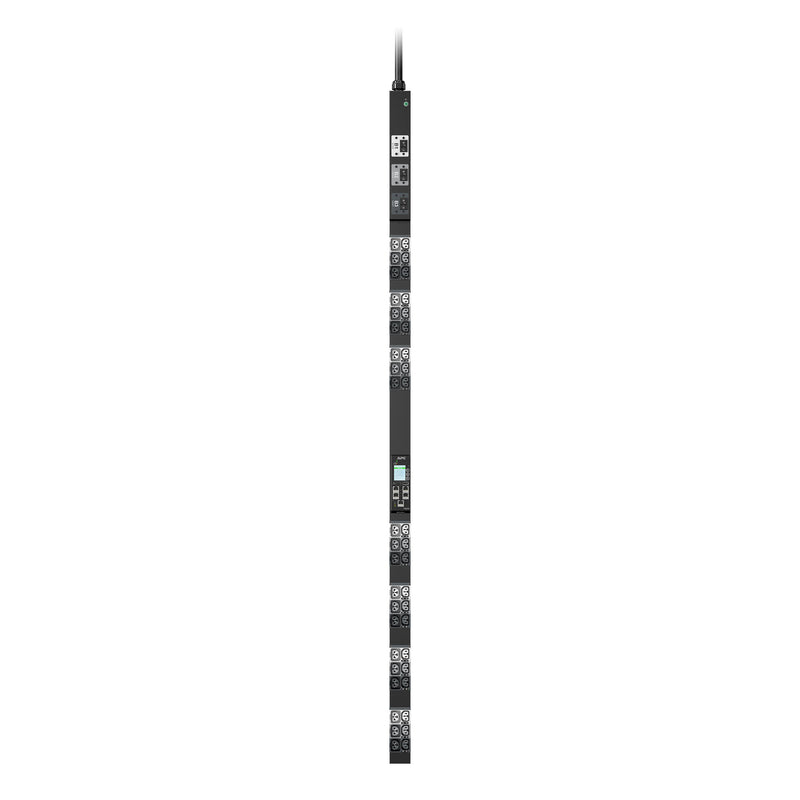

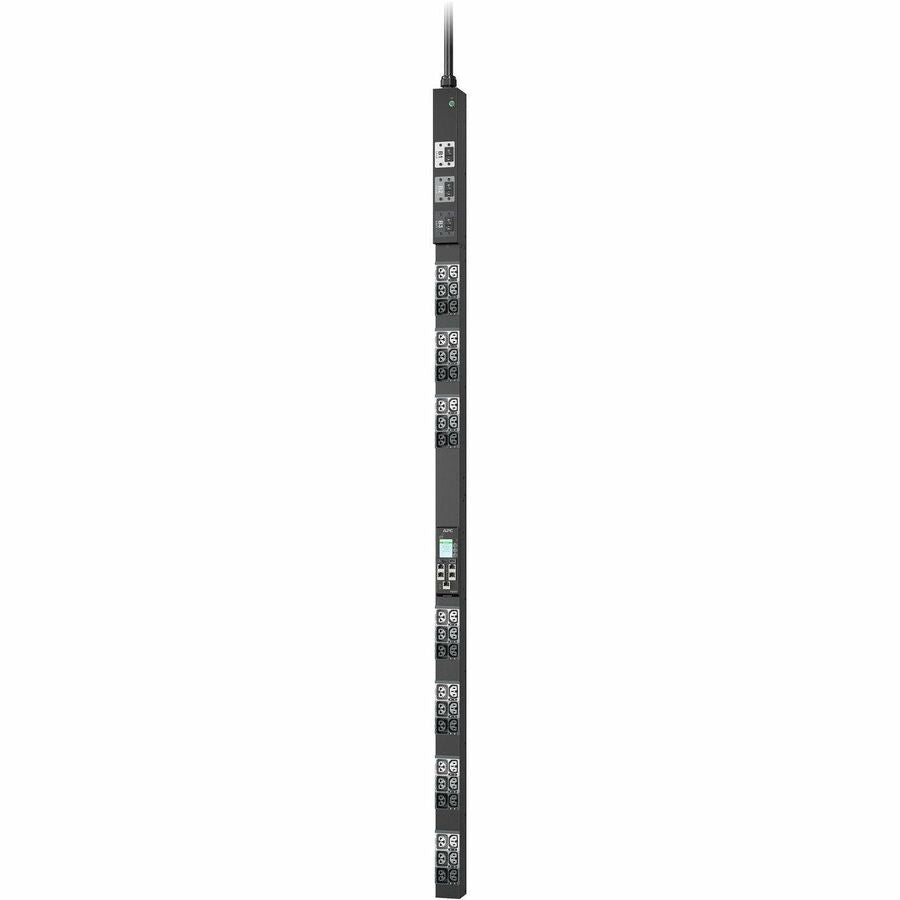

The APC NetShelter Rack PDU Advanced Gen 2 (Model APDU11351ME) delivers reliable 3-phase power distribution for modern data centers and high-density IT deployments. This metered PDU provides real-time power visibility at the PDU level, helping prevent overloads and manage energy usage effectively.
Featuring a unique 4-in-1 combination outlet design (C13, C15, C19, C21), the APDU11351ME provides unparalleled deployment flexibility. With 42 outlets in a compact 2.2 in. form factor, it supports high-density environments. The unit integrates with EcoStruxure™ IT and includes enhanced cybersecurity and support for up to two environmental sensors.
A secure NMC3 system comes with a 1-year subscription, and the hot-swappable design minimizes downtime. Built for demanding environments, it operates reliably up to 60°C with 1% metering accuracy, cascading capability (up to 32 PDUs), and standards compliance for global deployments.
| Attribute | Details |
|---|---|
| Model | APDU11351ME |
| PDU Type | Metered |
| Input Voltage | 208V 3-Phase |
| Line Rated Current | 24A |
| Input Plug Type | NEMA L21-30P |
| Input Frequency | 50/60 Hz |
| Load Capacity | 8.6kW / 8600 VA |
| Outlet Quantity & Type | 21 × C13/C15/C19/C21 + 21 × C13/C15 |
| Form Factor | Vertical (0U), Rack-mounted |
| Dimensions (HxWxD) | 70.08 x 2.2 x 3.0 in (1780 x 56 x 75 mm) |
| Weight | 17.0 lbs (7.7 kg) |
| Cord Length | 9.8 ft (3 m) |
| Operating Temp. | -5 to 60°C (23 to 140°F) |
| Operating Humidity | 5% to 95% |
| Compliance & Safety | UL 62368-1, CSA, FCC Part 15 Subpart B |
| IP Rating | IP44 |

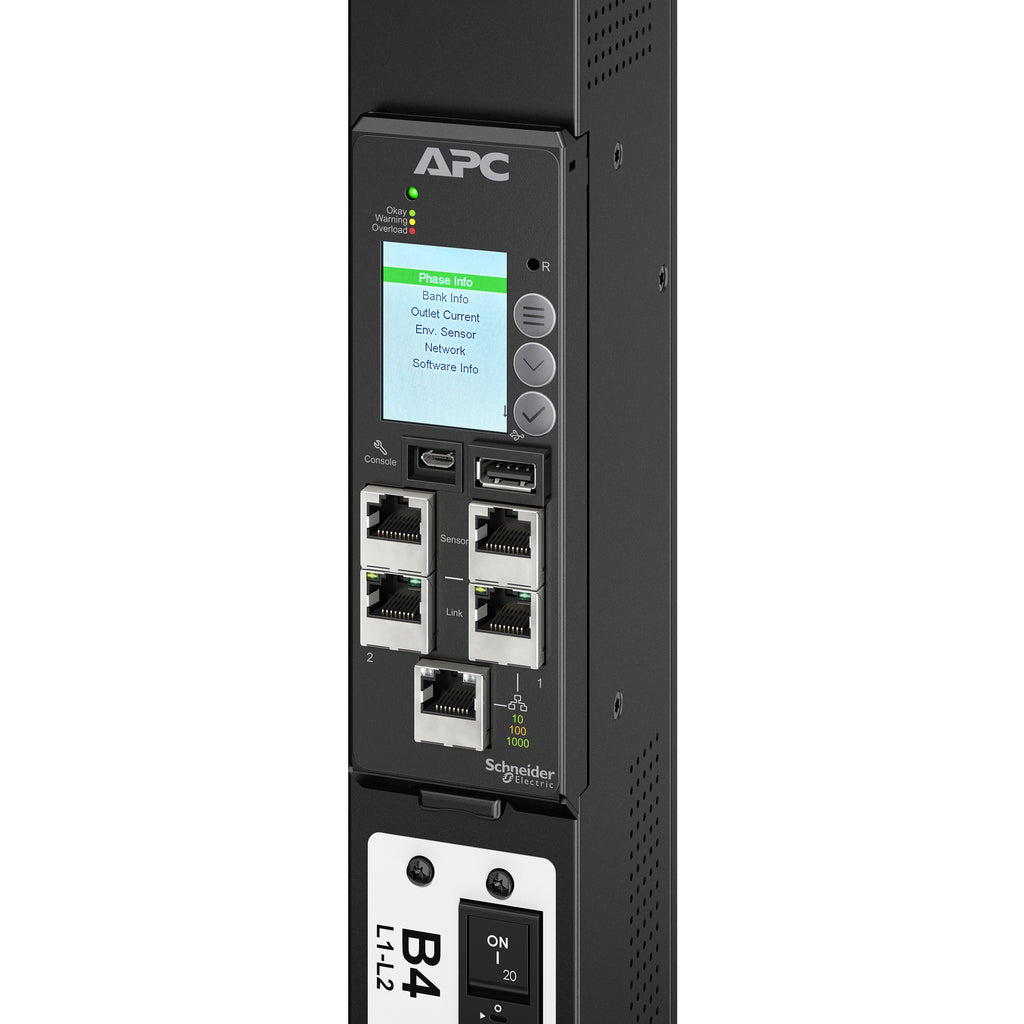

| Network Interface | 10/100/1000BASE-T, 2x link ports |
| Environmental Sensors | Supports 2 sensors (sold separately) |
| Warranty | 3-Year Repair or Replace |
| Certifications | UL, CE, CSA, UKCA, Nemko, PSE, KC, RoHS, RCM, CMIM |
