Description

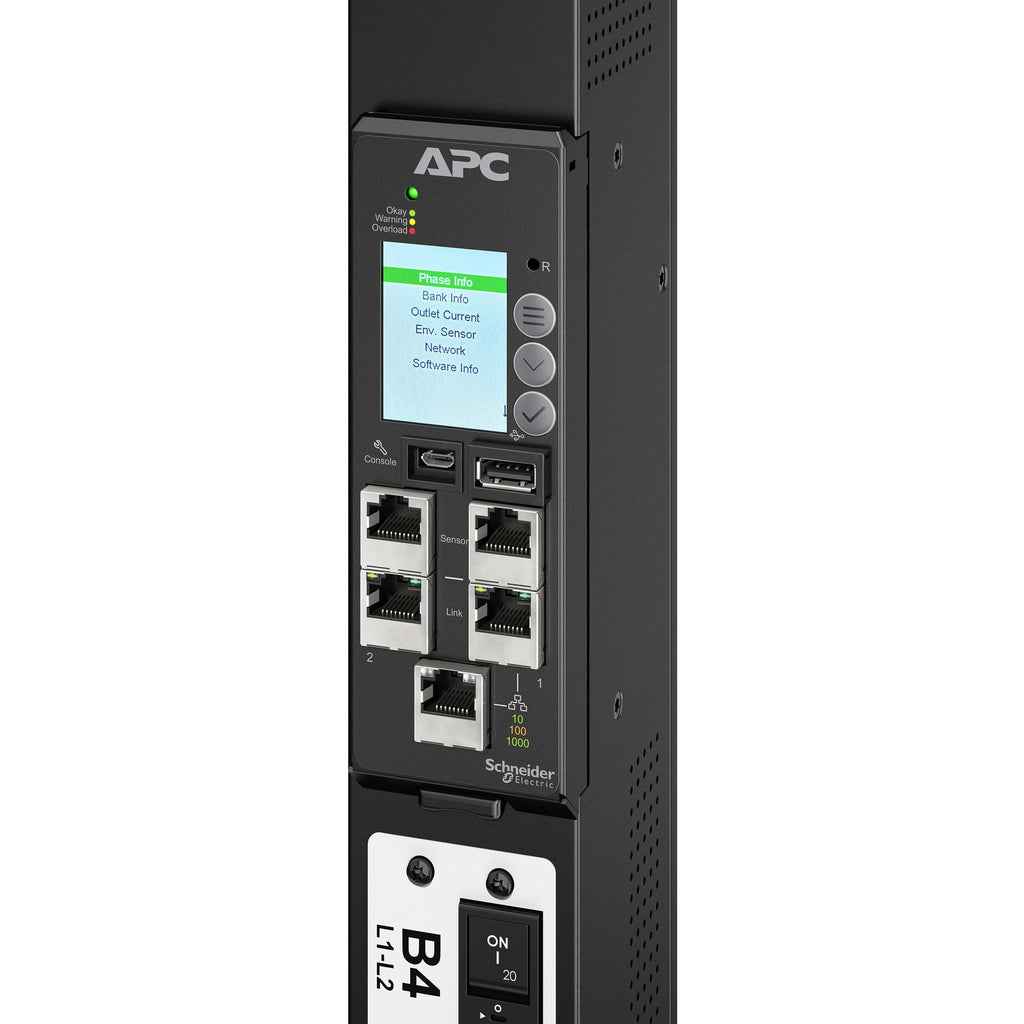

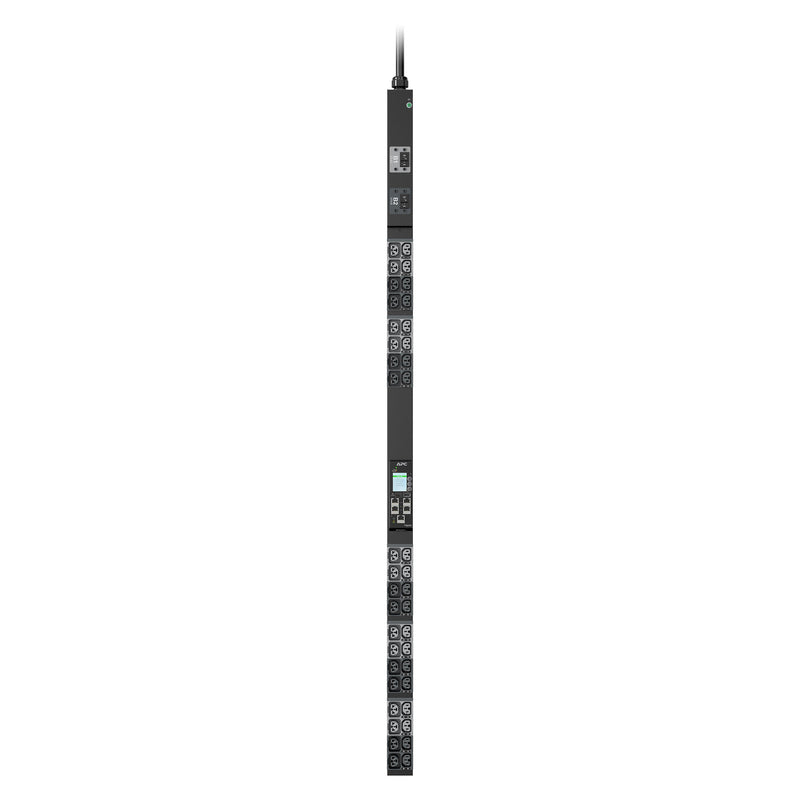

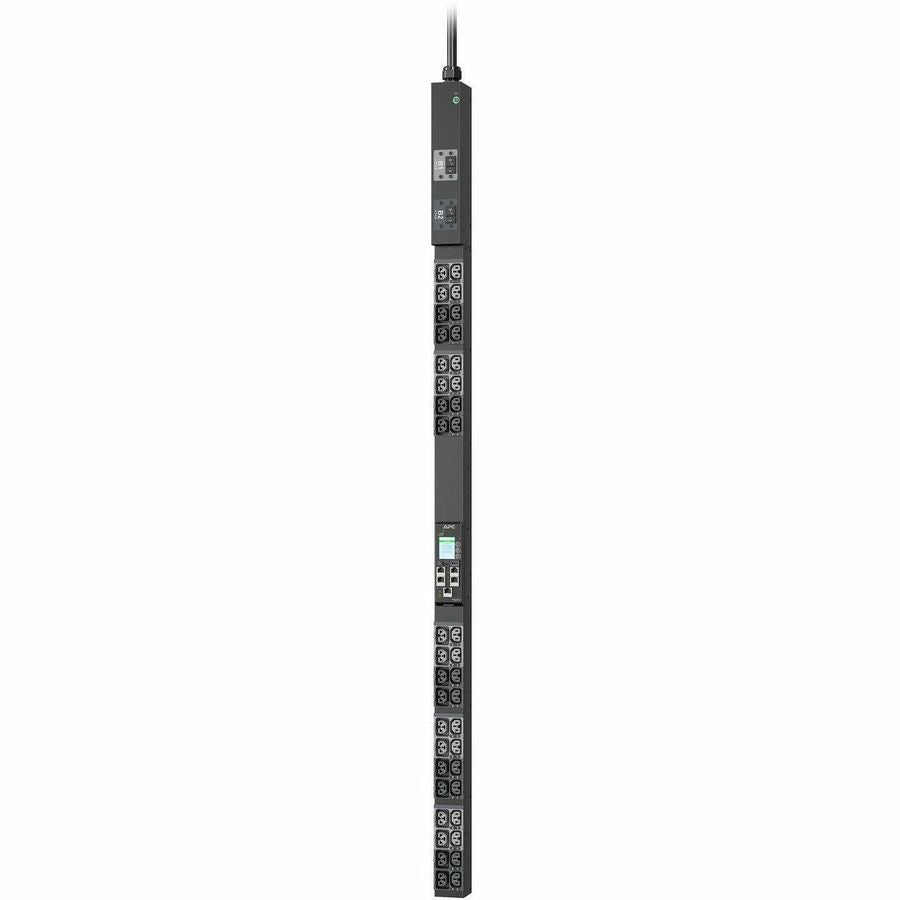

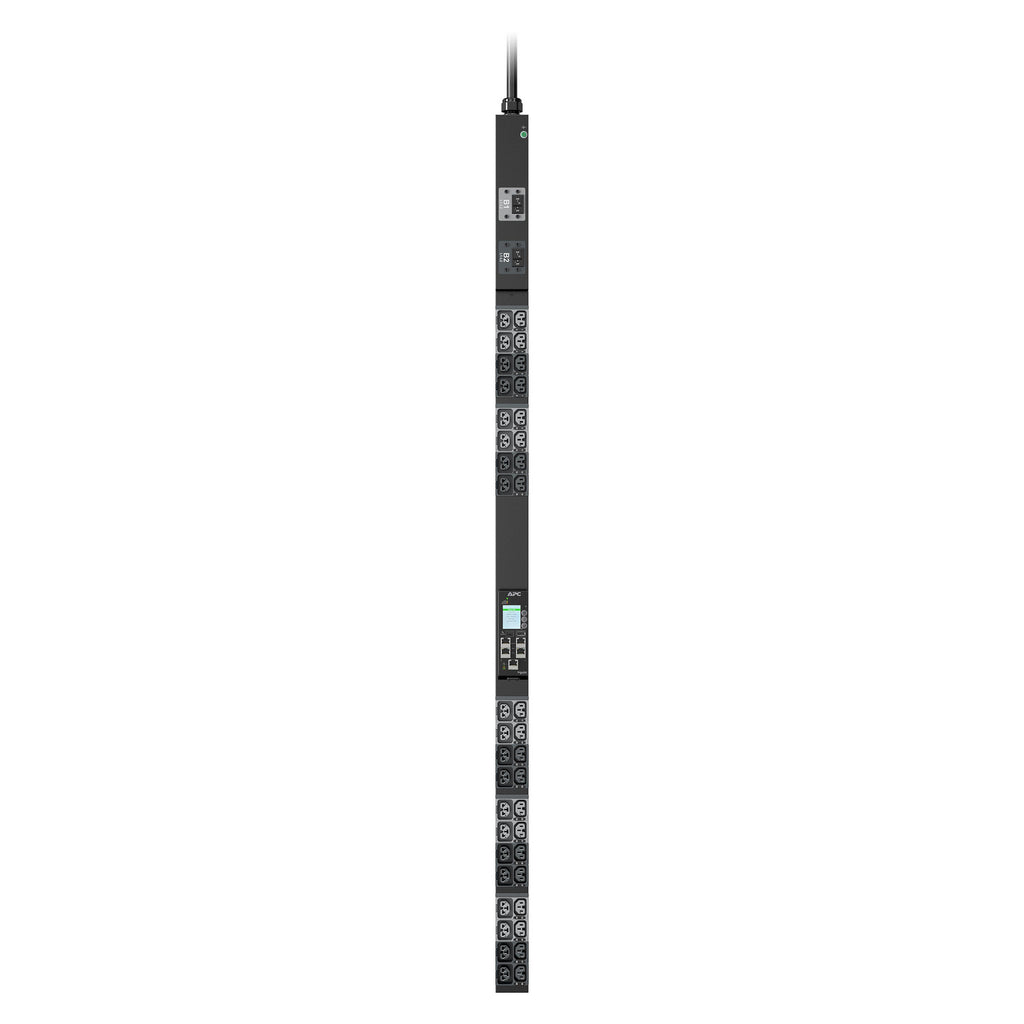

The APC NetShelter Rack PDU Advanced Gen 2 (Model: APDU11151ME) delivers high-efficiency, metered power distribution for modern IT environments. With 40 high-density combination outlets supporting C13, C15, C19, and C21 plug types, it streamlines deployments by reducing the need for multiple PDU models. This 1-phase, 208V PDU features a 30A NEMA L6-30P input plug and supports a 5.0kW load. Engineered for reliability, it offers 1% metering accuracy, environmental monitoring support, and full integration with EcoStruxure™ IT. The PDU features 0U vertical mounting, IP44 protection, and a hot-swappable NMC3 for remote access and live firmware updates — all backed by a 3-year warranty.
| Specification | Details |
|---|---|
| Model Number | APDU11151ME |
| PDU Type | Metered |
| Phase | 1-Phase |
| Input Voltage | 208V |
| Input Plug Type | NEMA L6-30P |
| Cord Length | 9.8 ft (3 m) |
| Load Capacity | 4992 VA (5.0kW) |
| Line Rated Current | 24A |
| Input Current Limits | 30A |
| Input Frequency | 50/60 Hz |
| Outlet Quantity/Type | 20 × C13/C15/C19/C21, 20 × C13/C15 |
| Mounting Type | Vertical (0U Rack-Mounted) |
| Dimensions (H × W × D) | 58.7 × 2.2 × 3.0 in (1490 × 56 × 75 mm) |
| Weight | 14.6 lb (6.6 kg) |
| Communication Ports | 10/100/1000BASE-T, 2 Link Ports |
| Environmental Sensors | 2 ports (optional sensors sold separately) |
| Operating Temp Range | -5°C to 60°C (23°F to 140°F) |
| Humidity Range | 5% to 95% RH |
| Altitude (Operating) | 0–10,000 ft |
| Certifications | UL, CSA, FCC Part 15, CE, UKCA, KC, PSE |
| IP Rating | IP44 |
| Warranty | 3 Years, Repair or Replace |
