Description

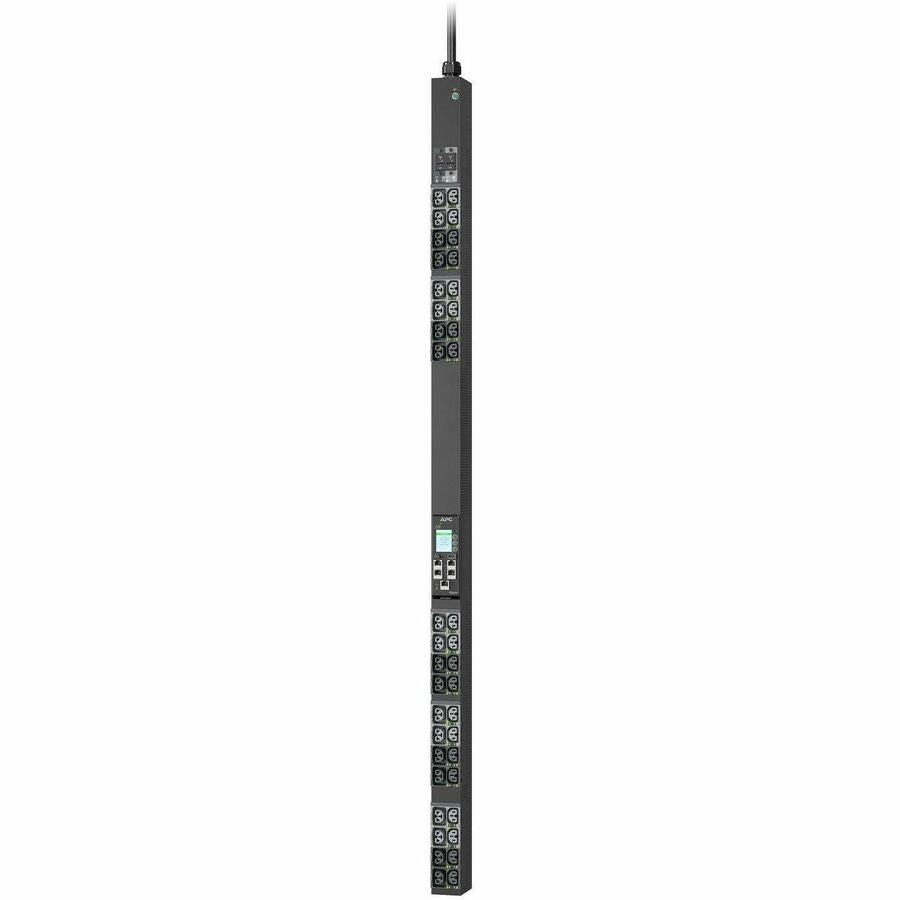

The APC NetShelter Rack PDU Advanced Gen 2 (APDU11451SW) is a high-density, switched 3-phase rack power distribution unit designed for modern IT environments. It delivers 14.4kW at 208V and includes 42 outlets with innovative 4-in-1 combination receptacles (C13, C15, C19, C21) for maximum flexibility. Remotely manage power with switched outlet functionality, and gain full visibility through PDU-level metering with ±1% accuracy.
Built to support today’s demanding workloads, it features a space-saving vertical 0U form factor, enhanced cybersecurity, and EcoStruxure™ IT integration. It includes a 3-meter CS8365C input cord and supports cascading up to 32 PDUs via network port sharing. Live Swap NMC3 allows network management card replacement without downtime. Designed for operation up to 60°C, it’s ideal for high-density and mission-critical deployments.
| Specification | Details |
|---|---|
| SKU / Model | APDU11451SW |
| Brand | APC by Schneider Electric |
| Product Type | Rack PDU – Switched |
| Series | NetShelter Advanced Gen 2 (11K Series) |
| Input Voltage | 208V 3-Phase |
| Input Plug Type | CS8365C |
| Input Current | 50A |
| Load Capacity | 14.4kW (14400 VA) |
| Frequency | 50/60 Hz |
| Outlet Types & Quantity | 21 × C13/C15/C19/C21 combo, 21 × C13/C15 |
| Total Outlets | 42 |
| Metering | PDU level, ±1% accuracy |
| Switched Outlets | Yes |
| Form Factor | Vertical, 0U |
| Mounting Type | Rack-mounted (side-mount optional) |
| Cord Length | 9.8 ft (3 m) |
| Dimensions (HxWxD) | 71.9 × 2.2 × 3.0 in (1826 × 56 × 75 mm) |
| Weight | 24.7 lb (11.2 kg) |
| Network Ports | 1 × GbE, 2 × cascading link ports |
| Environmental Sensors | 2 sensor ports (optional accessories) |
| Operating Temp. | -5°C to 60°C (23°F to 140°F) |
| Certifications | UL, CE, CSA, FCC Part 15, UKCA, KC, etc. |
| Ingress Protection | IP44 |
| Warranty | 3 Years – Repair or Replace |
| EcoStruxure™ IT Ready | Yes |
