Description

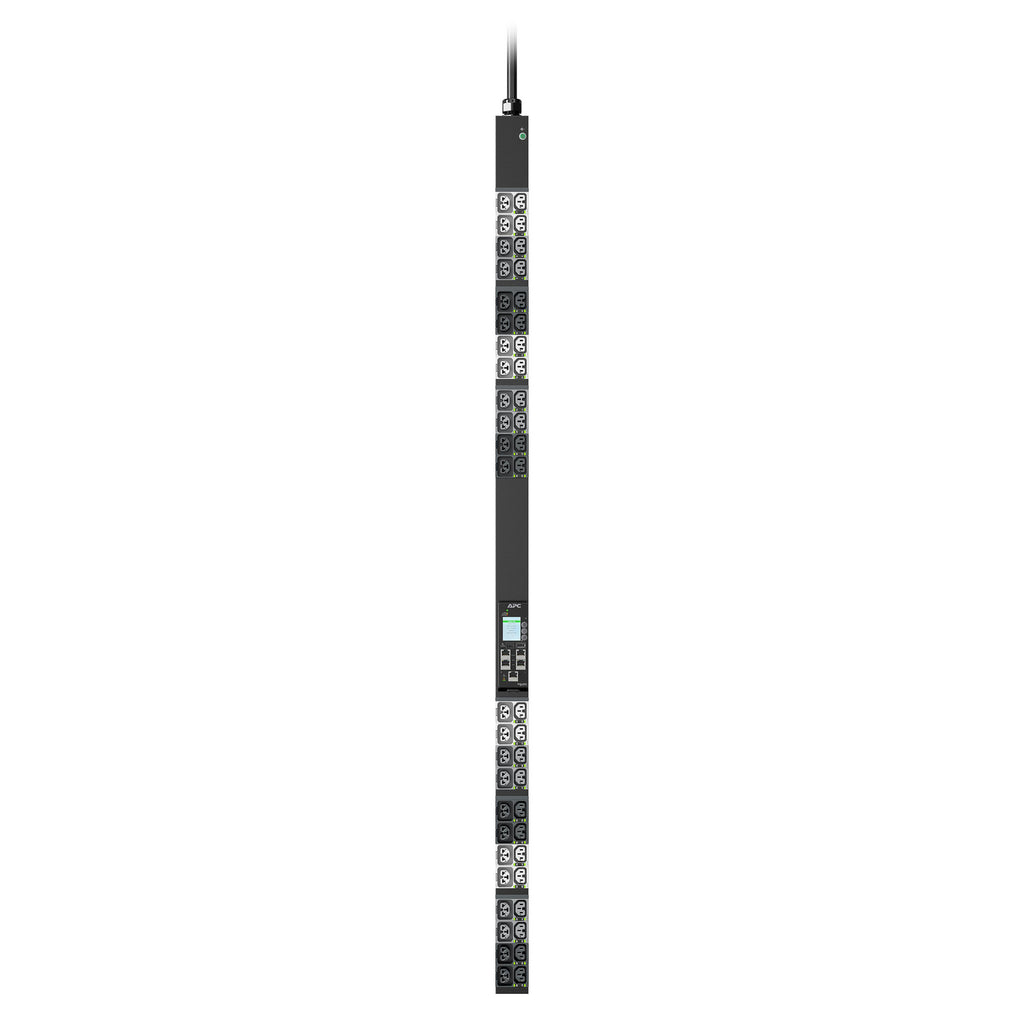

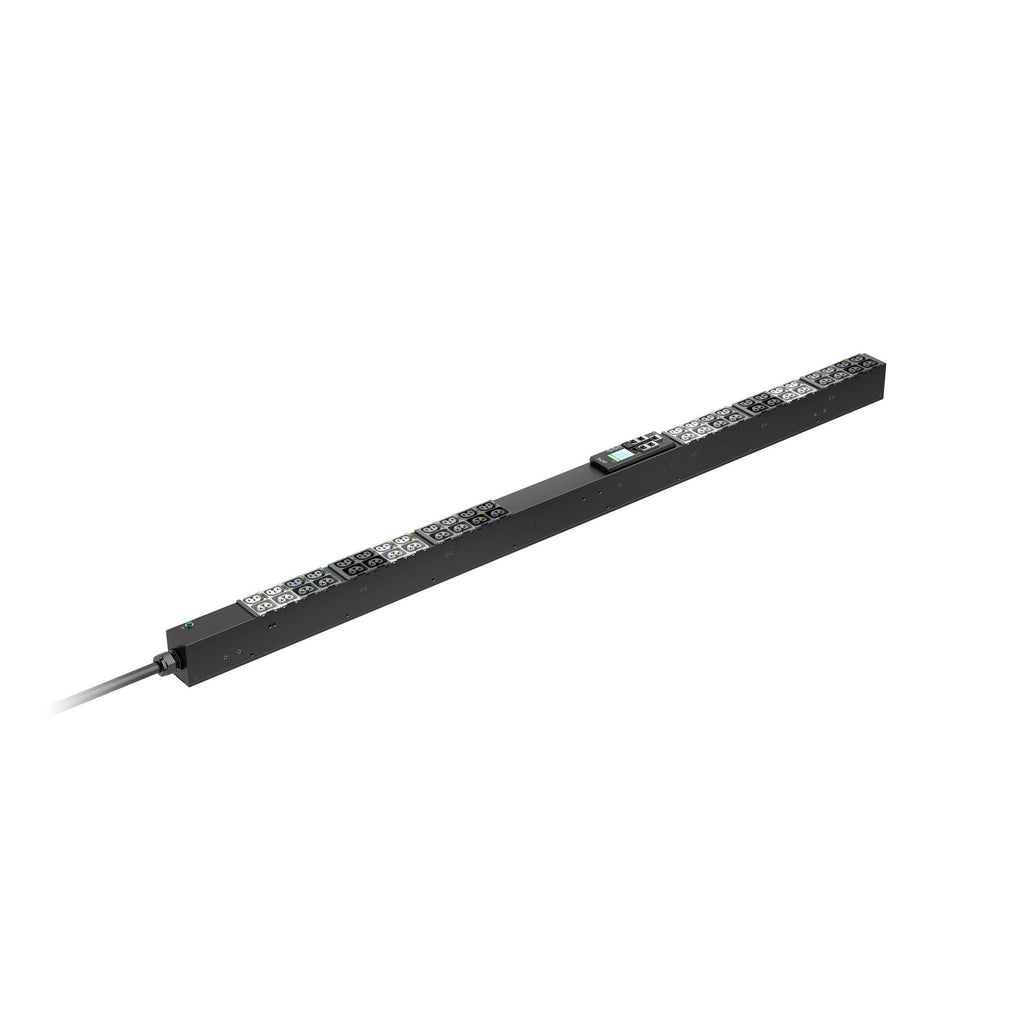

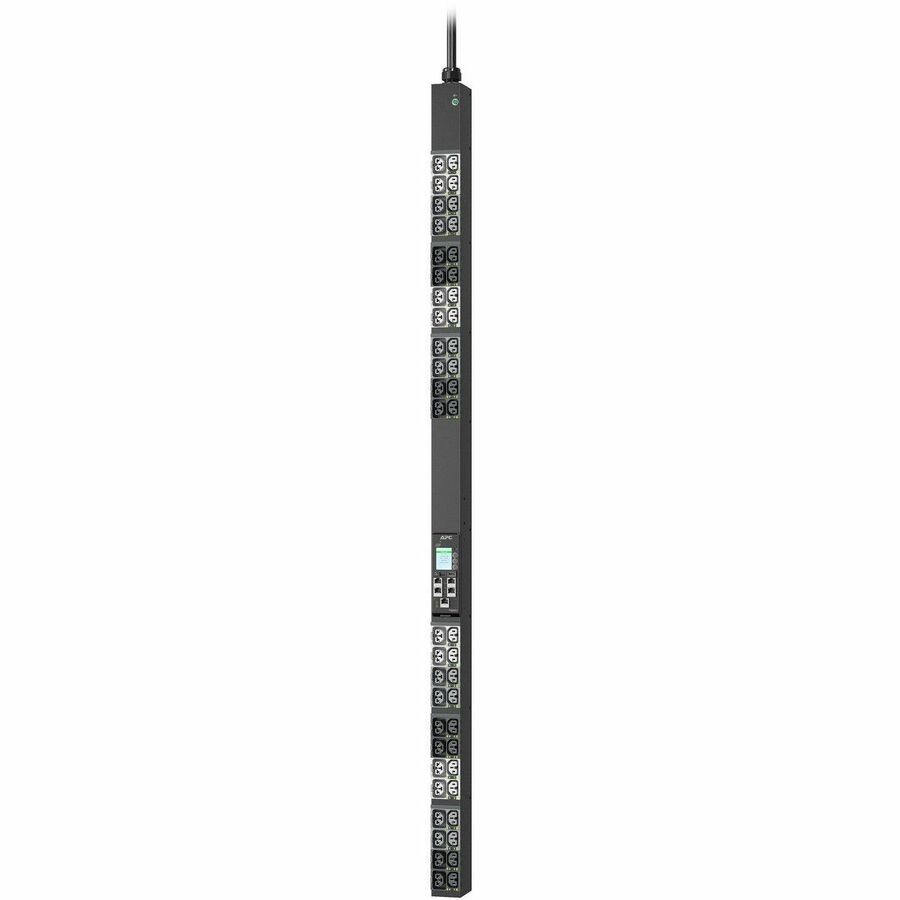

The APC NetShelter Rack PDU Advanced Gen 2 (APDU11250SM) delivers robust, high-efficiency power distribution in high-density IT environments. With switched, metered-by-outlet capabilities, this PDU supports remote control and energy metering at both the outlet and PDU level—empowering you to manage loads, power cycle equipment, and prevent overloads with precision.
Its innovative 4-in-1 hybrid outlets support C13, C15, C19, and C21 plugs, simplifying deployments across multiple device types. Designed for demanding data center conditions, the PDU offers up to 11.5kW load capacity, 48 outlets in a 0U form factor, cascading capability for up to 32 units, and integration with EcoStruxure™ IT.
Built for performance, it includes enhanced cybersecurity, 1% metering accuracy, live-swappable NMC3, environmental sensor support, and 60°C full-load operation.
| Specification | Details |
|---|---|
| Part Number | APDU11250SM |
| Type | Switched, Metered-by-Outlet PDU |
| Form Factor | 0U vertical rack-mounted |
| Input Plug Type | IEC 60309 20A 3P+N+PE (520P6) |
| Input Voltage | 400V or 415V 3-phase |
| Output Voltage | 240V |
| Load Capacity | 11kW @ 400V / 11.5kW @ 415V |
| Input Frequency | 50/60 Hz |
| Cord Length | 9.8 ft (3.0 m) |
| Outlets | 24 × Combo (C13/C15/C19/C21) + 24 × C13/C15 |
| Total Outlets | 48 |

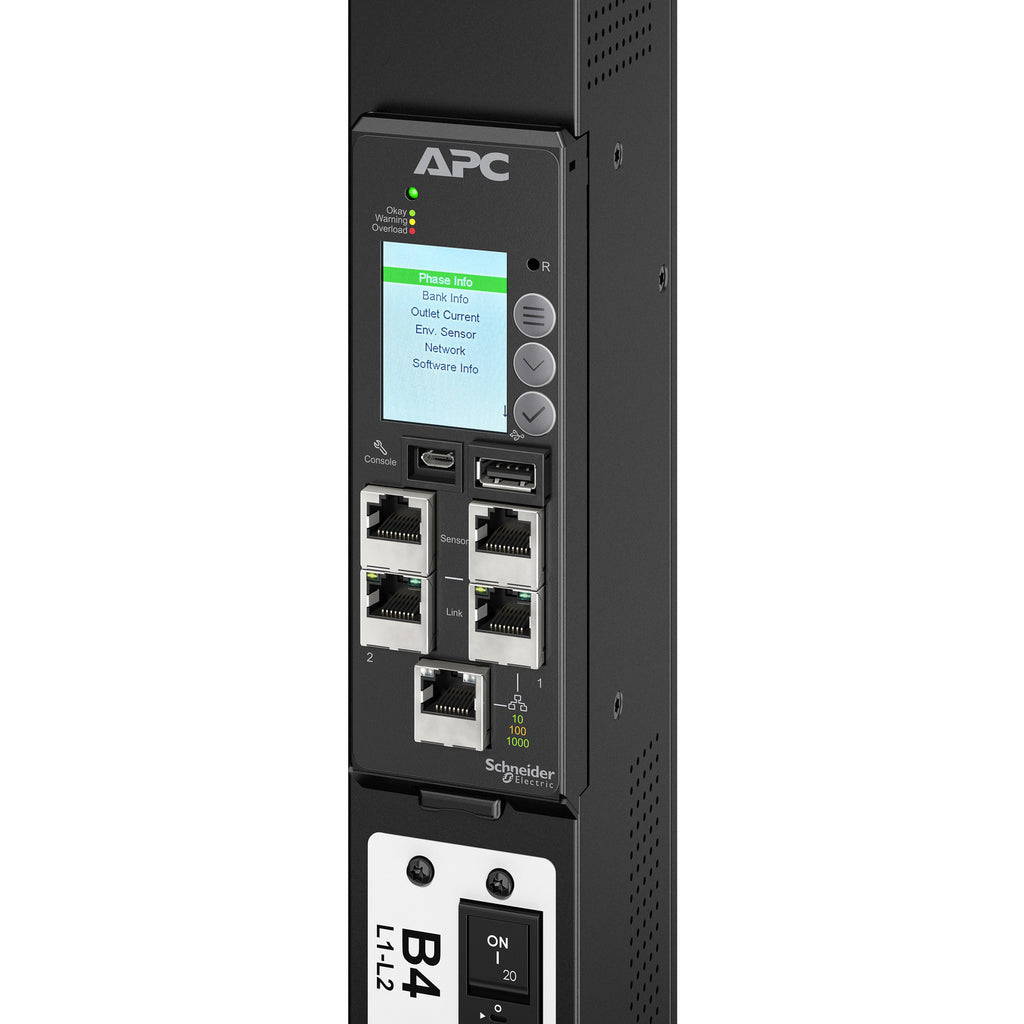

| Communication Ports | 10/100/1000 Mbps Ethernet, 2 link ports |
| Environmental Sensor Ports | 2 (sensors sold separately) |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Mounting | No preference, side mount in rack |
| Dimensions (H × W × D) | 58.7 × 2.2 × 3.0 in (1490 × 56 × 75 mm) |
| Weight | 17.0 lb (7.7 kg) |
| Certifications | UL, CSA, CE, FCC Part 15, UKCA, PSE, RoHS, REACh |
| Warranty | 3 years repair or replace |
