Description

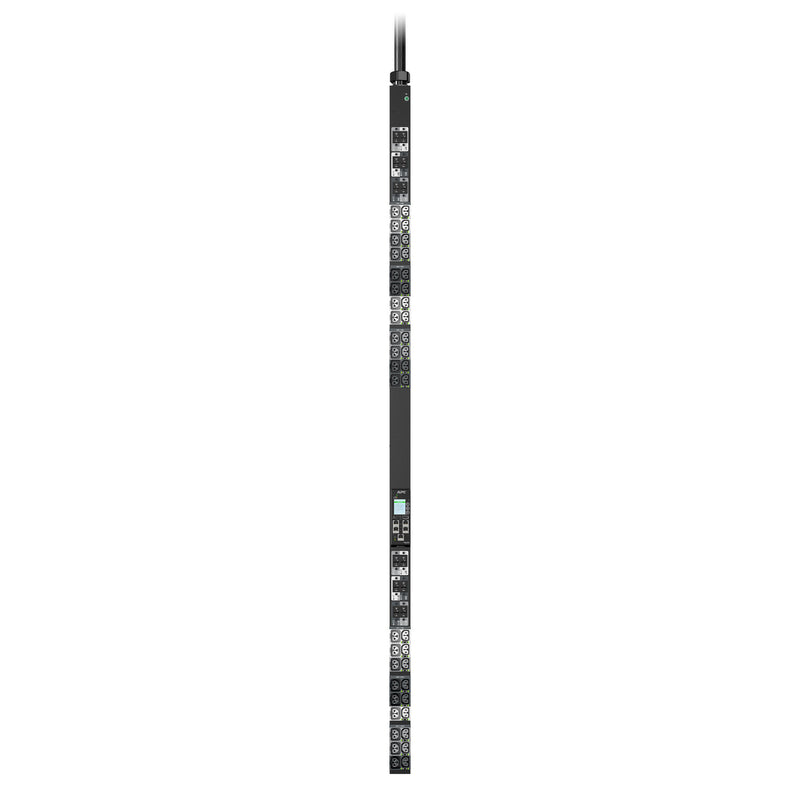

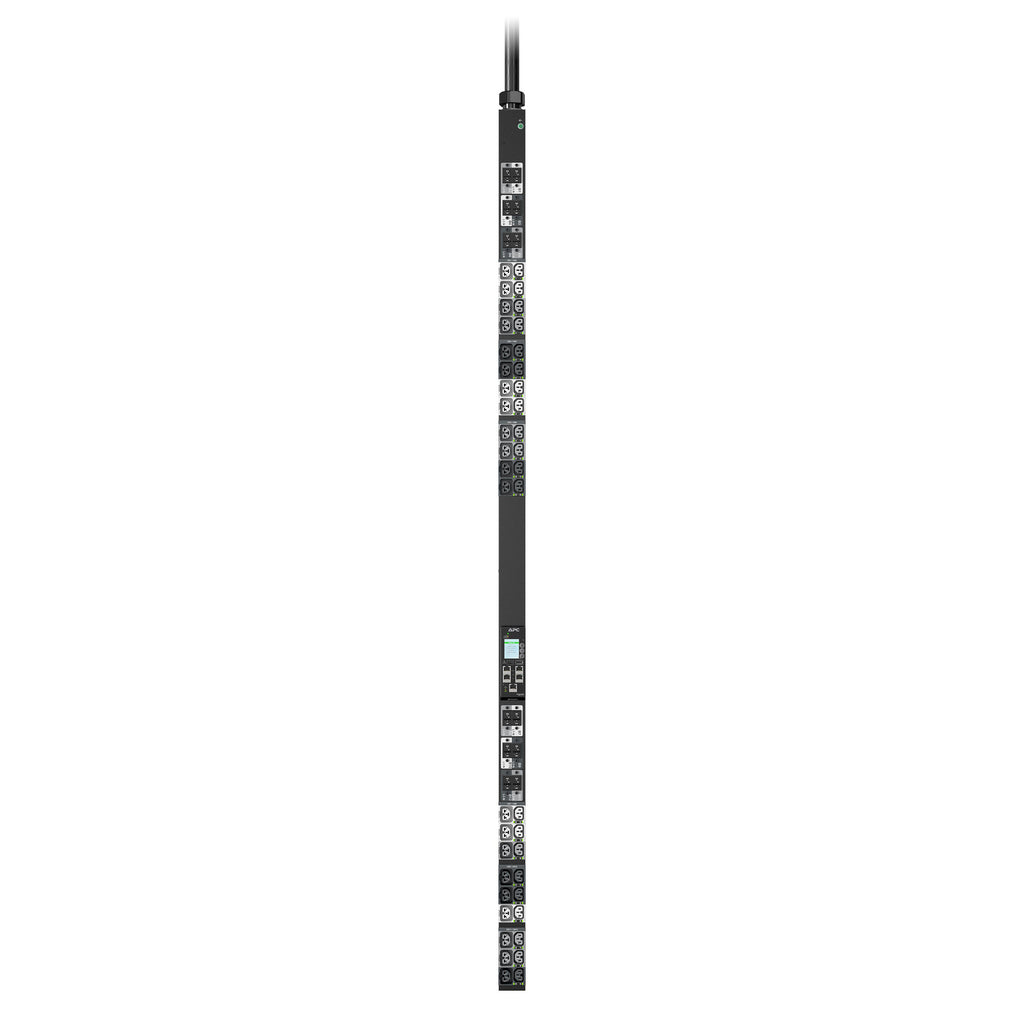

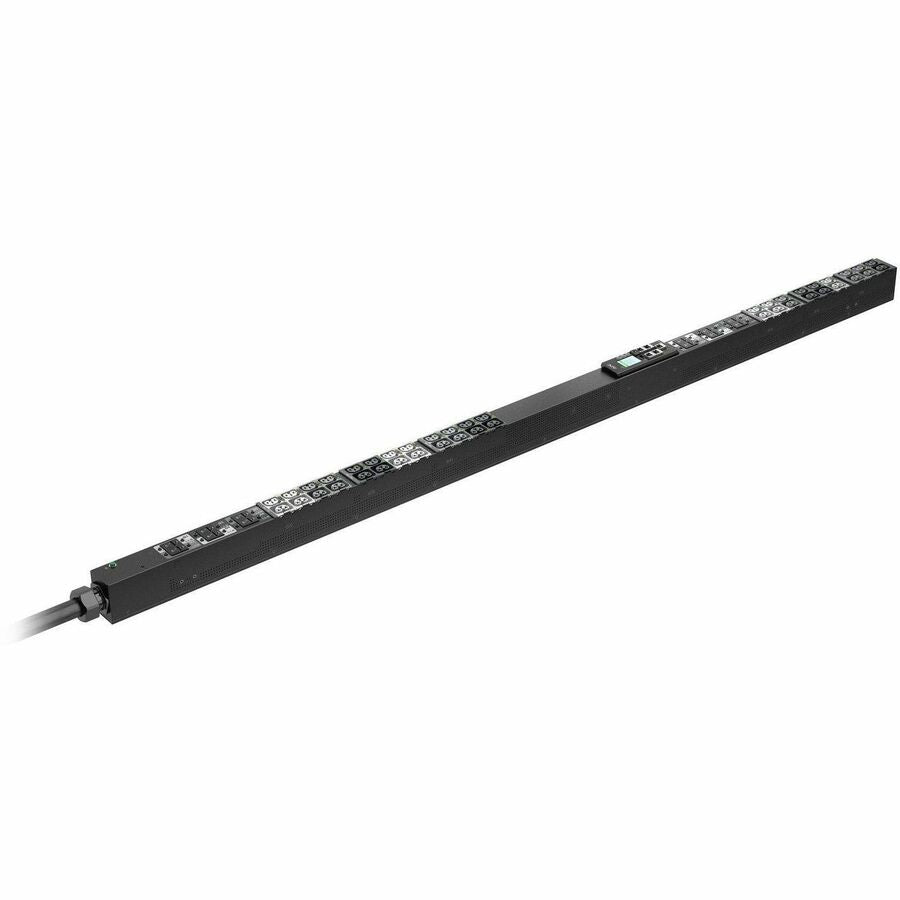

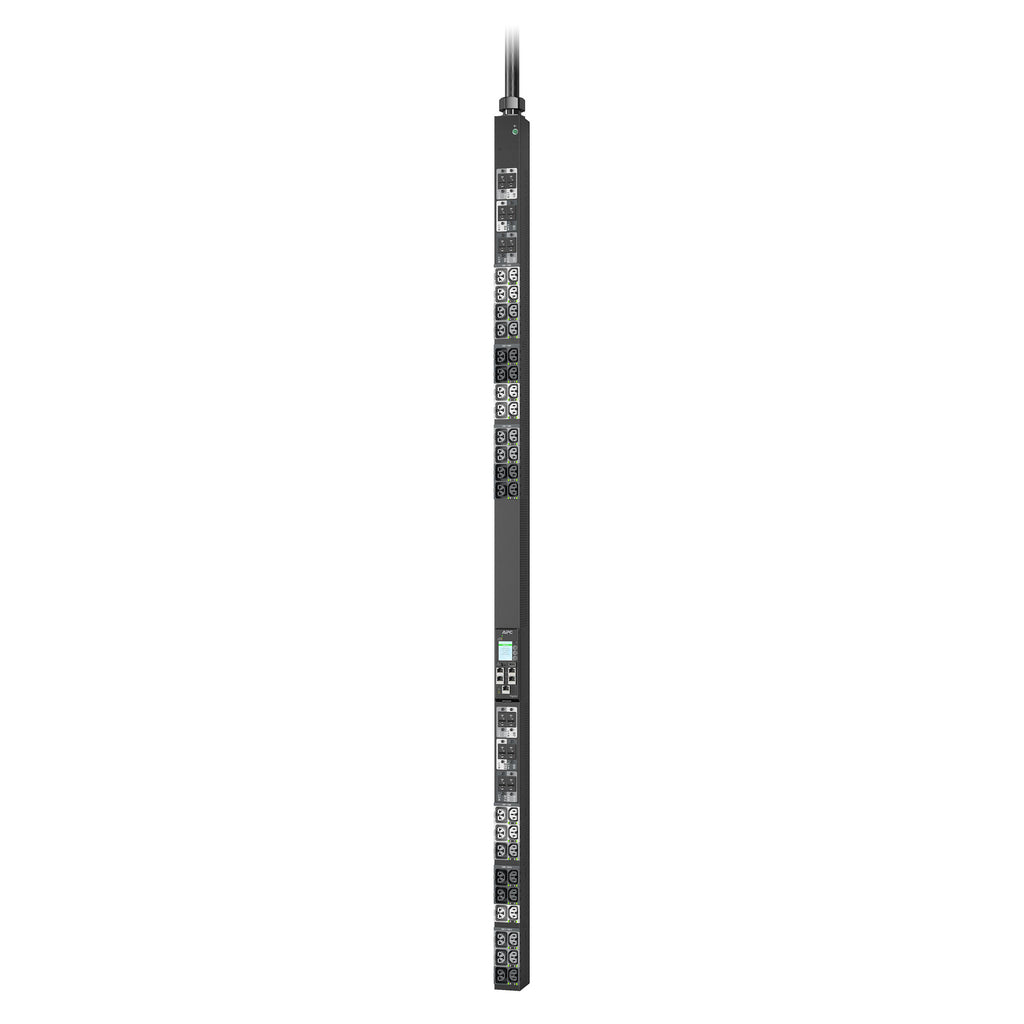

The APC NetShelter Rack PDU Advanced Gen 2 (APDU11450SM) delivers reliable and intelligent power distribution for modern high-density IT environments. This 0U vertical rack PDU features Switched Metered Outlet functionality, enabling remote outlet control and accurate power monitoring down to 1% accuracy at both the outlet and PDU level. Designed for AI, HPC, and dense server deployments, it supports a 3-phase 400V 63A (43.5kW) or 415V 60A (34.6kW) input via a 560P6 plug.
With 42 total outlets, including 21 innovative 4-in-1 combo outlets (C13/C15/C19/C21), the unit offers maximum deployment flexibility. Enhanced with Live Swap NMC3, EcoStruxure IT compatibility, and 1-year Secure NMC3 access, it ensures secure and resilient operations even in mission-critical applications. The PDU is rack-mountable (0U), UL/CE certified, and IP44 rated for harsh conditions.
Key Features
-
Ideal for AI and other high-density applications
-
4-in-1 combination outlets support C13, C15, C19, and C21 plugs
-

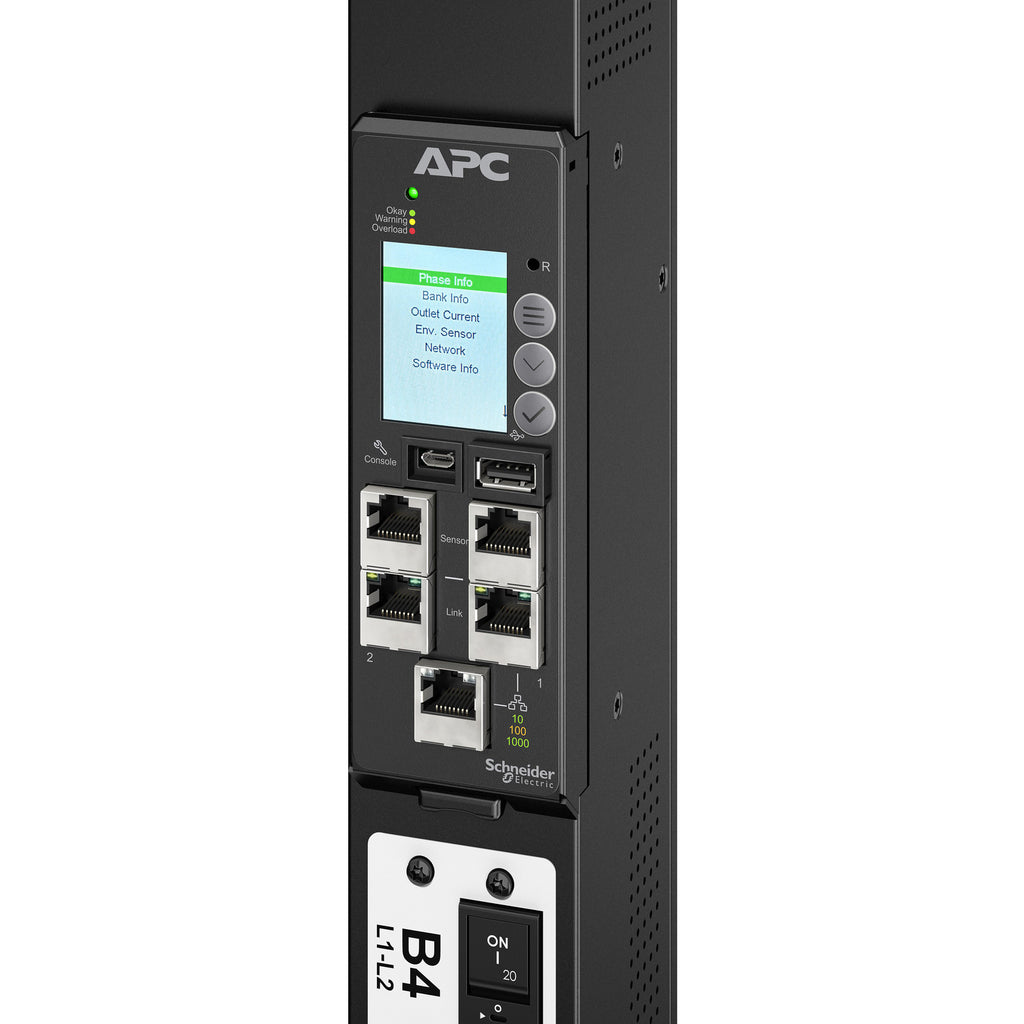

Live Swap Network Management Card 3
-
EcoStruxure™ IT and Secure NMC3 compatible
-
1-year free subscription to Secure NMC3 System
| Specification | Details |
|---|---|
| SKU / Model | APDU11450SM |
| Product Type | Switched Metered Outlet Rack PDU |
| Rack Units | 0U, Vertical Mount |
| Input Plug Type | IEC 60309 60A 3P+N+PE (560P6) |
| Input Voltage | 400V/415V 3-Phase |
| Input Frequency | 50/60 Hz |
| Max Load Capacity | 43.5kW @ 400V / 34.6kW @ 415V |
| Input Current | 63A @ 400V / 60A @ 415V |
| Output Voltage | 240V |
| Outlet Quantity | 42 Total – 21 × 4-in-1 (C13/C15/C19/C21), 21 × C13/C15 |
| Cord Length | 3m (9.8 ft) |
| Height x Width x Depth | 71.9 in x 2.2 in x 3.0 in (1826 × 56 × 75 mm) |
| Weight | 28.0 lbs (12.7 kg) |
| Mounting Location | Side, No Preference |
| Network Ports | 1x 10/100/1000BASE-T + 2x Link Ports |
| Environmental Monitoring | 2x Sensor Ports (Sensors sold separately) |
| Operating Temp | -5°C to 60°C (23°F to 140°F) |
| Compliance & Safety | UL, CE, CSA, FCC Part 15, IP44, RoHS, REACH |
| Warranty | 3-Year Repair or Replace |
