Description

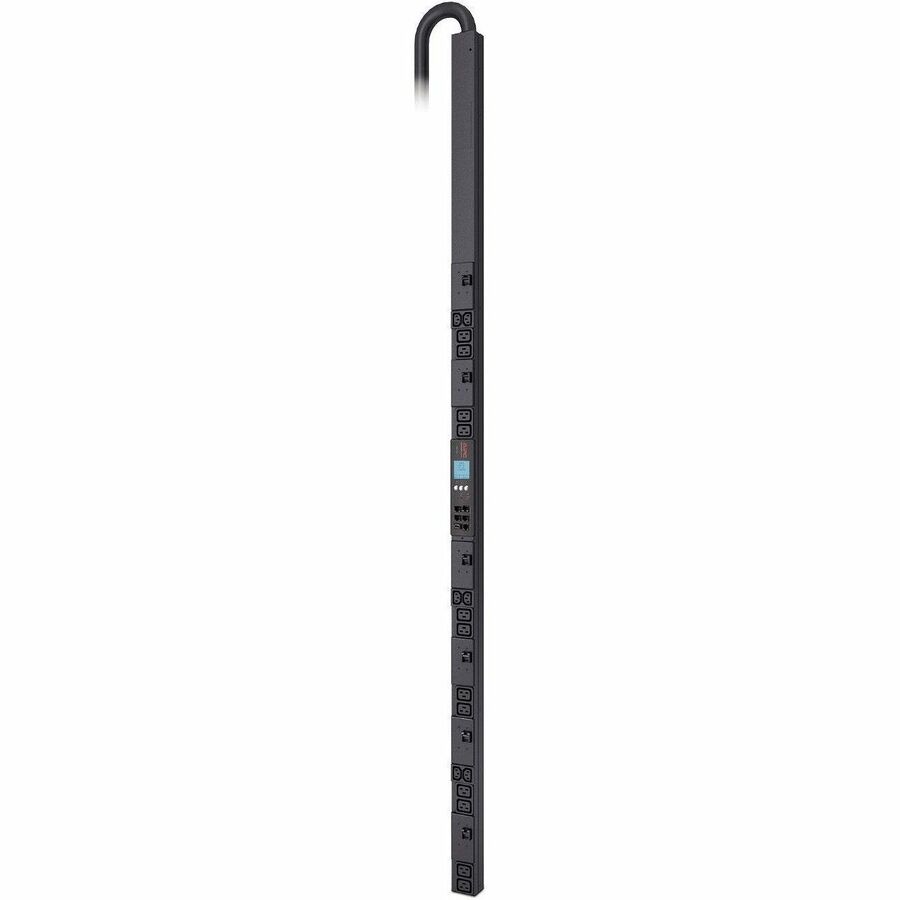

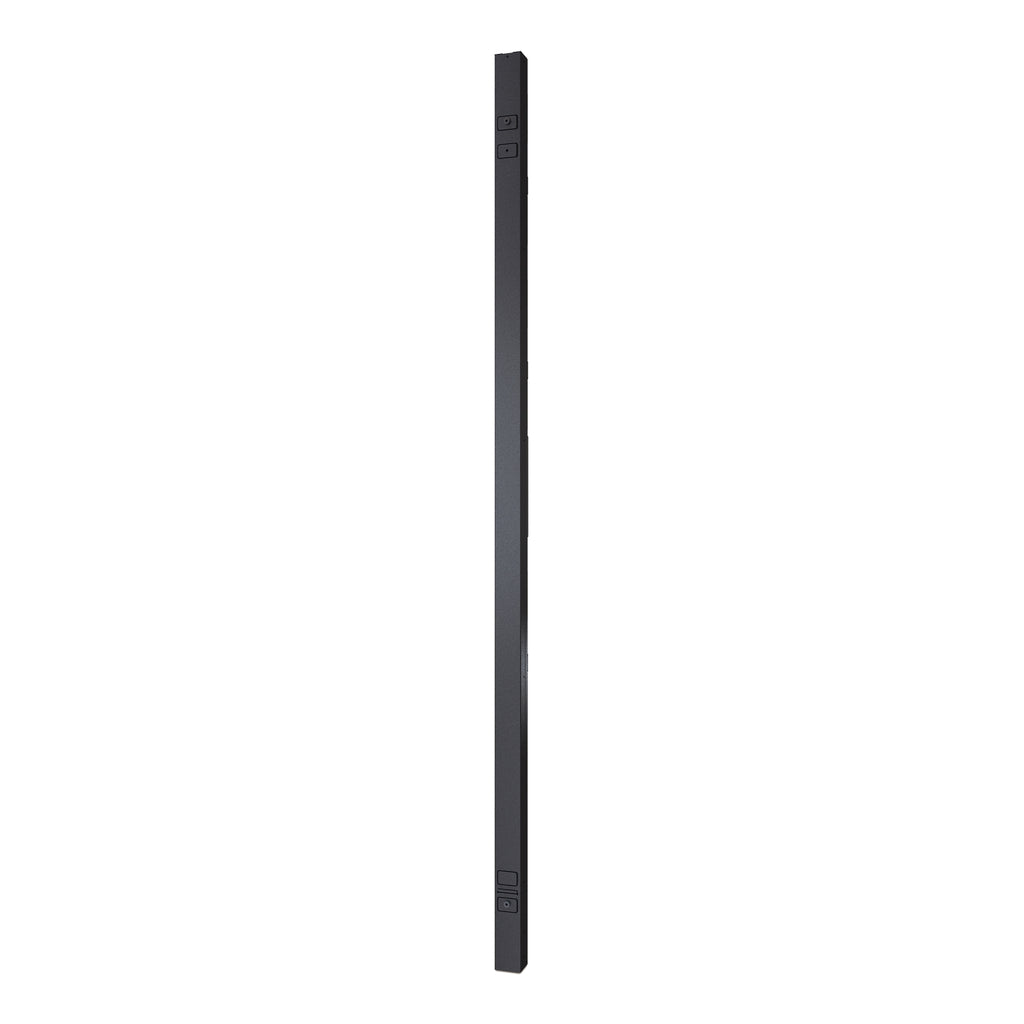

The APC NetShelter AP8866US Metered Rack PDU delivers reliable, high-density power distribution with metering capabilities ideal for colocation facilities, data centers, and distributed IT sites. This 0U vertical PDU features a 208V 3-phase input, 60A IEC 60309 plug, and 18 total outlets (6x C13, 12x C19).
Designed for smart capacity planning, load balancing, and energy efficiency, it supports real-time remote monitoring via EcoStruxure IT and allows user-defined alarms to prevent overloads. The unit features a locking IEC design, secure network management, and a toolless Zero U installation. TAA-compliant and engineered for reliability in demanding environments up to 60°C.
| Specification | Details |
|---|---|
| Model | AP8866US |
| PDU Type | Metered |
| Rack Units (RU) | 0U (Vertical) |
| Input Voltage | 208V 3-Phase |
| Max Load Capacity | 17.3kW (17300 VA) |
| Input Plug Type | IEC 60309 60A 3P+PE |
| Input Cord Length | 6 ft (1.83 m) |
| Input Frequency | 50/60 Hz |
| Max Line Current | 48A |
| Output Receptacles | 6 × C13, 12 × C19 |
| Output Voltage | 208V |
| Mounting Type | Rack-mounted, Vertical |
| Mounting Preference | No preference |
| Dimensions (HxWxD) | 72.01 × 2.20 × 2.01 in (182.9 × 5.6 × 5.1 cm) |
| Weight | 20.9 lb (9.5 kg) |
| Certifications | UL Listed, cUL Listed, VCCI Class A, TAA |
| Operating Temp | 32 to 131°F (0 to 55°C) |
| Relative Humidity | 5–95% RH |
| Network Connectivity | Web, SNMP, CLI via Network Management Card |
| Additional Features | LCD display, load metering, alarm thresholds, environmental monitoring port (AP9335T/TH) |
| Warranty | 2 years, repair or replace |
