Description

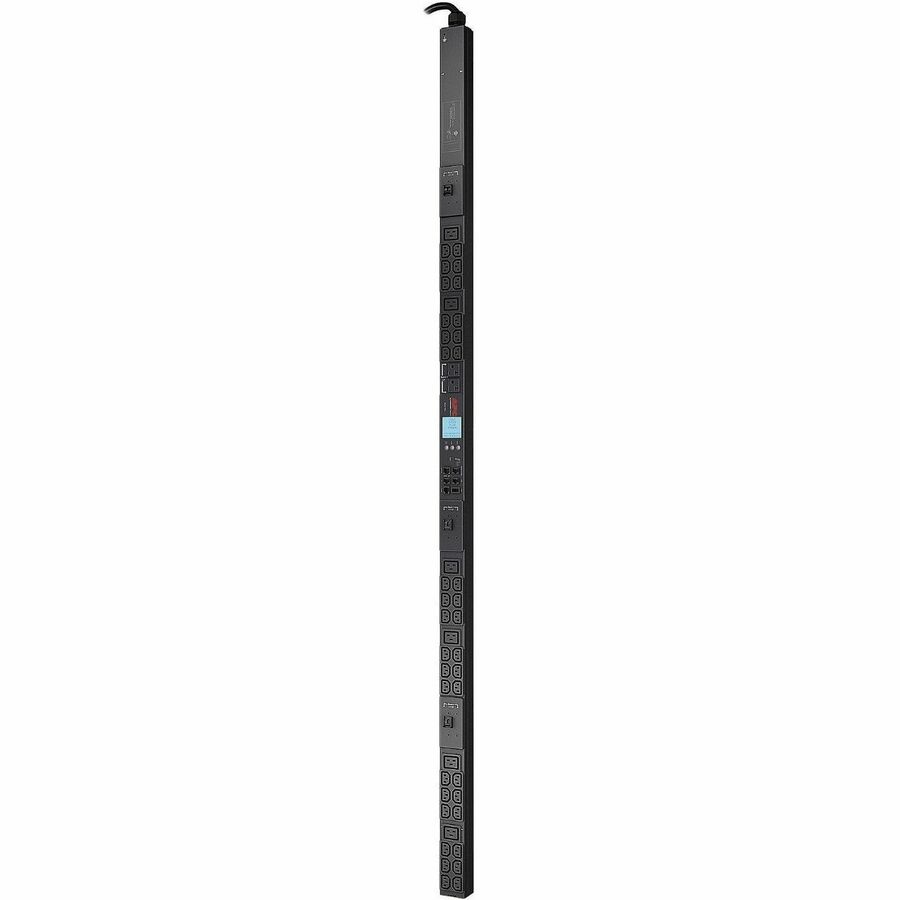

The APC NetShelter Metered Rack PDU (AP8865US) is engineered to deliver reliable and scalable power distribution for modern data centers and colocation environments. Featuring a high-density design with a vertical 0U form factor, this PDU includes (36) IEC C13, (6) C19, and (2) NEMA 5-20R outlets. Real-time load metering and user-defined alarms help prevent circuit overloads, while integration with EcoStruxure IT and support for remote access via Web, SNMP, or CLI ensures proactive monitoring and control. With locking IEC outlets, a secure NEMA L21-30P input, and support for ambient temperatures up to 60°C, this unit is ideal for high-demand IT infrastructures.
Key Features
-
Ideal for colocation, large data centers, or distributed IT sites
-
+/-3% metering accuracy for amps, volts, kW, kWh
-
Real-time remote monitoring via EcoStruxure IT
-
Alarm thresholds to prevent overloads
-
Zero U tool-less installation
-
Locking IEC outlets reduce accidental disconnections
| Specification | Details |
|---|---|
| Model Number | AP8865US |
| Mounting Style | 0U Vertical, Rack-Mounted |
| PDU Type | Metered |
| Input Voltage | 208V, 3-Phase |

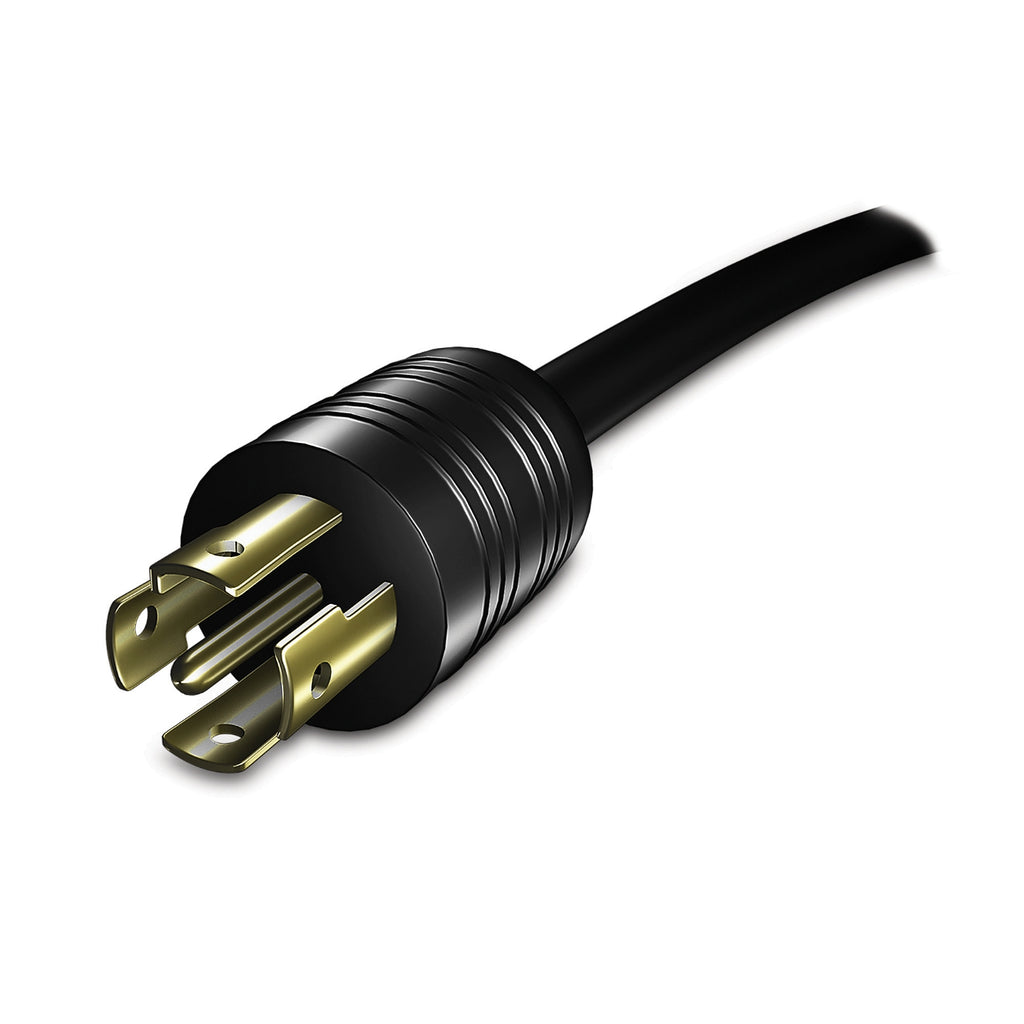

| Input Plug Type | NEMA L21-30P |
| Output Voltage | 120V / 208V |
| Line Rated Current | 24A (Max 30A) |
| Load Capacity | 8.6kW (8600 VA) |
| Input Frequency | 50/60 Hz |
| Cord Length | 6 ft (1.83 m) |
| Outlet Types | (36) C13, (6) C19, (2) NEMA 5-20R |
| Operating Temp. (Max) | 60°C (140°F) |
| Environmental Monitoring Port | Yes (Sensor sold separately) |
| Network Access | Web, SNMP, CLI via NMC |
| Daisy-Chain Support | Up to 4 PDUs per IP |
| Certifications | UL 60950-1, CSA C22.2 No. 60950, TAA Compliant |
| Dimensions (HxWxD) | 70.51 x 2.20 x 1.81 in (179.1 x 5.6 x 4.6 cm) |
| Weight | 16.67 lbs (7.56 kg) |
| Warranty | 2-Year Repair or Replace |
