Description

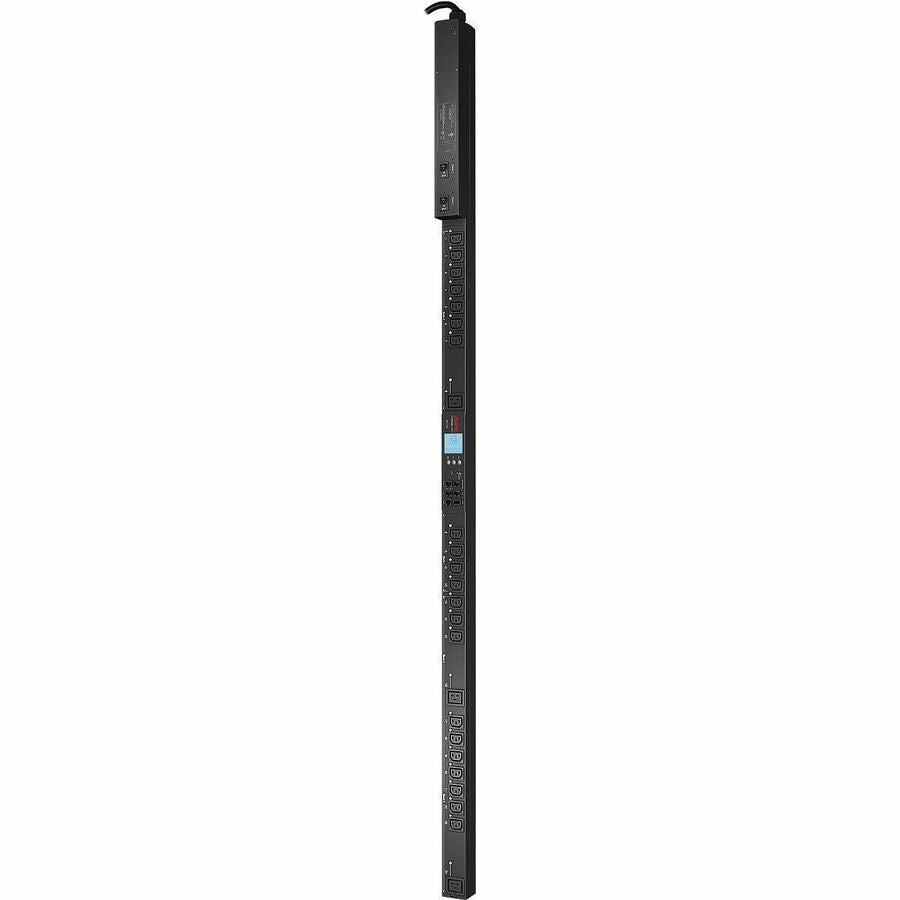

The APC NetShelter AP8641US Rack PDU provides advanced metering and switching capabilities for high-density IT environments such as colocation, enterprise data centers, and distributed IT sites. This 0U vertical PDU features metered-by-outlet monitoring and individual outlet switching for granular control of power usage and remote rebooting. With 24 outlets (21 C13, 3 C19), a NEMA L6-30P plug, and a 3-meter cord, it distributes up to 5.0kW at 200V–208V.
EcoStruxure-ready and compatible with SNMP/Web/CLI interfaces, it supports real-time energy monitoring, threshold-based alerts, and streamlined capacity planning. Toolless mounting and daisy-chaining of up to 4 PDUs reduce installation effort and IP overhead. Meets TAA compliance and supports Schneider Electric’s sustainability goals.
| Specification | Details |
|---|---|
| Model | AP8641US |
| PDU Type | Metered-by-Outlet with Switching |
| Mounting Type | Vertical, 0U (Rack-mounted) |
| Input Voltage | 200V / 208V / 230V |
| Input Plug Type | NEMA L6-30P |
| Input Frequency | 50/60 Hz |
| Max Input Current | 30A |
| Line Rated Current | 24A |
| Output Receptacles | (21) IEC C13, (3) IEC C19 |
| Cord Length | 3.0 m (9.84 ft) |
| Load Capacity | 4992 VA (5.0 kW) |
| Metering Accuracy | ±3% (amps, volts, kW, kWh) |
| Monitoring | Per-outlet metering, alarm thresholds |
| Remote Access | Web, SNMP, CLI (via Network Management Card) |
| Daisy-Chaining Support | Up to 4 PDUs on 1 IP |
| Environmental Monitoring Port | Yes (sensor optional: AP9335T or AP9335TH) |
| Operating Temp Range | -5°C to 45°C (23°F to 113°F) |
| Dimensions (HxWxD) | 72.01 x 2.20 x 2.01 in (182.9 x 5.6 x 5.1 cm) |
| Weight | 18.14 lb (8.23 kg) |
| Certifications | UL Listed, cUL, VCCI Class A, FCC Part 15A |
| Compliance | TAA Compliant, RoHS (with exemptions) |
| Warranty | 2 years (repair or replace) |
