Description

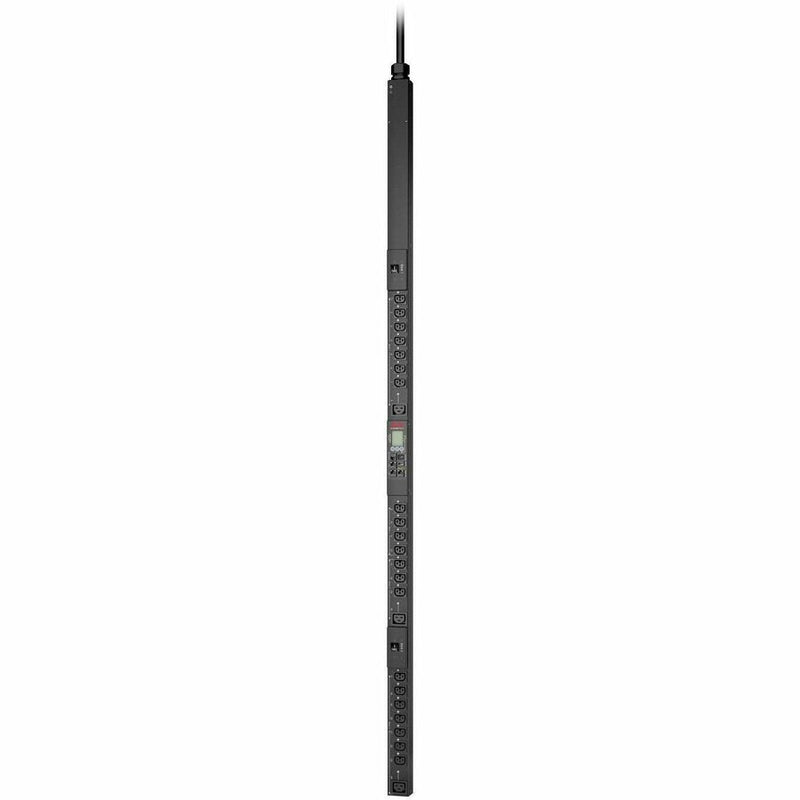

The APC NetShelter APDU9941US is a switched rack PDU designed for high-density IT environments. With 0U vertical mounting, it delivers 5.0kW at 208V through a NEMA L6-30P input and 24 hybrid outlets—(21) C13/C15 and (3) C19/C21—supporting high-temperature operations up to 60°C. It features remote outlet-level control, power metering accuracy of ±1%, and seamless integration with EcoStruxure IT. Advanced cybersecurity, Gigabit Ethernet, and optional Wi-Fi ensure secure, real-time monitoring. Includes LCD display, low-profile breakers, locking outlets, and USB port for firmware updates. TAA-compliant and backed by a 3-year warranty.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU9941US |
| Form Factor | 0U Vertical |
| PDU Type | Switched |
| Input Voltage | 200V / 208V |
| Output Voltage | 200V / 208V |
| Input Plug Type | NEMA L6-30P |
| Cord Length | 10 ft (3.05 m) |
| Outlet Types | (21) IEC C13/C15, (3) IEC C19/C21 |
| Load Capacity | 4992 VA |
| Line Rated Current | 24A |
| Max Input Current | 30A |
| Frequency | 50/60 Hz |
| Operating Temp. | -5 to 60°C (23 to 140°F) |
| Mounting | Vertical, Side |
| Communication | SNMP, Redfish, Web, CLI |
| Network Interface | Gigabit Ethernet, Optional Wi-Fi |
| Display | Local LCD (real-time amps, volts, kW, kWh) |
| Environmental Compliance | TAA, RoHS (with exemptions), REACh |
| Certifications | cUL, FCC Class A, PSE |
| Dimensions (H x W x D) | 72.01 x 2.17 x 1.81 in (182.9 x 5.5 x 4.6 cm) |
| Weight | 18.7 lbs (8.5 kg) |
| Warranty | 3-Year Repair or Replace |
