Description

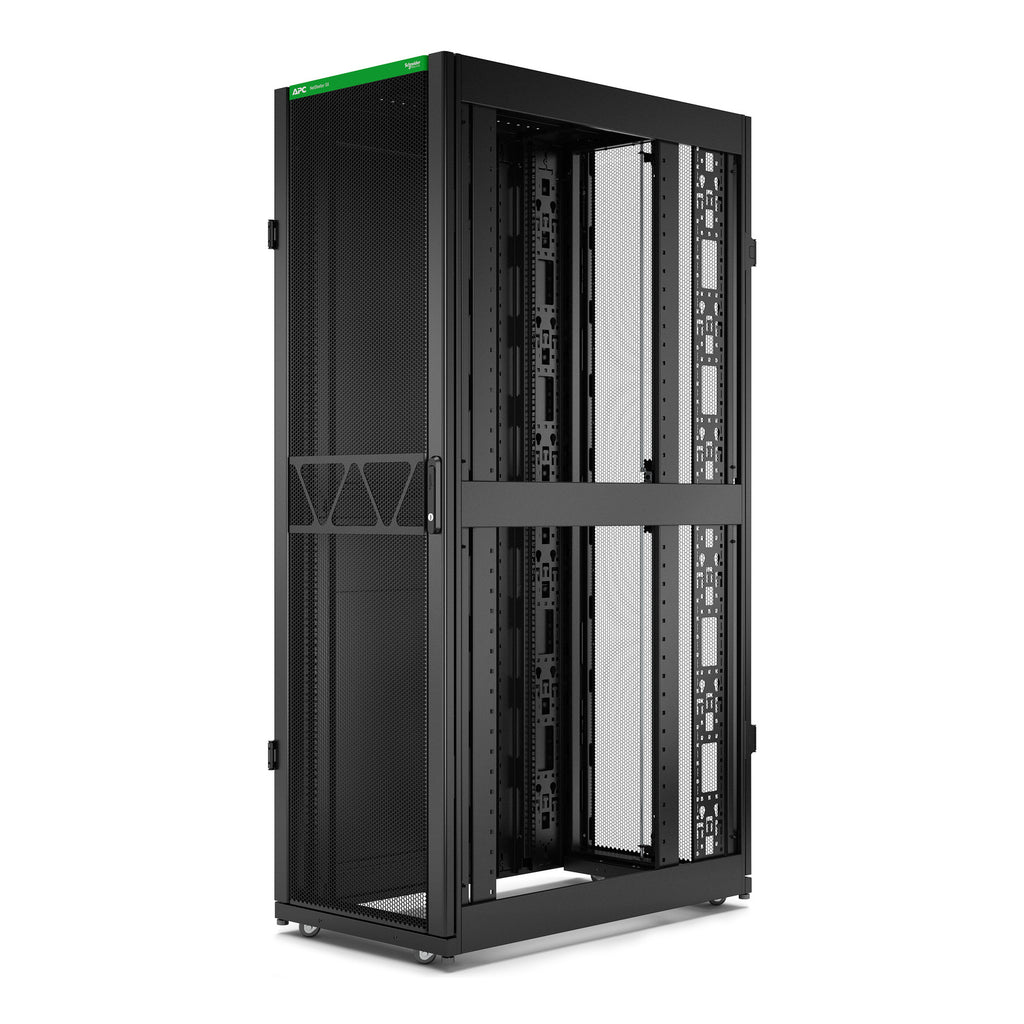

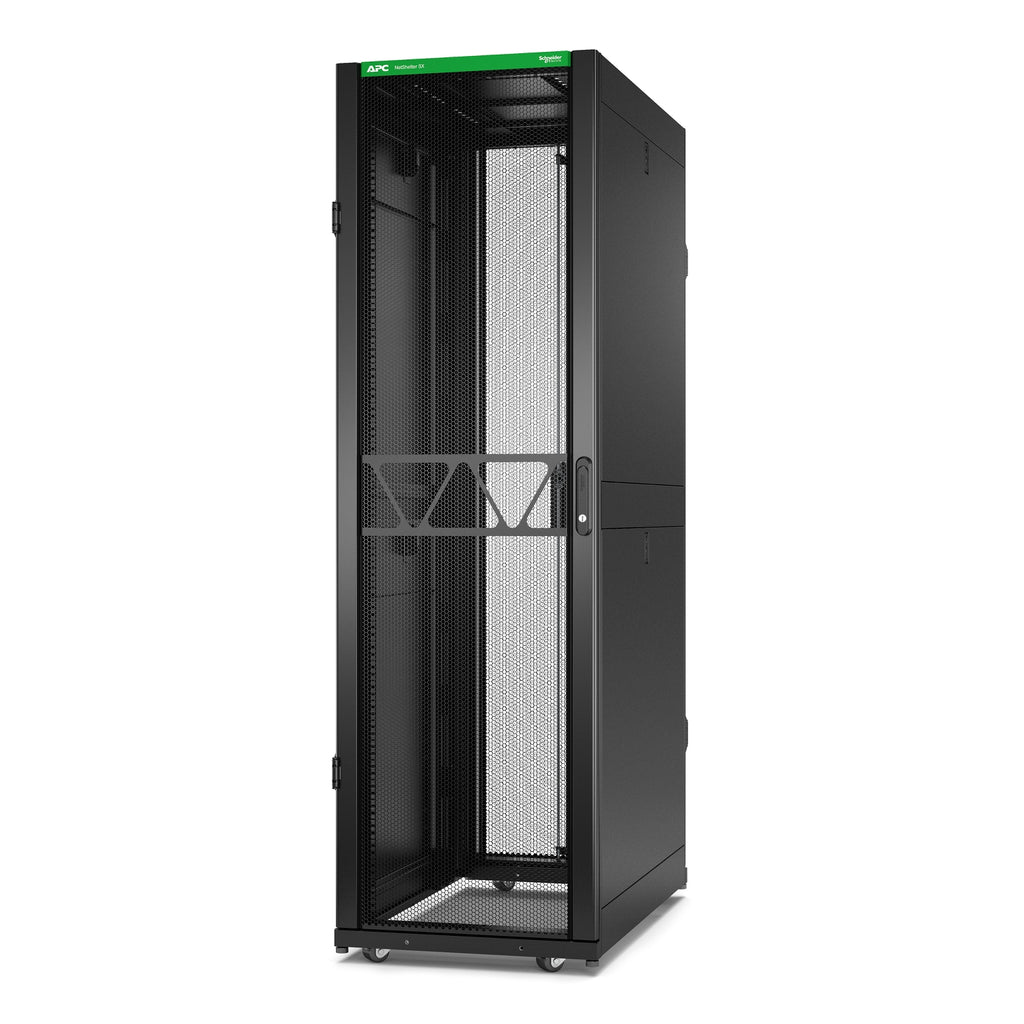

The APC NetShelter SX AR3100B2 is a 42U Gen 2 rack enclosure designed to deliver secure, reliable housing for IT and networking equipment in data centers or network closets. Built to TAA compliance standards, this cabinet features robust construction with EIA-310E compliance, supporting up to 4000 lb static load and 2250 lb dynamic load. It includes baying hardware, casters, leveling feet, mounting accessories, and side panels, making installation and expansion efficient. With a black steel frame, 19-inch rack width, and front/rear vented doors, it ensures optimized airflow and accessibility for high-density deployments.
| Category | Details |
|---|---|
| Brand | APC |
| Model | AR3100B2 |
| Series | NetShelter SX Gen 2 |
| Rack Units | 42U |
| Type | Rack Enclosure |
| Color | Black |
| Dimensions (H x W x D) | 1991 × 600 × 1070 mm (78.4 × 23.6 × 42.1 in) |
| Net Weight | 122.14 kg (269.27 lb) |
| Rack Width | 19 in |
| Maximum Mounting Depth | 914.9 mm (36.02 in) |
| Minimum Mounting Depth | 190.5 mm (7.5 in) |
| Static Load Capacity | 4000 lb (1814.4 kg) |
| Dynamic Load Capacity | 2250 lb (1020.6 kg) |
| Material Construction | 14-gauge EIA mounting rail, 16-gauge front door & post, 18-gauge side panels, rear door, and roof |
| Included Accessories | Baying hardware, keys, leveling feet, mounting hardware, pre-installed casters, side panels |
| Compliance | UL 2416, EIA-310E |
| TAA Compliance | Yes |
| Warranty | 5 years |
| Environmental Responsibility | Schneider Electric “Use Better, Use Longer, Use Again” sustainability program |
| Carbon Footprint | 1168 kg CO₂ eq (total life cycle) |
| GTIN | 731304642176 |
| Package Dimensions (H × W × L) | 2128 × 748 × 1158 mm |
| Package Weight | 144.55 kg (318.68 lb) |
