Description

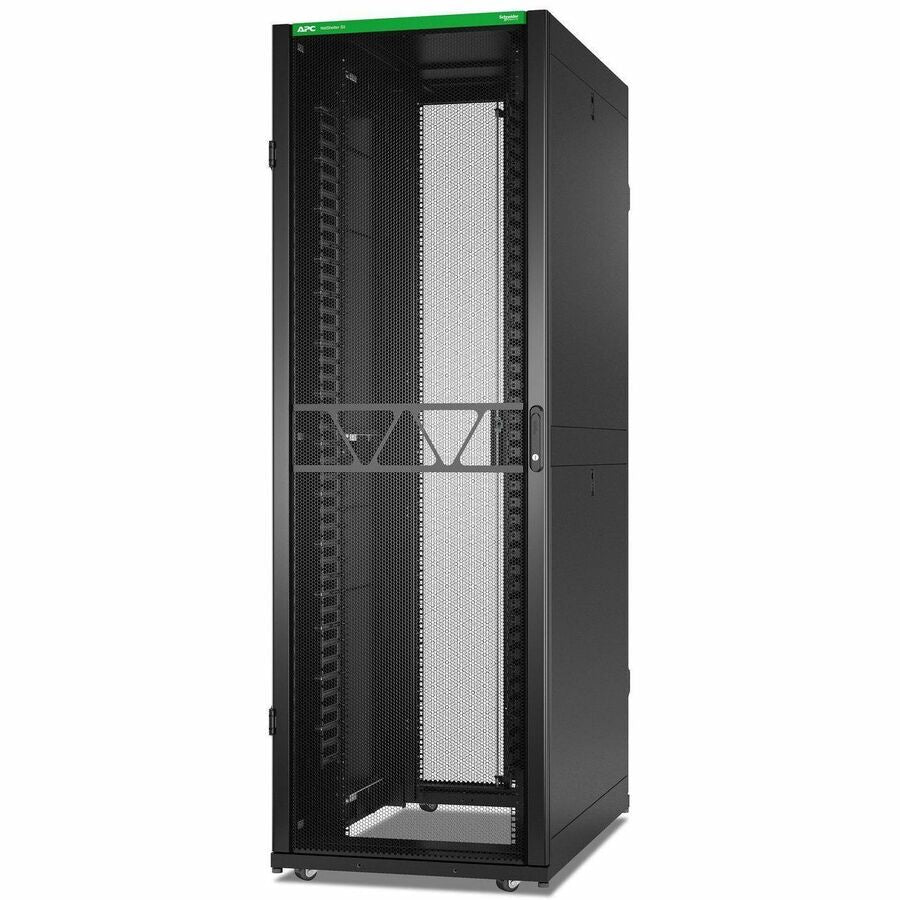

The APC NetShelter SX AR3347B2 is a 48U high-capacity networking enclosure engineered for high-density server and networking applications. With 750 mm width and 1200 mm depth, it supports deeper equipment, better airflow, and enhanced cable management. Built with robust steel construction and shipped with side panels, baying hardware, and a black finish, this TAA-compliant rack is ideal for federal, enterprise, and colocation environments. Designed to support up to 4000 lbs static load, it meets UL 2416 standards and includes a 5-year repair or replacement warranty.
| Specification | Details |
|---|---|
| Model Number | AR3347B2 |
| Rack Units (RU) | 48U |
| Product Type | Networking Rack Enclosure |

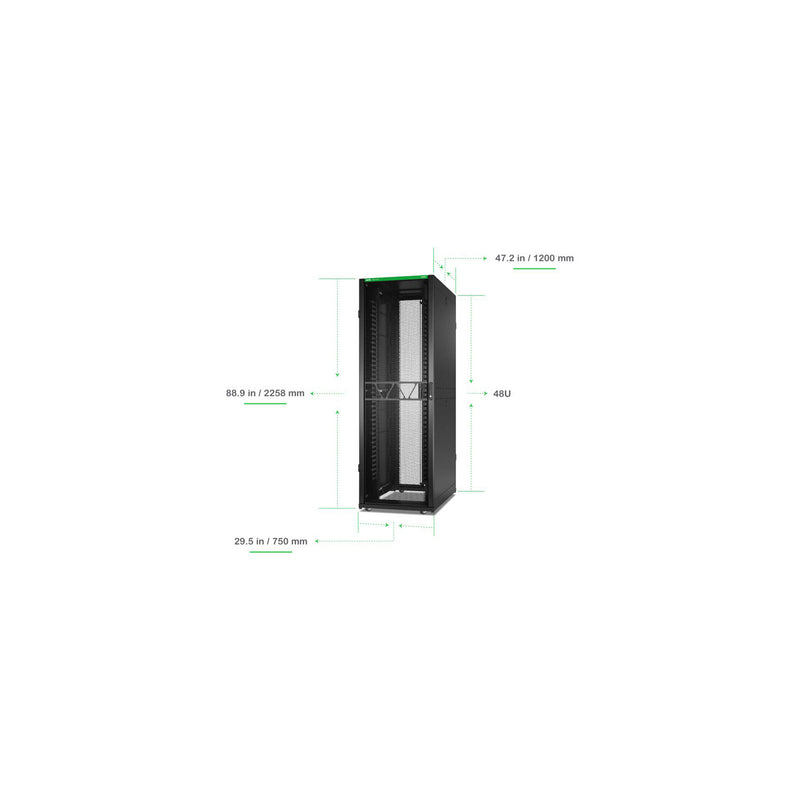

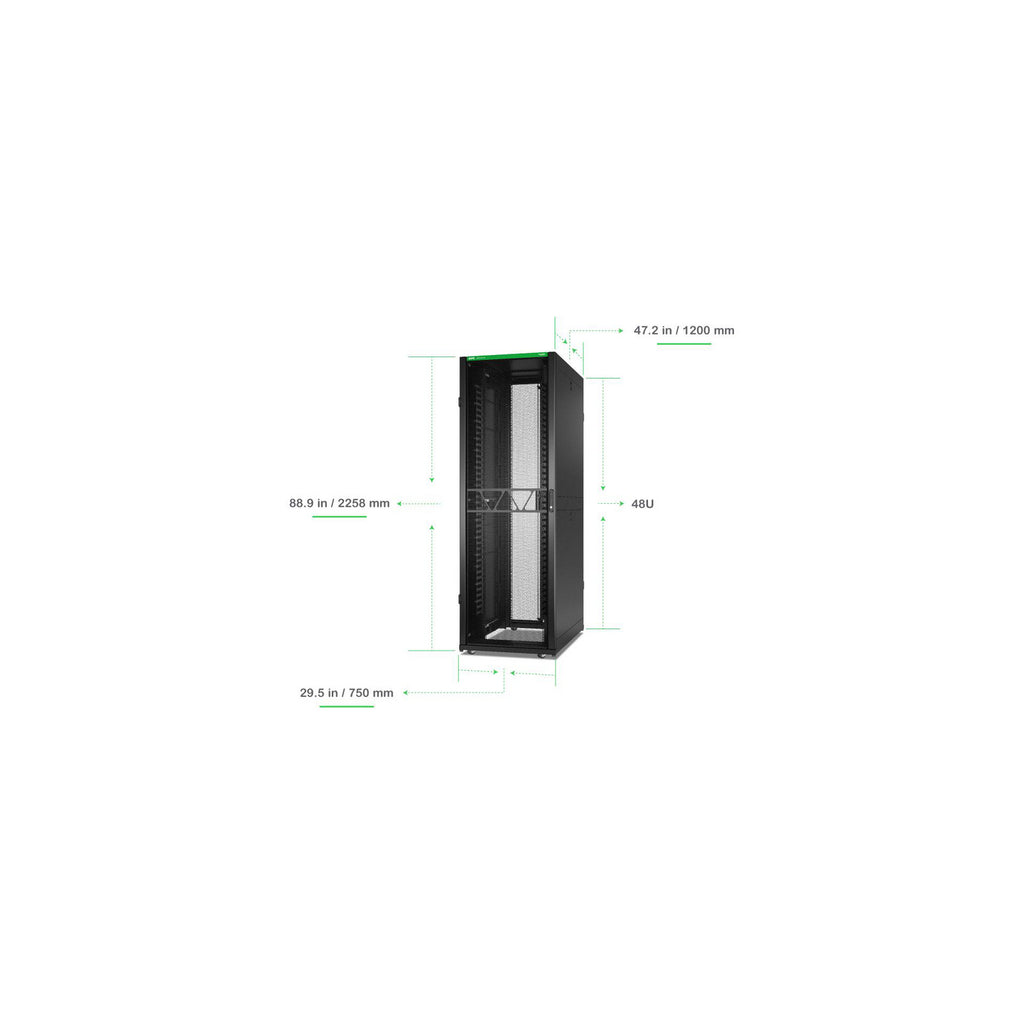

| External Dimensions (H x W x D) | 2258 x 750 x 1200 mm (88.9 x 29.5 x 47.2 in) |
| Rack Width | 19 in |
| Mounting Depth | 279.4 – 959 mm (11 – 37.76 in) |
| Weight (Net) | 185.45 kg (408.85 lbs) |
| Weight (Packaged) | 222.47 kg (490.46 lbs) |
| Color | Black |
| Load Capacity (Dynamic/Static) | 1020.6 kg / 1814.4 kg (2250 / 4000 lbs) |
| Material | Steel (14/16/18 gauge construction) |
| Compliance | TAA, BAA via COTS, UL 2416 |
| Warranty | 5-Year Repair or Replace |
| Included Accessories | Side panels, baying hardware |
| GTIN | 731304753414 |
