Description
The APC NetShelter SX AR3140B2 is a premium 42U rack enclosure designed to support high-density networking, server, and data center environments. With a 750 mm width and 1070 mm depth, this enclosure accommodates a wide range of equipment and advanced cable management. Built with heavy-duty steel construction, it supports up to 4000 lb static and 2250 lb dynamic load, ensuring reliable performance in demanding IT deployments. The AR3140B2 features removable side panels, an advanced airflow design, and full compliance with TAA and BAA (via COTS) standards, making it ideal for government and enterprise applications.
It is part of the NetShelter SX Enclosure Series, engineered for scalability, ease of installation, and long-term reliability — backed by Schneider Electric’s 5-year warranty and sustainability commitment through its “Use Better, Use Longer, Use Again” program.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Product Series | NetShelter SX Enclosures |
| Model Number | AR3140B2 |
| Rack Units | 42U |
| Type | Networking Enclosure |
| Form Factor | Floor-standing |

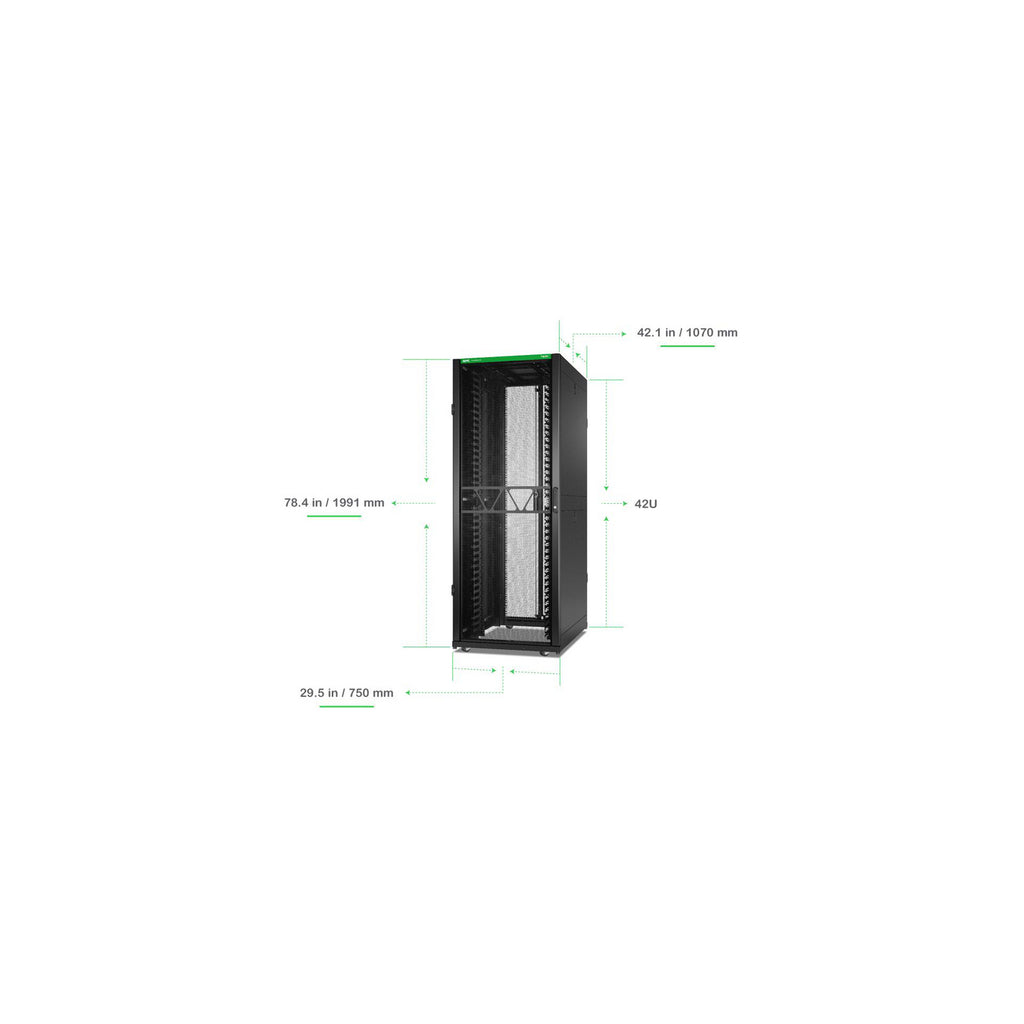

| Enclosure Dimensions (H x W x D) | 1991 mm x 750 mm x 1070 mm (78.4 in x 29.5 in x 42.1 in) |
| Net Weight | 155.95 kg (343.81 lb) |
| Maximum Mounting Depth | 819 mm (32.2 in) |
| Minimum Mounting Depth | 299.4 mm (11.8 in) |
| Rack Width | 19 in |
| Color | Black |
| Construction Material | 14-gauge EIA mounting rail, 16-gauge front door and posts, 18-gauge rear door, roof, and side panels |
| Static Load Capacity | 4000 lb (1814.4 kg) |
| Dynamic Load Capacity | 2250 lb (1020.6 kg) |
| Compliance | TAA Compliant, BAA via COTS, UL 2416 |
| Included Accessories | Baying hardware |
| Mounting Preference | No preference (reversible doors and panels) |
| Package Dimensions (H x W x L) | 2128 mm x 853 mm x 1158 mm (83.8 in x 33.6 in x 45.6 in) |
| Shipping Weight | 187.35 kg (413.04 lb) |
| Sustainability Features | Proactive EU RoHS compliance, REACh declaration, recyclable design |
| Warranty | 5 Years (60 months) |
| GTIN / UPC | 731304753209 |
