Description

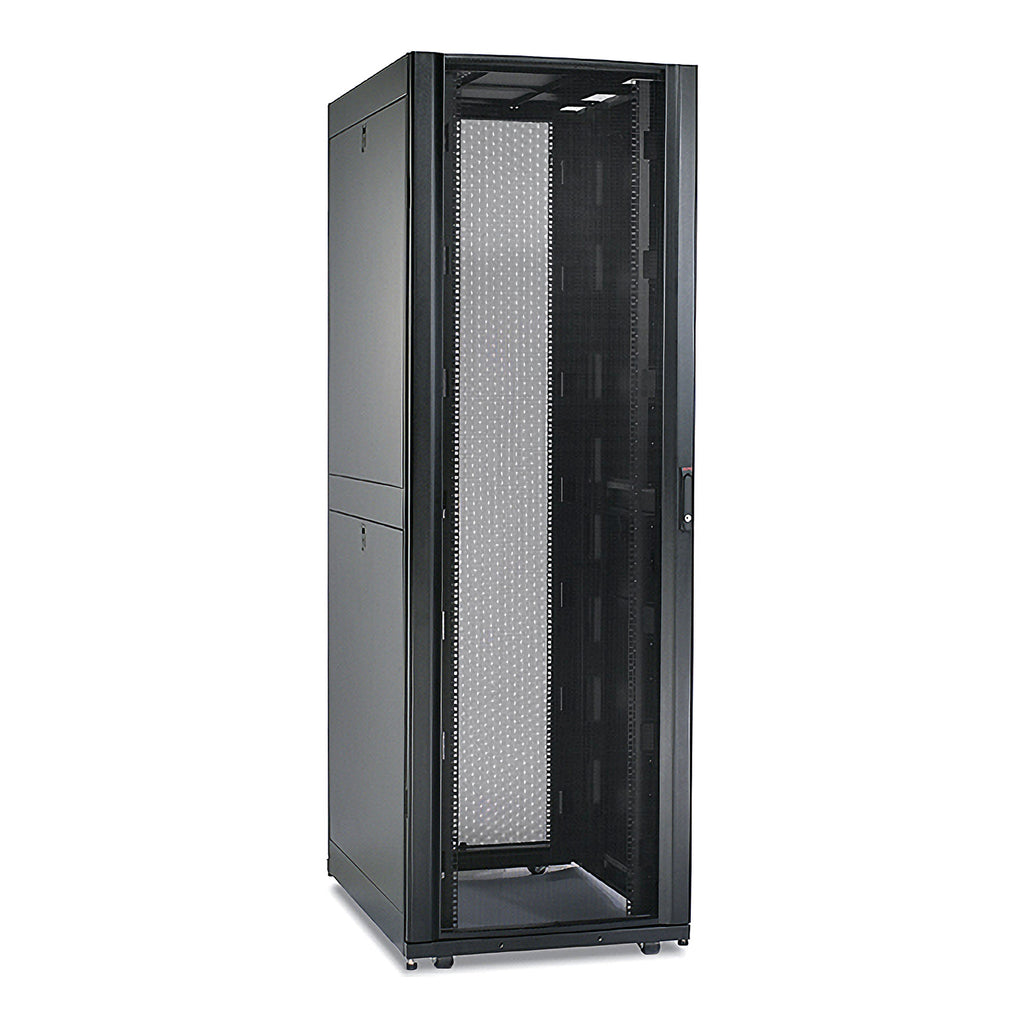

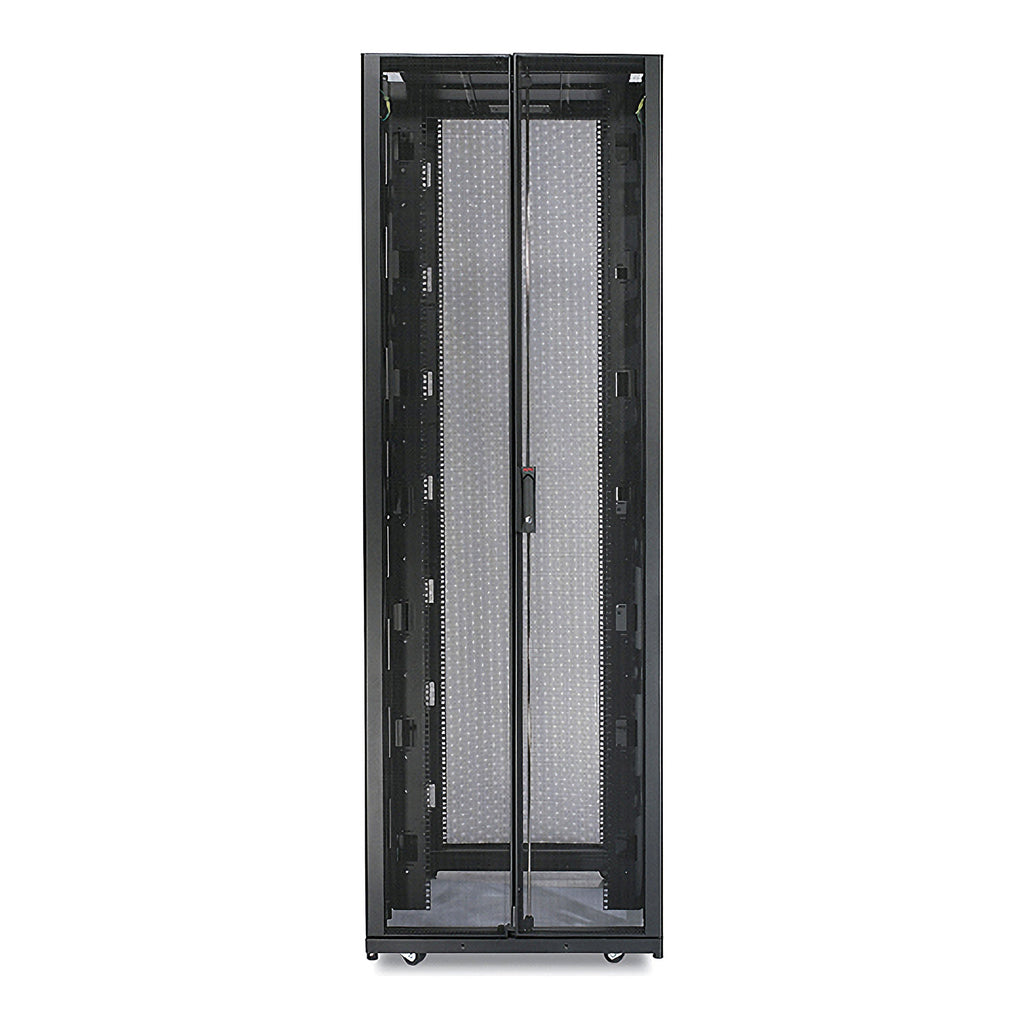

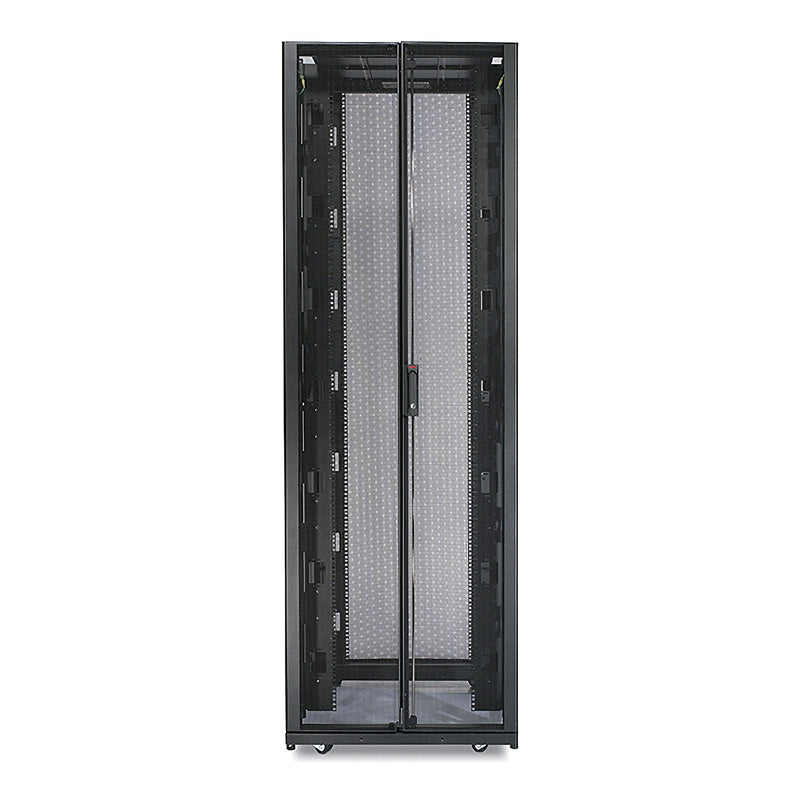

The APC NetShelter SX AR3150 is a 42U server rack enclosure designed for high-density server and networking applications. With a 750mm wide frame and 1070mm depth, this rack offers enhanced cable management, greater airflow, and easier access to rear-mounted equipment. It rolls easily through standard doorways and provides generous clearance for PDUs and cable managers. Its wide design allows seamless front-to-back cabling — ideal for converged and hyperconverged deployments that combine servers, switches, and storage in one rack.
Key Features
-
Designed for high-density server and networking environments
-
Increased cable management options
-
42U height fits through standard doorways
-
Wide design enables clean front-to-back cable routing
-
Rear clearance supports rack PDUs and cable managers
| Category | Details |
|---|---|
| Product Type | Rack Enclosure |
| Model | AR3150 |
| Rack Units | 42U |
| Color | Black |
| Height | 1991.4 mm (78.39 in) |
| Width | 750 mm (29.53 in) |
| Depth | 1070 mm (42.13 in) |
| Net Weight | 155.96 kg (343.83 lb) |
| Mounting Depth | 260–915 mm (10.31–36.02 in) |
| Rack Width | 19 in |
| Load Capacity | 1020.6 kg (2250 lb) dynamic, 1701 kg (3750 lb) static |
| Included Accessories | Baying hardware, side panels, leveling feet, casters, mounting hardware, keyed-alike doors |
| Material Gauges | 14 ga rails, 16 ga doors/posts, 18 ga roof/panels |
| Compliance | UL 2416, UL 60950-1, EIA-310E |
| Warranty | 5-year repair or replace |
| Country of Origin | United States |
| GTIN | 731304236375 |
| Package Dimensions (HxWxD) | 2117 x 851 x 1156 mm (83.35 x 33.50 x 45.51 in) |
| Shipping Weight | 168.18 kg (370.77 lb) |
| Returnability | No |
