Description

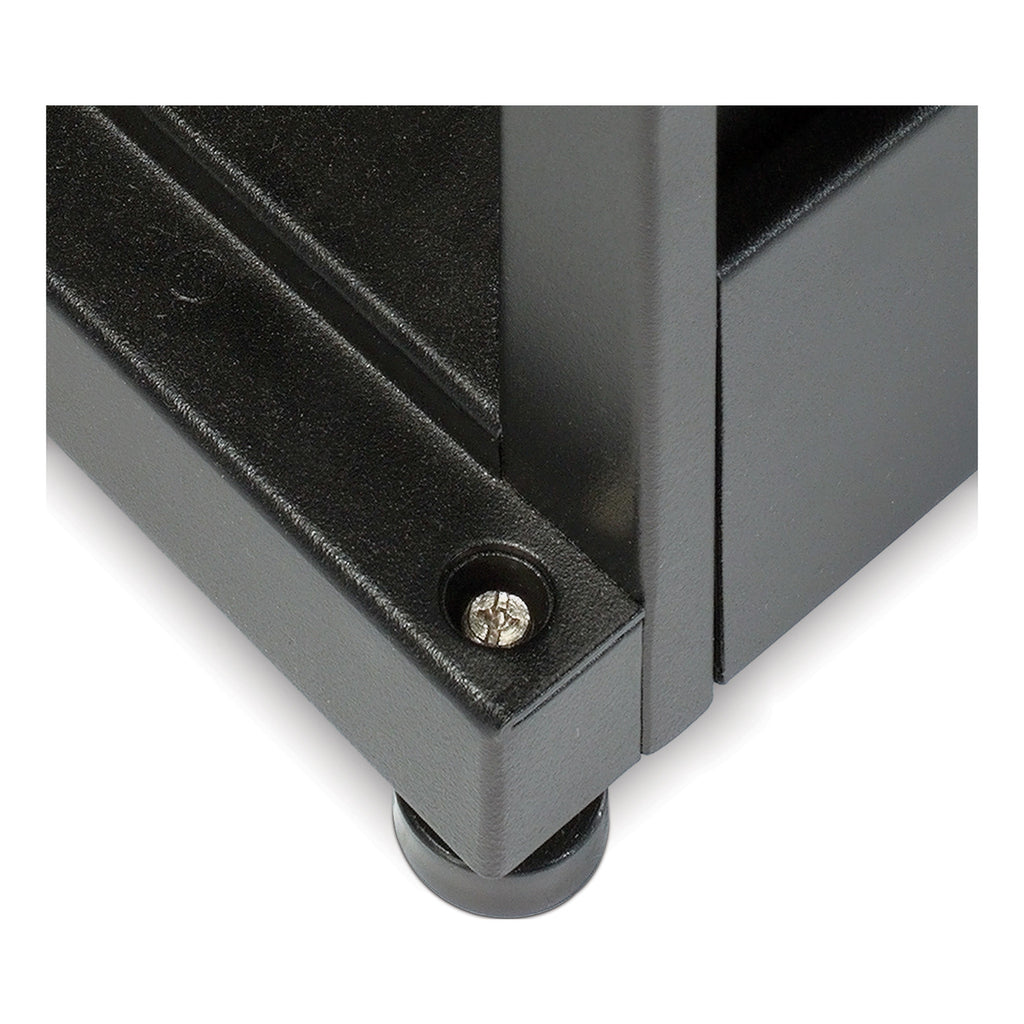

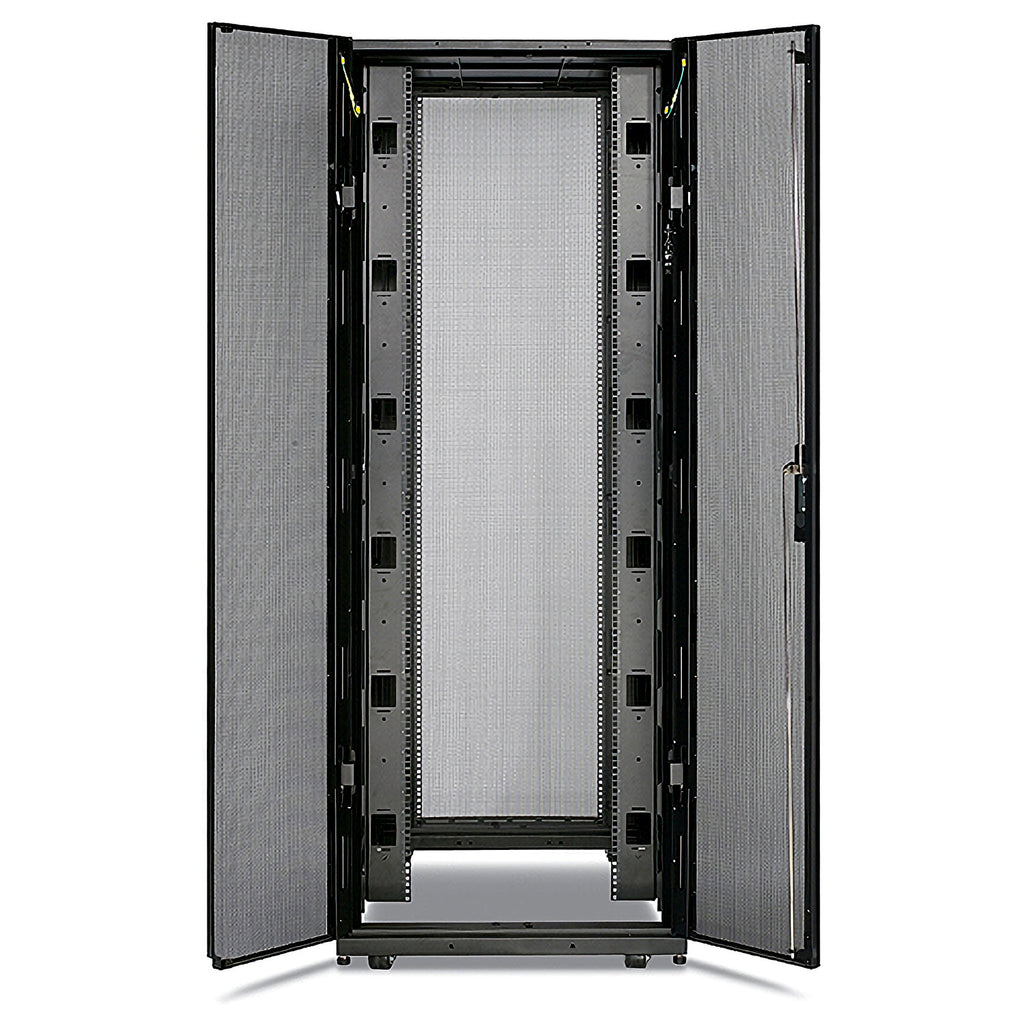

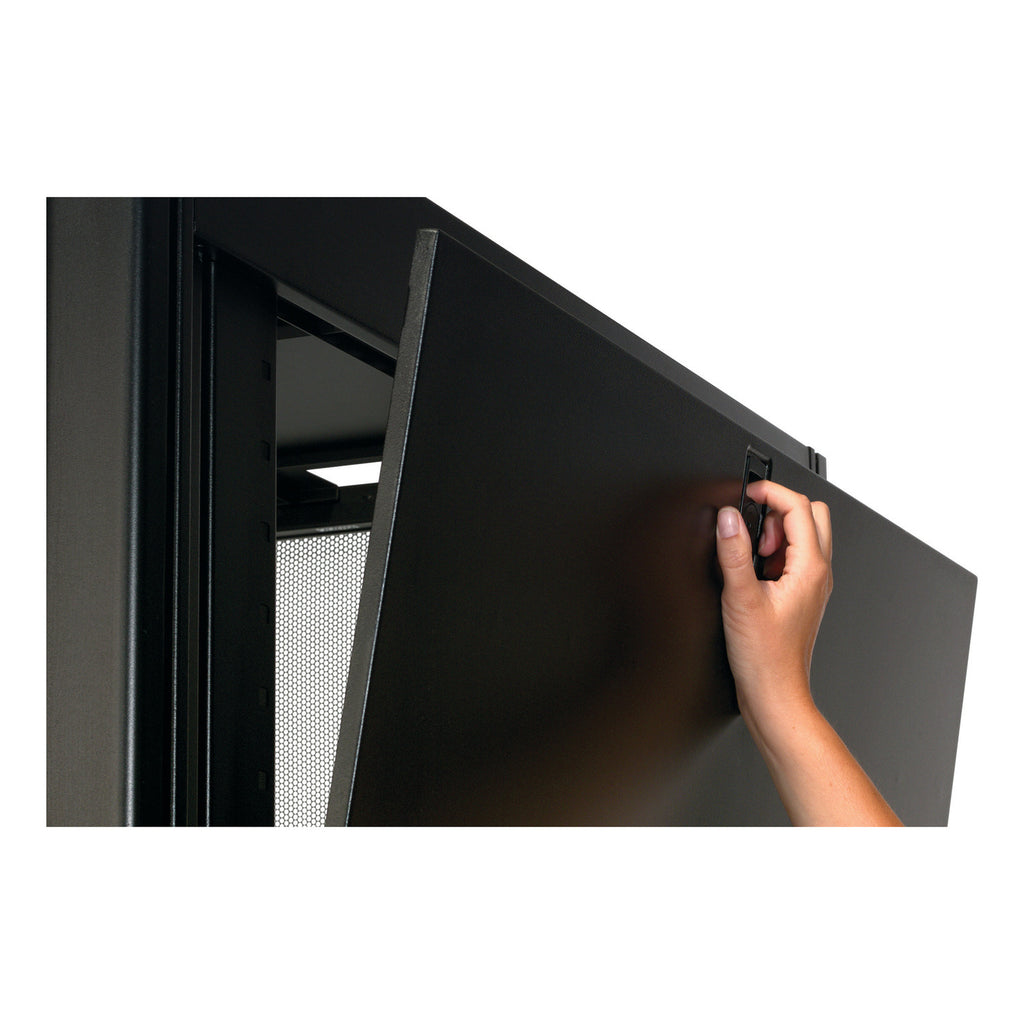

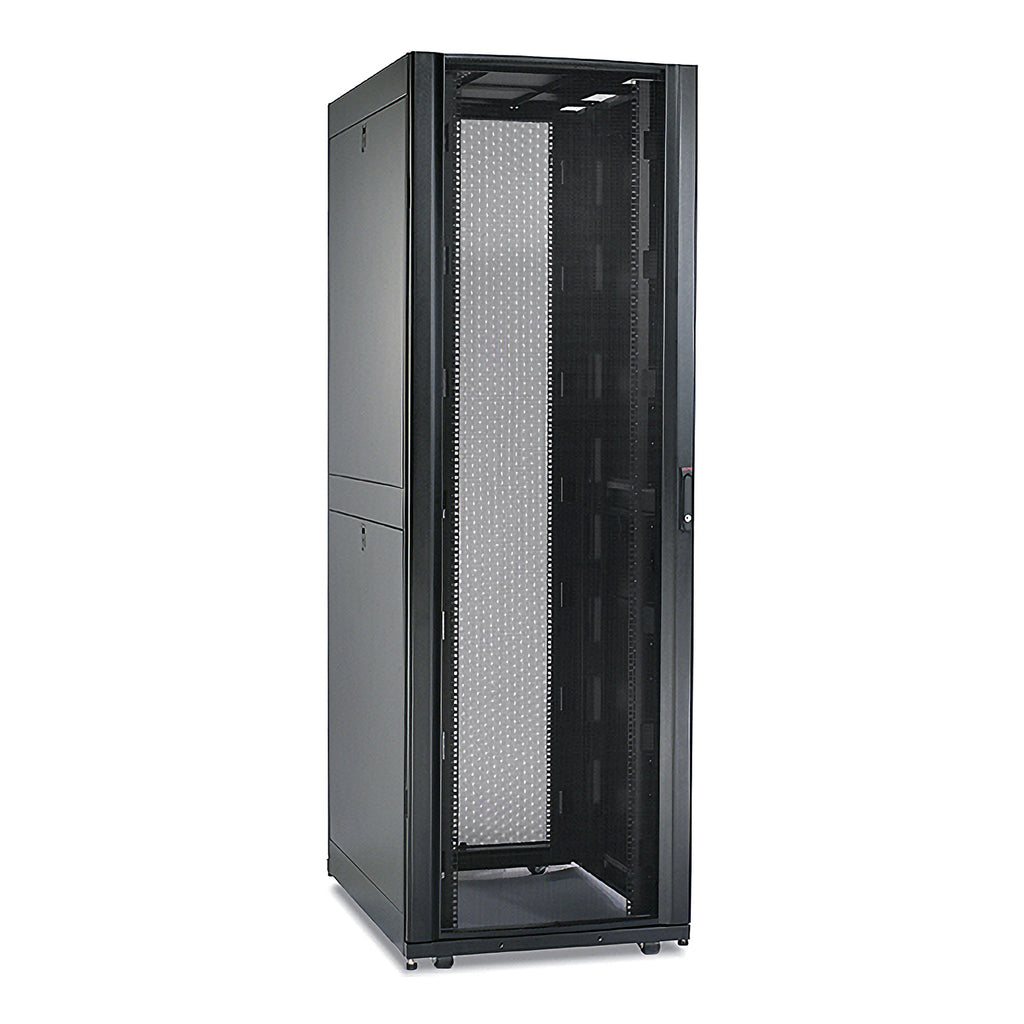

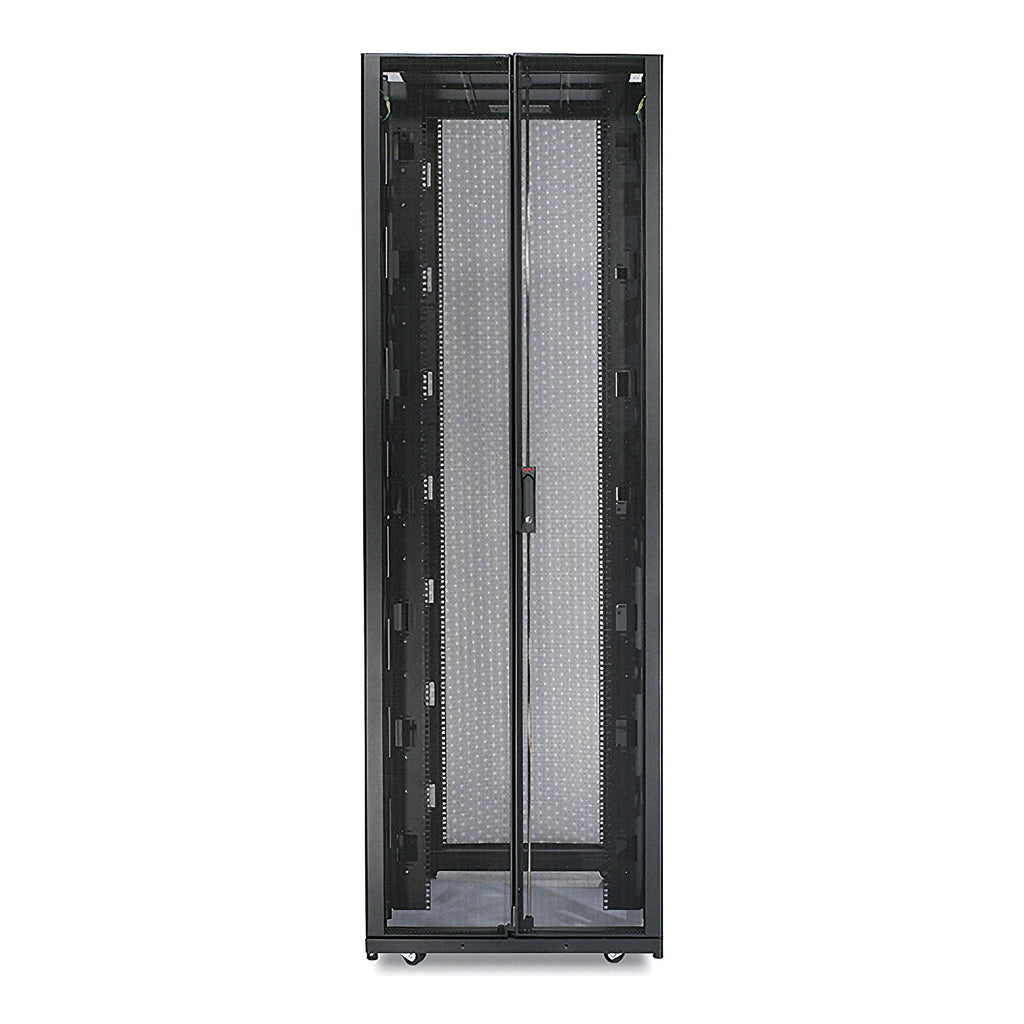

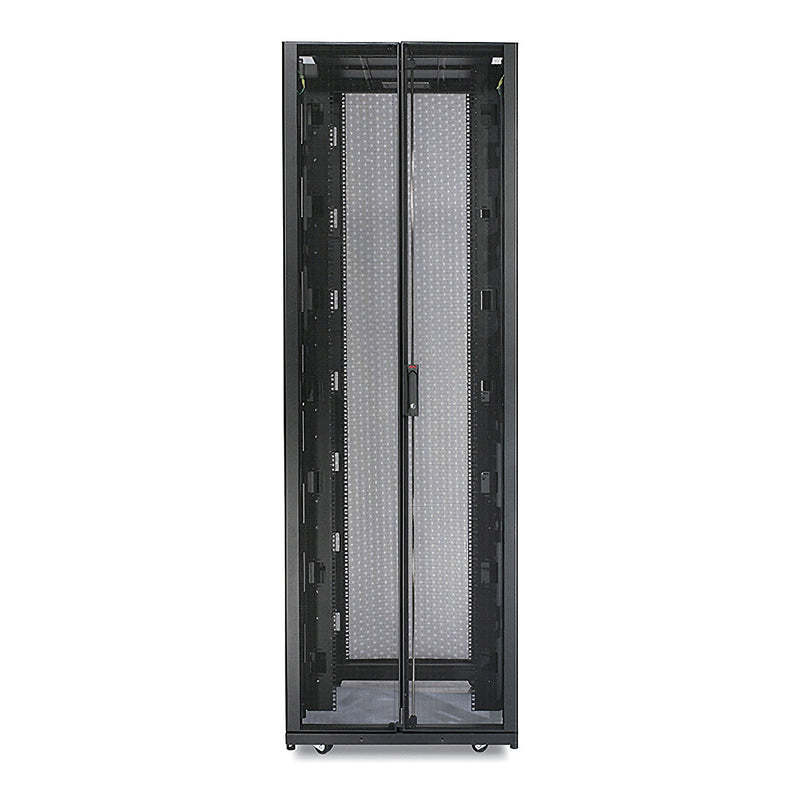

The APC NetShelter SX AR3130 is a high-capacity 42U server rack enclosure built to support heavy IT loads and optimize airflow, cable management, and accessibility. With dimensions of 1991mm height, 700mm width, and 1070mm depth, it is ideal for high-density server and networking applications. The enclosure supports up to 2250 lbs dynamic and 3750 lbs static loads, includes pre-installed casters, leveling feet, and baying hardware, and is compatible with a wide range of Schneider Electric accessories. Its split rear doors and side panels enhance serviceability in confined spaces, and compliance with UL and EIA-310E standards ensures safe deployment in enterprise environments.
| Specification | Details |
|---|---|
| Model Number | AR3130 |
| Rack Units | 42U |
| Dimensions (HxWxD) | 1991 x 700 x 1070 mm (78.39 x 27.56 x 42.13 in) |
| Rack Width | 19" |
| Max Mounting Depth | 91.49 cm (36.02 in) |
| Min Mounting Depth | 26.19 cm (10.31 in) |
| Static Load Capacity | 1701 kg (3750 lbs) |
| Dynamic Load Capacity | 1020.6 kg (2250 lbs) |
| Product Weight | 137.84 kg (303.89 lbs) |
| Color | Black |
| Mounting Mode | Not rack-mountable |

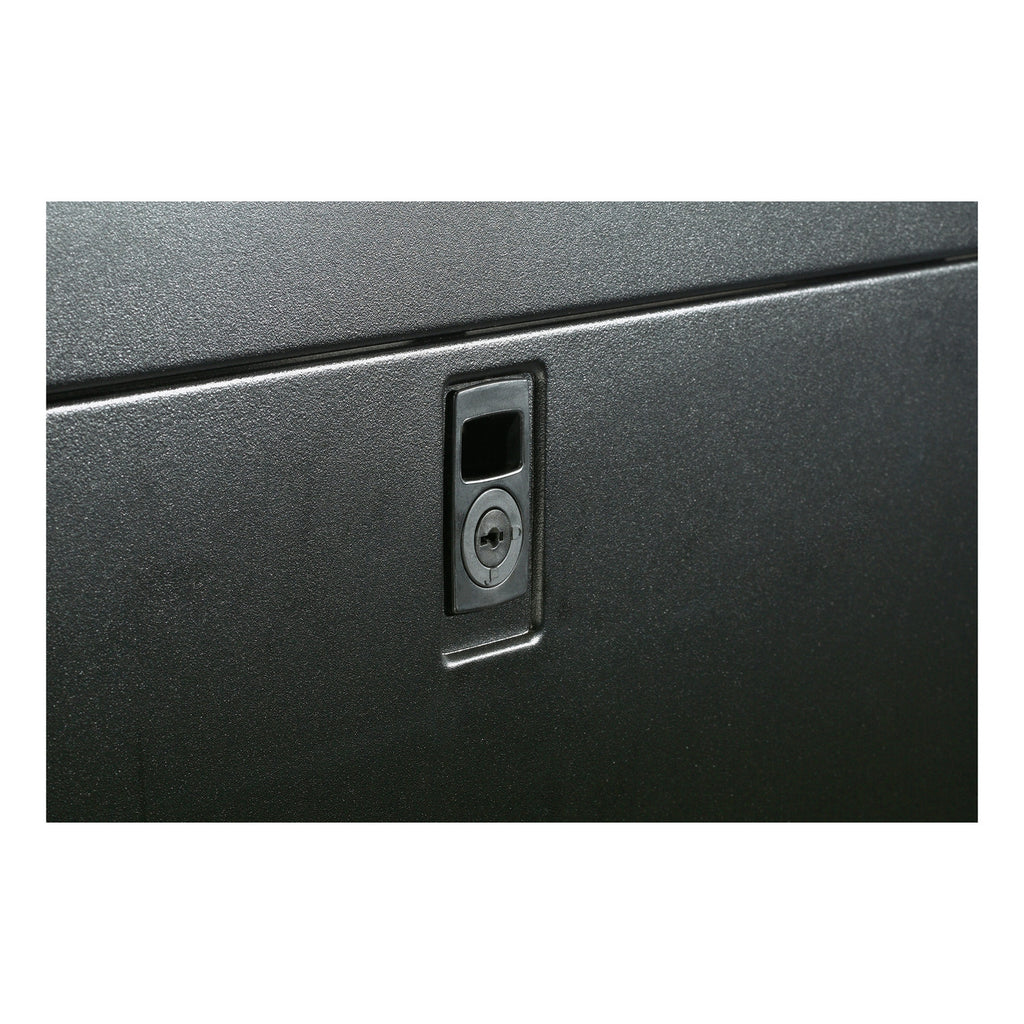

| Included Accessories | Baying hardware, casters, leveling feet, mounting hardware, side panels, keyed-alike doors |
| Certifications | UL 2416, UL 60950-1, EIA-310E |
| Compliance | TAA, BAA via COTS |
| Warranty | 2-year repair or replace |
| GTIN | 731304273318 |
