Description

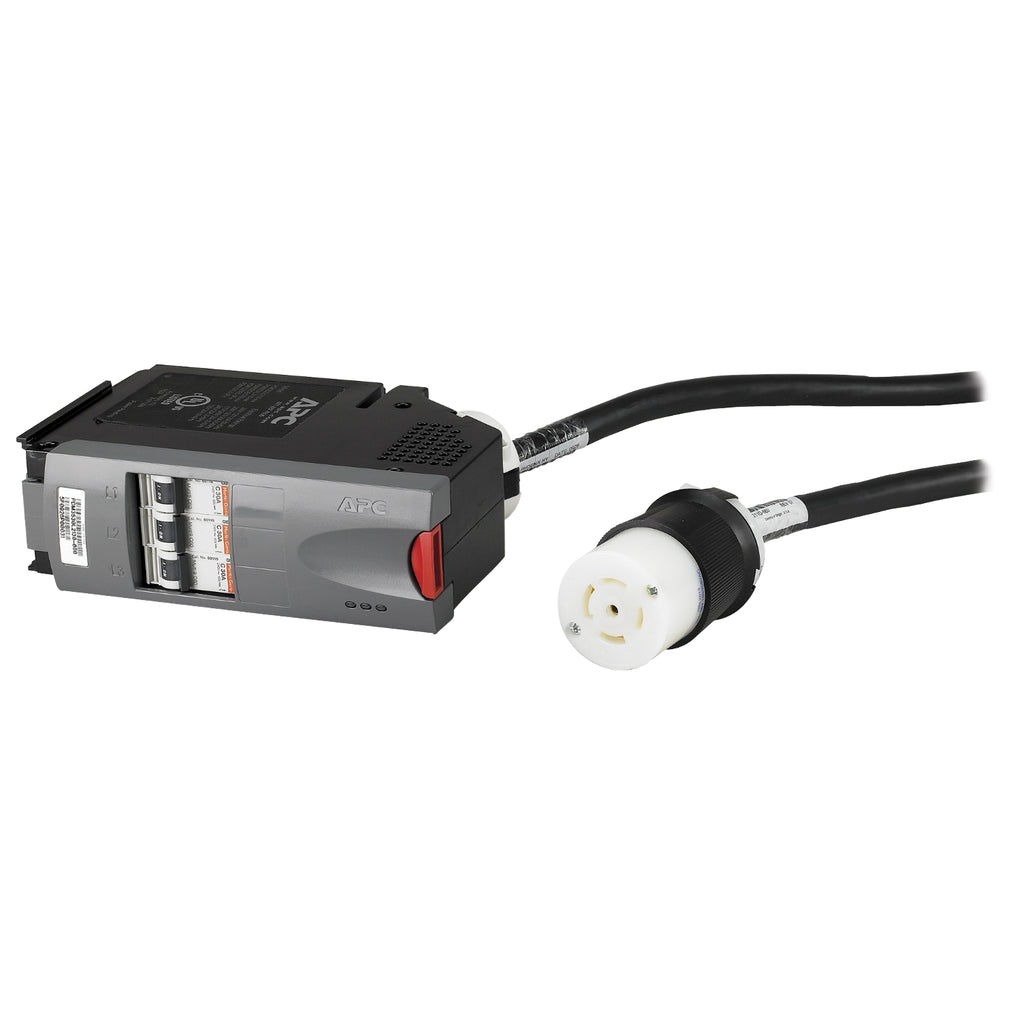

Enhance your data center power infrastructure with the APC by Schneider Electric Power Distribution Module (PDM3530L2130-1680). This plug-in module supports 3-phase 208V input with a 30A L21-30 connector, delivering reliable circuit protection and power distribution for Symmetra PX UPS systems. Designed for scalable environments, it features an integrated 16.8m power cable, LCD display, and LED indicators for status monitoring. Built with SNMP-enabled remote management and full compliance to UL and RoHS standards, it ensures safe and efficient operation.
| Specification | Details |
|---|---|
| Product Type | Automatic Circuit Breaker - Plug-in Module |
| Model | PDM3530L2130-1680 |
| Input Voltage | AC 208V (200–240V range), 3-phase |
| Output Voltage | AC 208V |
| Input Connector | L21-30 |
| Max Current | 30 Amps |
| Frequency Required | 60 Hz |
| Output Connectors | 1 |
| Form Factor | Plug-in Module |
| Cable Included | Integrated 16.8m Power Cable |
| Remote Management | SNMP |
| Display Features | LCD Display, LED Indicators |
| Compliant Standards | UL, RoHS Exemption 7b |
| Dimensions (W x D x H) | 44.5 cm x 40.6 cm x 12.7 cm |
| Weight | 4.3 kg |
| Shipping Weight | 5.2 kg |
| Compatibility | APC Symmetra PX 10kW–100kW UPS Systems |
| Warranty | 1-Year Limited Warranty |
