Description

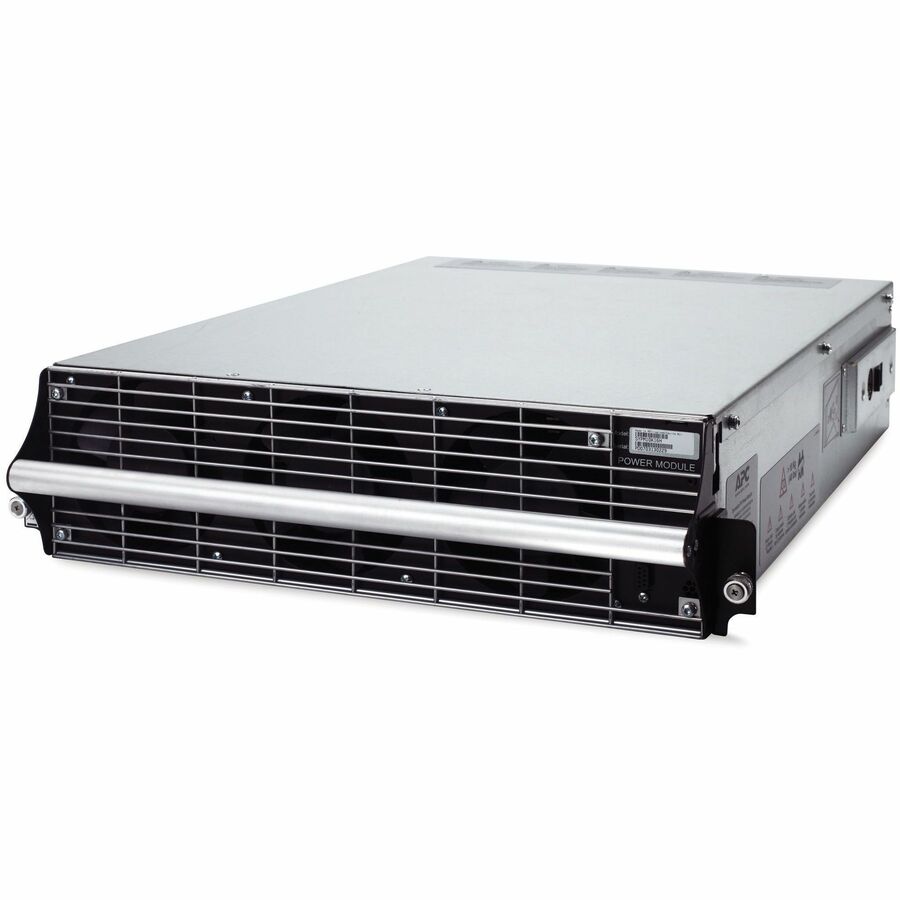

Enhance the scalability of your Symmetra PX UPS with the APC SYPM10K16H Power Module. Delivering up to 16kW of high-efficiency, double-conversion online power, this module supports flexible integration with PX160kW and PX48kW systems. Backward compatible with SYPM10KH, it automatically adjusts to 10kW output when used with PX80kW, PX40kW, or PX20kW configurations. Ideal for data centers requiring modular power protection.
| Category | Details |
|---|---|
| Product Type | Power Module |
| Model | SYPM10K16H |
| Input Voltage | 400V 3 Phase |
| Output Voltage | 230V, 400V 3 Phase |
| Input Frequency | 40 - 70 Hz |
| Rated Power | 16,000 VA / 16,000 W |
| Max Configurable Power | 16,000 W |
| Efficiency | High-efficiency double-conversion online |
| Compatibility | Symmetra PX160kW, PX48kW (also compatible with PX80kW, PX40kW, PX20kW as 10kW) |
| Output Connector Type | Hard Wire 5-wire (3PH + N + G) |
| Overload Capacity | 10 min @ 125%; 60 sec @ 150% |
| Output Frequency | 50/60 Hz +/- 0.1 sync or standalone |
| Topology | Double Conversion Online |
| Output Harmonics | <2% linear, <6% non-linear load |
| Certifications | CE, FCC Part 15 Class A, EN 50091-1/3, VFI-SS-111 |
| Operating Temp. | 0 to 40°C (32 to 104°F) |
| Humidity (Operating) | 0–95% RH |
| Noise Level | 63 dBA |
| Dimensions (HxWxD) | 5.2 x 19.02 x 27.56 in (13.2 x 48.3 x 70 cm) |
| Weight | 62.8 lbs (28.5 kg) |
| Mounting Location | Front |
| GTIN | 731304252153 |
| Warranty | 1-Year Repair or Replace |
