Description

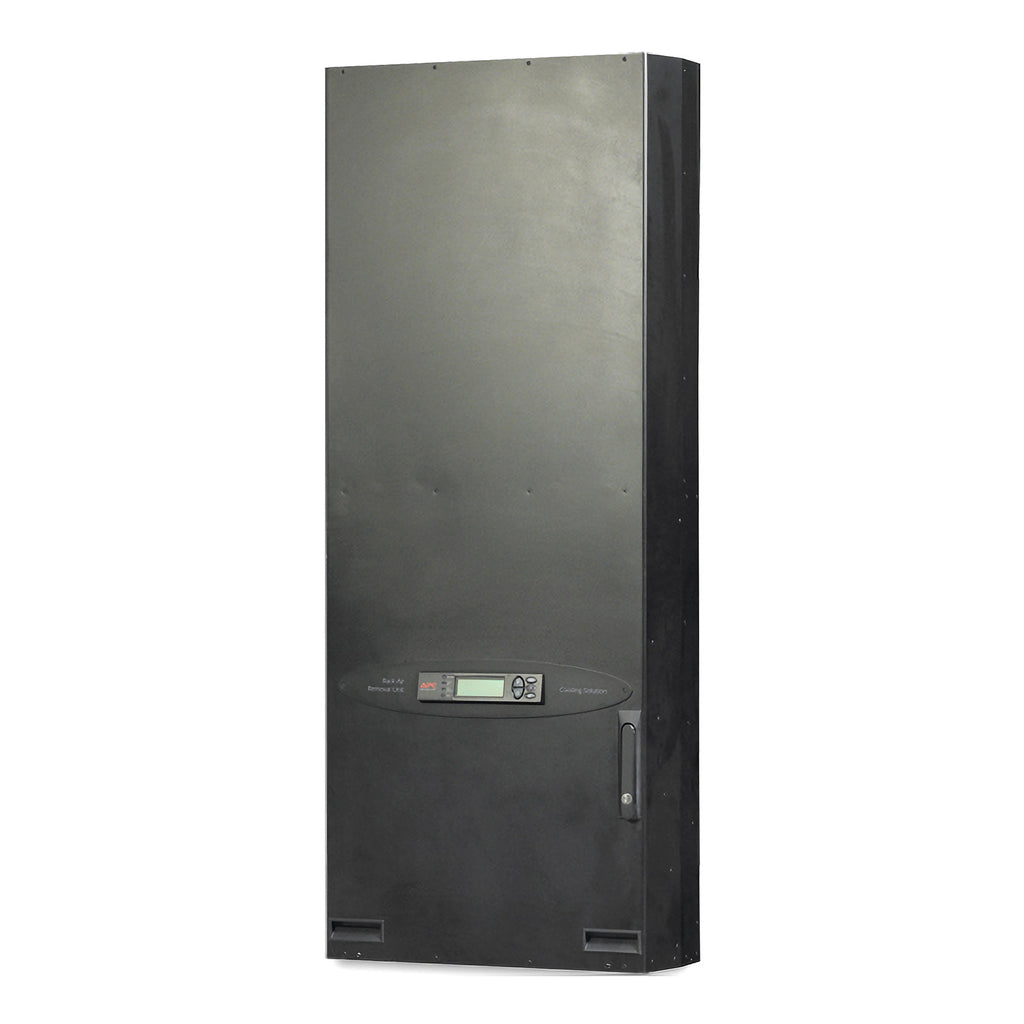

Keep power-dense racks cool and efficient. The APC ACF115 Rack Air Removal Unit SX draws up to 1 600 CFM of hot exhaust air straight from the rear of your enclosures, preventing hot spots in low-pressure aisles and extending the life of critical IT hardware. A multi-function LCD console provides local status and control, while wide-range 100–240 V, 50/60 Hz input and dual power cords (IEC C14 & NEMA 5-15P) simplify deployment anywhere in the world. Built to the high standards of APC by Schneider Electric, the ACF115 ships with cUL/UL, CE, VDE, VCCI, and FCC Class A certifications and includes a one-year parts-only warranty.
Key benefits
-
High airflow: 1 600 CFM (755 L/s) removes concentrated heat quickly
-
Wide-range input: Operates on 100–240 V mains, 50/60 Hz
-
Simple installation: Ships fully assembled with mounting hardware & installation guide
-
Intuitive control: On-board LCD for speed, alarms, and diagnostics
-
Robust build: Powder-coated steel, black finish; designed for 0–50 °C & 0–95 % RH operation
-
Global compliance: cUL, UL, CE, VDE, VCCI, FCC Class A, EN 55022/24, IEC 61000-3-2/3
| Category | Detail |
|---|---|
| Manufacturer / SKU | APC by Schneider Electric · ACF115 |
| Type | Rack Air Removal Unit SX Fan Assembly |
| Airflow | 1 600 CFM (755 L/s) |
| Input Voltage Range | 100 V • 120 V • 200 V • 208 V • 230 V |
| Input Frequency | 50 / 60 Hz |
| Input Power | 1 200 W (max) |
| Plug Types (2) | IEC 60320 C14 • NEMA 5-15P |
| Control Interface | Multi-function LCD status & control console |
| Certifications / Standards | cUL, UL, CE, VDE, VCCI, FCC Part 15 Class AEN 55022 Class A · EN 55024 · IEC 61000-3-2/-3 |
| Operating Temp / RH | 0 – 50 °C • 0 – 95 % RH (non-condensing) |
| Noise Level | 79 dBA |
| Dimensions (H × W × D) | 53.27 in × 22.99 in × 7.52 in (135.3 × 58.4 × 19.1 cm) |
| Weight (net) | 104.2 lb / 47.3 kg |
| Warranty | 1 year, parts-only |
| GTIN | 731304240983 |
Payment & Security
Your payment information is processed securely, and we do not store credit card details or access your credit card information.
Return Policy (Short Summary)
We offer a 30-day return window for most unopened, factory-sealed items.
Returns must be authorized before shipping back and must include all original packaging and accessories. Opened or used items are not returnable unless defective.
Some products—such as custom orders, special-order items, audio gear, software, and LED video walls—are non-returnable. Non-defective returns may be subject to a 20–30% restocking fee, and customers are responsible for return shipping costs.
For damaged or incorrect items, please contact us immediately.
