Description

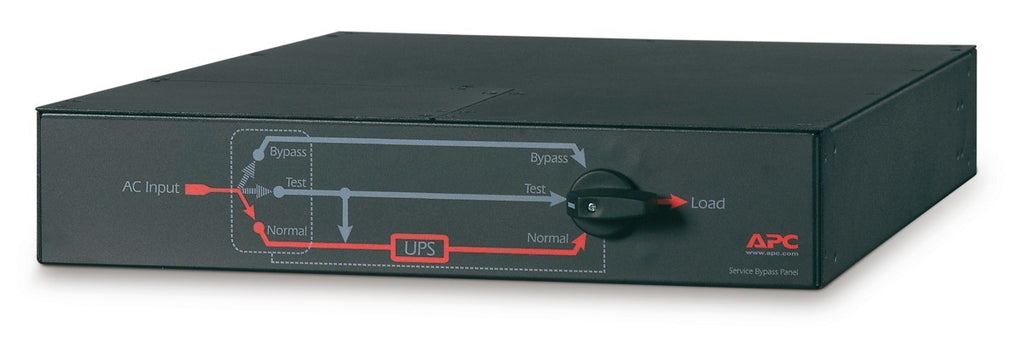

The APC SBP5000RMI2U is a 2U rack-mount maintenance bypass panel designed to ensure continuous power availability during UPS servicing or replacement. Operating at 230V with a 32A capacity, this bypass panel allows connected loads to be safely transferred to utility power without downtime, making it ideal for mission-critical IT and network environments.

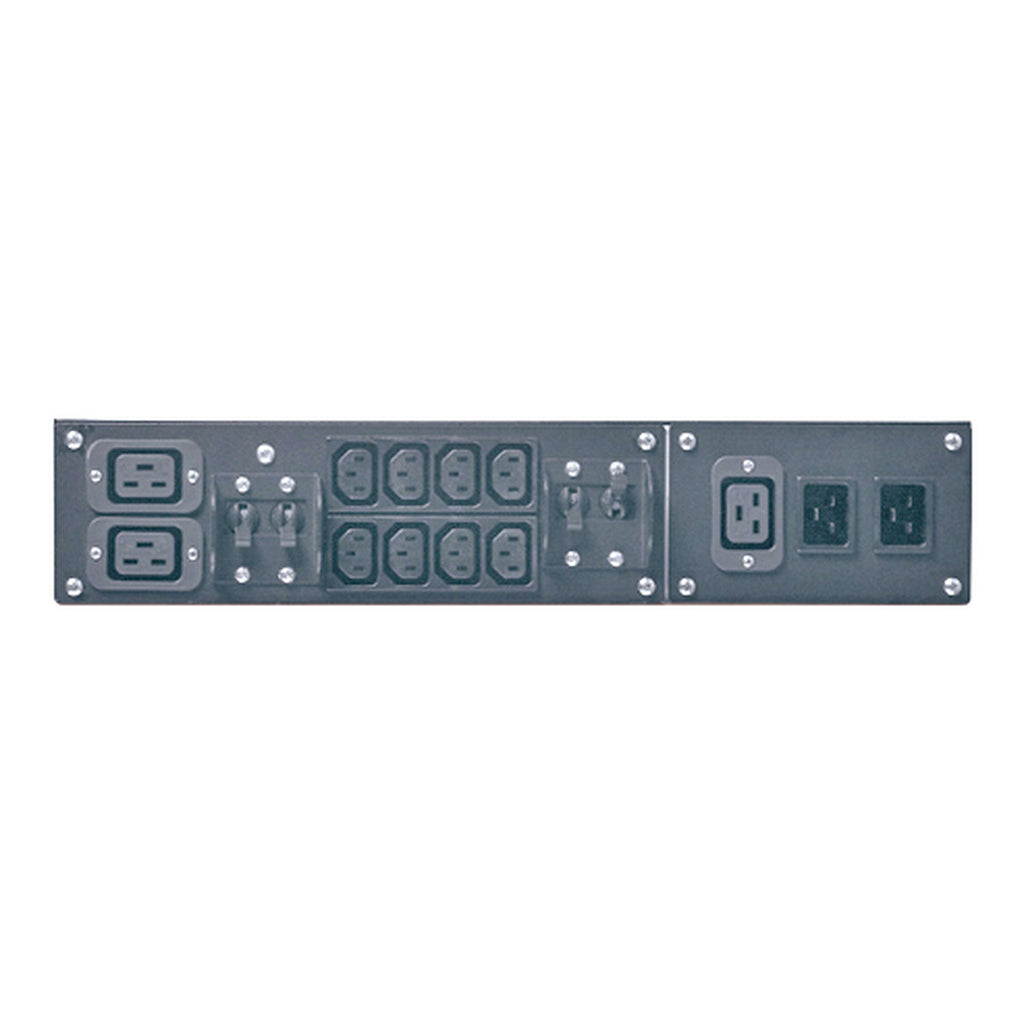

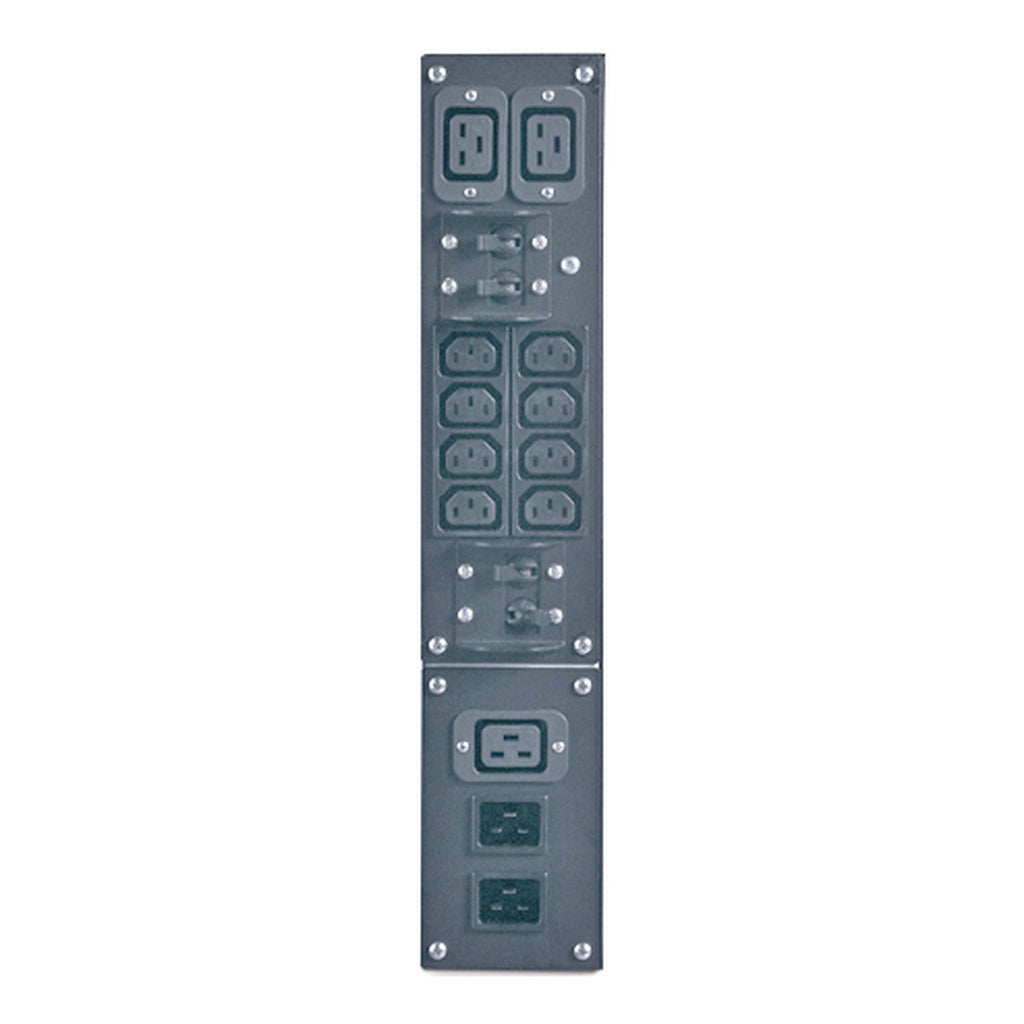

Designed for reliability and ease of installation, the SBP5000RMI2U features an IEC C20 input and a flexible outlet configuration with (8) IEC C13 and (2) IEC C19 outputs to support a wide range of equipment. The integrated circuit breaker protection and robust black metal enclosure provide dependable performance in data centers, server rooms, and enterprise IT racks.
This model supports both rack and wall mounting and integrates seamlessly with compatible APC UPS systems, delivering a professional-grade solution for maintenance operations without service interruption.
| Specification | Details |
|---|---|
| Brand | APC |
| Model | SBP5000RMI2U |
| Product Type | Maintenance Bypass Panel |
| Form Factor | Rack-mount |
| Rack Units | 2U |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Maximum Current | 32A |
| Load Capacity | 7680 VA |
| Input Connection | IEC 60320 C20 |
| Output Connections | (8) IEC 60320 C13, (2) IEC 60320 C19 |
| Protection | Circuit Breaker |
| Efficiency | 99% |
| Frequency | 50/60 Hz |
| Mounting Options | Rack or Wall Mount |
| Color | Black |
| Dimensions (H × W × D) | 89 × 432 × 660 mm |
| Weight | 11.36 kg |
| Included Accessories | Rack brackets, wall brackets, hardwire panel |
| Warranty | 2 Years |
