Description

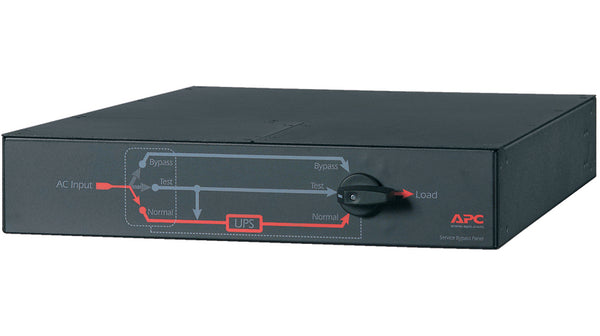

The APC SBP3000 Service Bypass Panel provides a reliable and safe method to perform maintenance on connected UPS systems without interrupting power to critical loads. Designed for flexibility across global voltage environments, this 2U rack-mountable bypass panel supports 100V, 120V, and 230V input/output configurations with hardwired connectivity.
Rated at 30A with an integrated circuit breaker, the SBP3000 enables seamless transfer of power during servicing while maintaining high efficiency and operational reliability. Its robust construction, wide operating temperature range, and support for rack or wall mounting make it ideal for data centers, network closets, and mission-critical IT environments requiring continuous uptime.
| Specification | Details |
|---|---|
| Manufacturer | APC |
| Manufacturer Part Number | SBP3000 |
| Product Type | Maintenance Bypass Panel |
| Rack Height | 2U |
| Input Voltage | 100V / 120V / 230V |
| Output Voltage | 100V / 120V / 230V (110V supported) |
| Maximum Current | 30A |
| Input Frequency | 50 / 60 Hz |
| Input Connection | Hardwire, 3-wire (Hot, Neutral, Earth) |
| Output Connection | Hardwire, 3-wire (Hot, Neutral, Earth) |
| Protection | Integrated Circuit Breaker |
| Efficiency | Up to 99% |
| Mounting Options | Rack-mount (kit included) or Wall-mount |
| Color | Black |
| Dimensions (H × W × D) | 3.5 in × 17.0 in × 25.0 in |
| Net Weight | 26.5 lb (12 kg) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Certifications | CSA, VDE, GOST |
| Warranty | 2 Years |
