Description
The APC Smart-UPS X SMX2200RMHV2U is a high-performance line interactive UPS designed for IT managers and network administrators who need to ensure uptime and seamless business continuity during power disruptions. With 2200VA/1980W capacity, this 2U rack/tower convertible UPS delivers pure sine wave output and features user-selectable voltage settings from 200V–240V. It includes 8 IEC C13 and 1 IEC C19 outlets and supports the addition of up to 10 external battery packs for extended runtime. Built-in SmartSlot supports network management and integrates with EcoStruxure IT or third-party platforms. A replacement battery cartridge (APCRBC117) is available to maintain long-term performance.
| Category | Details |
|---|---|
| Model | SMX2200RMHV2U |
| UPS Type | Line Interactive |

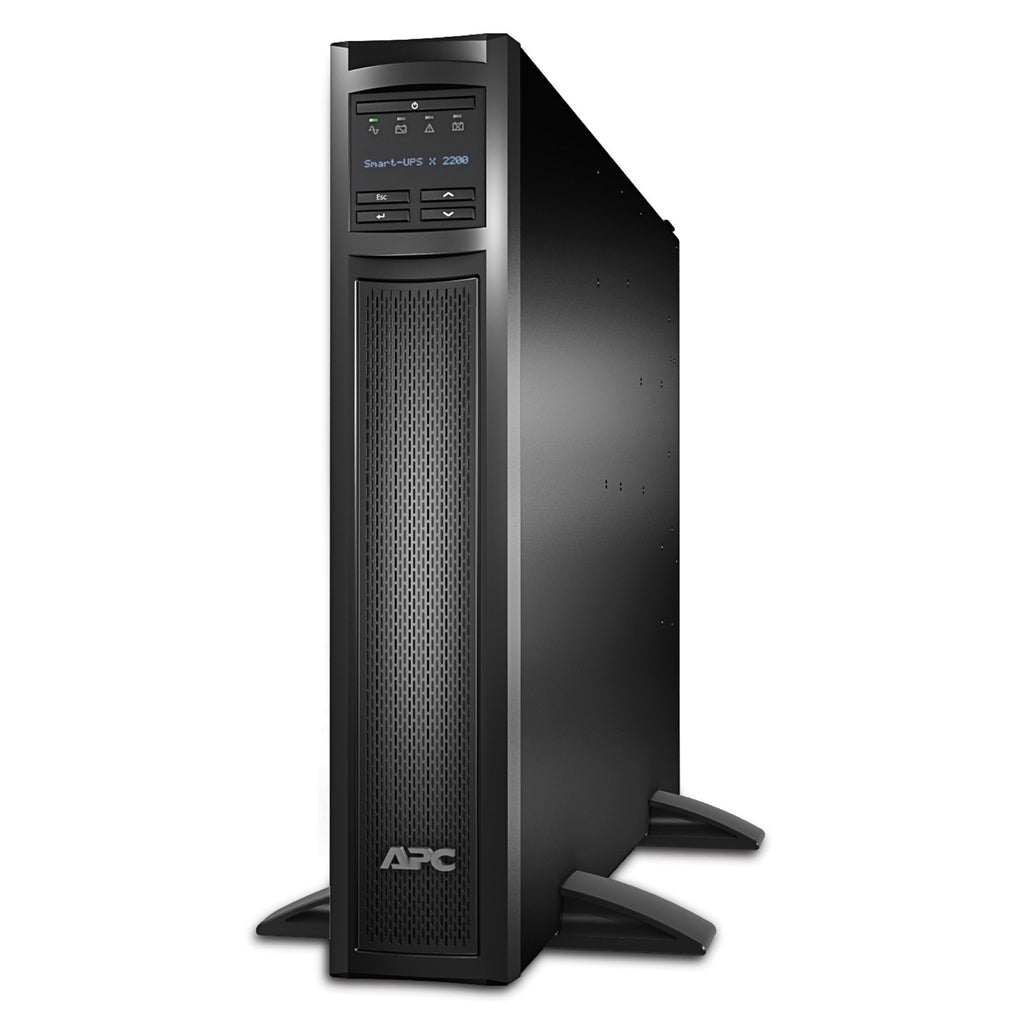

| Form Factor | Rack/Tower Convertible – 2U |
| Input Voltage | 208V / 230V (Selectable 200V–240V) |
| Output Voltage | 208V / 230V (Selectable 220V–240V) |
| Input Connection | IEC 320 C20, includes C20, Schuko, and BS1363A power cords |

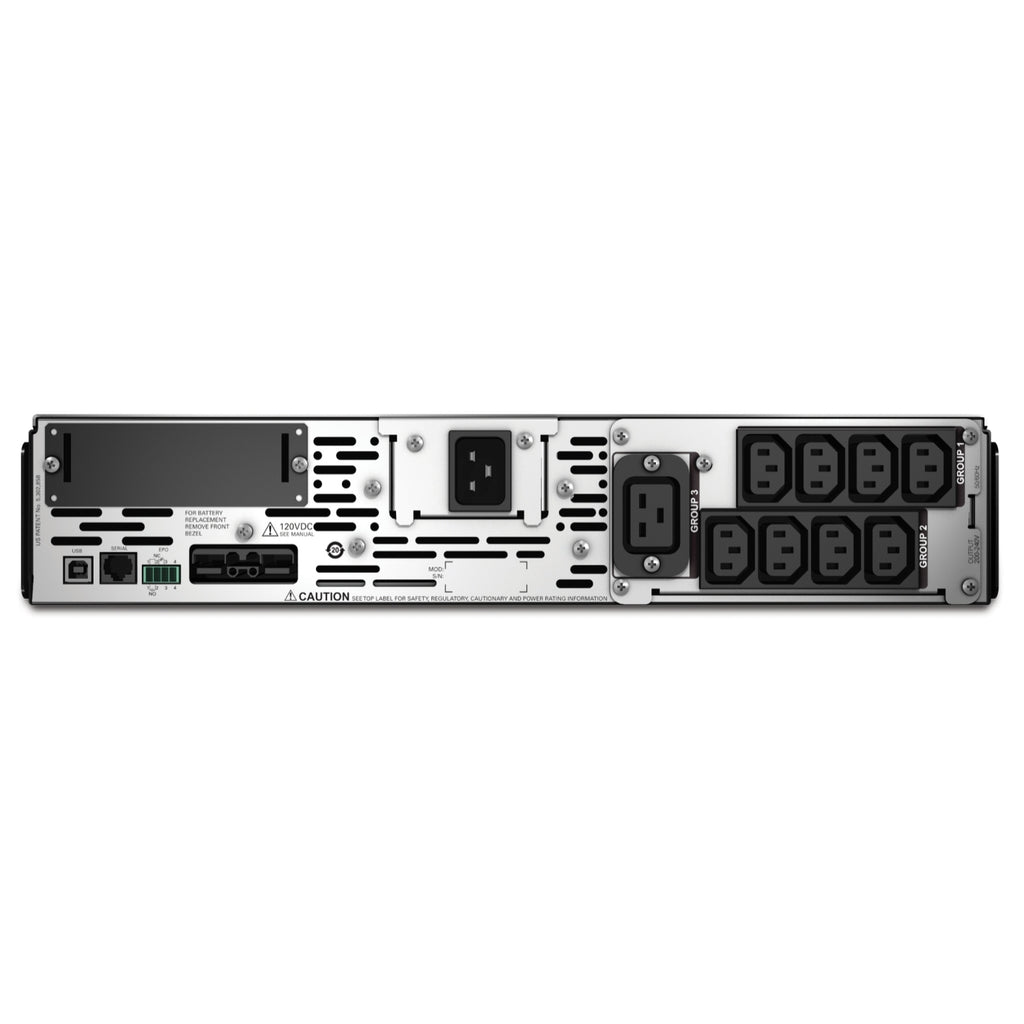

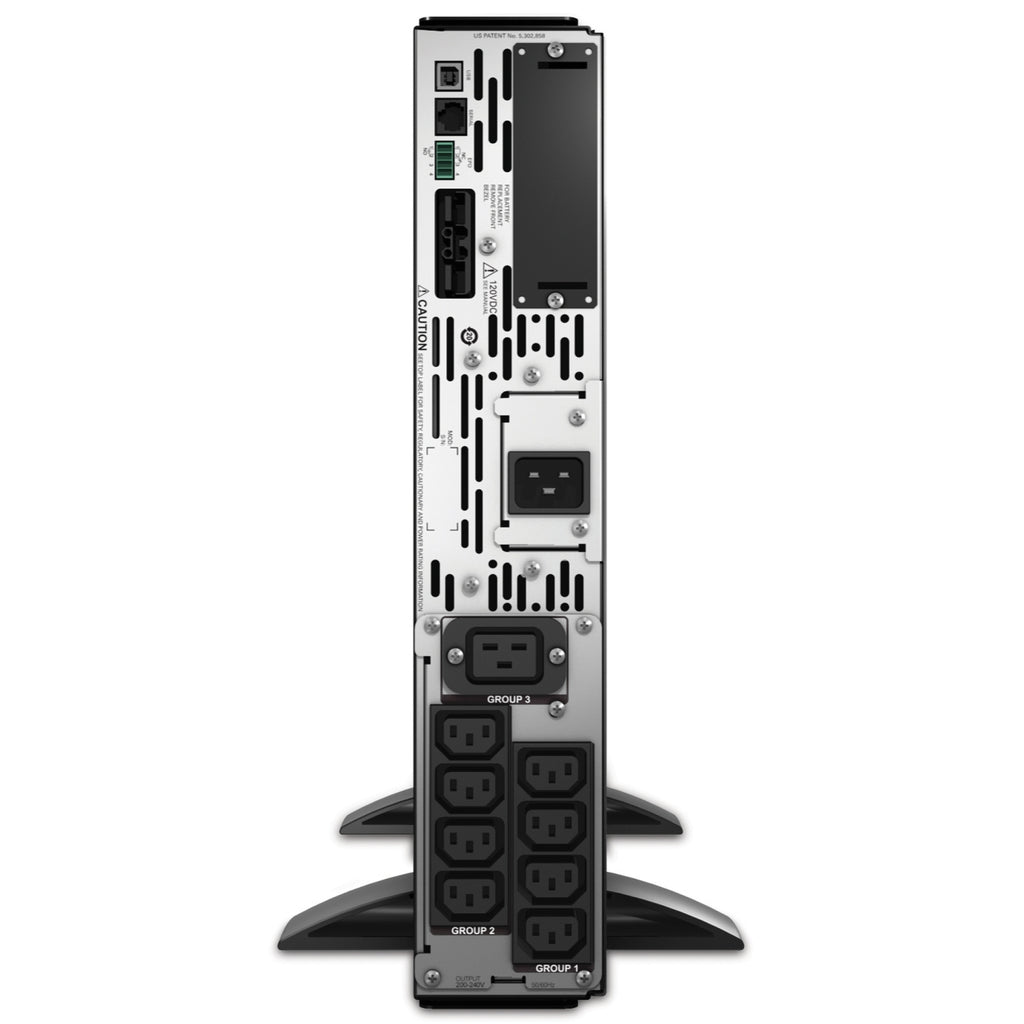

| Output Connections | 8x IEC 320 C13, 1x IEC 320 C19 |
| Power Capacity | 2200VA / 1980W |
| Waveform Type | Sine Wave |
| Transfer Time | 2–4 ms (Typical: 6 ms, Max: 10 ms) |
| Battery Type | Lead-acid (Hot-swappable) |
| Replacement Battery | APCRBC117 (120V, 5Ah lead-acid) – 2-year warranty |

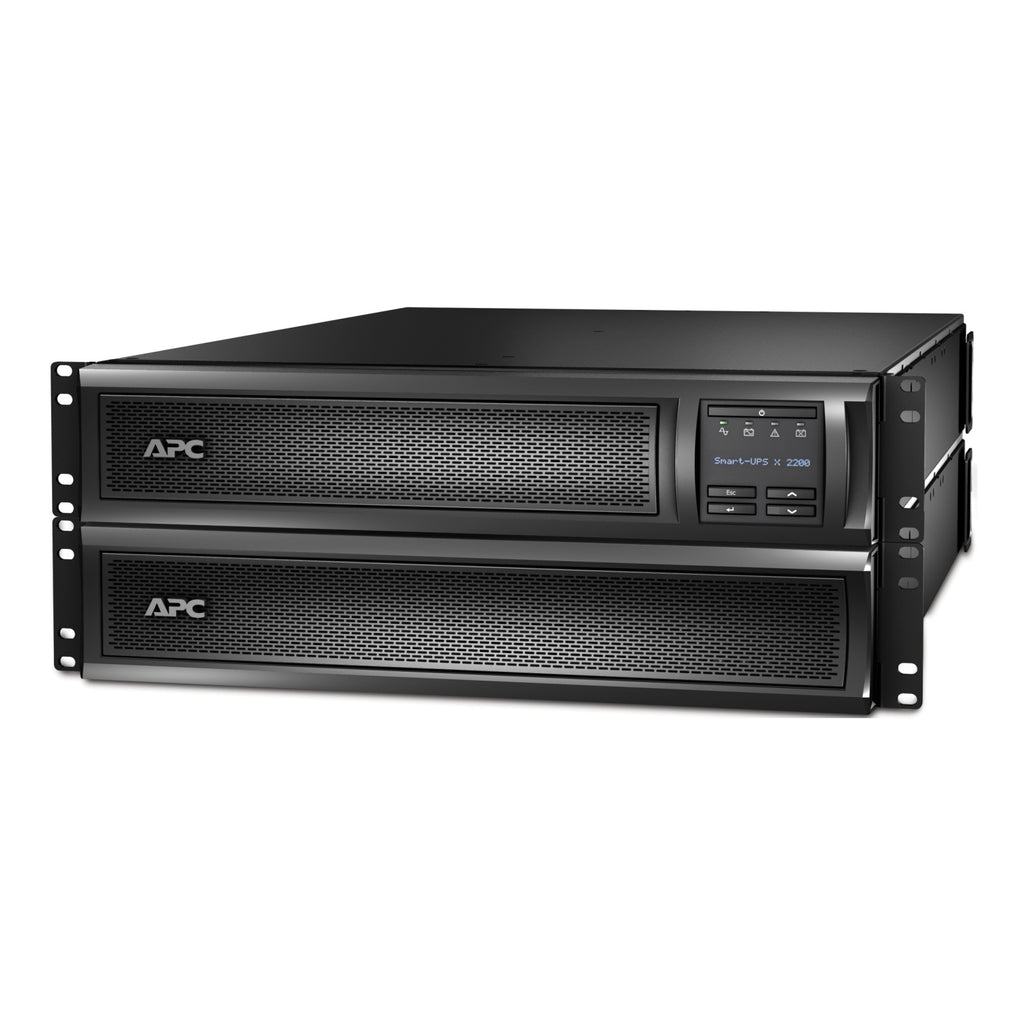

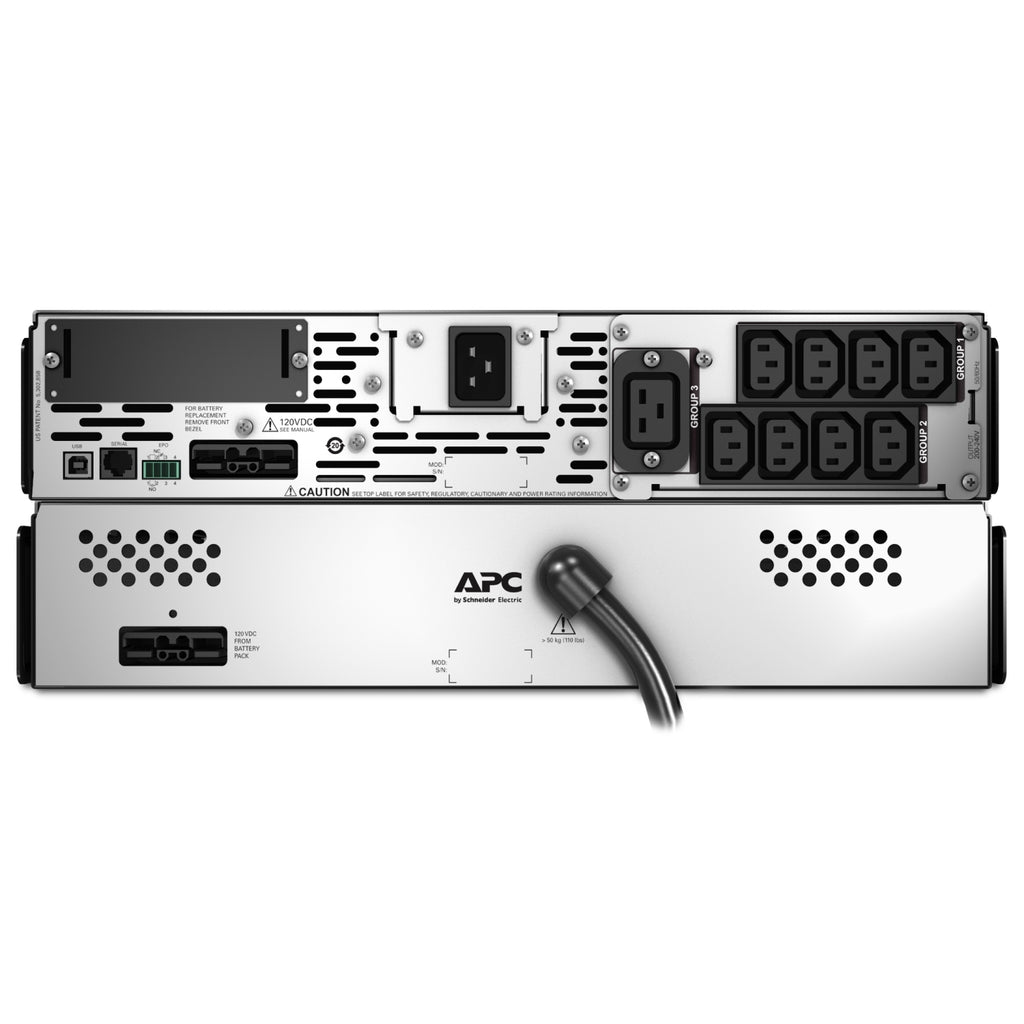

| Extendable Runtime | Supports up to 10 external battery packs (SMX120RMBP2U) |
| Communication Ports | SmartSlot, Serial, USB |
| Display | Multi-function LCD + LED indicators |
| Surge Protection | 645 Joules |
| Alarm Notification | Configurable battery and overload alarms |
| Management Software | PowerChute Serial Shutdown, compatible with EcoStruxure IT |
| Mounting Hardware | Rack mounting brackets and tower stabilizing feet included |
| Emergency Power Off | Yes |
| Dimensions (H x W x D) | 8.5 cm x 43.2 cm x 66.7 cm (3.35” x 17.01” x 26.26”) |
| Weight | 37.32 kg (82.28 lbs) |
| Operating Temp | 0–40°C (32–104°F) |
| Certifications | CE, VDE, RCM, TISI, UK PSTI, IRAM, EAC |
| Warranty | 3 years UPS / 2 years battery (repair or replace) |
