Description

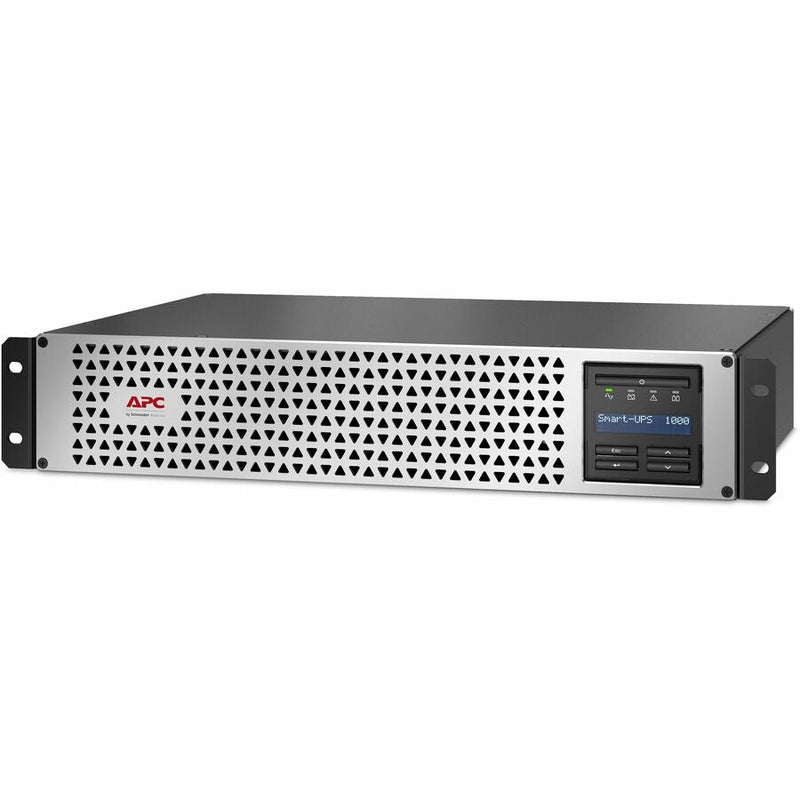

The APC Smart-UPS SMTL1000RMI2UC is a compact, line-interactive 1000VA/800W UPS with lithium-ion batteries designed for high availability and simplified maintenance in edge environments, network closets, and back offices. With a short-depth 2U rackmount form factor and convertible tower design (feet sold separately), this UPS delivers pure sine wave output, AVR, and real-time diagnostics via an LCD display. SmartConnect and SmartSlot ports provide advanced remote monitoring and management capabilities. With an extended 5-year warranty on both UPS and battery, this solution ensures lower TCO and long-term reliability.
| Category | Details |
|---|---|
| Model | SMTL1000RMI2UC |
| Topology | Line Interactive |
| Output Power | 1000 VA / 800 W |
| Output Voltage | 230V (adjustable to 220V, 240V) |

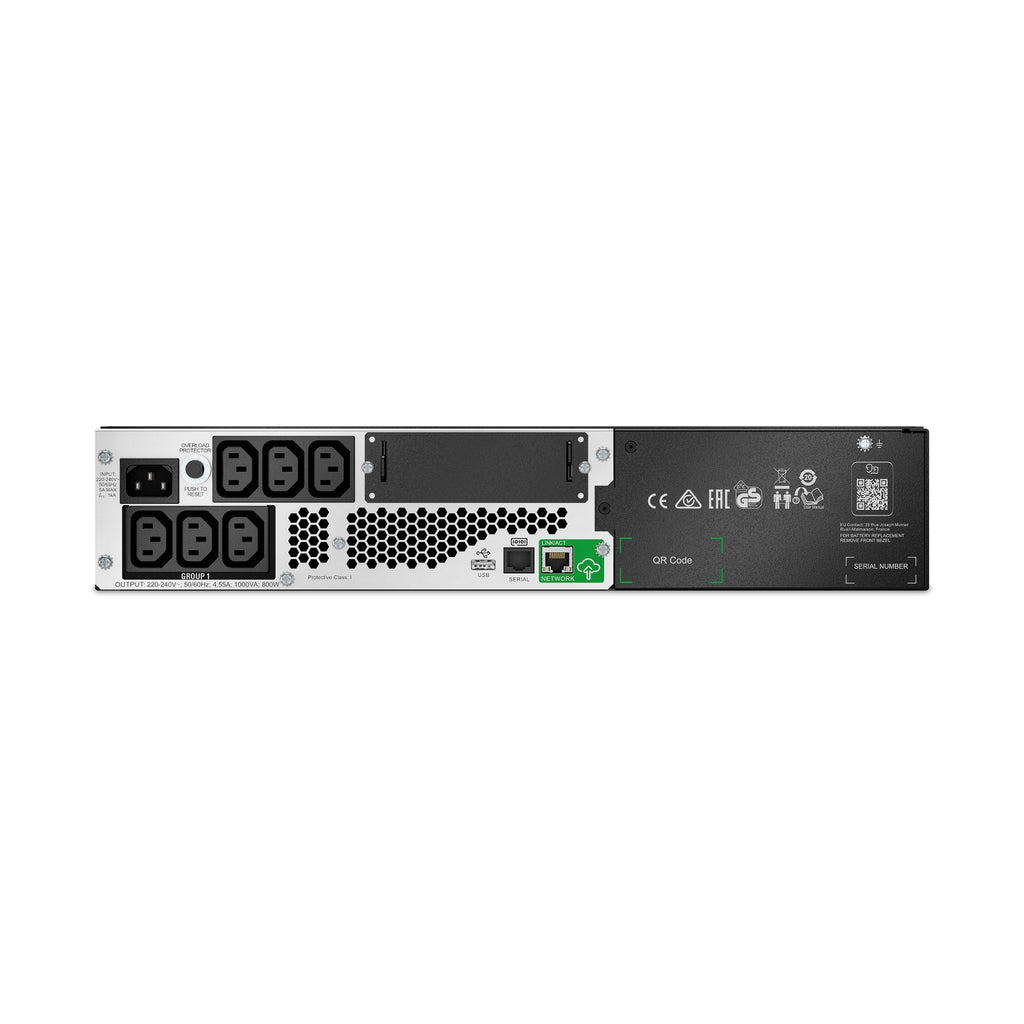

| Output Connections | 6 × IEC 60320 C13 |
| Input Voltage | 230V (adjustable range 151–302V) |
| Input Connections | IEC 60320 C14 |
| Battery Type | Lithium-ion (8–10 year design life) |
| Recharge Time | 3 hours |
| Runtime at Full Load | ~7 min 47 sec (at 800W) |
| Waveform Type | Pure Sine Wave |
| Form Factor | Rackmount 2U / Tower Convertible (with optional feet) |
| Smart Monitoring | SmartConnect Ethernet, SmartSlot (for optional NMC) |
| Software Compatibility | EcoStruxure IT, PowerChute Network Shutdown |
| Surge Protection | 680 Joules |
| Communication Ports | 1 × USB, 1 × SmartConnect Ethernet |
| LCD Display | Yes – Multi-function status and control panel |
| Operating Temp Range | 0 to 40 °C (32 to 104 °F) |
| Audible Noise | 41 dBA |
| Mounting Accessories | Rack Mounting Rails, USB Cable, Installation Guide |
| Dimensions (HxWxD) | 3.39 in × 17.24 in × 12.52 in (8.6 × 43.8 × 31.8 cm) |
| Weight | 16.3 kg (35.9 lbs) |
| Certifications | CE, C-tick, EAC, RCM, UK PSTI |
| Warranty | 5-Year Repair or Replace (UPS & Battery) |
