Description

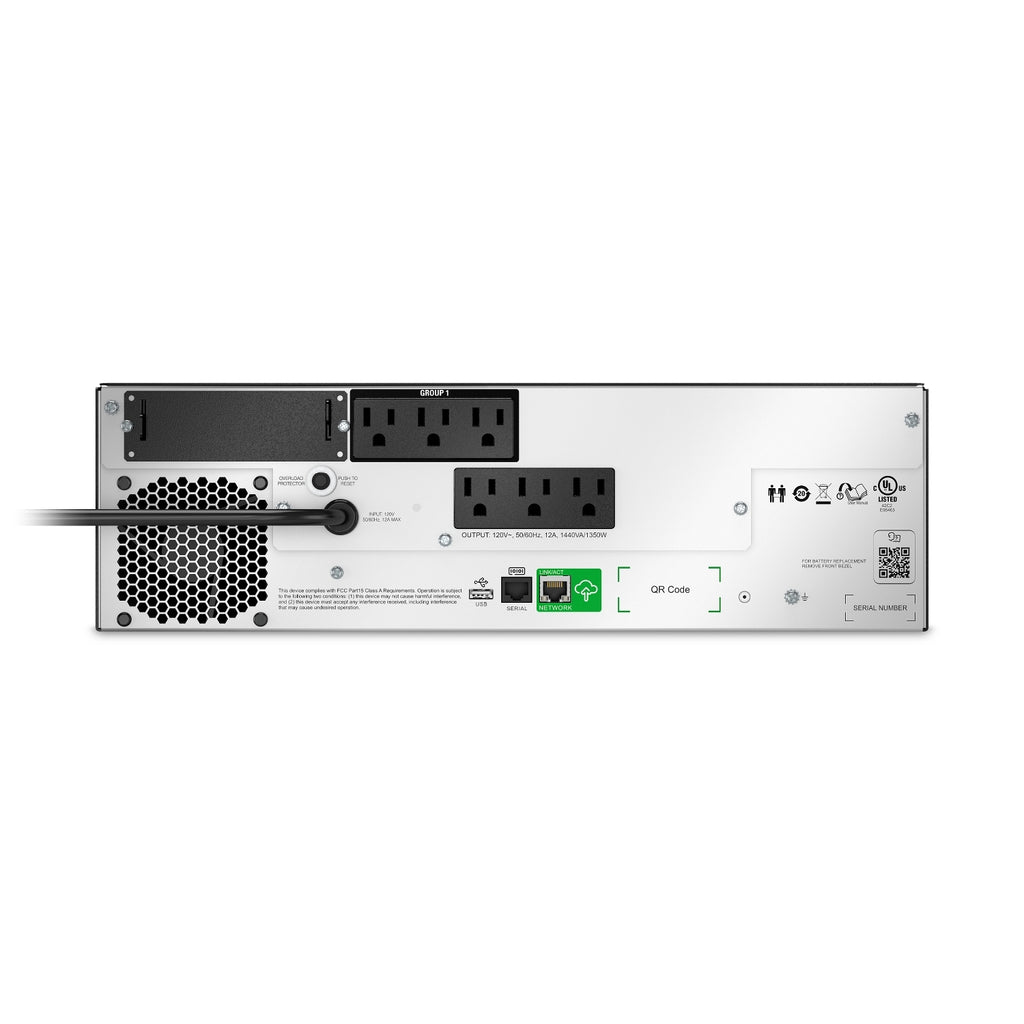

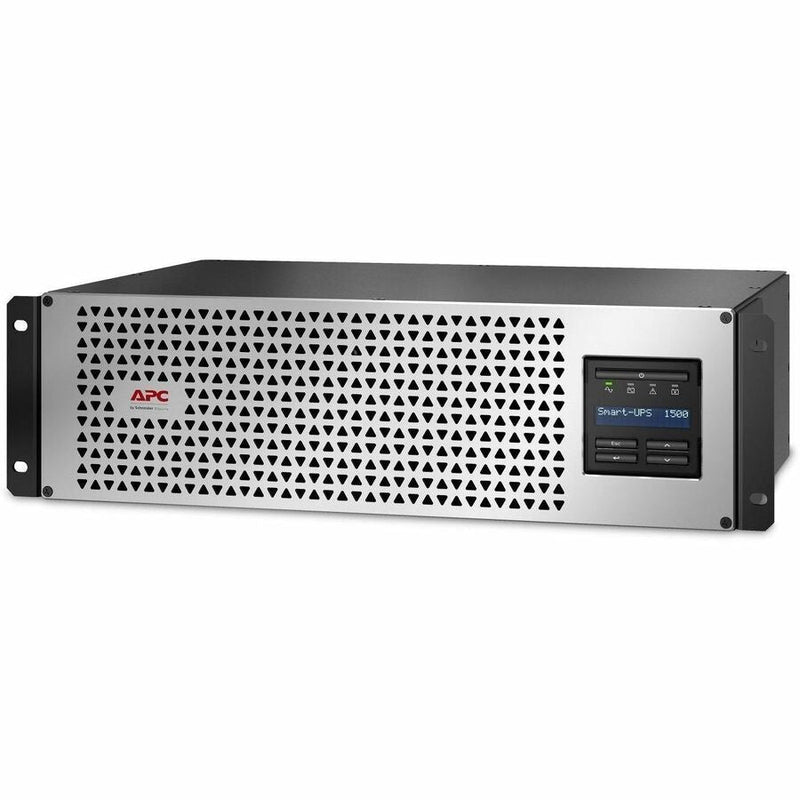

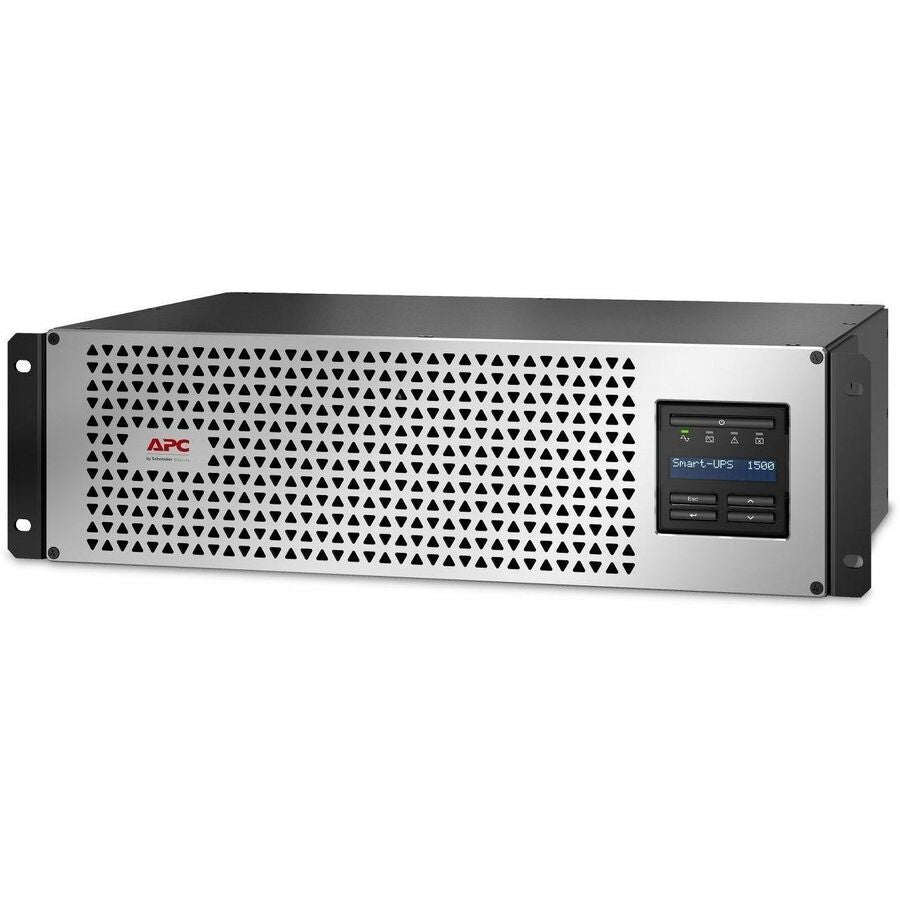

The APC Smart-UPS SMTL1500RM3UCUS is a 3U short-depth rackmount line-interactive UPS with pure sine wave output, ideal for small edge environments, IDF/MDF closets, or network infrastructure. With a 1440VA/1350W power rating, it features reliable lithium-ion battery technology offering 8–10 years of life and reduced maintenance. It includes 6 NEMA 5-15R outlets, SmartConnect cloud-enabled remote monitoring, SmartSlot for network cards, and an intuitive LCD interface. Designed to provide uninterrupted power, it helps safeguard critical equipment from surges, sags, and outages while maximizing uptime and operational efficiency. TAA compliant and backed by a 5-year warranty on the UPS and battery.
| Specification | Details |
|---|---|
| Model Number | SMTL1500RM3UCUS |
| Form Factor | 3U Rackmount (Short Depth) |
| Power Capacity | 1440VA / 1350W |
| Battery Type | Lithium-ion, 8–10 year design life |
| Input Voltage | 120V (NEMA 5-15P) |
| Output Voltage | 120V (6x NEMA 5-15R) |
| Waveform Type | Pure Sine Wave |
| Topology | Line Interactive |
| Recharge Time | 3 hours |
| Surge Protection | 680 Joules |
| Monitoring | SmartConnect Ethernet Port + 1 SmartSlot |
| Display | Multi-function LCD |
| Dimensions (HxWxD) | 5.16 x 17.24 x 11.89 in (13.1 x 43.8 x 30.2 cm) |
| Weight | 43.0 lbs (19.5 kg) |
| Noise Level | 45 dBA |
| Operating Temp | 0–40°C (32–104°F) |
| Compliance | TAA Compliant, RoHS, REACh |
| Warranty | 5 years (UPS & battery) |
