Description

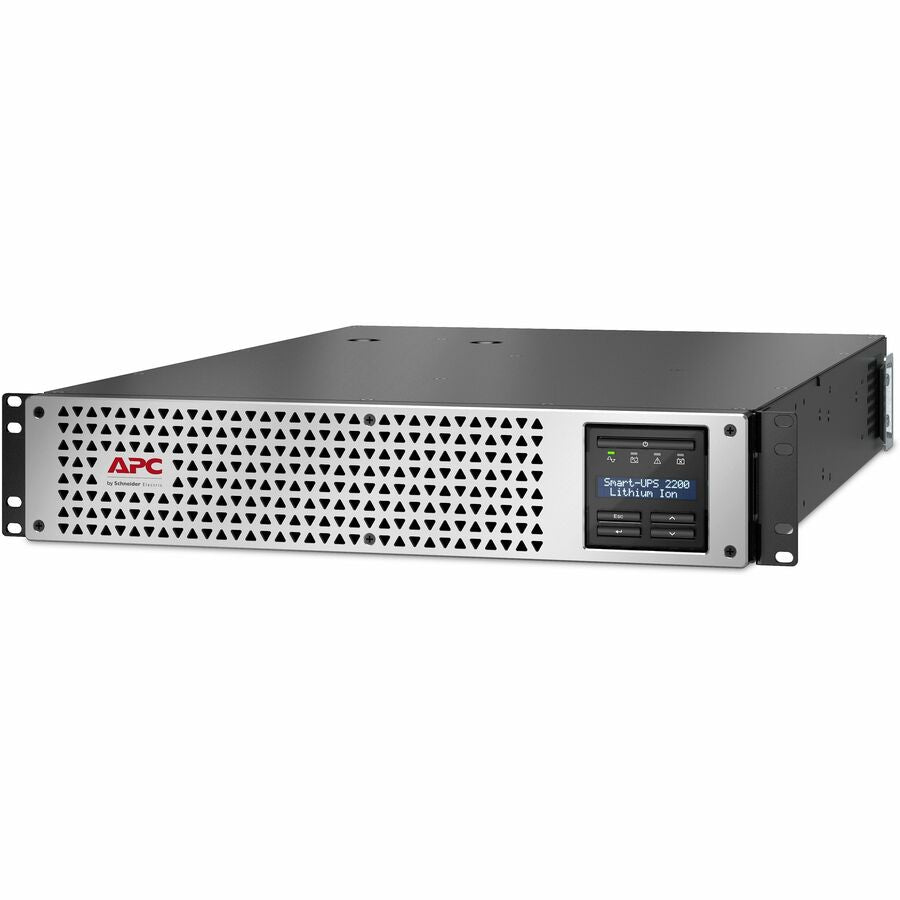

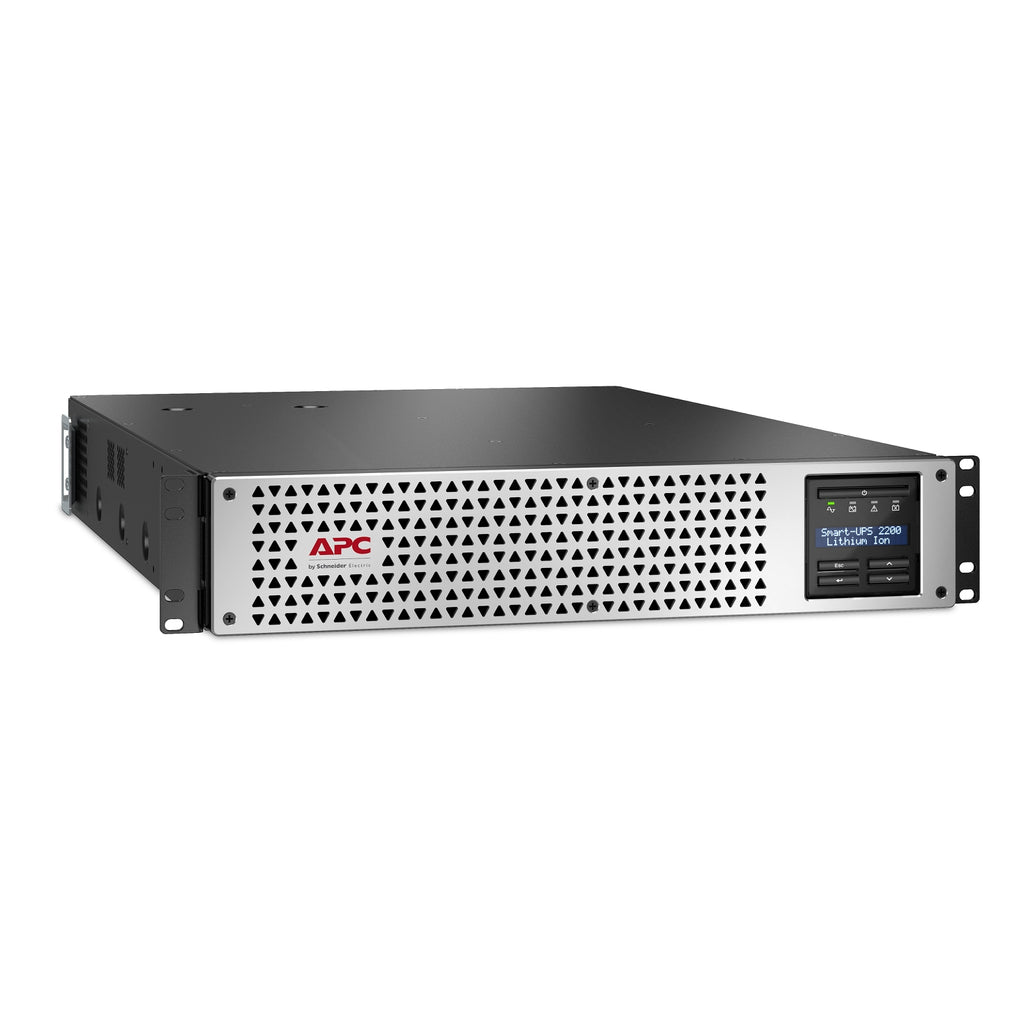

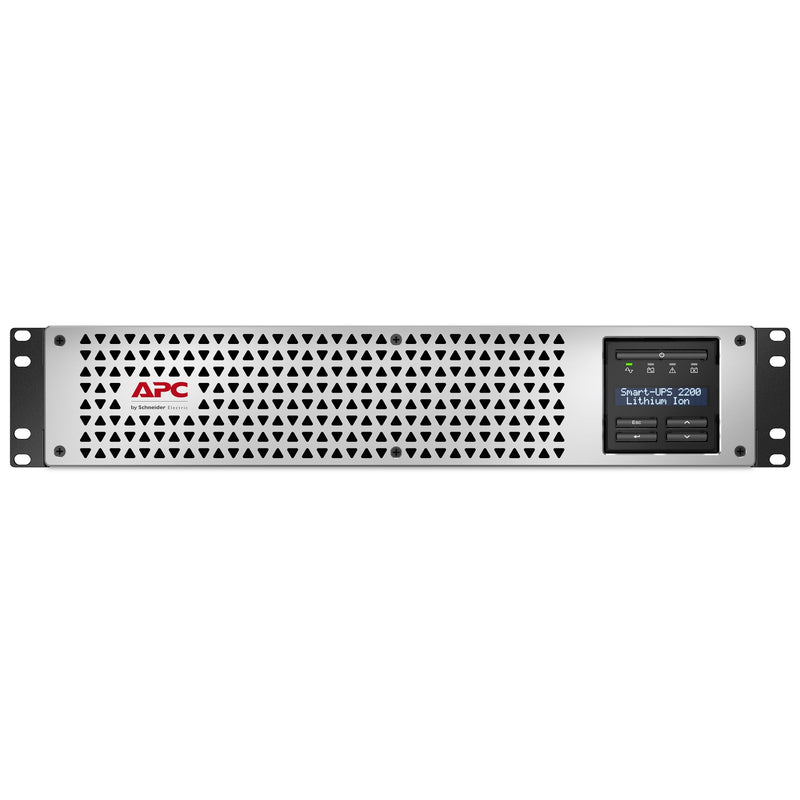

The APC Smart-UPS SMTL2K2RM2UCLNC delivers reliable, network-grade line-interactive power protection in a 2U rackmount design. With a 2200VA/1920W output capacity, this UPS supports critical equipment in server rooms, IDF closets, and edge computing environments. It features a lithium-ion battery for reduced maintenance and a longer lifespan, ideal for minimizing downtime.
Equipped with SmartConnect and a pre-installed Network Management Card (NMC), this UPS enables cloud-based monitoring, firmware updates, remote diagnostics, and proactive notifications. It includes six NEMA 5-20R and one NEMA L5-20R outlets, with input via NEMA L5-20P. Enjoy secure remote management and peace of mind with the included 1-year Secure NMC subscription and 5-year warranty on the UPS and battery.
| Category | Details |
|---|---|
| Model | SMTL2K2RM2UCLNC |
| UPS Type | Line Interactive, Pure Sine Wave |
| Form Factor | 2U Rackmount |
| Input Voltage | 120V (Supports 110V, 125V) |
| Input Connection | NEMA L5-20P |
| Output Voltage | 120V (Supports 110V, 125V) |

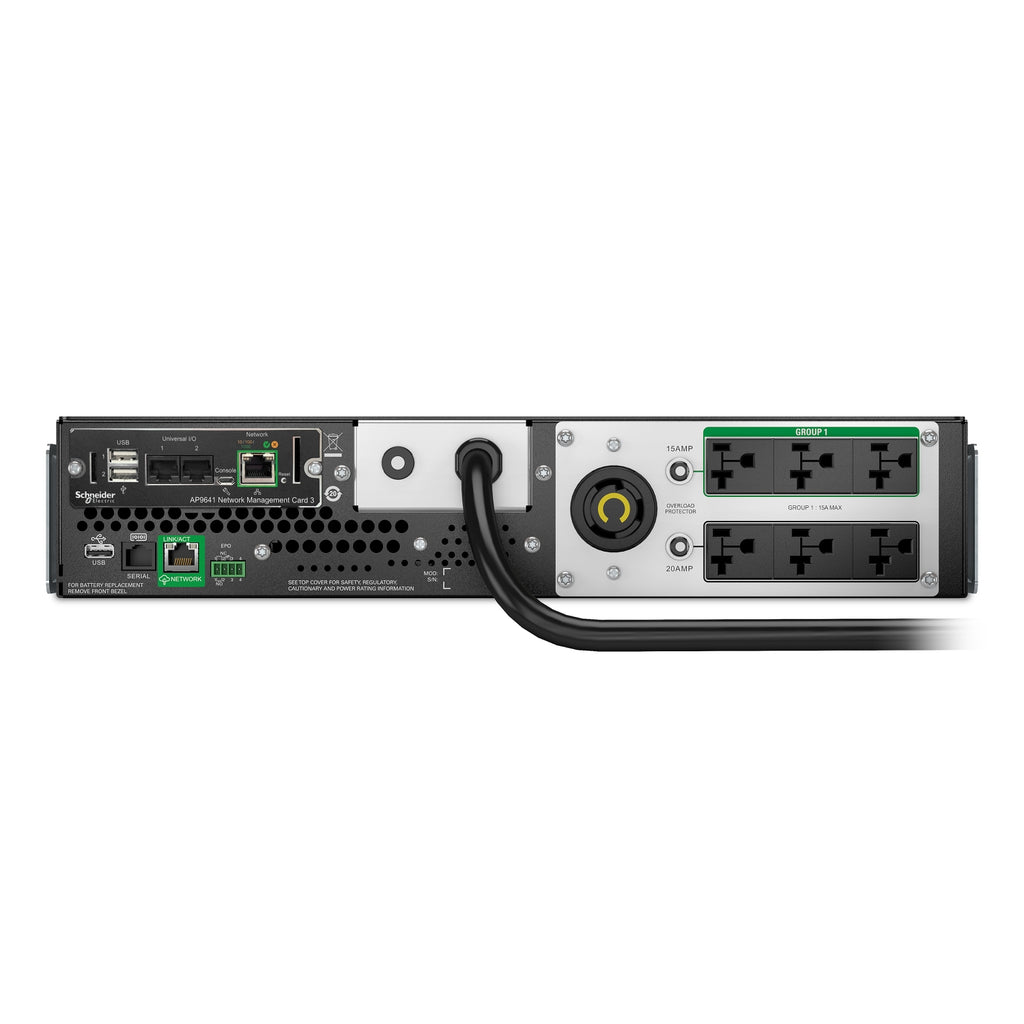

| Output Connections | 6x NEMA 5-20R, 1x NEMA L5-20R |
| Power Capacity | 2200VA / 1920W |
| Max Configurable Power | 2200VA / 1980W |
| Battery Type | Lithium-Ion |
| Battery Replacement | APCRBC174-LI |
| Battery Life | 8–10 years (typical) |
| Recharge Time | 2 hours |
| Runtime (Full Load) | ~7 minutes 42 seconds at full 1920W load |
| Monitoring | SmartConnect Ethernet, Network Management Card 3 |
| Included Software | SmartConnect, PowerChute Network Shutdown |
| Alarms | Visual and audible alarms with low battery warning |

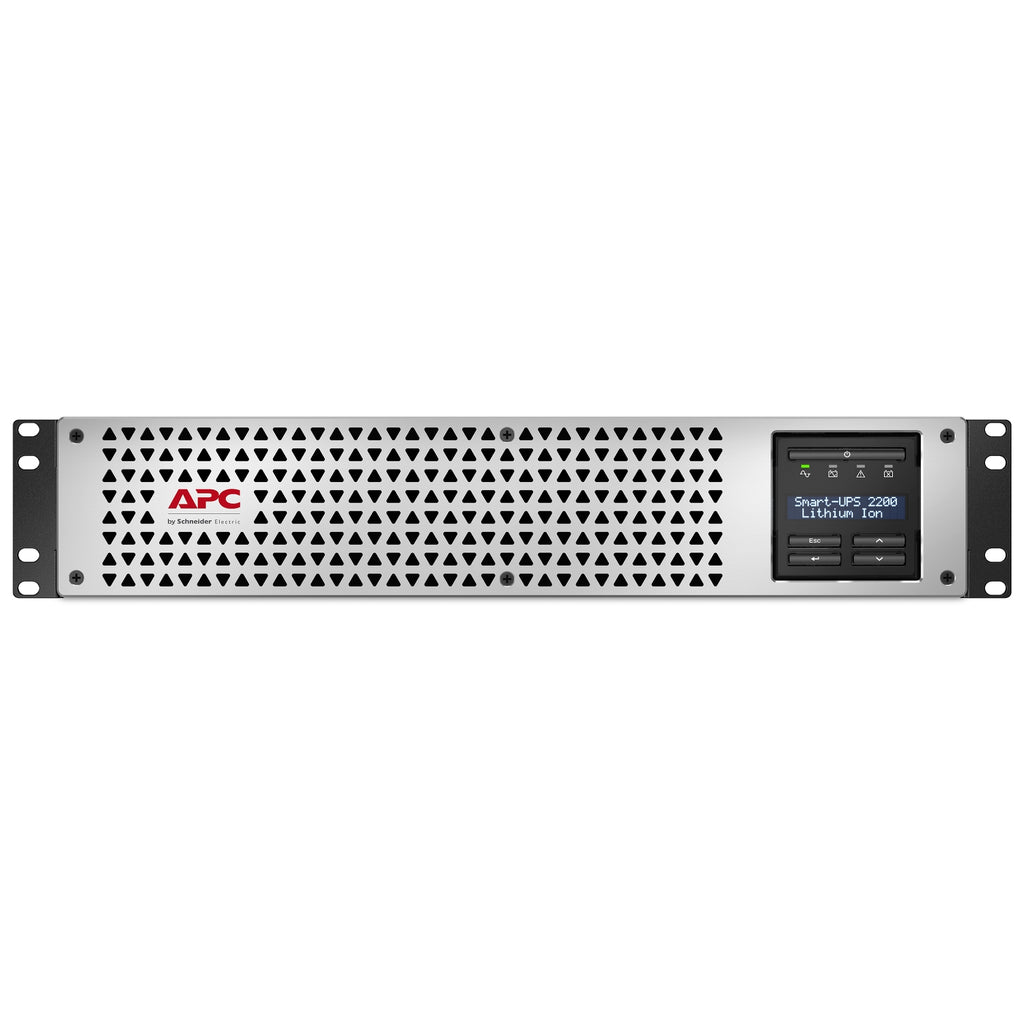

| LCD Display | Multi-function LCD status/control panel |
| Surge Protection Rating | 530 Joules |
| Warranty | 5 Years (UPS & Battery) |
| Dimensions (H x W x D) | 3.39 x 17.01 x 26.89 in (8.6 x 43.2 x 68.3 cm) |
| Weight | 70.3 lbs (31.9 kg) |
| Environmental Rating | Operating Temp: 0–40°C; Humidity: 0–95% RH (non-condensing) |
| Certifications | cULus, ENERGY STAR V2.0 (USA), $150,000 Equipment Protection Policy |
| Included Accessories | Rack rails, brackets, screws, USB cable, Ethernet patch cable |
