Description

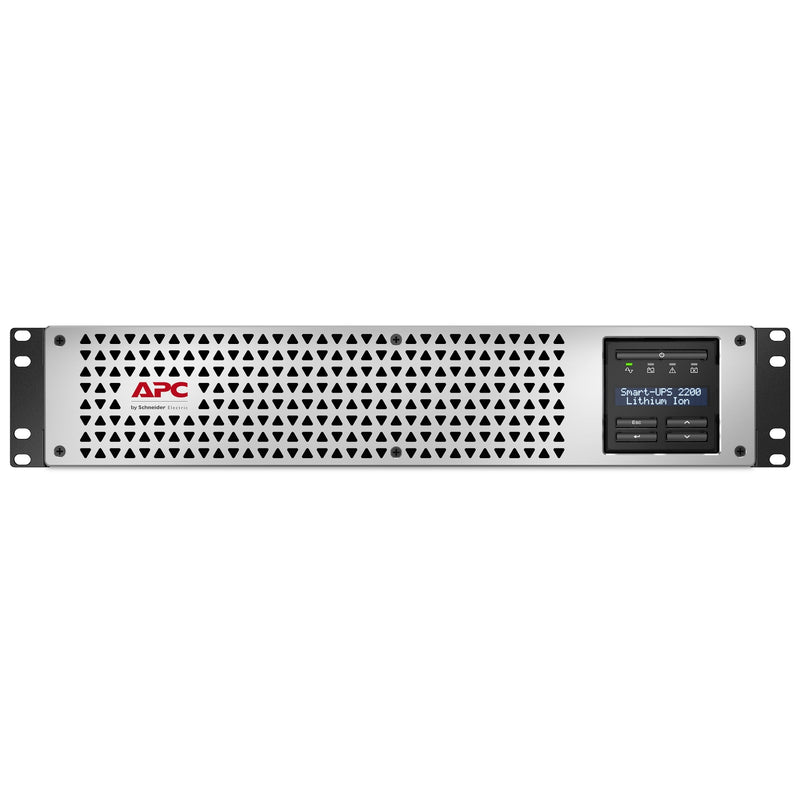

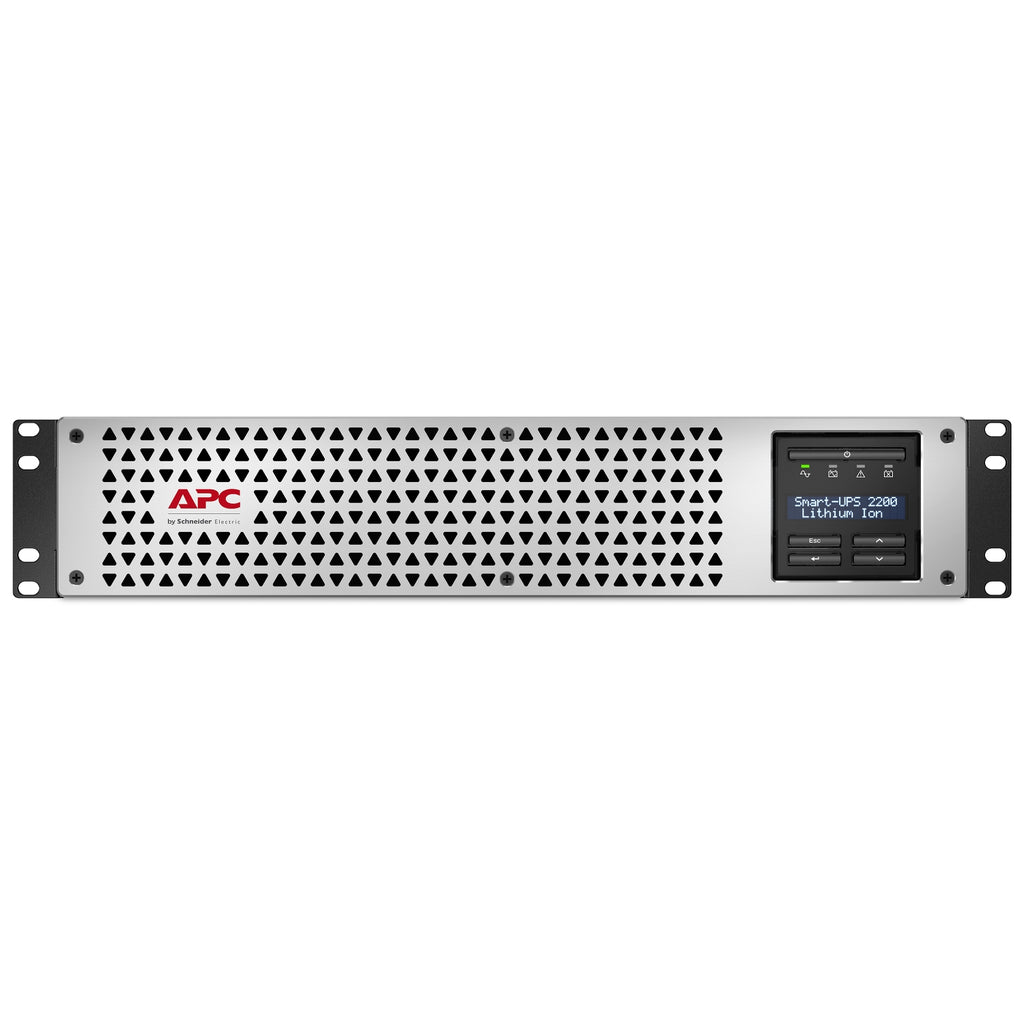

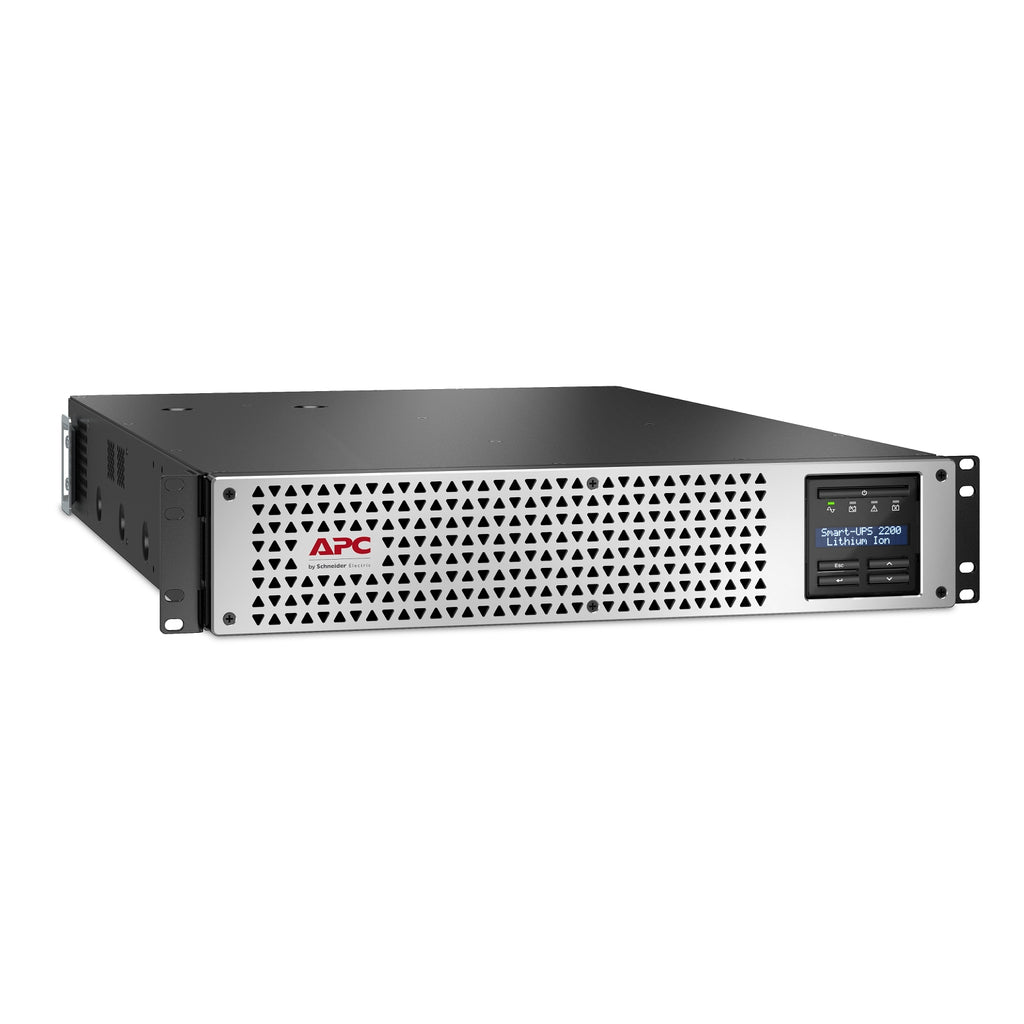

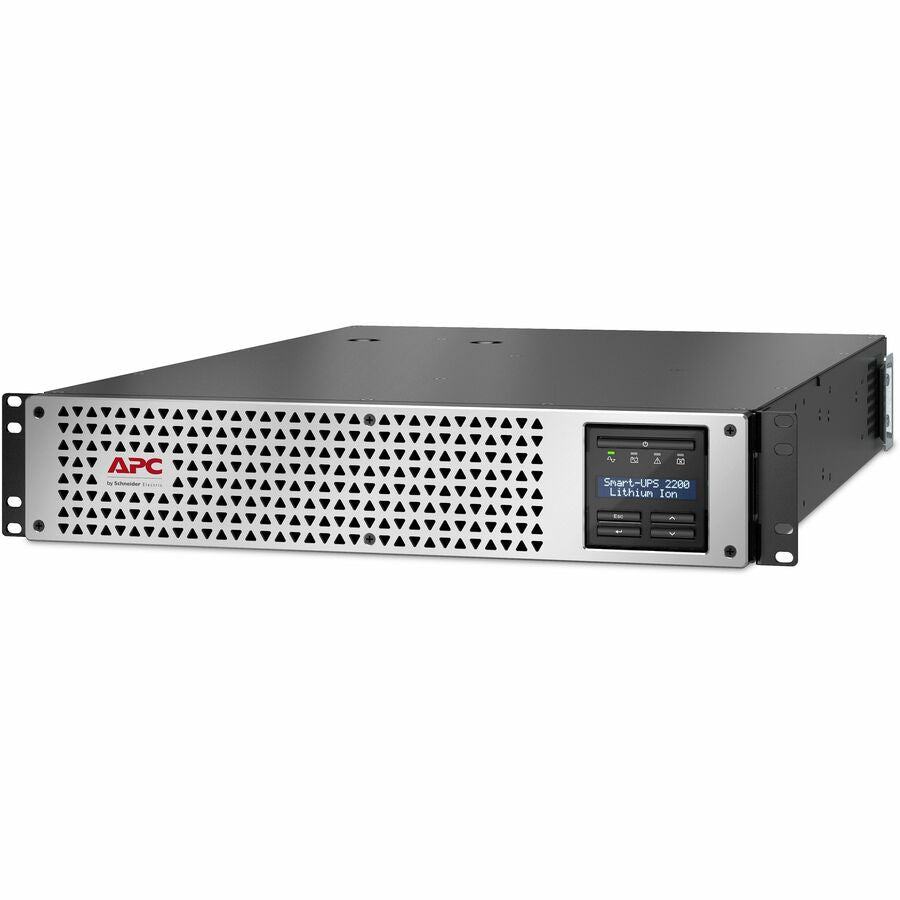

The APC Smart-UPS SMTL2K2RM2UCL is a 2U rackmount lithium-ion UPS with 2200VA/1920W capacity, designed for reliable power protection in edge environments, IDF/MDF closets, and IT networks. This Smart-UPS features a pure sine wave output, extended battery life, and energy-efficient lithium-ion technology with a 5-year warranty. With 7 total outlets (1x NEMA L5-20R, 6x NEMA 5-20R), SmartConnect cloud-based monitoring, and a SmartSlot for optional NMC, it ensures smooth operations, graceful shutdowns, and remote diagnostics via PowerChute and EcoStruxure IT.
| Specification | Details |
|---|---|
| Model | APC SMTL2K2RM2UCL |
| Form Factor | 2U Rackmount |
| Topology | Line Interactive |
| Output Capacity | 2200VA / 1920W |
| Battery Type | Lithium-ion |
| Battery Life | 8–10 years |
| Recharge Time | 2 hours |

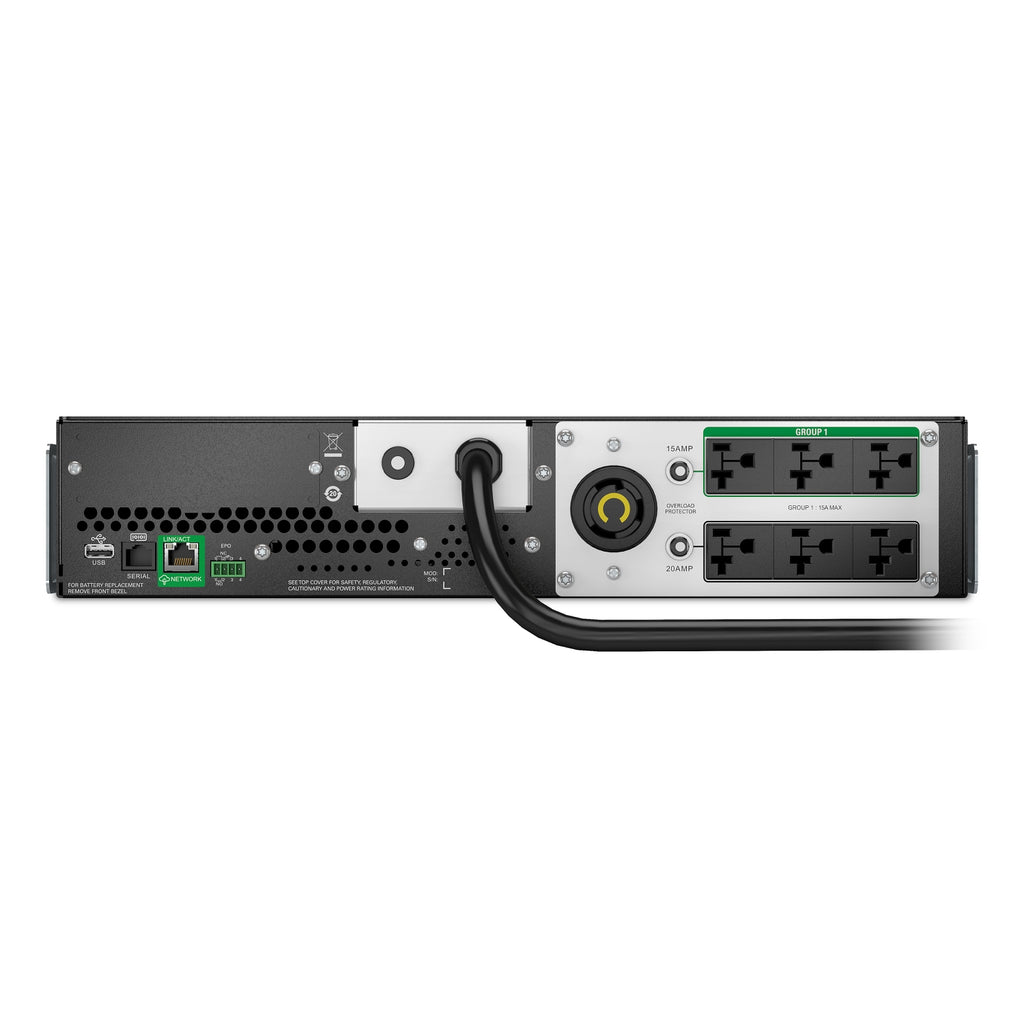

| Outlets | 1x NEMA L5-20R, 6x NEMA 5-20R |
| Input Voltage | 120V (NEMA L5-20P) |
| Waveform Type | Pure Sine Wave |
| Display | Multi-function LCD |
| Communication Ports | SmartConnect Ethernet, SmartSlot, USB |
| Remote Management | Cloud-based (SmartConnect, EcoStruxure IT ready) |
| Transfer Time | 6ms typical, 10ms max |
| Efficiency at Full Load | Up to 98% |
| Surge Protection Rating | 530 Joules |
| Mounting Accessories | Rails, brackets, screws, USB and Ethernet cables |
| Dimensions (H x W x D) | 3.39 x 17.01 x 26.89 in (8.6 x 43.2 x 68.3 cm) |
| Weight | 70.3 lbs (31.9 kg) |
| Warranty | 5-year (UPS and battery) |
| Replacement Battery | APCRBC174-LI |
