Description

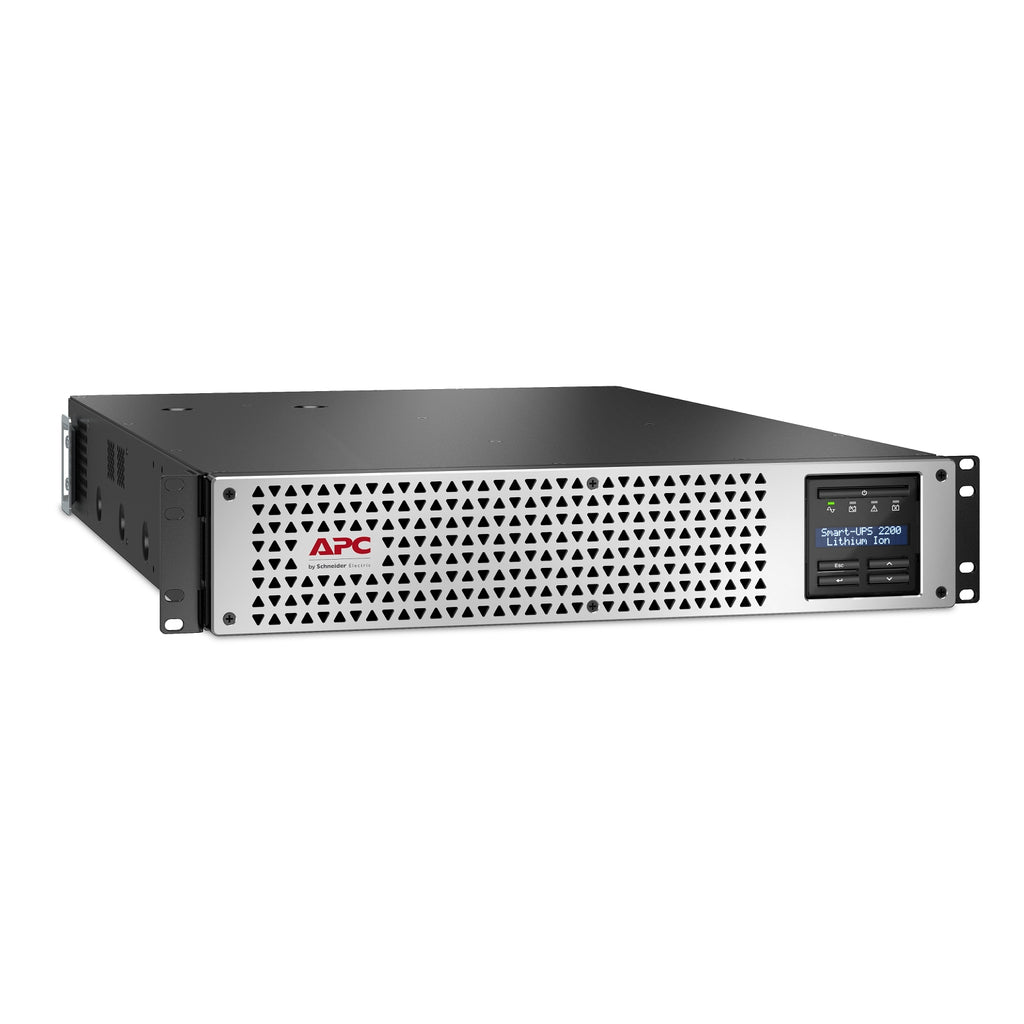

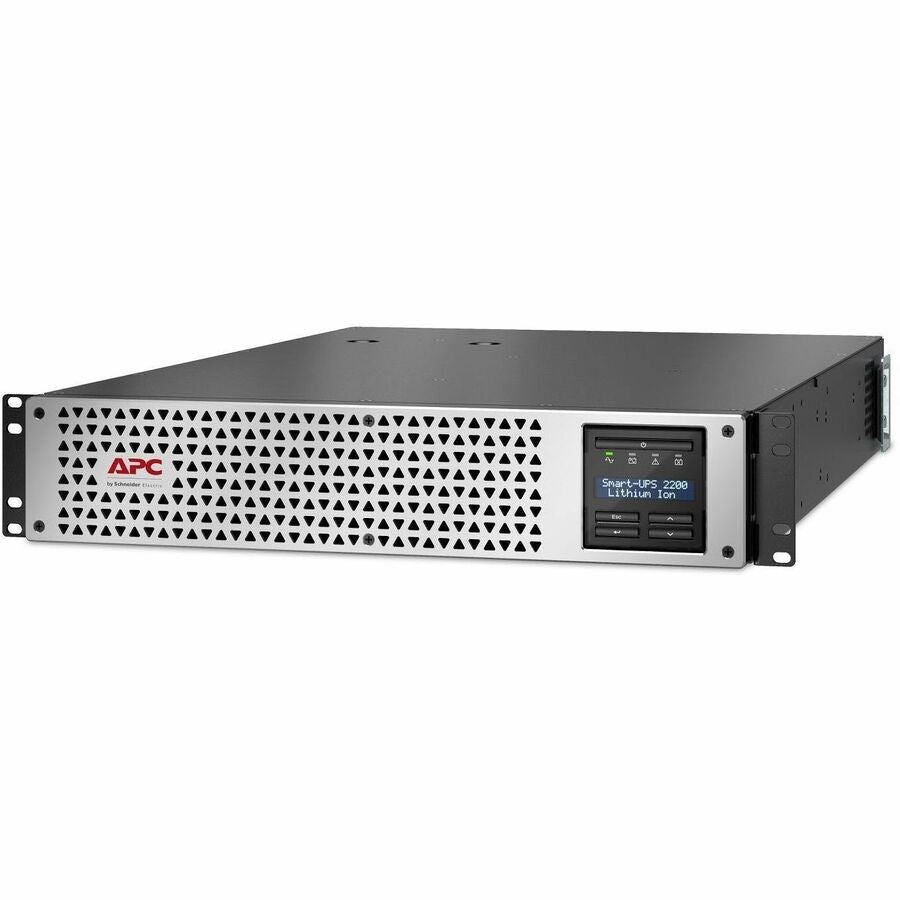

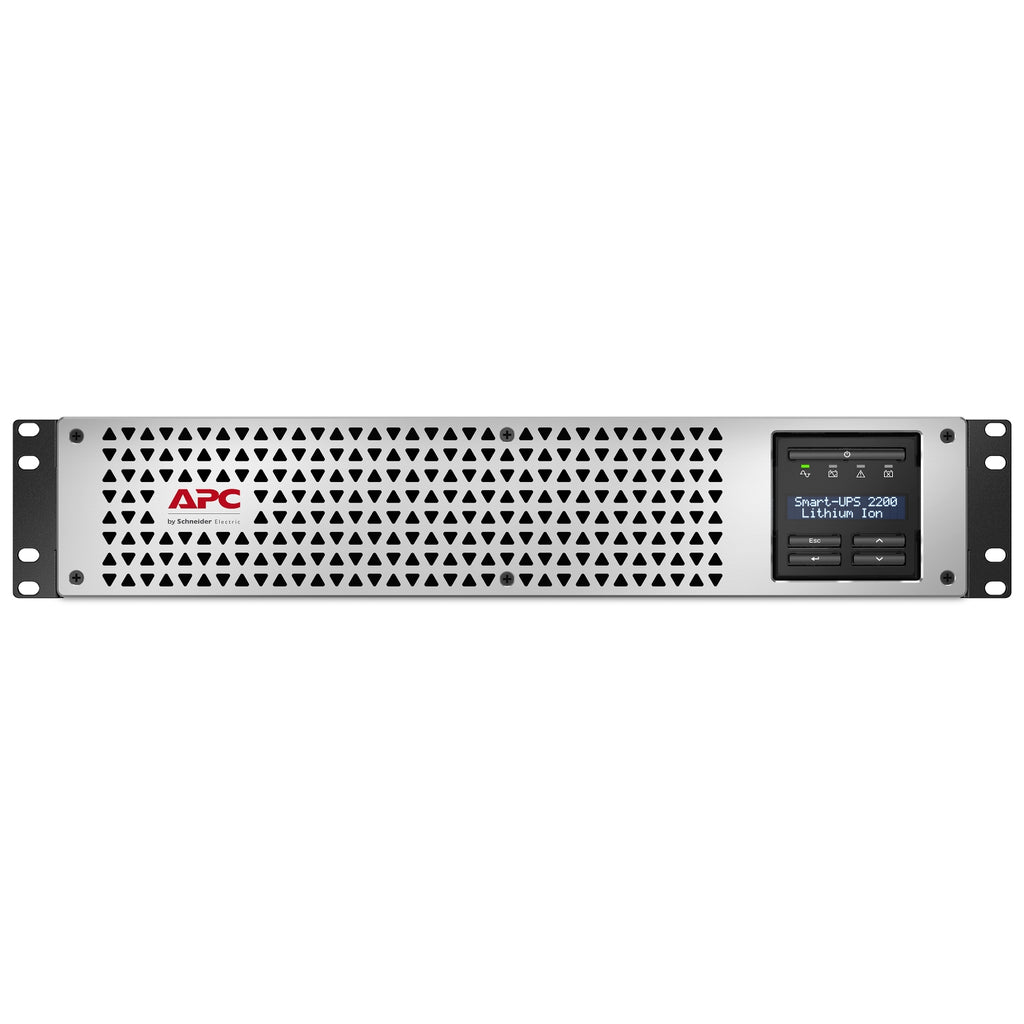

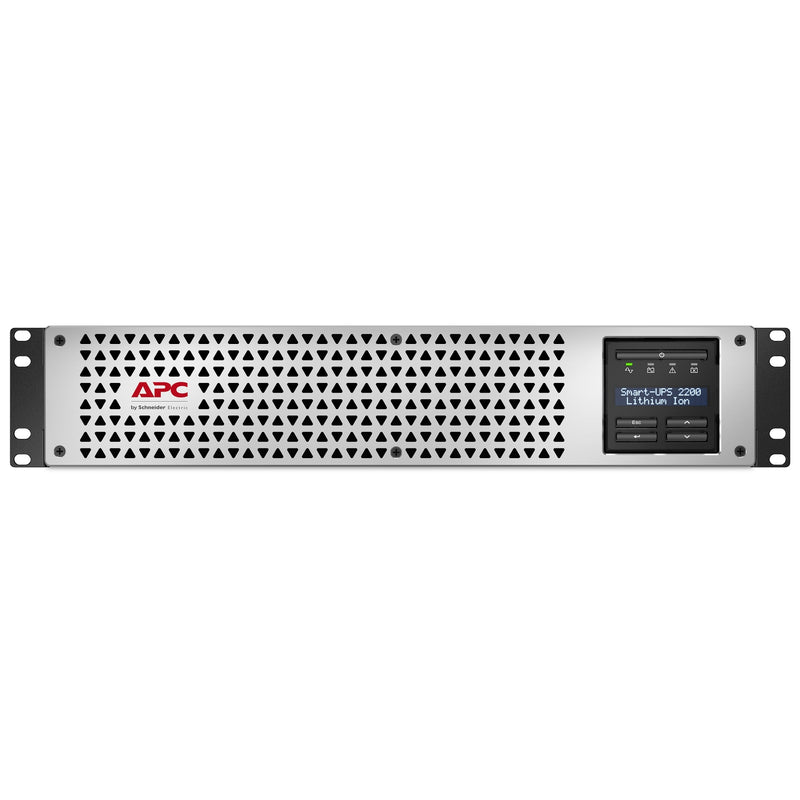

The APC Smart-UPS SMTL2200RM2UCUS delivers 1920W of reliable pure sine wave power for edge computing, network closets, and back office applications. This 2U lithium-ion rackmount UPS features a long-lasting battery with up to 10 years of design life, minimizing replacements. With 8 total outlets (6x NEMA 5-15R, 2x NEMA 5-20R), SmartConnect Ethernet for cloud-based monitoring, and SmartSlot compatibility, it ensures remote management and business continuity. It supports graceful shutdown of servers and virtual environments and comes with a 5-year warranty on both the unit and battery.
| Specification | Details |
|---|---|
| SKU / Model | SMTL2200RM2UCUS |
| Topology | Line Interactive |
| Form Factor | Rackmount 2U |
| Output Power Capacity | 2200VA / 1920W |
| Input Voltage | 120V (supports 110V) |
| Input Connection | NEMA 5-20P |
| Output Voltage | 120V (supports 110V) |
| Output Connections | 6x NEMA 5-15R, 2x NEMA 5-20R |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lithium-ion (APCRBC174-LI) |
| Typical Recharge Time | 2 Hours |
| Battery Life | 8–10 Years |
| Remote Management | SmartConnect Ethernet, SmartSlot |
| Display | Multi-function LCD status/control console |
| Surge Protection Rating | 530 Joules |
| Mounting Accessories | Rack Mounting Brackets Included |
| Environmental Compliance | ENERGY STAR V2.0, TAA Compliant, RoHS, REACh |
| Dimensions (HxWxD) | 3.39 x 17.01 x 26.89 in (8.6 x 43.2 x 68.3 cm) |
| Weight | 70.3 lbs (31.9 kg) |
| Warranty | 5-Year UPS & Battery Warranty |
