Description

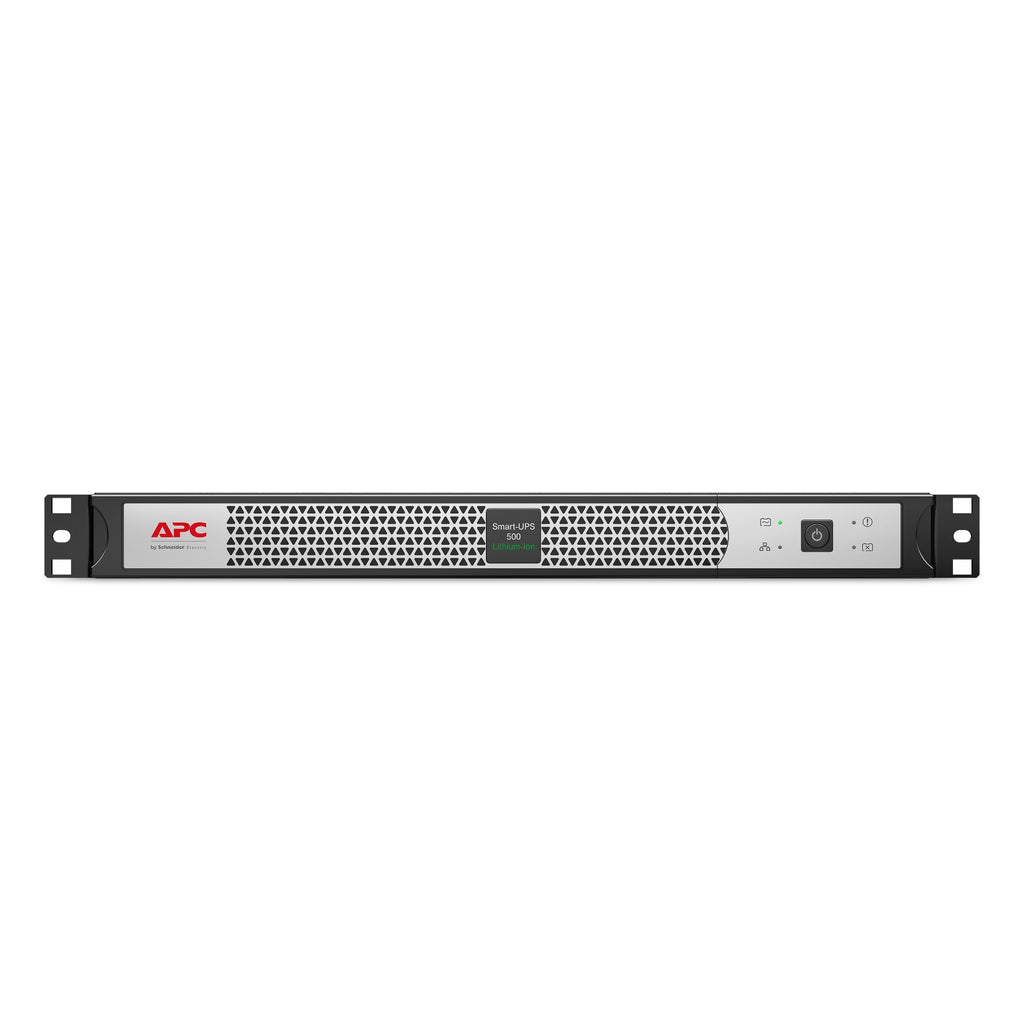

The APC Smart-UPS SCL500RM1UNC delivers reliable, line-interactive power protection in a compact 1U rackmount design built for modern IT and edge environments. With 500VA / 400W capacity and pure sine wave output, it safeguards servers, network devices, and critical electronics from power disruptions.
This model features an integrated lithium-ion battery with an extended 8–10 year design life, reducing maintenance costs and total cost of ownership. An embedded network management card enables remote monitoring and control, making it ideal for distributed IT, branch offices, and space-constrained racks. High efficiency operation, fast transfer times, and APC’s proven Smart-UPS reliability make this a dependable solution for always-on infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | APC |
| Model | SCL500RM1UNC |
| UPS Type | Line Interactive |
| Form Factor | Rackmount |
| Rack Height | 1U |
| Power Capacity | 500 VA / 400 W |
| Input Voltage | 120 V AC |
| Input Frequency | 50/60 Hz auto-sensing |
| Input Connection | NEMA 5-15P |
| Output Voltage | 120 V AC |

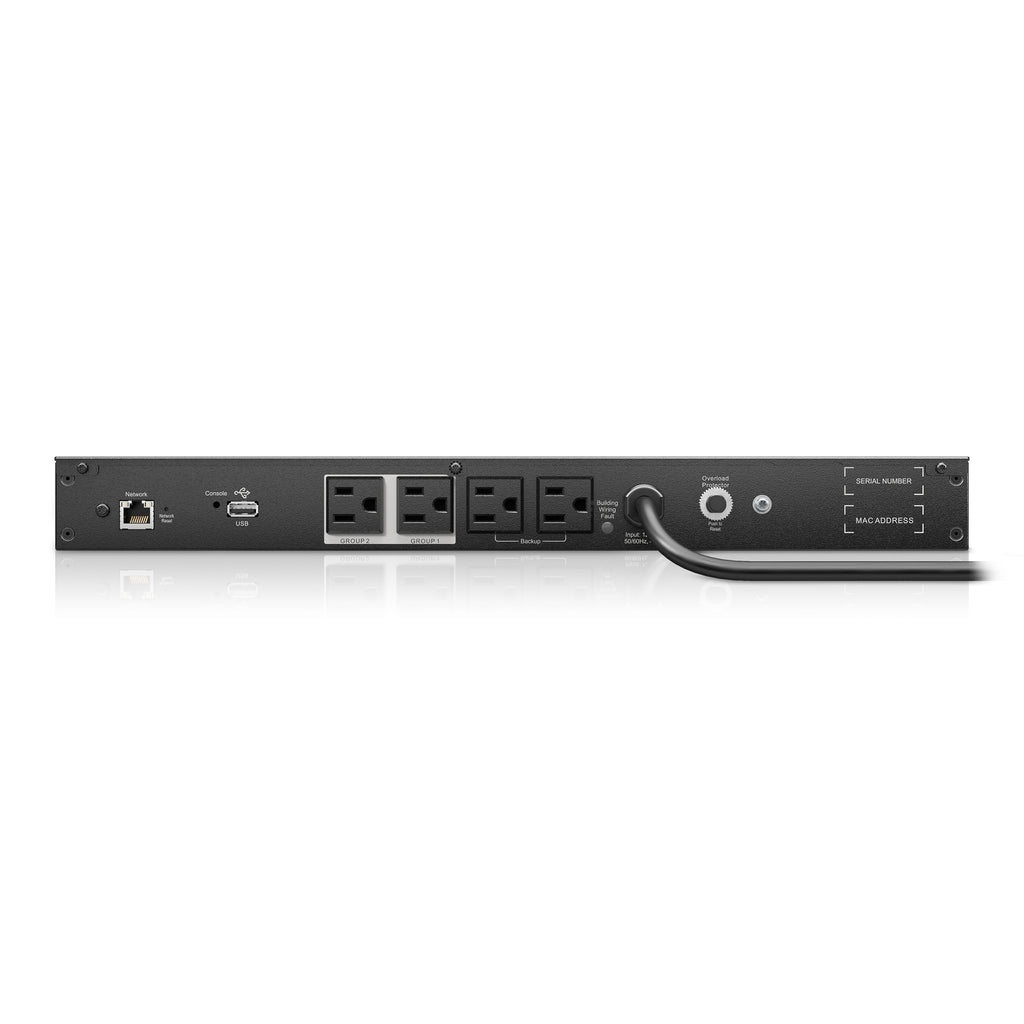

| Output Connections | 4 × NEMA 5-15R |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Battery Type | Lithium-Ion (internal) |
| Battery Design Life | 8–10 years |
| Expandable Runtime | No |
| Efficiency | High-efficiency operation |
| Network Management | Embedded Network Management Card |
| Interfaces | USB, Serial |
| Surge Energy Rating | 680 Joules |
| Noise Level | 45 dBA |
| Dimensions (H × W × D) | 1.7 × 17.0 × 9.1 in |
| Weight | 9.3 lb |
| Color | Black with silver bezel |
| Mounting Hardware | Included |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Warranty | 5-Year Limited Warranty |
