Description

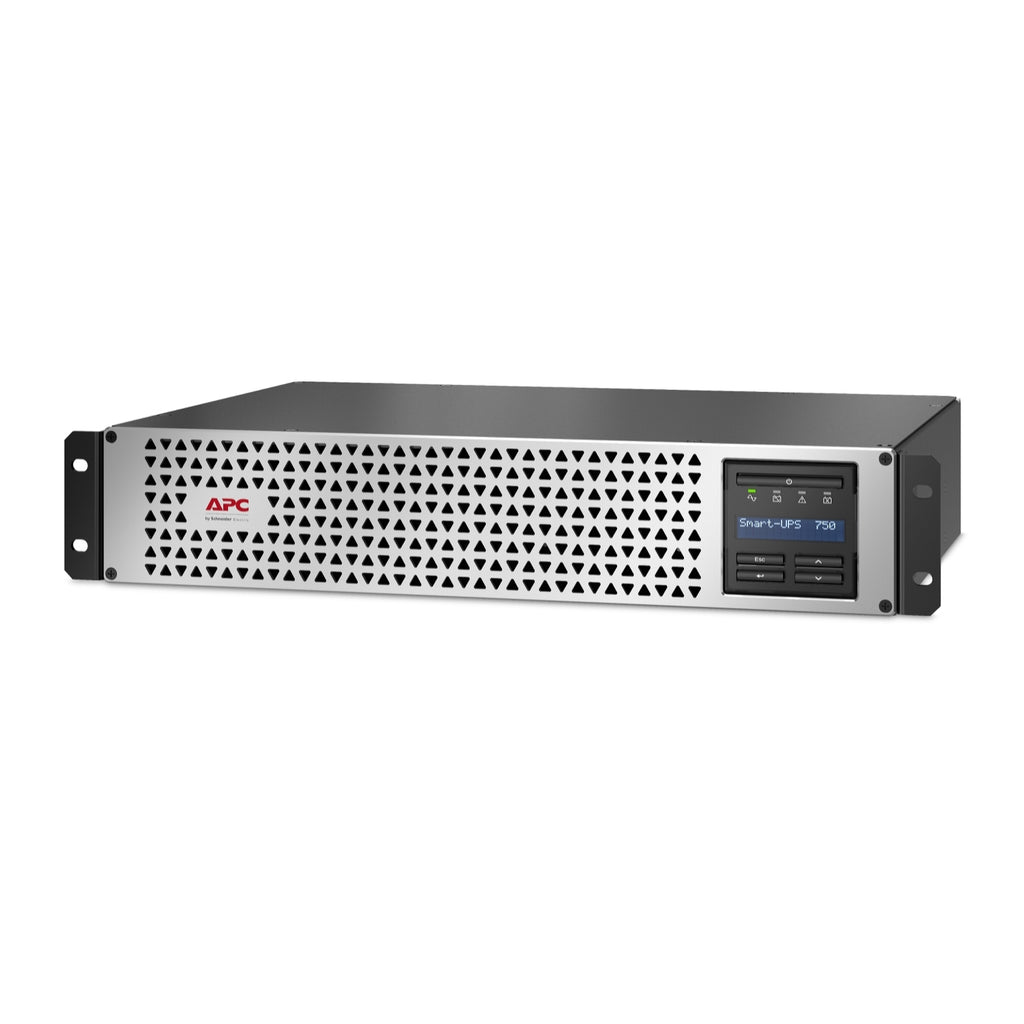

The APC Smart-UPS SMTL750RM2UC delivers dependable power protection in a compact 2U rackmount design, ideal for servers, network equipment, and critical IT systems. Featuring advanced lithium-ion batteries with an 8–10 year design life, this UPS ensures extended performance and reduced maintenance. With 600W (750VA) output capacity, Automatic Voltage Regulation (AVR), and a true sine wave output, it safeguards sensitive electronics from surges, spikes, and power fluctuations.
Equipped with SmartConnect Ethernet and SmartSlot for cloud-based monitoring, it allows real-time visibility of UPS status, load levels, and runtime analytics. The multi-function LCD display provides intuitive local management, while the short-depth design fits easily into tight rack spaces. Engineered for sustainability, the SMTL750RM2UC supports Schneider Electric’s circularity initiative with recyclable materials and a user-replaceable lithium-ion battery.
| Category | Specification |
|---|---|
| Model Number | SMTL750RM2UC |
| UPS Type | Line-Interactive |
| Topology | Sine Wave Output |
| Rated Power | 750 VA / 600 W |
| Input Voltage | 120V AC, 1 Phase |
| Input Connection | NEMA 5-15P |
| Input Protection | Circuit Breaker |
| Input Frequency | 50/60 Hz ±3 Hz (Auto-sensing) |
| Output Voltage | 120V AC, 1 Phase |

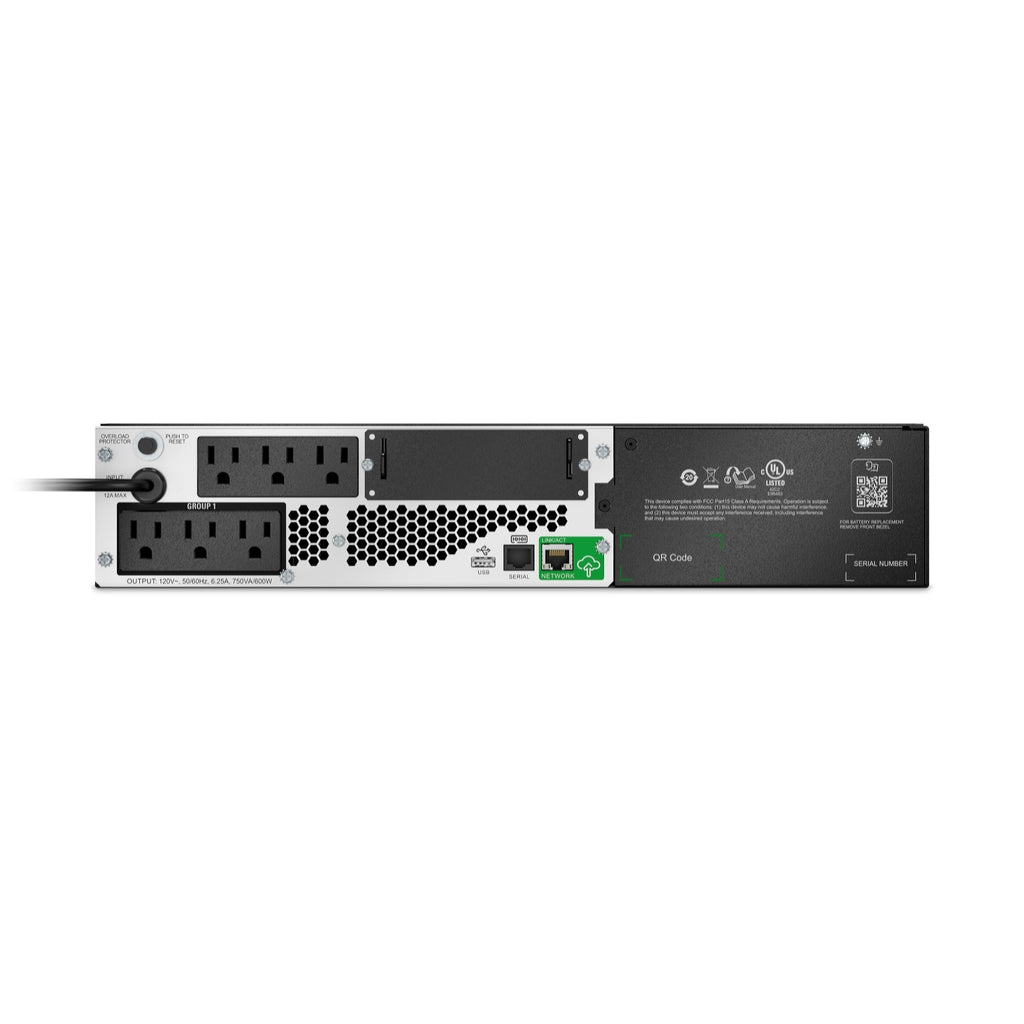

| Output Connections | 6 × NEMA 5-15R |
| Transfer Time | 6 ms typical, 10 ms max |
| Battery Type | Lithium-Ion (Internal, Included) |
| Battery Design Life | 8–10 Years |
| Recharge Time | 3 Hours |
| Extendable Runtime | No |
| Battery Charge Power | 94 W rated |
| Communications | USB, Serial, SmartConnect Ethernet Port, SmartSlot |
| Control Panel | Multi-function LCD status and control console |
| Alarms | Audible and visible (on battery, low battery) |
| Surge Protection | 680 Joules |
| Filtering | Full-time multi-pole noise filtering, <0.3% IEEE surge let-through |
| Mounting Type | Rackmount (2U) |
| Rack Hardware Included | Brackets, rails, screws, washers, USB cable, Ethernet cable |
| Color | Black with silver bezel |
| Dimensions (H × W × D) | 3.4 × 17.2 × 12.5 in (86 × 438 × 318 mm) |
| Net Weight | 34 lb (15.42 kg) |
| Noise Level | 41 dBA |
| Heat Dissipation | 135 BTU/h |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Relative Humidity | 0–95%, non-condensing |
| Altitude (Operation) | 0–10,000 ft |
| Certifications | NOM |
| Protection Policy | Lifetime, up to $150,000 |
| IP Rating | IP20 |
| Environmental Compliance | RoHS, REACh, WEEE |
| Circularity Features | User-replaceable battery, take-back program, recycled cardboard packaging |
| GTIN | 731304341994 |
