Description

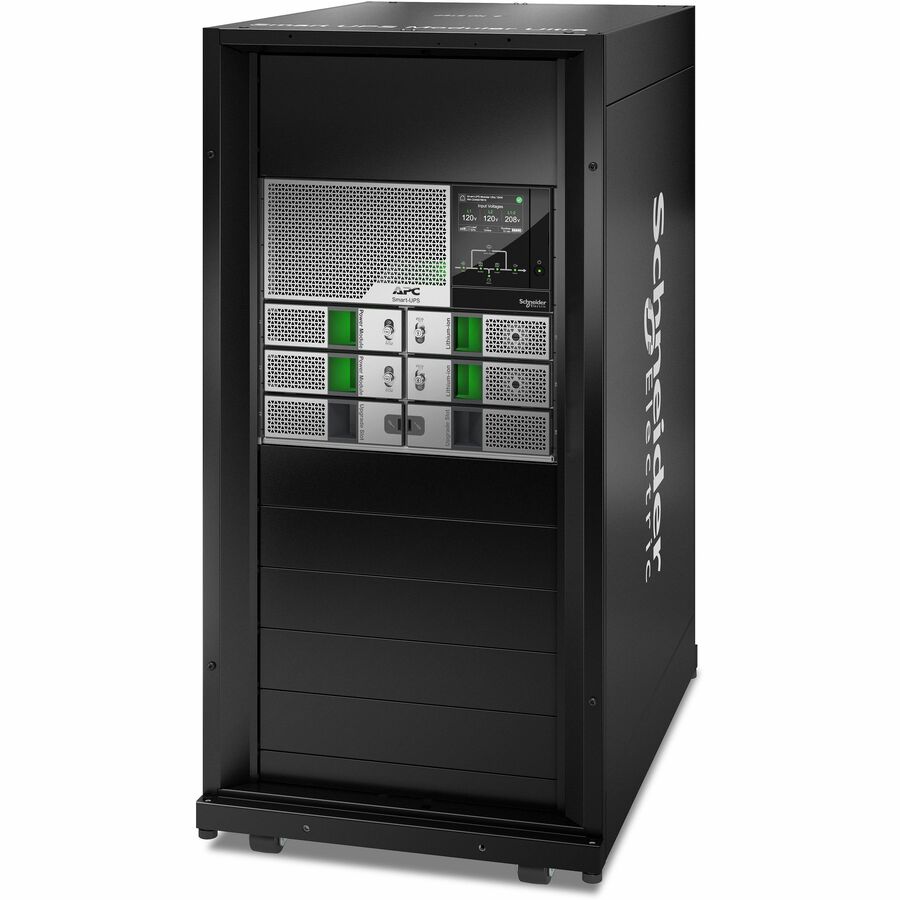

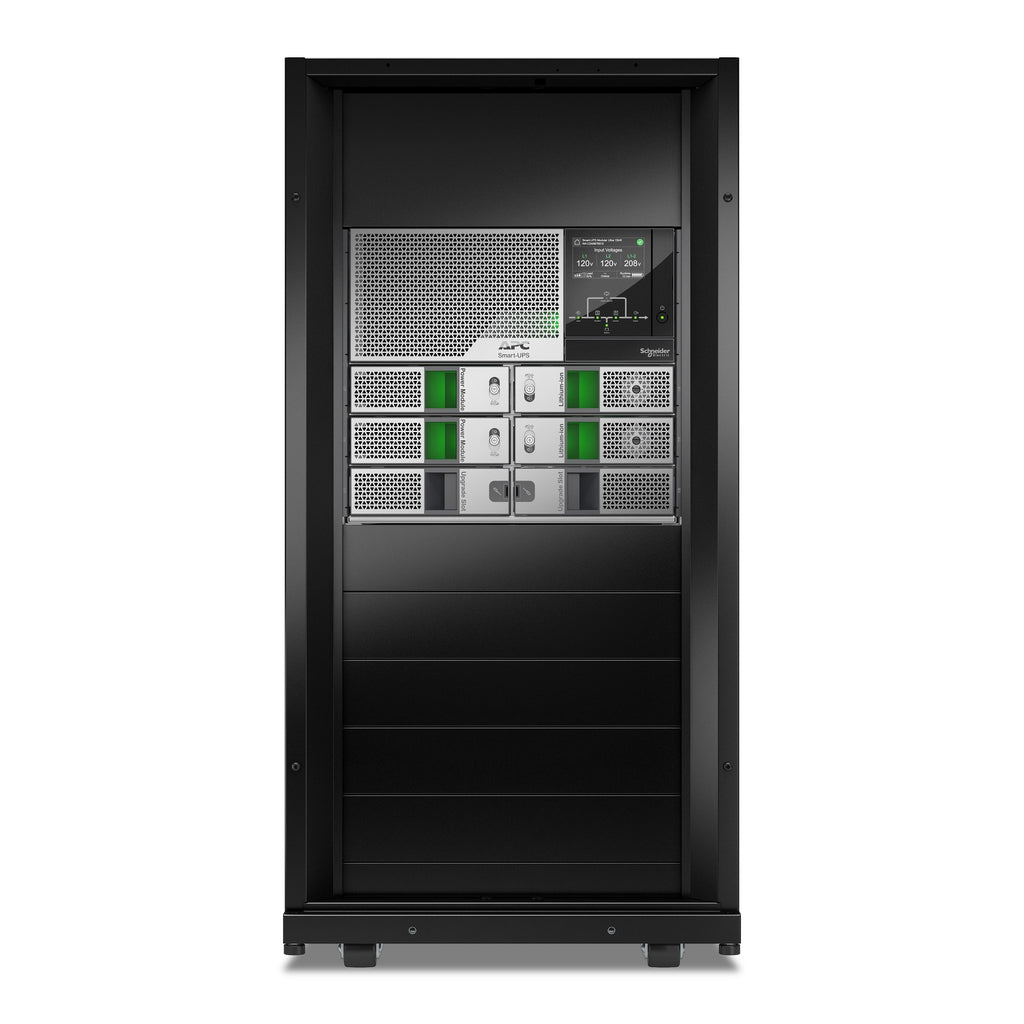

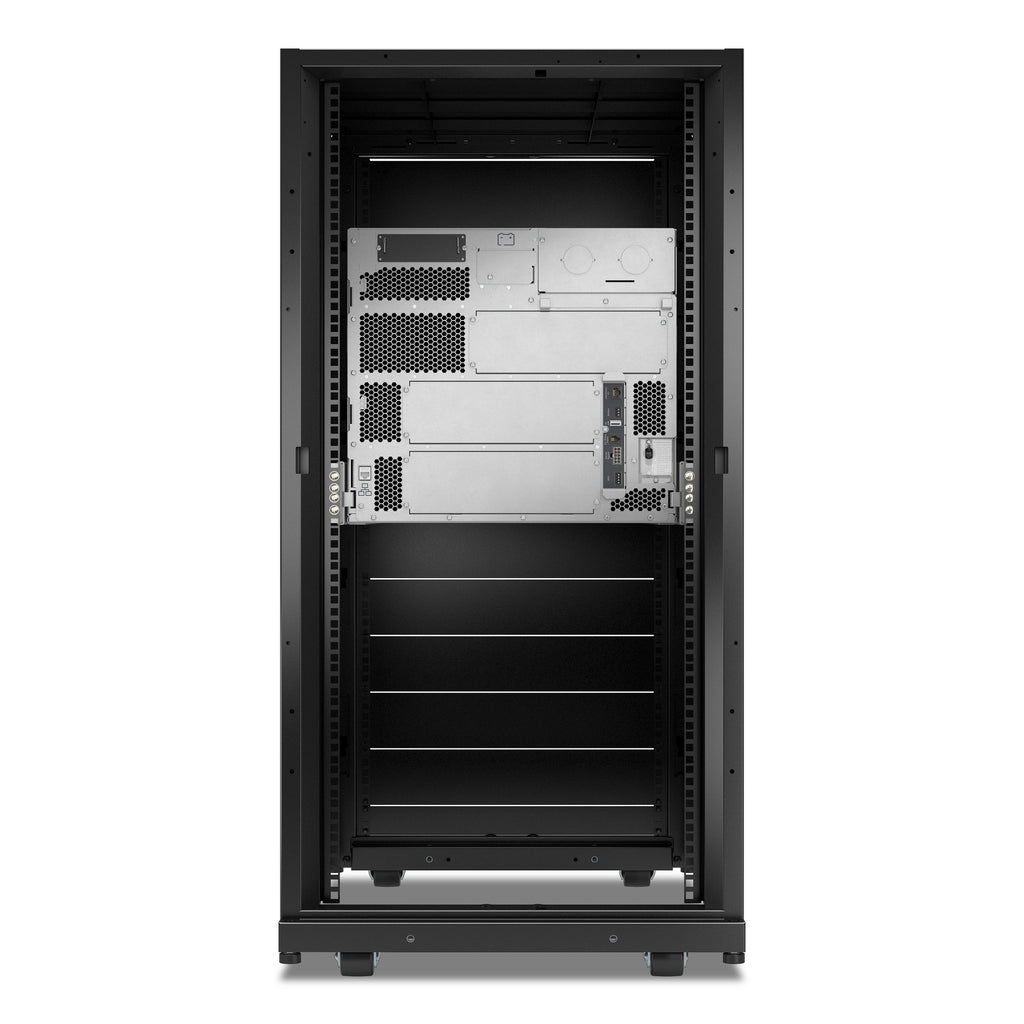

The APC Smart-UPS Modular Ultra 10kW (SRYL10K15XLT24) delivers industry-leading power protection in a compact 24U tower format, scalable up to 15kW with included 2x (5kW) power modules and battery chassis. With up to 50% smaller footprint and live-swap design, it maximizes rack space while ensuring continuous uptime. Engineered for edge and distributed IT environments, this lithium-ion UPS offers advanced energy efficiency, embodied carbon reduction, and integrated network management with a 1-year subscription.
| Category | Details |
|---|---|
| SKU / Model | SRYL10K15XLT24 |
| Form Factor | Tower, 24U |
| Power Capacity | 10kW (scalable to 15kW) |
| Output Voltage | 120V / 240V AC |
| Input Voltage | 208V / 240V AC |
| Topology | On-Line, Double Conversion |
| Power Modules Installed | 2 (5kW each) |
| Battery Modules Installed | 2 |
| Battery Type | Lithium-ion (Li-Ion) |
| Battery Design Life | 8–10 years |
| Run Time @ Full Load | 5 min 35 sec at 10,000W |
| Input Connection | Hard Wire 4-wire (2PH+N+G) |
| Max Input Current/Phase | 51A |
| Efficiency | ENERGY STAR V2.0 Certified |
| Bypass | Internal Static Bypass |
| User Interface | Touchscreen LCD |
| Management | Network Management Card (1-year license) |
| Color | Black and Silver |
| Dimensions (HxWxD) | 47.2 x 23.6 x 35.4 in (1198 x 600 x 900 mm) |
| Net Weight | 194 kg (427.7 lbs) |
| Operating Temp | 0–40 °C (32–104 °F) |
| Acoustic Level | 68 dB |
| Certifications | ENERGY STAR V2.0 (USA) |
| Emergency Power Off (EPO) | Yes |
| Warranty | 5-Year Factory Warranty |
| GTIN | 731304622116 |
