Description

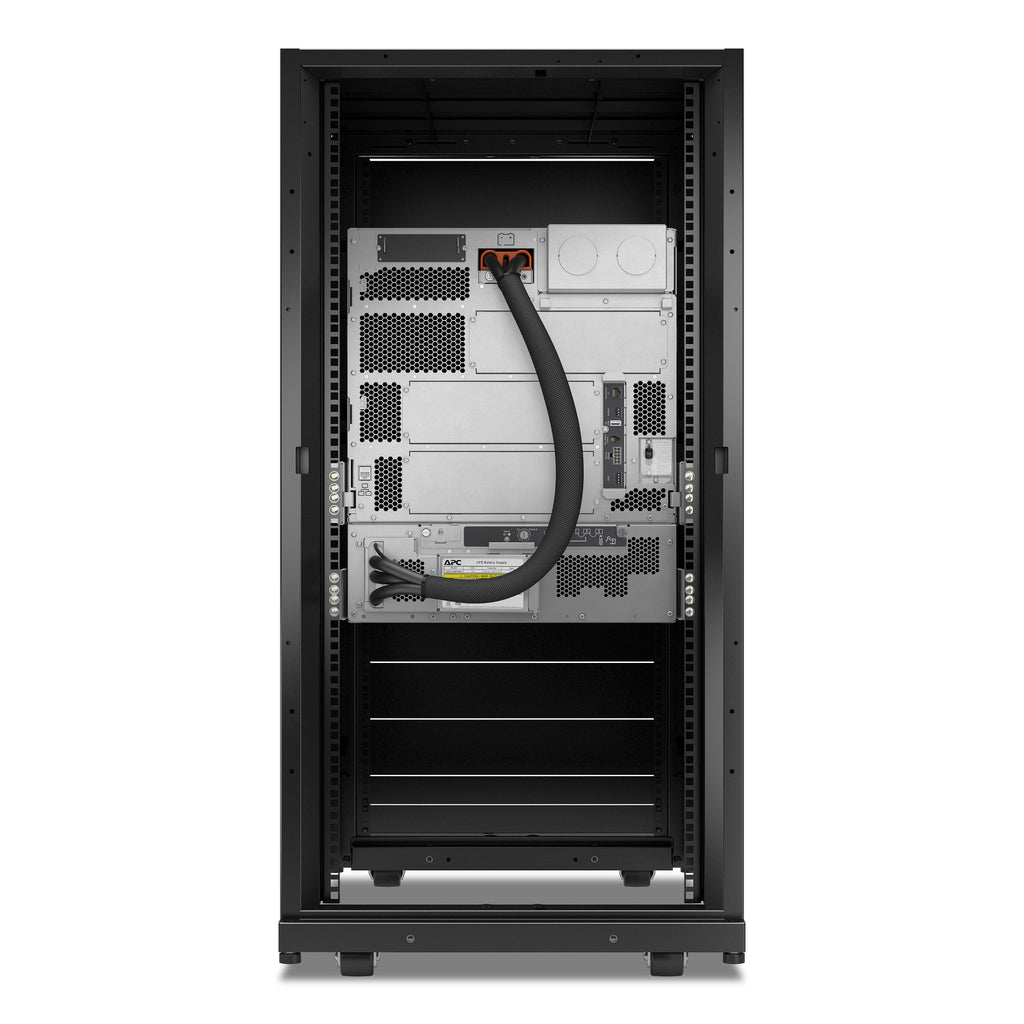

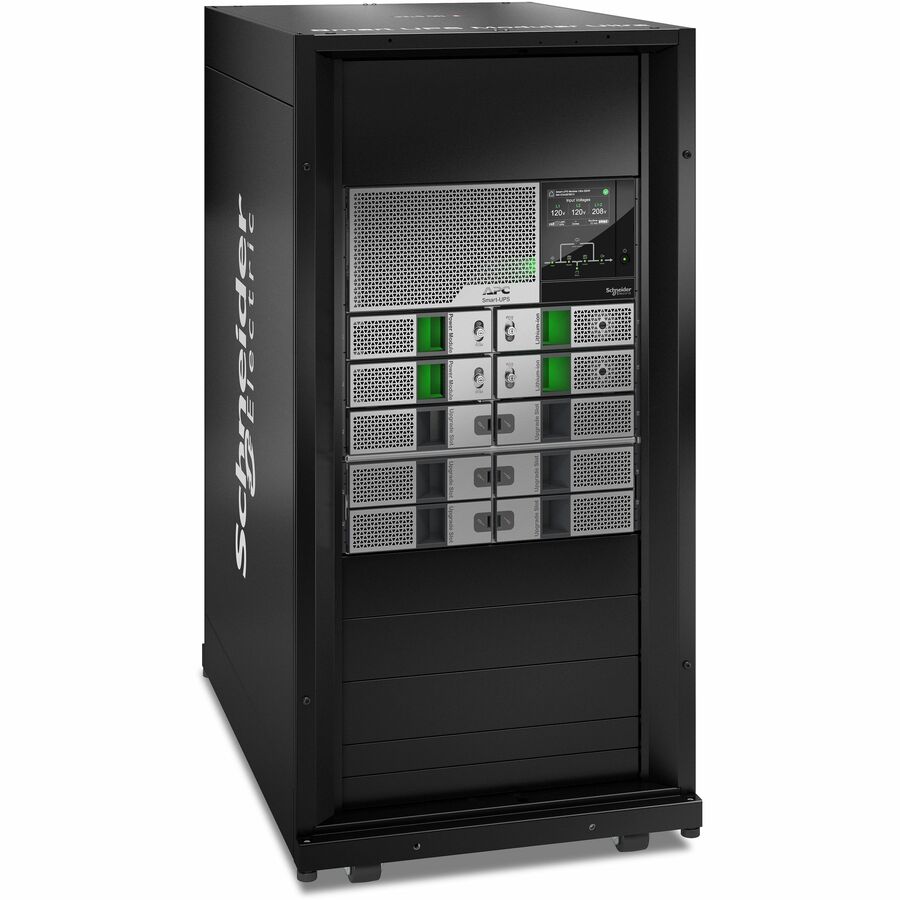

The APC Smart-UPS Modular Ultra SRYL10K20XLT24 is a compact 24U tower UPS solution offering scalable single-phase power protection from 10kW up to 20kW. Designed for edge environments, it includes two 5kW power modules and two lithium-ion battery modules, with N+1 redundancy support. Its modular, preconfigured chassis enables quick liveswap upgrades and installation flexibility. Featuring a touch-screen LCD, embedded network management card, and the industry's leading sustainability profile, it helps optimize space, performance, and energy use in mission-critical IT setups.
| Category | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
| Form Factor | Tower, 24U |
| Scalability | 10kW base (2x 5kW), scalable to 20kW |
| Battery Type | Lithium-Ion (Li-Ion) |
| Runtime Extension | Not extendable |
| Preinstalled Modules | 2 Power Modules, 2 Battery Modules |
| Voltage - Input | 208V / 240V AC |
| Voltage - Output | 120V / 240V AC |
| Power Rating | 10,000 VA / 10,000 W |
| Frequency | 40 - 70 Hz |
| Bypass Type | Built-in Bypass |
| Overload Capacity | 60s @ 125%, 30s @ 150% |
| Output Waveform | Sine Wave |
| Mounting | Floor-standing, Front Access |
| Interface | Touch Screen LCD |
| Management | Network Management Card (NMC) included |
| Color | Black and Silver |
| Certifications | ENERGY STAR V2.0 (USA) |
| Noise Level | 68 dB |
| Operating Temp. | 0 to 40 °C (32 to 104 °F) |
| Dimensions (H x W x D) | 1198 x 600 x 900 mm (47.2 x 23.6 x 35.4 in) |
| Net Weight | 214.6 kg (473.1 lb) |
| Warranty | 5 Years |
| GTIN | 731304622079 |
