Description

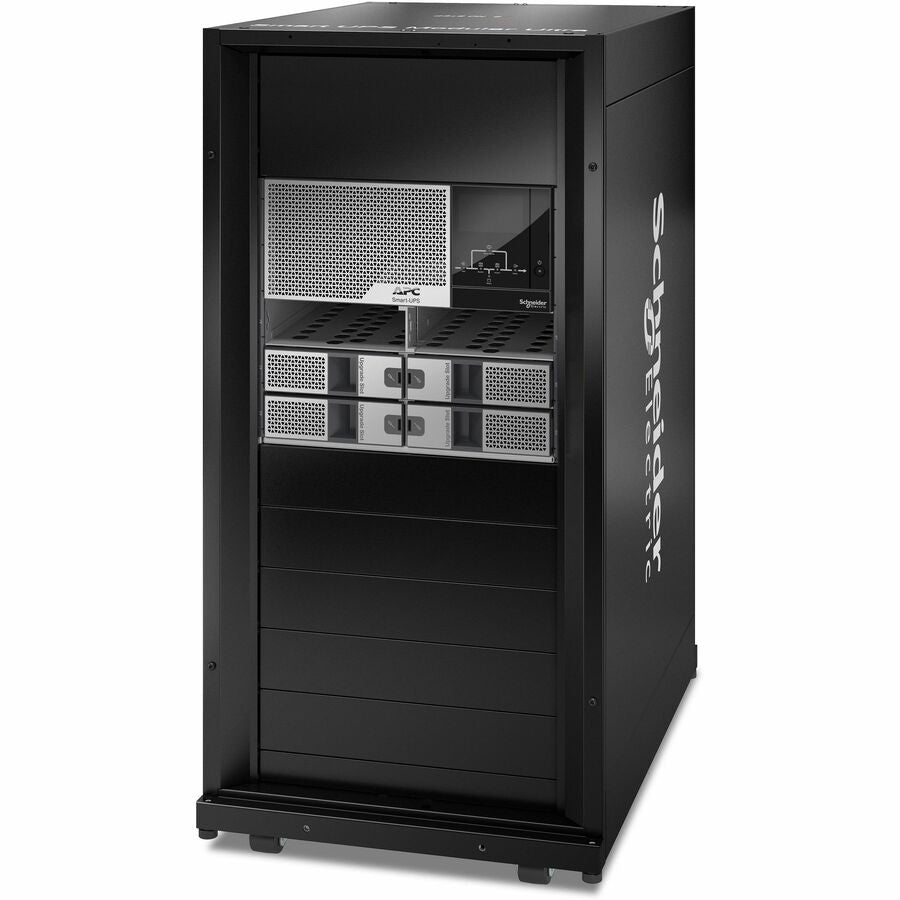

The APC Smart-UPS Modular Ultra SRYLF15T24 delivers up to 15kW of scalable power in a compact 24U tower frame, designed for demanding edge and critical IT environments. Featuring high-efficiency online double conversion topology, integrated N+1 redundancy, and support for genuine APC power modules (SRYL5KPMT, SRYLBM), this lithium-ion UPS frame ensures enhanced uptime, longer battery life, and reduced footprint. Built with a 100A input, built-in bypass, and flexible installation options, this model is ideal for modern edge deployments requiring space-saving, modular backup power solutions.
| Category | Details |
|---|---|
| Model | SRYLF15T24 |
| Product Type | Tower UPS Frame |
| Power Capacity | Up to 15kW, scalable to 20kW (with additional modules) |
| Chassis Height | 24U |
| Topology | On-Line, Double Conversion |
| Redundancy | N+1 Built-In Redundancy |
| Input Voltage | 208V AC |
| Output Voltage | 240V AC (User-selectable 208/240V) |
| Input Frequency | 40–70 Hz |
| Input Connector | Hard Wire 4-wire (2PH+N+G) |
| Max Input Current | 51A per phase |
| Battery Type | Lithium-Ion (Li-Ion) |
| Preinstalled Modules | 2x 5kW Power Modules Installed |
| Compatible Modules | SRYL5KPMT, SRYLBM (sold separately) |
| Mounting Options | Tower or Rack (with kit) |
| Dimensions (H x W x D) | 47.2 in x 23.6 in x 35.4 in (1198 x 600 x 900 mm) |
| Net Weight | 342.2 lb / 155.2 kg |
| Color | Black and Silver |
| Bypass Type | Built-In Bypass |
| Overload Operation | 60 sec @ 125%, 30 sec @ 150% |
| Load Power Factor | 0.5 leading to 0.5 lagging |
| Warranty | 5-Year Repair or Replace |
| GTIN | 731304622321 |
| Package |
