Description

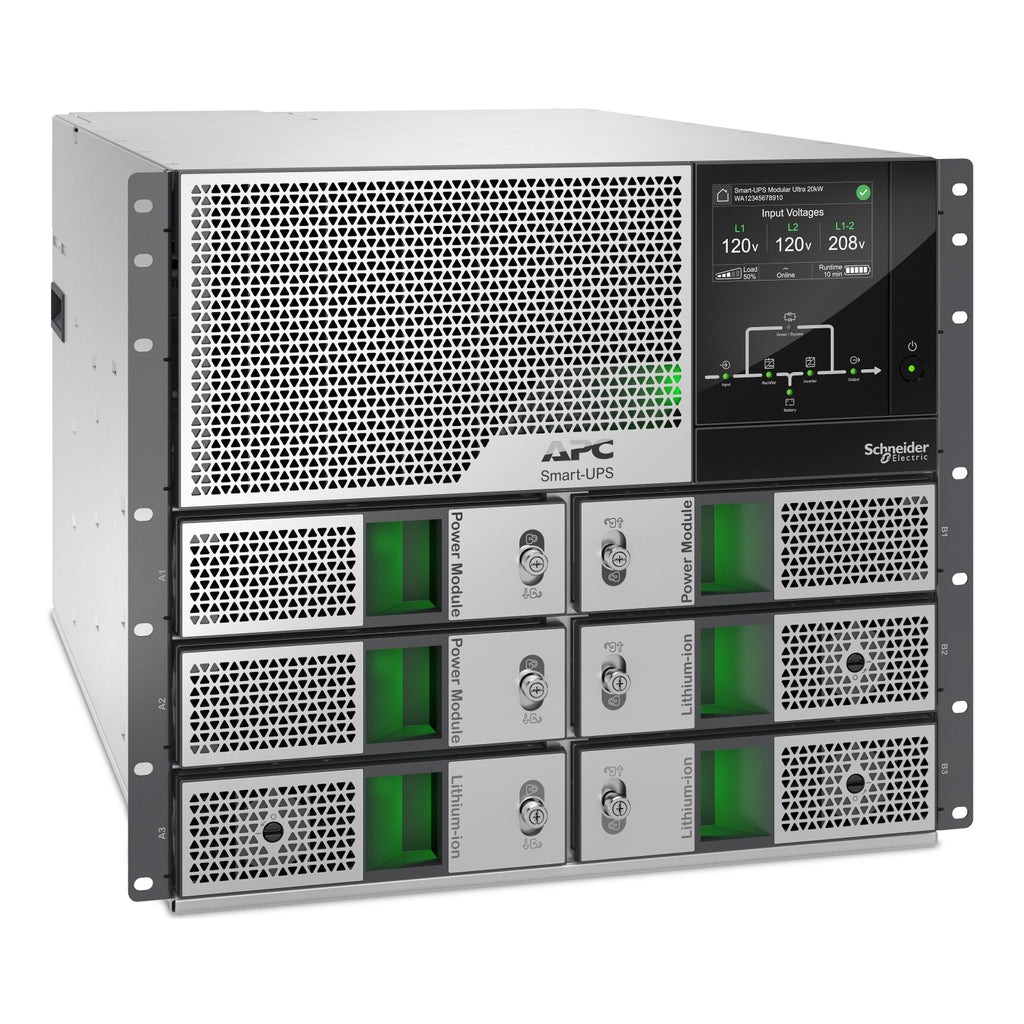

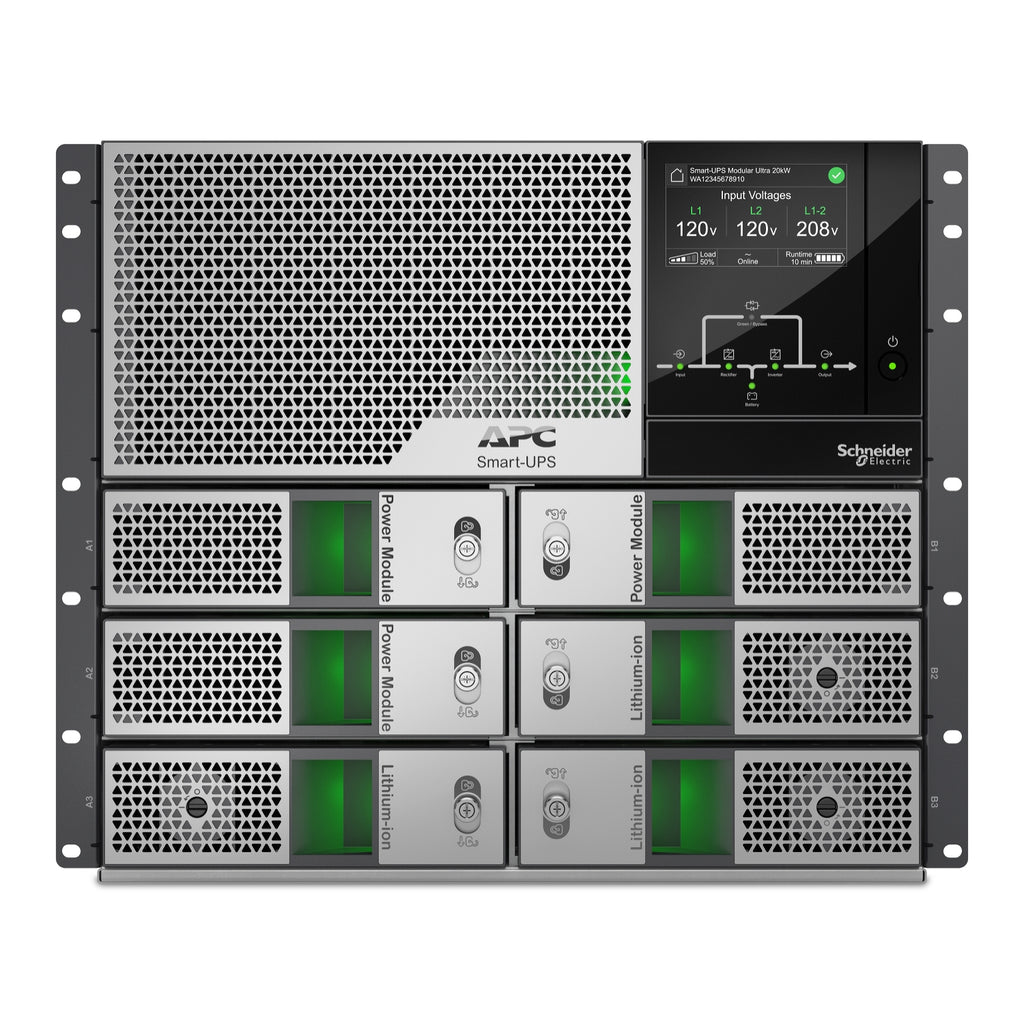

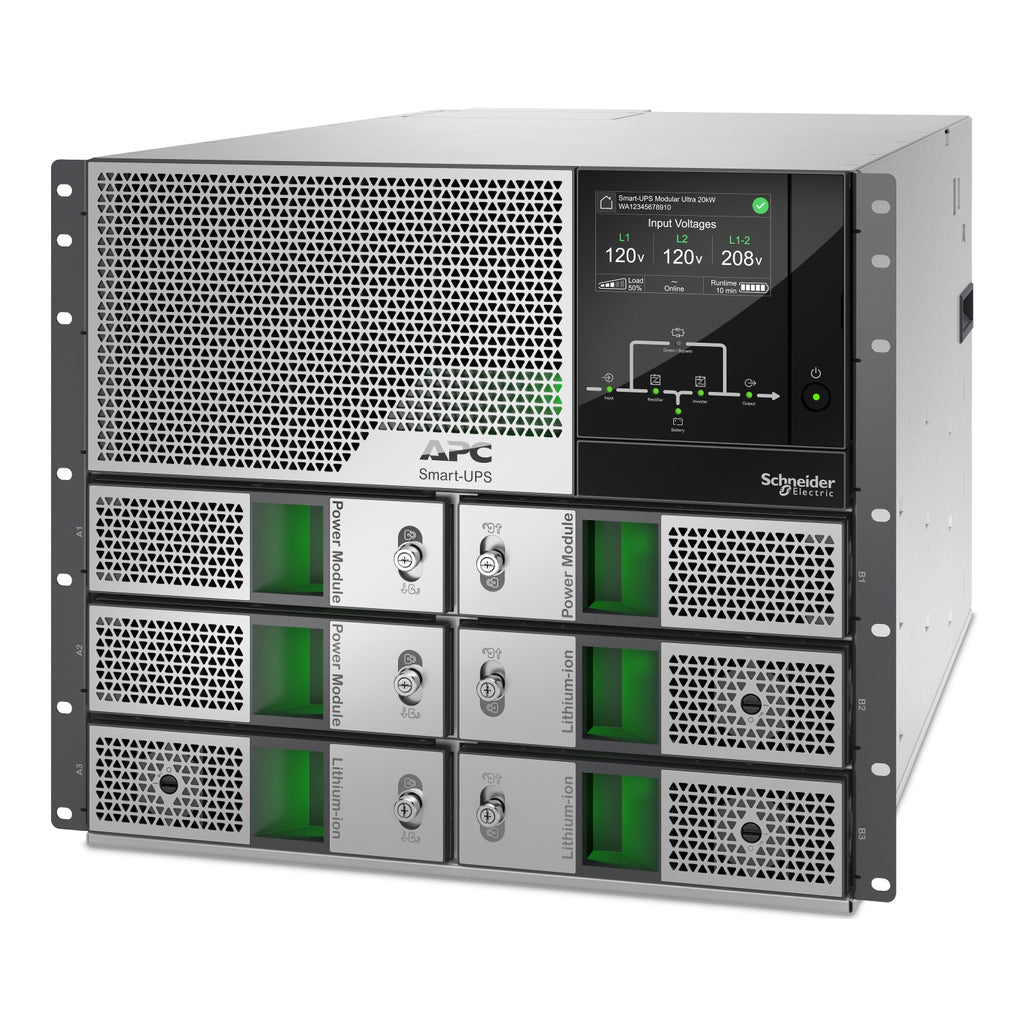

Experience next-gen power protection with the APC Smart-UPS™ Modular Ultra. This scalable 15kW UPS system, housed in a compact 9U rackmount chassis, is designed to grow with your business—supporting expansion to 20kW N+1 with modular 5kW power and battery units. Engineered for high efficiency, the lithium-ion batteries offer extended runtime, reduced weight, and a smaller footprint—cutting installation effort and total cost of ownership. Equipped with a 1-year secure network management card, the system supports real-time monitoring and remote management. Ideal for data centers, edge computing, and enterprise IT.
Additional power (SRYL5KPMT) and battery modules (SRYLBM) sold separately. Use only genuine APC battery modules.
| Category | Details |
|---|---|
| Model | SRYL15K20RMXLT |
| Power Capacity | 15kW scalable to 20kW N+1 |
| Form Factor | Rackmount 9U |
| Chassis Rating | 125A |
| Battery Type | Lithium-Ion (Li-Ion) |
| Runtime | 5 min 46 sec @ full load |
| Included Modules | 3 Power Modules, 3 Battery Modules |
| Redundancy | Yes (N+1 support) |
| Mounting Options | Front, Rear, Side / Horizontal / 2-post ready |
| Dimensions (HxWxD) | 15.4 x 17.3 x 27.6 in (390 x 440 x 700 mm) |
| Weight | 243.6 lbs (110.5 kg) |
| Input Voltage | 208V / 240V |
| Output Voltage | 120V / 208V / 240V |
| Input Connector | Hard Wire 4-wire (2PH+N+G) |
| Frequency | 40 - 70 Hz |
| Overload Capacity | 125% for 60s / 150% for 30s |
| Topology | On-Line Double Conversion |
| Waveform | Pure Sine Wave |
| Management | Network Management Card (1-Year Subscription) |
| User Interface | Touch Screen LCD |
| Certifications | ENERGY STAR V2.0, CULus, FCC |
| Environmental | 0–40°C, 0–3000m altitude |
| Acoustic Level | 68 dB |
| Warranty | 5 Years |
| GTIN | 731304420095 |
